3-6 Features and controls
3
NOTE
The key may not operate properly when it is near an
object or facility that emits strong electromagnetic waves.

Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.

A system failure is suspected when the ignition switch is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.
Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from an authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to an authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you need to register the ID code to the vehicle.
Registering the ID code can be done by an authorized
Mitsubishi Motors dealer. Or it can be done by yourself (except
for vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have an authorized Mitsubishi Motors dealer
register the ID code, take your vehicle and all remaining keys
to an authorized Mitsubishi Motors dealer.NOTE
You are provided with two keys, but you may register up
to eight keys.
WA R N I N G
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0142300US.book 6 ページ ２０１１年８月７日　日曜日　午前１０時４４分

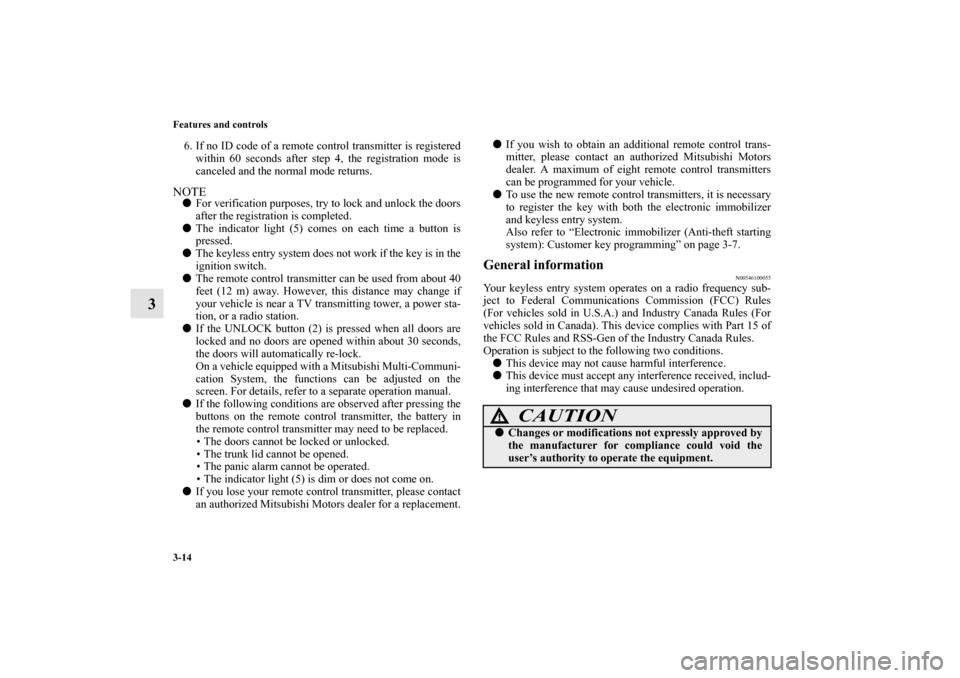

3-14 Features and controls
3
6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (5) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of eight remote control transmitters
can be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-7.
General information
N00546100055
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0142300US.book 14 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-17

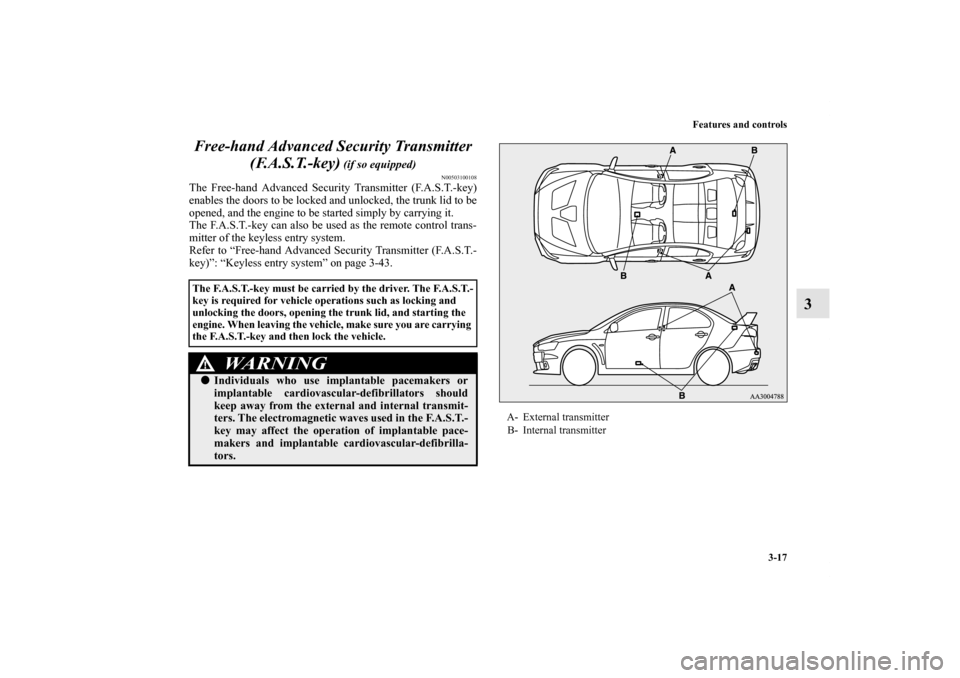

3 Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100108
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors to be locked and unlocked, the trunk lid to be
opened, and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key)”: “Keyless entry system” on page 3-43.The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors, opening the trunk lid, and starting the
engine. When leaving the vehicle, make sure you are carrying
the F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardiovascular-defibrillators should
keep away from the external and internal transmit-
ters. The electromagnetic waves used in the F.A.S.T.-
key may affect the operation of implantable pace-
makers and implantable cardiovascular-defibrilla-
tors.
A- External transmitter
B- Internal transmitter
BK0142300US.book 17 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-46 Features and controls
3
Setting of door unlock function
N00544600056
The door unlock function can be set to the following two con-
ditions.
Each time the door unlock function is set, a chime will sound to
tell you the condition of the door unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Using the panic alarm
N00544700044
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Number of
chimes
Condition
One chime All doors unlock
Two chimes Driver’s door unlock onlyBK0142300US.book 46 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-49
3
NOTE
The indicator light (5) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer F.A.S.T.-key programming” on page
3-41.
BK0142300US.book 49 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-258 Features and controls
3
Dome light (Front)/Reading lights
N00525800017
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.1- (DOOR)
The dome light comes on when any door is opened. After all
doors are closed, the dome light will stay on for approxi-
mately 30 seconds and then go off.
However, the light goes off immediately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for approximately 30 seconds then go
off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for approximately 30 seconds and then go off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0142300US.book 258 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-260 Features and controls
3
1- (OFF)
The dome light turns off.
2- (
)
The dome light comes on when any door is opened. After all
doors are closed, the dome light will stay on for approxi-
mately 30 seconds and then go off. However, the light goes
off immediately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for approximately 30 seconds then go
off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate for
approximately 30 seconds and then go off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (ON)
The dome light comes on.
BK0142300US.book 260 ページ ２０１１年８月７日　日曜日　午前１０時４４分
