2012 FORD FOCUS ELECTRIC fuse

Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left
side wheel well. Remove the fuse panel cover to gain access to the fuses.
The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Protected Components
F1 5A Telematics control unit
F2 10A Keyless vehicle module
F3 5A Keyless vehicle door handles
F4 25A Door control unit – front left
F5 25A Door control unit – front right
F6 25A Door control unit – rear left
F7 25A Door control unit – rear right
F8 — Not used
F9 25A Driver seat motor
F10 25A Rear window defroster
R4
R5
R6 R2
R1R3
F46
F28 F16
F15
F14
F13
F12
F11
F10
F9
F8
F7
F6
F5
F4
F3
F2
F1
F27
F26
F25
F24
F45
F44
F43
F42
F41
F40
F39
F38
F37
F36
F35
F23
F22
F21
F20
F19
F18
F17
F34
F33
F32
F31
F30
F29
Roadside Emergencies
279
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

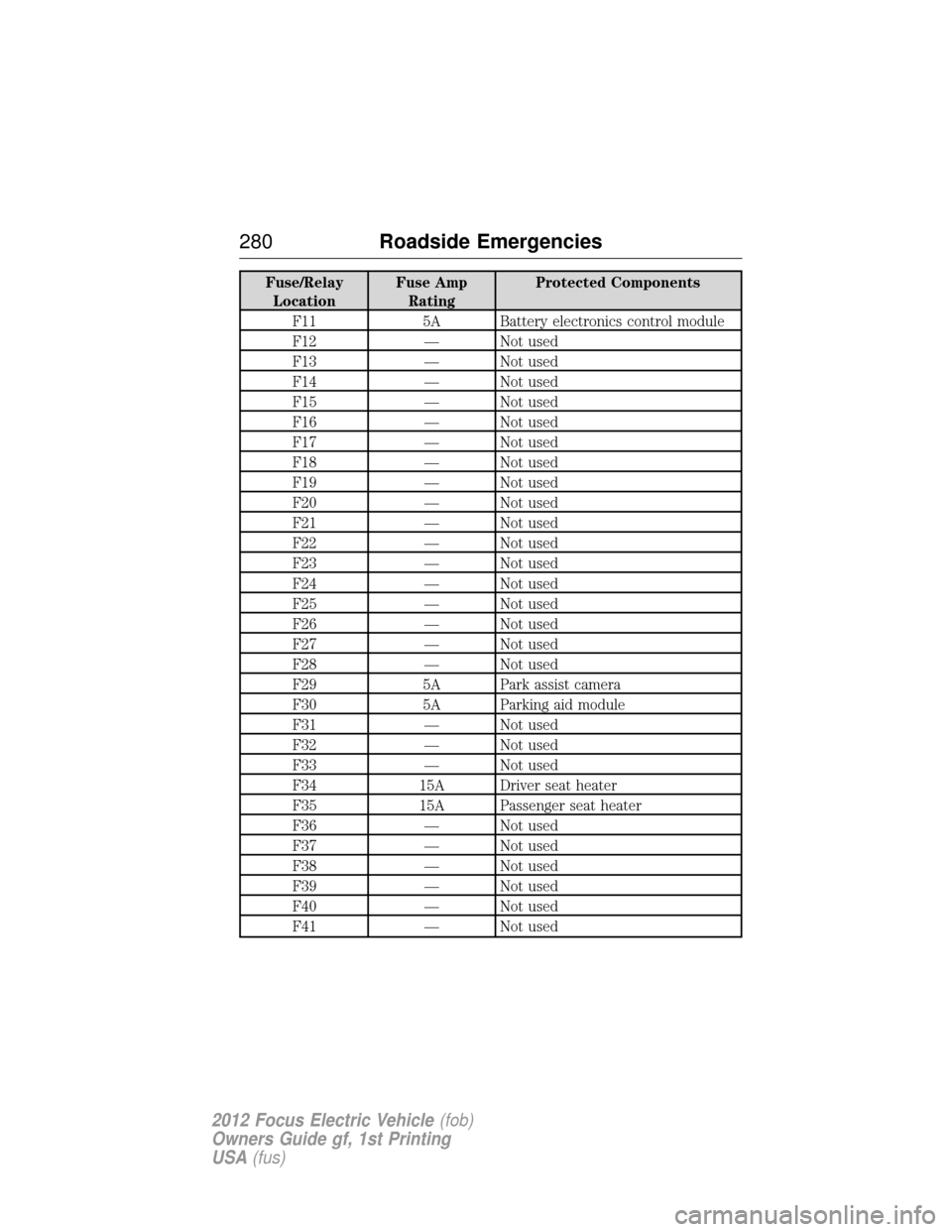

Fuse/RelayLocation Fuse Amp
Rating Protected Components
F11 5A Battery electronics control module
F12 — Not used
F13 — Not used
F14 — Not used
F15 — Not used
F16 — Not used
F17 — Not used
F18 — Not used
F19 — Not used
F20 — Not used
F21 — Not used
F22 — Not used
F23 — Not used
F24 — Not used
F25 — Not used
F26 — Not used
F27 — Not used
F28 — Not used
F29 5A Park assist camera
F30 5A Parking aid module
F31 — Not used
F32 — Not used
F33 — Not used
F34 15A Driver seat heater
F35 15A Passenger seat heater
F36 — Not used
F37 — Not used
F38 — Not used
F39 — Not used
F40 — Not used
F41 — Not used
280 Roadside Emergencies
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Fuse/RelayLocation Fuse Amp
Rating Protected Components
F42 — Not used
F43 — Not used
F44 — Not used
F45 — Not used
F46 — Not used
R1 — Rear 15 relay
R2 — Rear window defrost relay
R3 — Rear wiper relay
R4 — Not used
R5 — Not used
R6 — Not used
Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
56
57
58
59
60
61
62
63
6465
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
88
89
82
83
84
85
86
87
Roadside Emergencies 281
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Protected Components
56 20A Not used (spare)
57 — Not used
58 — Not used
59 5A Passive anti-theft transceiver
60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
61 20A Cigar lighter, Power point
62 5A Rain sensor module
63 — Not used
64 — Not used
65 10A Liftgate release
66 20A Not used (spare)
67 7.5A SYNC, Multifunction display,
Global positioning system module,
Compass
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Climate control
72 7.5A Steering wheel module
73 5A Datalink connector
74 15A Low beam headlamp supply
75 15A Not used (spare)
76 10A Reversing lamp supply,
Electrochromatic rear view mirror
77 20A Windshield and rear washer
supply
78 5A Ignition switch, Start button
282Roadside Emergencies
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Fuse/RelayLocation Fuse Amp
Rating Protected Components
79 15A Radio, Hazard light switch, Door
lock switch, Electronic finish
panel
80 20A Not used (spare)
81 5A Radio frequency receiver
82 20A Windshield and rear washer relay
83 20A Central locking
84 20A Unlock supply, Double lock
85 7.5A Front seat heater switch
86 10A Airbag module, Occupant
classification sensor, Passenger
airbag deactivation indicator
87 — Not used
88 — Not used
89 — Not used
Power Distribution Box
The power distribution box is located in the underhood compartment.
The power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING: Always remove the high voltage battery safety
connectors to make sure the high voltage batteries are
disconnected, and always disconnect the 12 volt (underhood) battery
before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
Roadside Emergencies 283
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

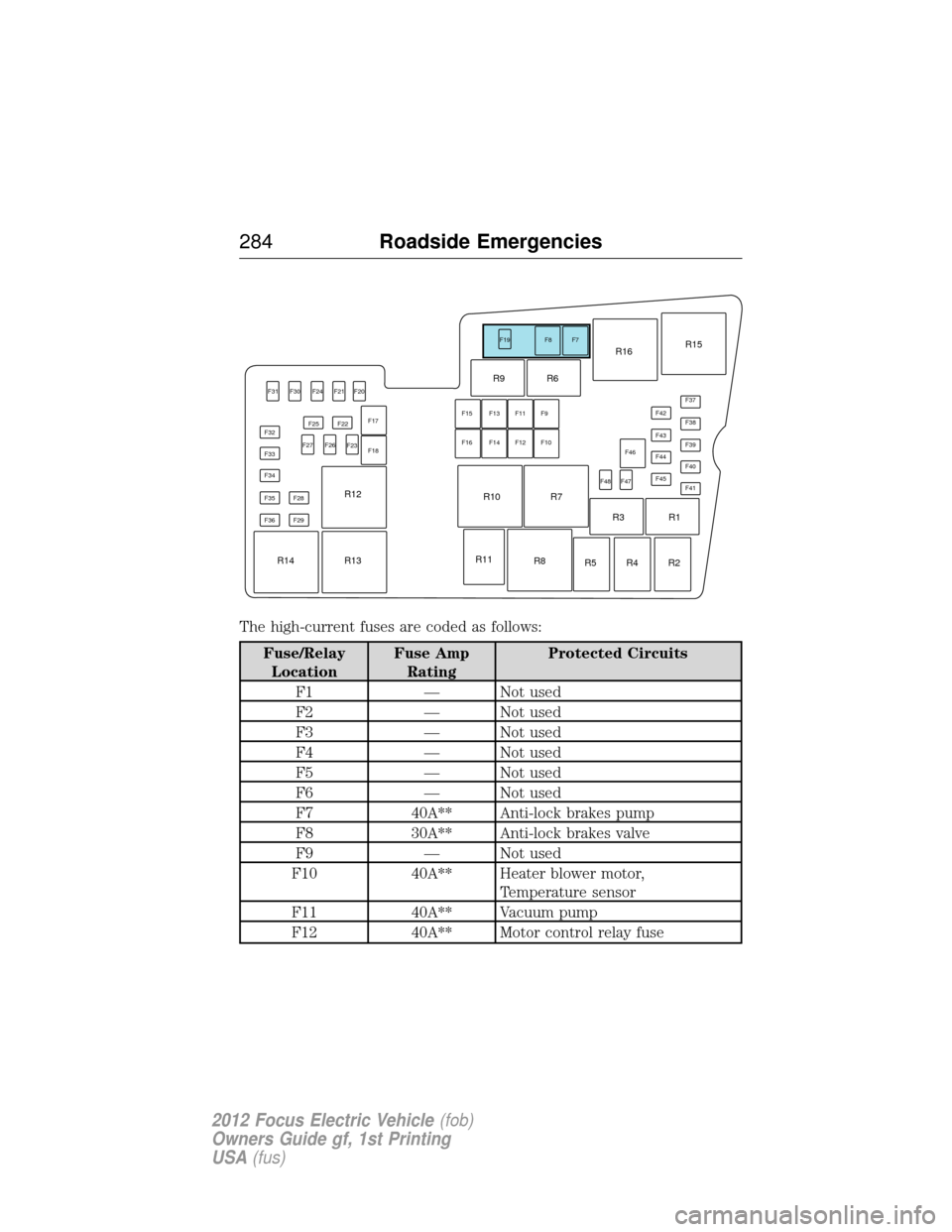

The high-current fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Protected Circuits
F1 — Not used
F2 — Not used
F3 — Not used
F4 — Not used
F5 — Not used
F6 — Not used
F7 40A** Anti-lock brakes pump
F8 30A** Anti-lock brakes valve
F9 — Not used
F10 40A** Heater blower motor,
Temperature sensor
F11 40A** Vacuum pump
F12 40A** Motor control relay fuse
F30
F31
F24 F21 F20
F25 F22 F23F17
R10R9 R6
F15
F19
F8 F7
F37
F38
F39
F40
F41
F43
F42
F44
F45
F46
F48
F47
F13 F11 F9
F16 F14 F12 F10
R11 R8R7 R16
R15
R3
R5 R4 R2 R1
F18
F26
F27
F32
F33
F34
F35 F28
F29
R12
R13
R14
F36
284 Roadside Emergencies
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

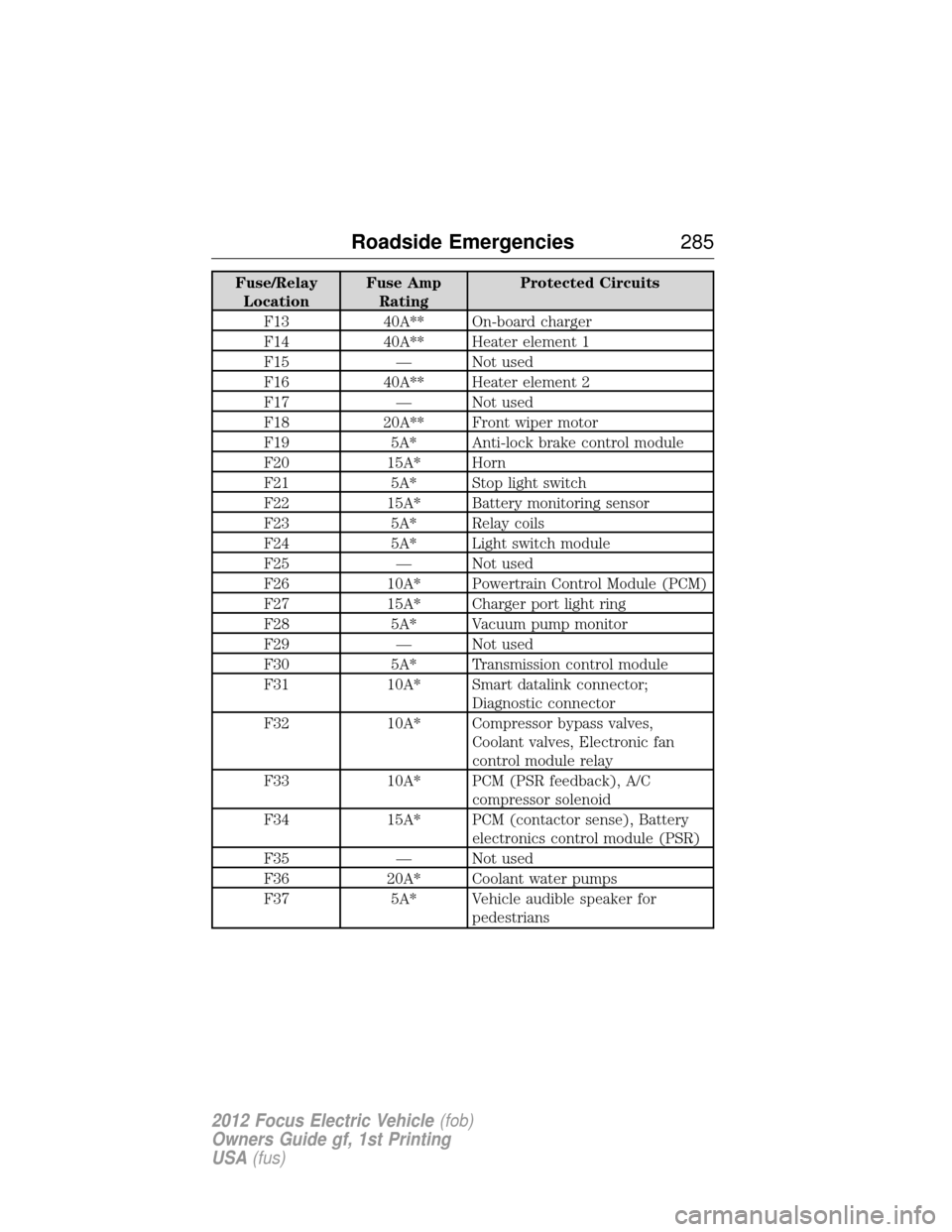

Fuse/RelayLocation Fuse Amp
Rating Protected Circuits
F13 40A** On-board charger
F14 40A** Heater element 1
F15 — Not used
F16 40A** Heater element 2
F17 — Not used
F18 20A** Front wiper motor
F19 5A* Anti-lock brake control module
F20 15A* Horn
F21 5A* Stop light switch
F22 15A* Battery monitoring sensor
F23 5A* Relay coils
F24 5A* Light switch module
F25 — Not used
F26 10A* Powertrain Control Module (PCM)
F27 15A* Charger port light ring
F28 5A* Vacuum pump monitor
F29 — Not used
F30 5A* Transmission control module
F31 10A* Smart datalink connector;
Diagnostic connector
F32 10A* Compressor bypass valves,
Coolant valves, Electronic fan
control module relay
F33 10A* PCM (PSR feedback), A/C
compressor solenoid
F34 15A* PCM (contactor sense), Battery
electronics control module (PSR)
F35 — Not used
F36 20A* Coolant water pumps
F37 5A* Vehicle audible speaker for
pedestrians
Roadside Emergencies 285
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

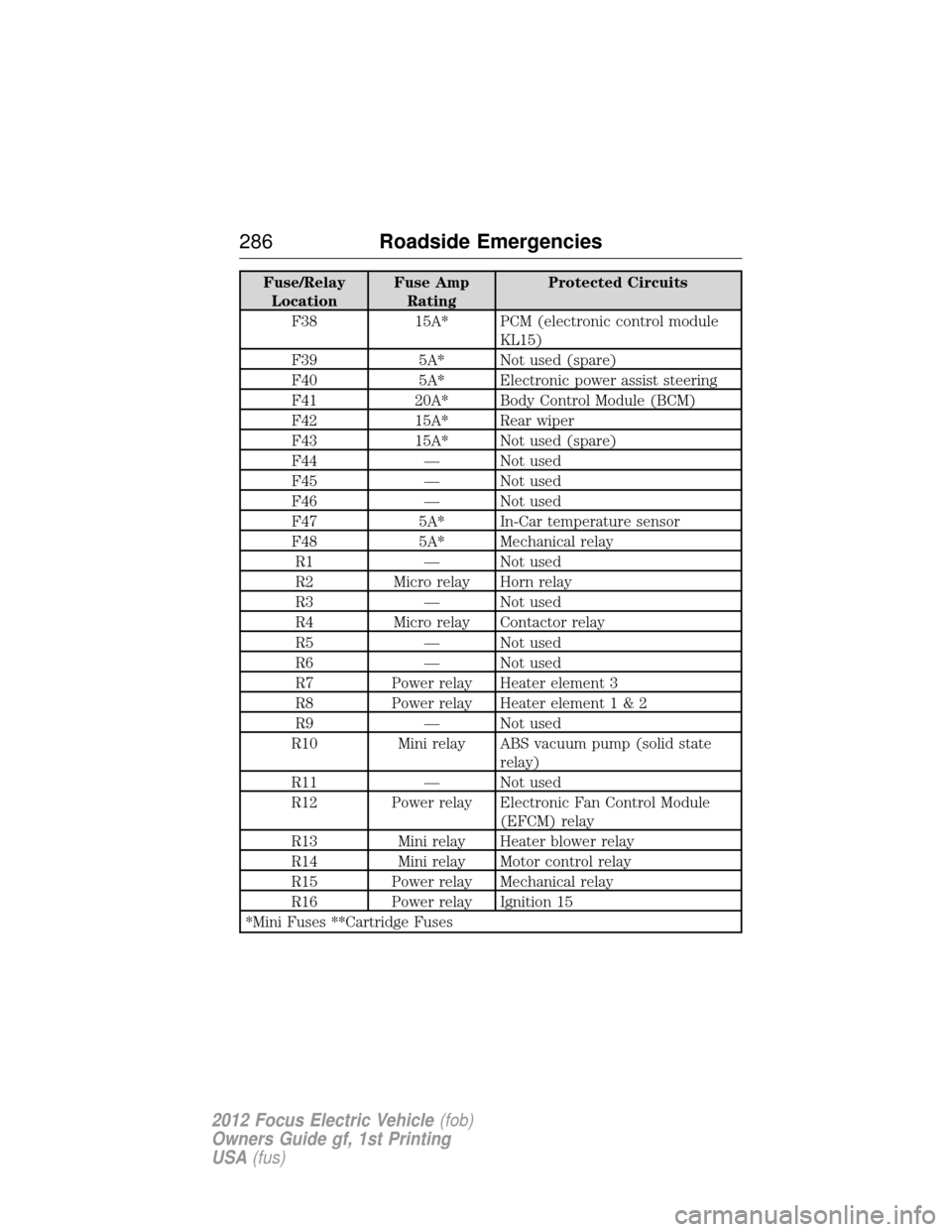

Fuse/RelayLocation Fuse Amp
