2012 DACIA SANDERO Owners Manual

overspeed buzzer .................................................. (current page)
control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.43
ENG_UD19017_6
Tableau de bord : afficheur et indicateurs (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Displays and indicators
Rev counter 1 (rpm × 1 000) Speedometer 2 (km or miles
per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the ve -
hicle is travelling in excess of 72 mph
(120 km/h).
Speedometer 2 Dual speed
scale (miles per hour and km
per hour)
(depending on vehicle)
2
DISPLAYS AND INDICATORS (1/2)
1

fuel level ................................................................ (current page)
1.44
ENG_UD19017_6
Tableau de bord : afficheur et indicateurs (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
DISPLAYS AND INDICATORS (2/2)
Fuel gauge 3
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light comes on.
Coolant temperature
indicator 4
The number of squares lit depends on
the engine coolant temperature. There
is no warning unless the last three
squares light up.
Multifunction display A
Total mileage recorder, distance trav -
elled trip mileometer, clock.
OR
Trip computer and warning
system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Multifunction key 5
– Display selection
By pressing the button you can shift
from the total mileage recorder, trip
mileometer and time or vice-versa.
– Resetting the trip mileage re -
corder
Once the trip mileage display is se -
lected, press and hold the button.
– Resetting the clock
Refer to the information on the
“Clock” in Section 1.
43
A
5

control instruments ............................... (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.45
ENG_UD20446_9
Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Trip computer and warning system
TRIP COMPUTER AND WARNING SYSTEM (1/4)
Display 1
General reset and trip
mileage recorder reset key 2
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button 2.
Display selection key 3
Keep pressing key 3 briefly to scroll
through the following information (de -
pending on the vehicle) in sequence:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) estimated range,
f) distance travelled,
g) average speed. Refer to the table on the following
pages showing display examples.
1
23
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.46
ENG_UD20446_9
Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing the
reset key you will notice that the range
increases as you travel. This range
takes into account the average fuel con-
sumption since the last time the reset
button was pressed. Therefore, the fuel
consumption may decrease when:
– the vehicle stops accelerating;
– the engine reaches its operat -
ing temperature (if the engine
was cold when the reset key was
pressed);
– driving from an urban area onto
the open road;
Therefore, if the average fuel con-
sumption decreases, the range
will increase. –
You may also notice that the aver -
age fuel consumption increases
when the vehicle is stationary and
the engine idling.
This is normal, since the computer
takes account of fuel used during
idling.
Manually resetting the journey param -
eters: with the display showing one of
the journey parameters, press button 2
until the display is reset.
Automatically resetting the journey pa-
rameters: the reset is automatic when
the capacity of one of the memories is
exceeded.
TRIP COMPUTER AND WARNING SYSTEM (2/4)
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

JauneNoirNoir texte
1.47
ENG_UD20446_9
Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
TRIP COMPUTER AND WARNING SYSTEM (3/4)
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of display selec -
tions by repeatedly press -
ing 3 Interpreting the display
a)
Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used since the last time the reset button was pressed.
d) Average fuel consumption since the last time the reset button was pressed.
This value is displayed after driving 400 metres and takes into account the
distance travelled and the fuel used since the last time the reset button was
pressed.

1.48
ENG_UD20446_9
Ordinateur de bord (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
TRIP COMPUTER AND WARNING SYSTEM (4/4)
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of display
selections by repeatedly
pressing 3 Interpreting the display
e)
Estimated range with remaining fuel
This range takes into account the average fuel consumption since the last time
the reset button was pressed.
The value is displayed after driving around 400 metres.
f) Distance travelled since the last reset.
g) Average speed since the last reset.
The value is displayed after driving around 400 metres.

lighting:exterior ............................................ (up to the end of the DU)
lights: dipped beam headlights ................................... (current page)
lights: side lights ......................................................... (current page)
lights: main beam headlights ...................................... (current page)
lights ..................................................... (up to the end of the DU)
signals and lights .................................. (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
1.49
ENG_UD18233_5
Éclairages et signalisations extérieures (B90 - L90 Ph2 - F90 Ph2\
- R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Exterior lighting and signals

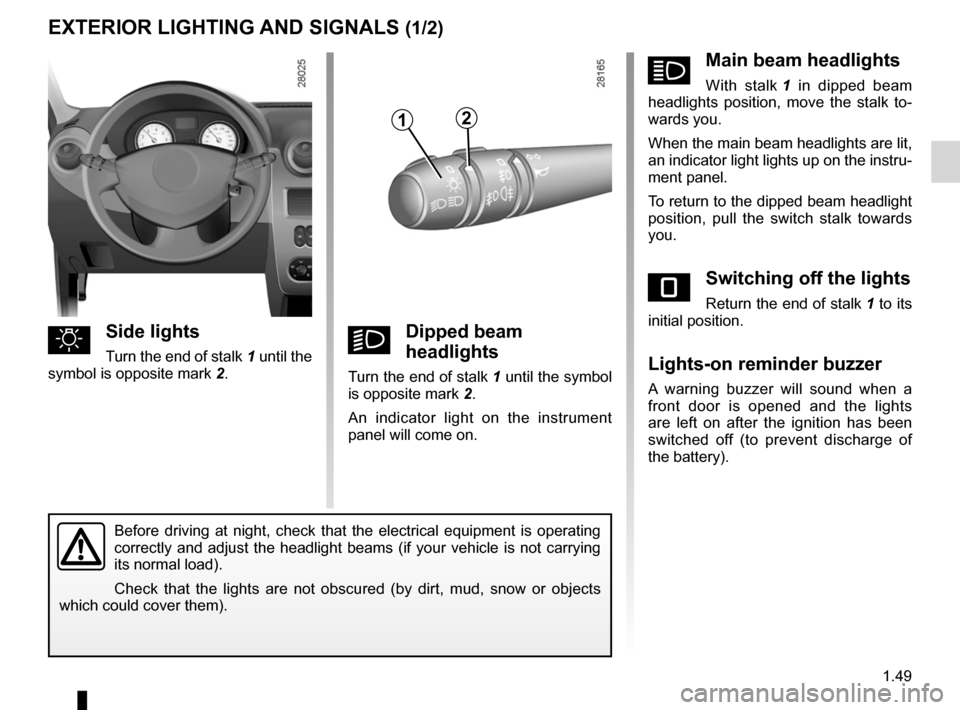

EXTERIOR LIGHTING AND SIGNALS (1/2)
uSide lights
Turn the end of stalk 1 until the
symbol is opposite mark 2.kDipped beam
headlights
Turn the end of stalk 1 until the symbol
is opposite mark 2.
An indicator light on the instrument
panel will come on.
áMain beam headlights
With stalk 1 in dipped beam
headlights position, move the stalk to -
wards you.
When the main beam headlights are lit,
an indicator light lights up on the instru-
ment panel.
To return to the dipped beam headlight
position, pull the switch stalk towards
you.
eSwitching off the lights
Return the end of stalk 1 to its
initial position.
Lights-on reminder buzzer
A warning buzzer will sound when a
front door is opened and the lights
are left on after the ignition has been
switched off (to prevent discharge of
the battery).
Before driving at night, check that the electrical equipment is operating
correctly and adjust the headlight beams (if your vehicle is not carrying
its normal load).
Check that the lights are not obscured (by dirt, mud, snow or objects
which could cover them).
12

warning buzzer ...................................................... (current page)
fog lights ................................................................ (current page)
lights: fog lights .......................................................... (current page)
1.50
ENG_UD18233_5
Éclairages et signalisations extérieures (B90 - L90 Ph2 - F90 Ph2\
- R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1

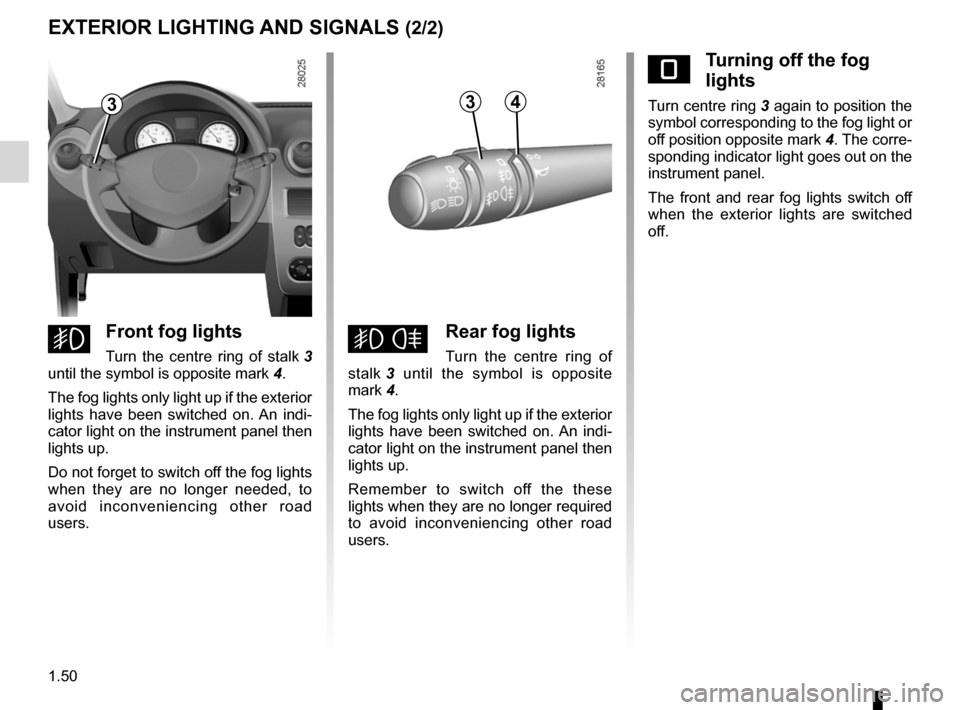

EXTERIOR LIGHTING AND SIGNALS (2/2)
eTurning off the fog
lights
Turn centre ring 3 again to position the
symbol corresponding to the fog light or
off position opposite mark 4. The corre-
sponding indicator light goes out on the
instrument panel.
The front and rear fog lights switch off
when the exterior lights are switched
off.
gFront fog lights
Turn the centre ring of stalk 3
until the symbol is opposite mark 4.
The fog lights only light up if the exterior
lights have been switched on. An indi -
cator light on the instrument panel then
lights up.
Do not forget to switch off the fog lights
when they are no longer needed, to
avoid inconveniencing other road
users.hRear fog lights
Turn the centre ring of
stalk 3 until the symbol is opposite
mark 4.
The fog lights only light up if the exterior
lights have been switched on. An indi -
cator light on the instrument panel then
lights up.
Remember to switch off the these
lights when they are no longer required
to avoid inconveniencing other road
users.
