Feux arrière : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Turn the bulb holder 9 a quarter of a
turn, release it and take out the bulb.
Bulb type: P 21 W.
REAR LIGHTS: changing bulbs (2/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
High-level brake light 7The bulb for the high-level brake light 7
may be accessed through the luggage
compartment.
Carefully unclip the bulb holder by
pressing on the tabs 8. Number plate light 10
Release it using a flat-blade screw -
driver tool or similar.
Unclip the lens 11 from the bulb holder
to gain access to the bulb.
Bulb type: W 5 W.
7
89
11
10

5.18
ENG_UD17931_4
Répétiteurs latéraux : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Side indicator lights
INDICATOR LIGHTS: changing bulbs
Unclip the indicator light 1 (using a flat-
blade screwdriver or similar). Turn bulb holder
2 a quarter of a turn
and take out the bulb.
Bulb type with white indicator light:
WY5W.
Bulb type with orange indicator
light: W5W.
1
2

changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.19
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Interior lights
INTERIOR LIGHTS: changing bulbs (1/3)
12
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Courtesy light
Unclip lens 1 using a flat-blade screw -
driver or similar.
Remove the bulb concerned .Remove the bulb concerned.
Bulb type 2: W5W.

5.20
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte
INTERIOR LIGHTS: changing bulbs (2/3)
Press tab 4 to release lens 6 and
access bulb 5.
Bulb type: W5W.
4
3
Glove box light(depending on vehicle)
Unclip light 3 using a flat-blade screw -
driver or similar, by pressing on the tab
to move the light towards the inside of
the unit.
Disconnect the light.
56

JauneNoirNoir texte
5.21
ENG_UD17932_4
Eclaireurs intérieurs : remplacement des lampes (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
INTERIOR LIGHTS: changing bulbs (3/3)
Press tab 7 to release lens 9 and
access bulb 8.
Bulb type: W5W.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
7
6
89
Luggage compartment light
Unclip light 6 using a flat-blade screw -
driver or similar, by pressing on the tab
to move the light towards the inside of
the luggage compartment.

fuses ..................................................... (up to the end of the DU)
advice on antipollution .......................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
5.22
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
Jaune NoirNoir texte
Fuses
FUSES (1/3)
1
A
Passenger compartment fuses
If any electrical component does not
work, check the condition of the fuses.
Unclip flap A using notch 1 to help you.
Use the fuse allocation label on the
back of flap A to identify the fuses.
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Tweezers 2
Disconnect the fuse using tweezers 2 ,
on the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Check the fuse in question and replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment using
an excessive amount of current.
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer .
B2

JauneNoirNoir texte
5.23
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5

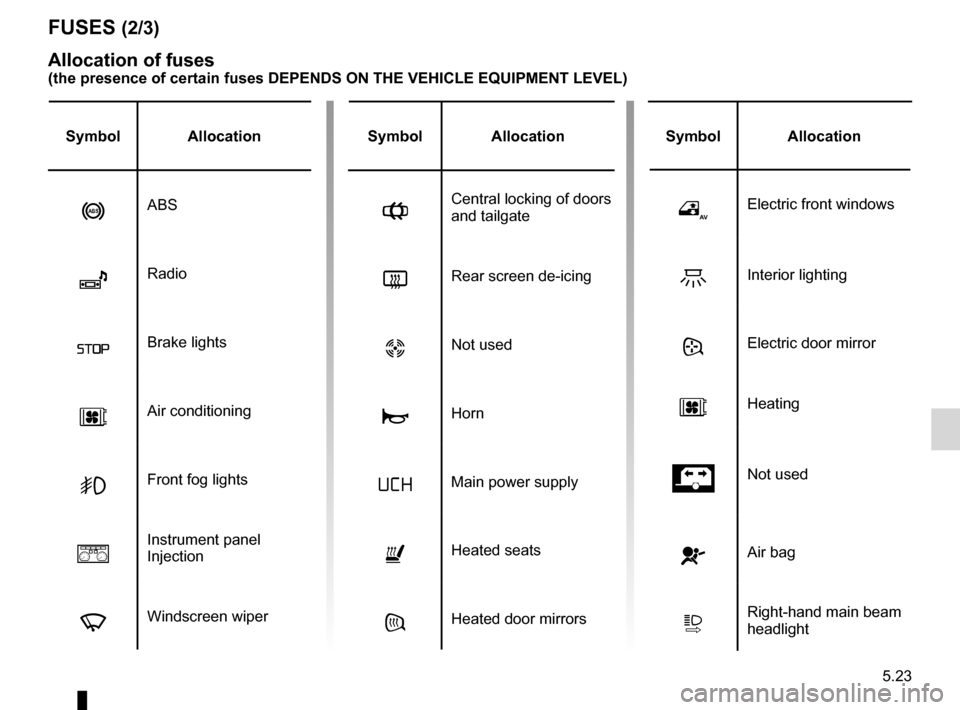

FUSES (2/3)
Allocation of fuses(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
Symbol Allocation
nABS
îRadio
ßBrake lights
àAir conditioning
GFront fog lights
aInstrument panel
Injection
fWindscreen wiper
Symbol Allocation
]Central locking of doors
and tailgate
CRear screen de-icing
ÙNot used
ÌHorn
ôMain power supply
ñHeated seats
sHeated door mirrors
SymbolAllocation
ḽElectric front windows
ZInterior lighting
eElectric door mirror
àHeating
àNot used
ÅAir bag
PRight-hand main beam
headlight

5.24
ENG_UD22587_8
Fusibles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_5
FUSES (3/3)
Allocation of fuses
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
Symbol Allocation
QLeft-hand main beam
headlight
LLeft-hand dipped beam
headlight
TRight-hand dipped
beam headlight
VRight-hand side light
YLeft-hand side light
FRear fog light
ḼElectric rear windows
SymbolAllocation
qEngine immobiliser
ËReversing light
uPower-assisted steering
iAutomatic gearbox
GAS fuel
