2012 DACIA SANDERO Owners Manual

air conditioning ..................................... (up to the end of the DU)
heating system ..................................... (up to the end of the DU)
heating and air conditioning system ..... (up to the end of the DU)
ventilation heating and air conditioning system (up to the end of the DU)
air conditioning ...................................................... (current page)
3.9
ENG_UD18246_14
Air conditionné : informations et conseils utilisation (B90 - U90 - \
L90 Ph2 - F90 Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Air conditioning: information and advice on use
AIR CONDITIONING: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with air condition -
ing with no automatic mode, switch
off the system when it is not re -
quired.
Advice for reducing consumption
and helping to preserve the envi-
ronment
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine. Operating faults
As a general rule, contact your ap-
proved dealer in the event of an op-
erating fault.
– Reduction in de-icing, demist -
ing or air conditioning per -
formance.
This may be caused by the pas-
senger compartment filter car -
tridge becoming clogged.
– No cold air is being produced .
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Do not open the refriger -
ant fluid circuit. The fluid
may damage eyes or skin.Presence of water under the ve -
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.Maintenance
Refer to the Maintenance Service
Booklet for your vehicle for the in -
spection frequency.

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
3.10
ENG_UD18207_5
Eclairage intérieur (B90 - L90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_3

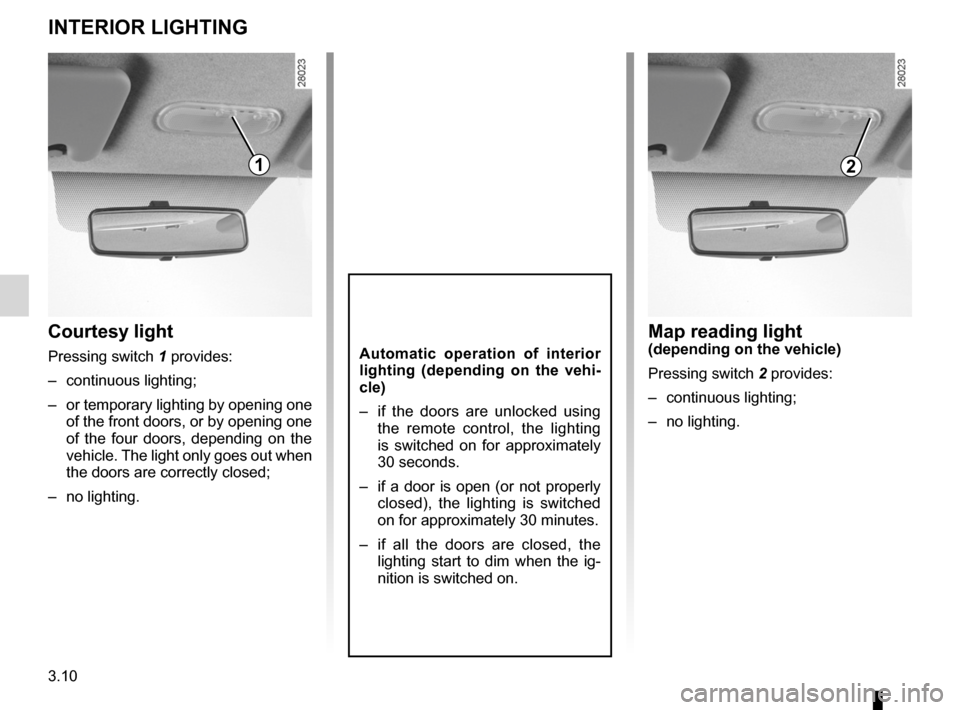

Interior lighting
INTERIOR LIGHTING
Courtesy light
Pressing switch 1 provides:
– continuous lighting;
– or temporary lighting by opening one
of the front doors, or by opening one
of the four doors, depending on the
vehicle. The light only goes out when
the doors are correctly closed;
– no lighting.Automatic operation of interior
lighting (depending on the vehi -
cle)
– if the doors are unlocked using
the remote control, the lighting
is switched on for approximately
30 seconds.
– if a door is open (or not properly
closed), the lighting is switched
on for approximately 30 minutes.
– if all the doors are closed, the
lighting start to dim when the ig-
nition is switched on.
Map reading light(depending on the vehicle)
Pressing switch 2 provides:
– continuous lighting;
– no lighting.
12

electric windows ................................... (up to the end of the DU)
3.11
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3

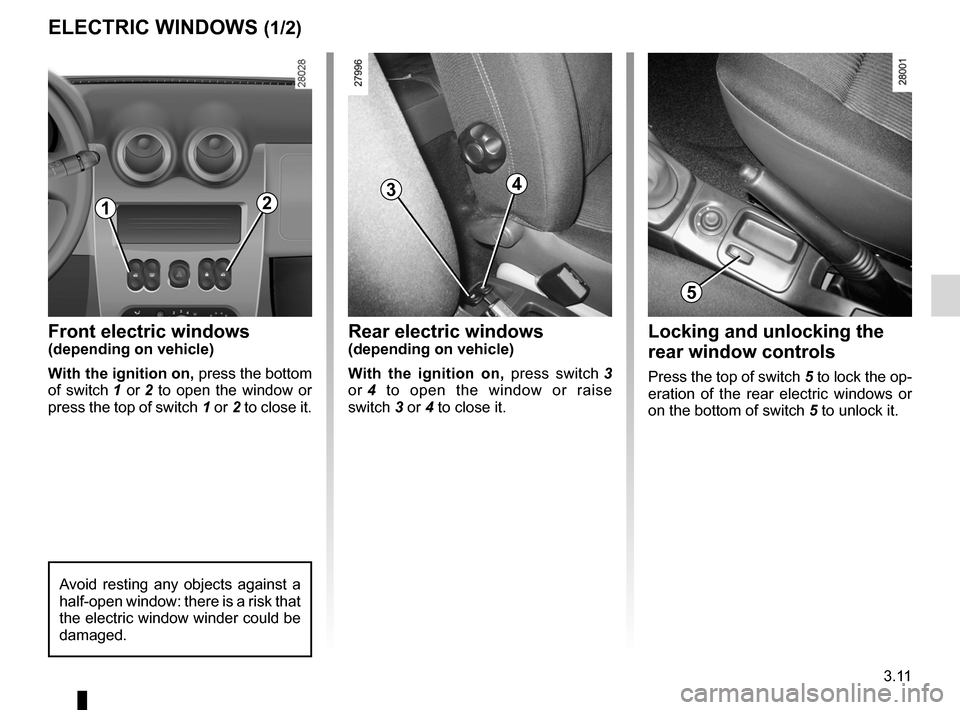

Electric windows
ELECTRIC WINDOWS (1/2)
Front electric windows
(depending on vehicle)
With the ignition on, press the bottom
of switch 1 or 2 to open the window or
press the top of switch 1 or 2 to close it.Rear electric windows(depending on vehicle)
With the ignition on, press switch 3
or 4 to open the window or raise
switch 3 or 4 to close it.Locking and unlocking the
rear window controls
Press the top of switch 5 to lock the op-
eration of the rear electric windows or
on the bottom of switch 5 to unlock it.
1234
5
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.

3.12
ENG_UD17904_3
Lève-vitres (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
ELECTRIC WINDOWS (2/2)
Manual window winder
controls
Turn handle 6 to lower or raise the
window to the desired height.
Safety of rear occupants
The driver can inhibit opera -
tion of the rear electric win-
dows by pressing switch 5.
Driver’s responsibility
Never leave your vehicle with the
key or remote control inside and
never leave a child (or a pet) un -
supervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be -
comes trapped, reverse the direc -
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.
6

mirrors .................................................. (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
grab handle ............................................................ (current page)
3.13
ENG_UD18247_3
Pare-soleil - Poignée de maintien (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-9_B90_Dacia_3

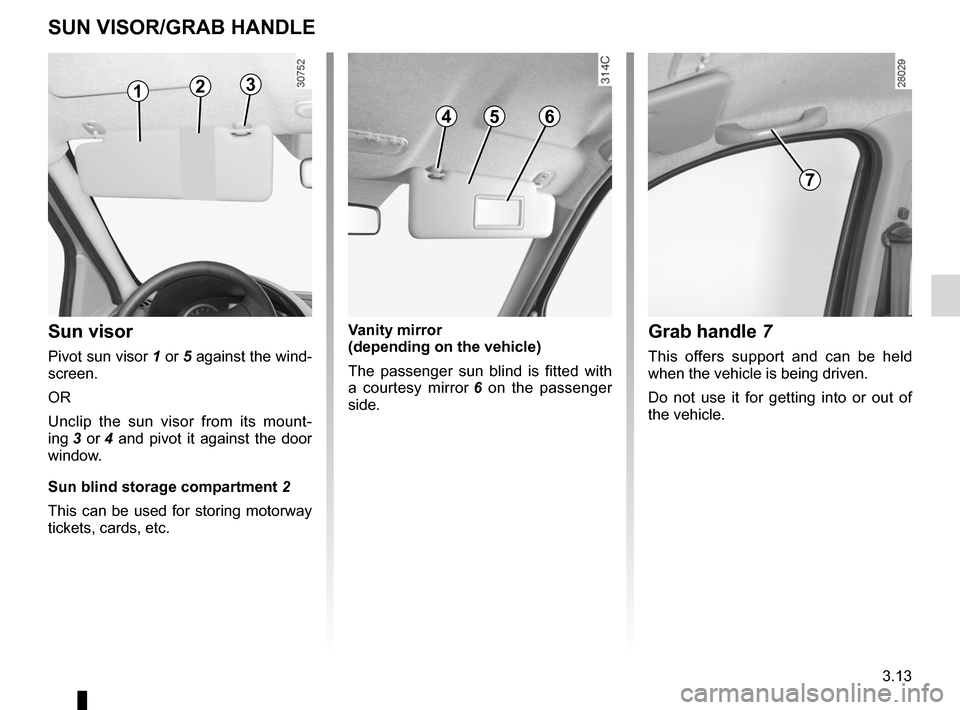

Sun visor/grab handle
SuN VISOR/GRAB HANDLE
Vanity mirror
(depending on the vehicle)
The passenger sun blind is fitted with
a courtesy mirror 6 on the passenger
side.Grab handle 7
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
7
Sun visor
Pivot sun visor 1 or 5 against the wind -
screen.
OR
Unclip the sun visor from its mount -
ing 3 or 4 and pivot it against the door
window.
Sun blind storage compartment 2
This can be used for storing motorway
tickets, cards, etc.
456
231

cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.14
ENG_UD17918_3
Cendriers - Allume-cigares (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Ashtrays, Cigar lighter, Accessories socket
ASHTRAYS/CIGAR LIGHTER/ACCESSORIES SOCKET
Ashtray
It can be housed in either position 2
or 4.
Lift cover 3 to open.
Remove the ashtray to empty it.
13
4
2
Cigar lighter 1
With the ignition on, push in the cigar
lighter 1.
It will spring back with a click when it is
ready. Pull it out to use. After use, re -
place it without pushing it all the way in.
OR
Accessories socket 1
It is provided for connecting acces -
sories approved by our Technical
Department with a maximum power of
120 Watts (12 V).
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.

storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
glove box ............................................................... (current page)
fittings ................................................... (up to the end of the DU)
3.15
ENG_UD17905_4
Rangements / Aménagement habitacles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3
Passenger compartment storage space and fittings
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/2)
Passenger side glove box
Pull handle 1 to open it.
Storage compartment 2(or passenger air bag location)
Precautions during use
Cover A in the bottom of the glove
box protects a socket reserved ex -
clusively for operations by the ap -
proved dealer network
You should therefore avoid keeping
liquids in this compartment (there is
a risk of liquid leaking and getting
into this socket).
1
A
2
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen -
gers during sudden turning, braking
or in the event of an accident.
This glove box can be used to store A4
format documents.
Inside the cover, there are two storage
spaces for pens and maps.

3.16
ENG_UD17905_4
Rangements / Aménagement habitacles (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_3

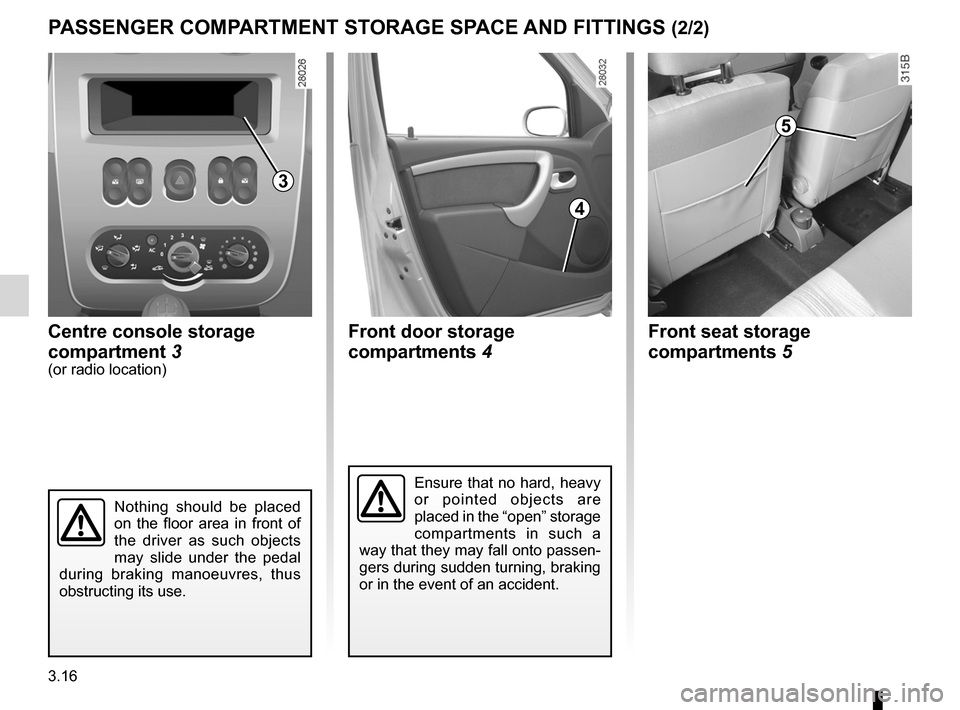

PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/2)
Centre console storage
compartment 3
(or radio location)
Front door storage
compartments 4Front seat storage
compartments 5
3
4
5
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen -
gers during sudden turning, braking
or in the event of an accident.
