2012 DACIA SANDERO Owners Manual

adjusting your driving position .............. (up to the end of the DU)
1.11
ENG_UD22593_8
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Seat belts
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi -
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu -
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
– Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of the steering
wheel.
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– Adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view. Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2 must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
SEAT BELTS (1/4)

1.12
ENG_UD22593_8
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
Adjusting the front seat belt
height
(depending on the vehicle)
Move button 7 to select the position you
require so that chest strap 3 is worn as
described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 4 locks into
catch 6 (check that it is locked by pull -
ing on buckle 4). If the belt jams, allow
it to return slightly before attempting to
unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
6
3
45
6
7
SEAT BELTS (2/4)
Unlocking
Press button 5 on catch 6; the seat belt
is wound up by the inertia reel. Guide
the buckle to facilitate this manoeuvre.
ßSeat belt reminder light
Depending on the vehicle, it
comes on when the engine is started
if the driver’s seat belt is not fastened.
When the vehicle is being driven, it
comes on and a beep sounds for ap -
proximately 2 minutes until the driver’s
seat belt is fastened.

JauneNoirNoir texte
1.13
ENG_UD22593_8
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

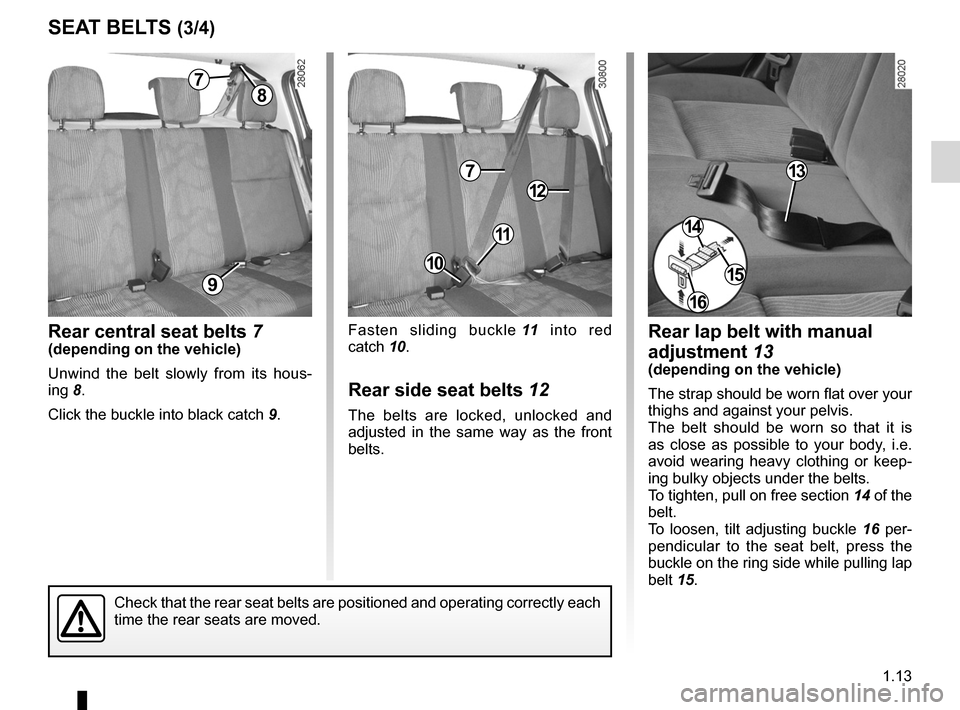

SEAT BELTS (3/4)
Rear central seat belts 7(depending on the vehicle)
Unwind the belt slowly from its hous -
ing 8.
Click the buckle into black catch 9.Fasten sliding buckle
11 into red
catch 10.
Rear side seat belts 12
The belts are locked, unlocked and
adjusted in the same way as the front
belts.
Rear lap belt with manual
adjustment 13
(depending on the vehicle)
The strap should be worn flat over your
thighs and against your pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.
avoid wearing heavy clothing or keep -
ing bulky objects under the belts.
To tighten, pull on free section 14 of the
belt.
To loosen, tilt adjusting buckle 16 per -
pendicular to the seat belt, press the
buckle on the ring side while pulling lap
belt 15.
Check that the rear seat belts are positioned and operating correctly each
time the rear seats are moved.
78
9
10
14
15
11
16
137
12

seat belts .............................................. (up to the end of the DU)
children ................................................. (up to the end of the DU)
1.14
ENG_UD22593_8
Ceintures de sécurité (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

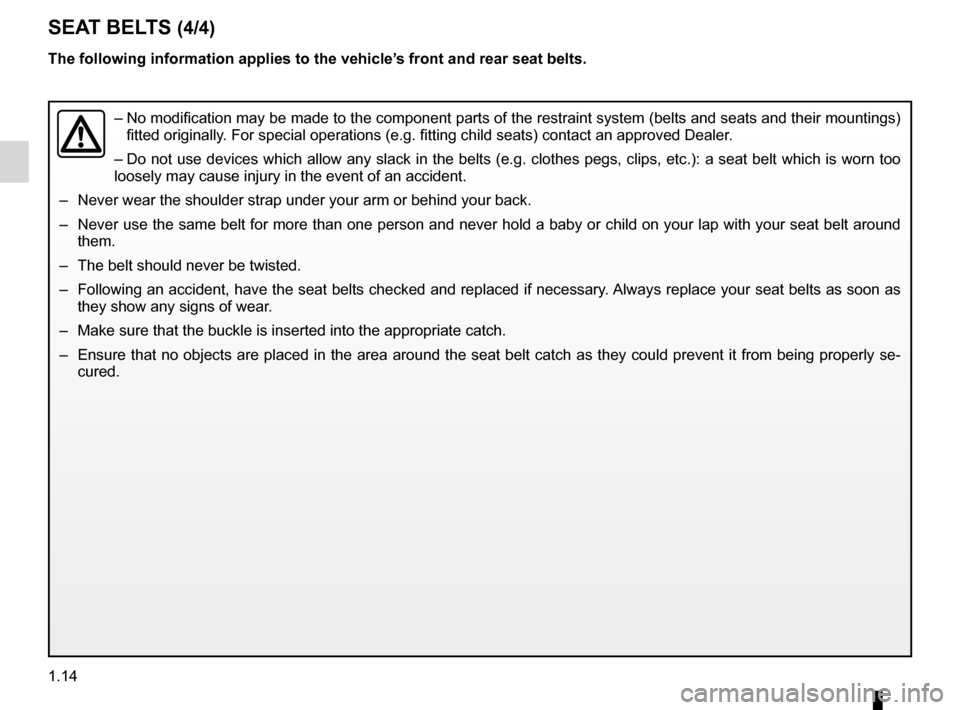

The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the restraint system (belts and seats and their mountings)
fitted originally. For special operations (e.g. fitting child seats) contact an approve\
d Dealer.
– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
– Make sure that the buckle is inserted into the appropriate catch.
– Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
SEAT BELTS (4/4)

air bag................................................... (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
methods of restraint in addition to the front seat belts
(up to the end of the DU)
1.15
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1

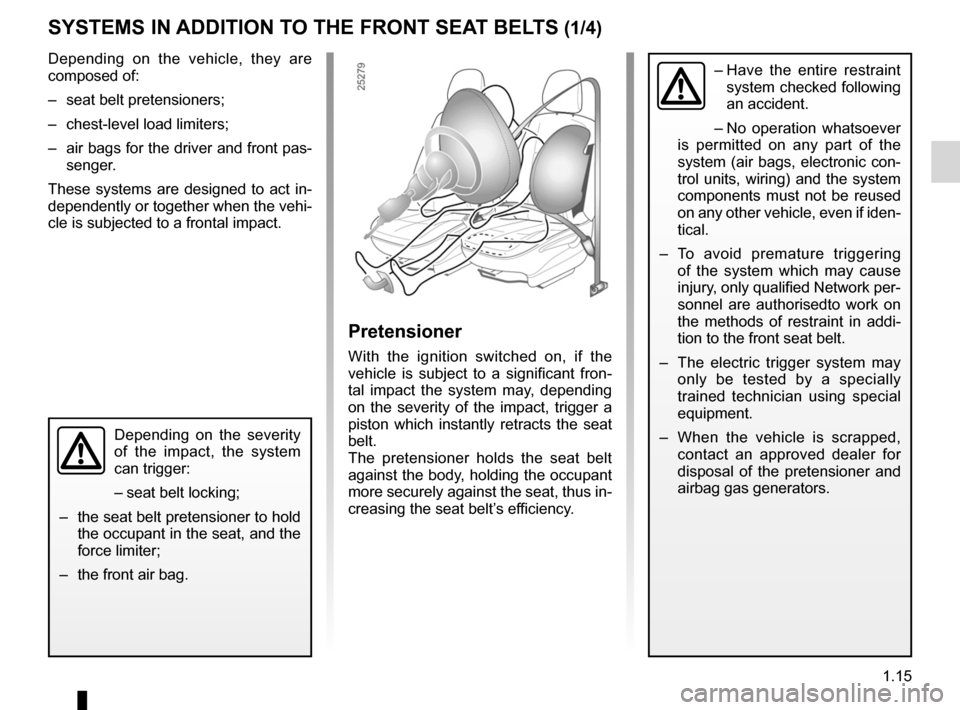

Methods of restraint in addition to the front seat belts
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (1/4)
Depending on the vehicle, they are
composed of:
– seat belt pretensioners;
– chest-level load limiters;
– air bags for the driver and front pas-
senger.
These systems are designed to act in-
dependently or together when the vehi-
cle is subjected to a frontal impact.– Have the entire restraint
system checked following
an accident.
– No operation whatsoever
is permitted on any part of the
system (air bags, electronic con-
trol units, wiring) and the system
components must not be reused
on any other vehicle, even if iden -
tical.
– To avoid premature triggering
of the system which may cause
injury, only qualified Network per-
sonnel are authorisedto work on
the methods of restraint in addi -
tion to the front seat belt.
– The electric trigger system may
only be tested by a specially
trained technician using special
equipment.
– When the vehicle is scrapped,
contact an approved dealer for
disposal of the pretensioner and
airbag gas generators.
Pretensioner
With the ignition switched on, if the
vehicle is subject to a significant fron -
tal impact the system may, depending
on the severity of the impact, trigger a
piston which instantly retracts the seat
belt.
The pretensioner holds the seat belt
against the body, holding the occupant
more securely against the seat, thus in-
creasing the seat belt’s efficiency.
Depending on the severity
of the impact, the system
can trigger:
– seat belt locking;
– the seat belt pretensioner to hold
the occupant in the seat, and the
force limiter;
– the front air bag.

1.16
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (2/4)
Driver’s and passenger air
bags
These may be provided for the driver
and the front passenger seats.
The presence of this equipment is in -
dicated by the words “Air bag” on the
steering wheel and the dashboard, and
a label on the base of the windscreen or
on the sun visor.
Each air bag system consists of:
– an air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
– an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
– a special tell-tale light
å;
– remote sensors.
Load limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener -
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.

JauneNoirNoir texte
1.17
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (3/4)
Operation
This system is only operational when
the ignition is switched on.
If a severe frontal impact occurs, the
air bag(s) inflate(s) rapidly, cushion -
ing the impact of the driver’s head and
chest against the steering wheel and
the front passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers are
not impeded in any way when they get
out of the vehicle.
Operating faults
Warning light 1 will light up on the in -
strument panel when the ignition is
turned on and then go out after a few
seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system. In this case, a child seat MUST NOT be
fitted to the front passenger seat.
Allowing any other passenger to sit in
that seat is not recommended.
In these two cases, contact an ap
-
proved dealer as soon as possible.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener -
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
In a situation where an air bag is
required, it will inflate immediately
and this may cause some minor, su-
perficial grazing to the skin or other
problems.
1

1.18
ENG_UD19962_9
Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (4/4)
All of the warnings below are given
so that the air bag is not obstructed
in any way when it is inflated and
also to prevent the risk of serious in-
juries caused by items which may be
dislodged when the air bag inflates.
Warnings concerning the driver’s air bag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.
– Do not attach any objects (badge, logo, clock, telephone holder, etc.) to
the steering wheel boss.
– You must not remove the steering wheel (such work must only be performed
by trained personnel from our Network).
– When driving, do not sit too close to the steering wheel. Sit with your arms
slightly bent (see the information on “Adjusting your driving position” in
Section 1). This will allow sufficient space for the air bag to inflate properly and
be fully effective.
Warnings concerning the passenger airbag: location 2
– Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to
the dashboard in the proximity of the air bag housing.
– Do not place anything between the dashboard and the passenger (pet, um -
brella, walking stick, parcels, etc.).
– The passenger must not put his or her feet on the dashboard or seat as there
is a risk that serious injuries may occur. In general, all parts of the body should
be kept away from the dashboard (knees, hands, head etc.).
– You should reactivate the passenger air bag as soon as you remove the child
seat to ensure the protection of the front passenger in the event of an \
impact.
IT IS PROHIBITED TO FIT A REAR-FACING CHILD
SEAT TO THE FRONT PASSENGER SEAT UNLESS THE RESTRAINT SYSTEMS IN ADDITION TO THE FRONT
PASSENGER SEAT BELT HAVE BEEN DEACTIVATED.
(Refer to the information on “Deactivating the frontpassenger air bag” in Section 1).2
