2012 DACIA SANDERO Owners Manual

JauneNoirNoir texte
1.27
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-9_B90_Dacia_1
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Before installing a child seat in the
ISOFIX anchoring points on a rear side
seat, check that the seat belt buckles
are not placed between the two ISOFIX
anchorage points in this seat. If neces-
sary, move the buckle for the seat con-
cerned towards the centre of the vehi-
cle.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.For the safety of the child in the for -
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use. Rear centre seat
A child seat may only be fitted in this
seat if it is equipped with an inertia-reel
seat belt. For any additional informa
-
tion, contact an approved dealer.
CHILD SAFETY : Fitting a child seat (2/6)
Check that neither the child
seat nor the child’s feet
prevent the front seat from
locking into place. Refer to
the information on the “Front seat”
in Section 1.

1.28
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
CHILD SAFETY : Fitting a child seat (3/6)
² Seat not suitable for fitting child
seats.
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
Only if the seat is equipped with an
inertia-reel belt.
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
R I S K O F D E AT H O R
SERIOUS INJURY: before
installing a child/baby seat
on the front passenger seat,
check that the air bag has been de-
activated (refer to “Deactivating the
front passenger air bag” at the end
of the paragraph).
Vehicles without airbag or with airbag deactivated
1
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located under the
luggage compartment carpet and are
indicated by a marking.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
1

JauneNoirNoir texte
1.29
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-9_B90_Dacia_1

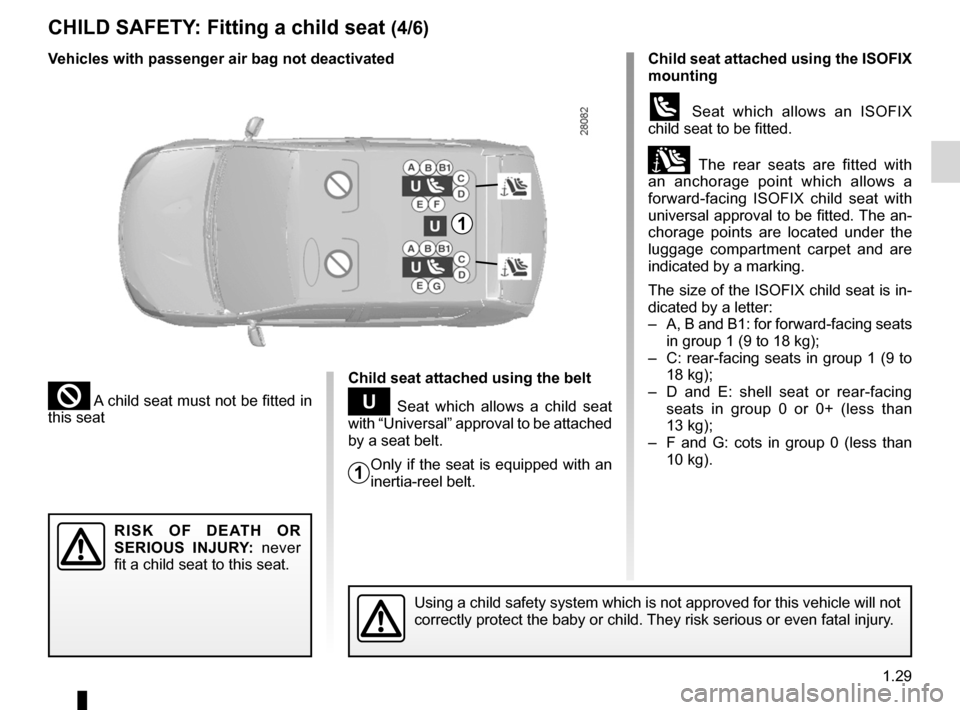

CHILD SAFETY : Fitting a child seat (4/6)
² A child seat must not be fitted in
this seat
Vehicles with passenger air bag not deactivated
1
R I S K O F D E AT H O R
SERIOUS INJURY: never
fit a child seat to this seat.
Child seat attached using the ISOFIX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located under the
luggage compartment carpet and are
indicated by a marking.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
Using a child safety system which is not approved for this vehicle will not
correctly protect the baby or child. They risk serious or even fatal injury.
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
Only if the seat is equipped with an
inertia-reel belt.
1

1.30
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte
CHILD SAFETY : Fitting a child seat (5/6)
(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a child seat on the front passenger seat, check that the air
bag has been deactivated (refer to the information on “Deactivating \
the front passenger air bag” in Section 1).
(6) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat to this seat.
The table below summarises the information already shown on the diagram on the previous pages, to ensure the regula-
tions in force are respected.
Type of child seat Weight of
the child Seat
size Front passenger seat with airbag
Front
passenger
seat without airbag
(1) Rear
side
seats Rear
centre seat
(7)
WITH deactivation
(1) (5) WITHOUT
deactivation (1) (6)
C a r r y c o t f i t t e d
across the vehicle
Group 0 < 10
kg F - G X XXU - IL (2) U
S h e l l s e a t / R e a r -
facing seat
Group 0, 0+ and 1 < 13
kg
9 kg to 18 kgE, D
U XUU - IL (3) U
Rear-facing seat
Group 0+ and 1 < 13
kg
9 kg to 18 kg C
U XUU - IL (3) U
Forward-facing seat
Group 1 9
kg to 18 kgB, B1 X XXU - IUF
- IL
(4) U
Forward-facing seat
Group 1 9
kg to 18 kgA X XXU (4) U
Booster seat
Group 2 and 3 15 to 25
kg
and 25 to 36 kg –
X XXU (4) U

JauneNoirNoir texte
1.31
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-9_B90_Dacia_1
CHILD SAFETY : Fitting a child seat (6/6)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF = Seat which, on equipped vehicles, allows forward-facing child seats with “Universal” approval to be attached by the ISOFIX
system; check that it can be fitted.
IL = Seat which, on equipped vehicles, allows child seats with “Semi-Universal” or “Specific to vehicle” approval to be attached by
the ISOFIX system; check that it can be fitted.
Refer to the brochure “Child safety equipment” available from the Network to choose the seat suited to your child and
recommended for your vehicle.
(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the seat in front of the child more than halfway back on its runners and do not
recline the seatback more than 25°.
(7) Only if the seat is equipped with an inertia-reel belt.

air bagdeactivating the front passenger air bags ........ (current page)
front passenger air bag deactivation ..................... (current page)
1.32
ENG_UD19963_7
Sécurité enfants : désactivation/activation airbag passager ava\
nt (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
deactivating/activating the front passenger air bag

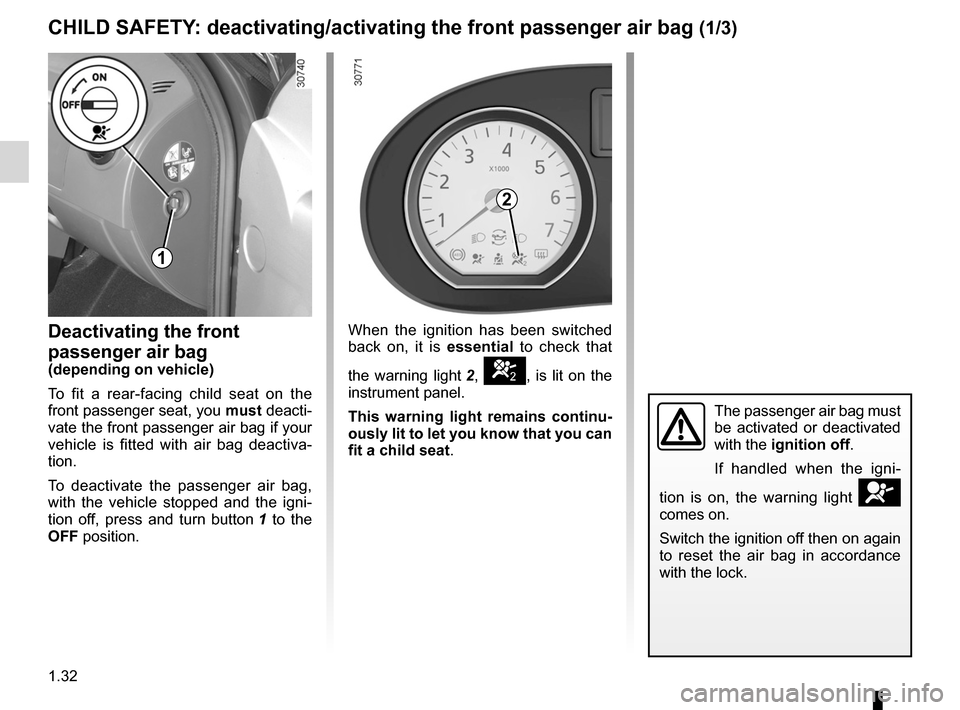

CHILD SAFETY : deactivating/activating the front passenger air bag (1/3)
The passenger air bag must
be activated or deactivated
with the ignition off.
If handled when the igni -
tion is on, the warning light
å
comes on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
When the ignition has been switched
back on, it is essential to check that
the warning light 2,
], is lit on the
instrument panel.
This warning light remains continu -
ously lit to let you know that you can
fit a child seat .
Deactivating the front
passenger air bag
(depending on vehicle)
To fit a rear-facing child seat on the
front passenger seat, you must deacti-
vate the front passenger air bag if your
vehicle is fitted with air bag deactiva -
tion.
To deactivate the passenger air bag,
with the vehicle stopped and the igni -
tion off, press and turn button 1 to the
OFF position.
1
2

1.33
ENG_UD19963_7
Sécurité enfants : désactivation/activation airbag passager ava\
nt (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
CHILD SAFETY : deactivating/activating the front passenger air bag (2/3)
DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: label shown above)
remind you of these instructions.
A
A
3

air bagactivating the front passenger air bags ............ (current page)
1.34
ENG_UD19963_7
Sécurité enfants : désactivation/activation airbag passager ava\
nt (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1

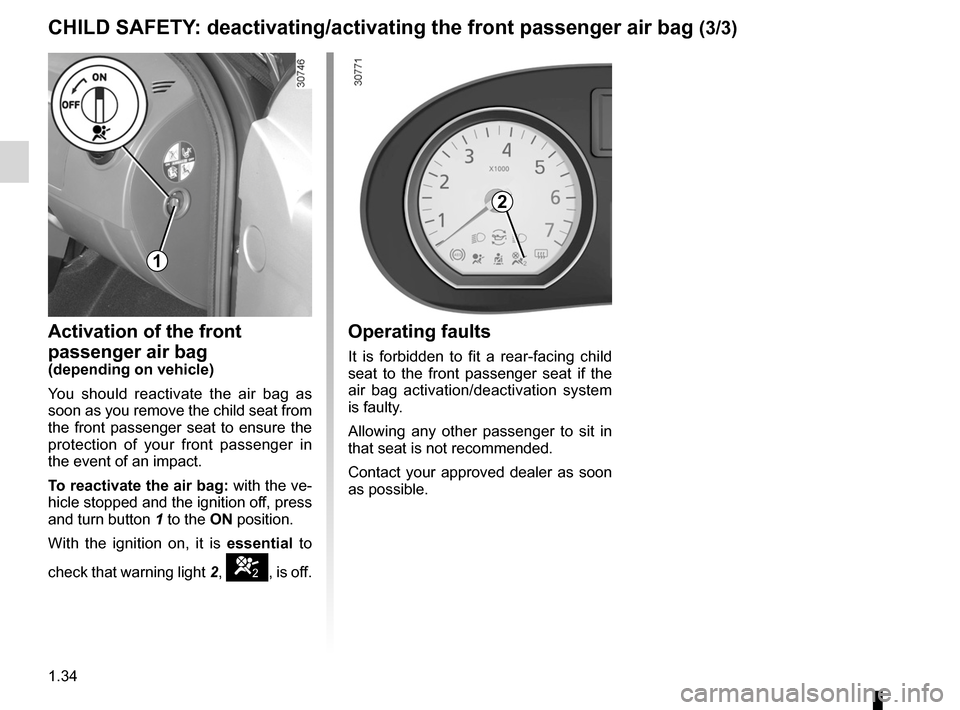

CHILD SAFETY : deactivating/activating the front passenger air bag (3/3)
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
Activation of the front
passenger air bag
(depending on vehicle)
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of your front passenger in
the event of an impact.
To reactivate the air bag: with the ve-
hicle stopped and the ignition off, press
and turn button 1 to the ON position.
With the ignition on, it is essential to
check that warning light 2,
], is off.
1
2
