fitting a child seat
CHILD SAFETY : Fitting a child seat (1/6)
In the front seat
The laws concerning children travel -
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
– deactivate the front passenger air
bag;
– lower the seat belt as far as possible;
– move the seat as far back as possi-
ble;
– gently tilt the seatback away from
vertical (approximately 25°).
Do not change these settings after the
child seat is installed.
R I S K O F D E AT H O R
SERIOUS INJURY: before
fitting a child seat in this
seat, check that the air bag
has been deactivated (refer to the in-
formation on “Deactivating the front
passenger air bag” in Section 1).
Some seats are not suitable for fitting
child seats. The diagram on the follow -
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.

1.30
ENG_UD25178_7
Sécurité enfants : installation du siège enfant (B90 - Dacia)\
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte

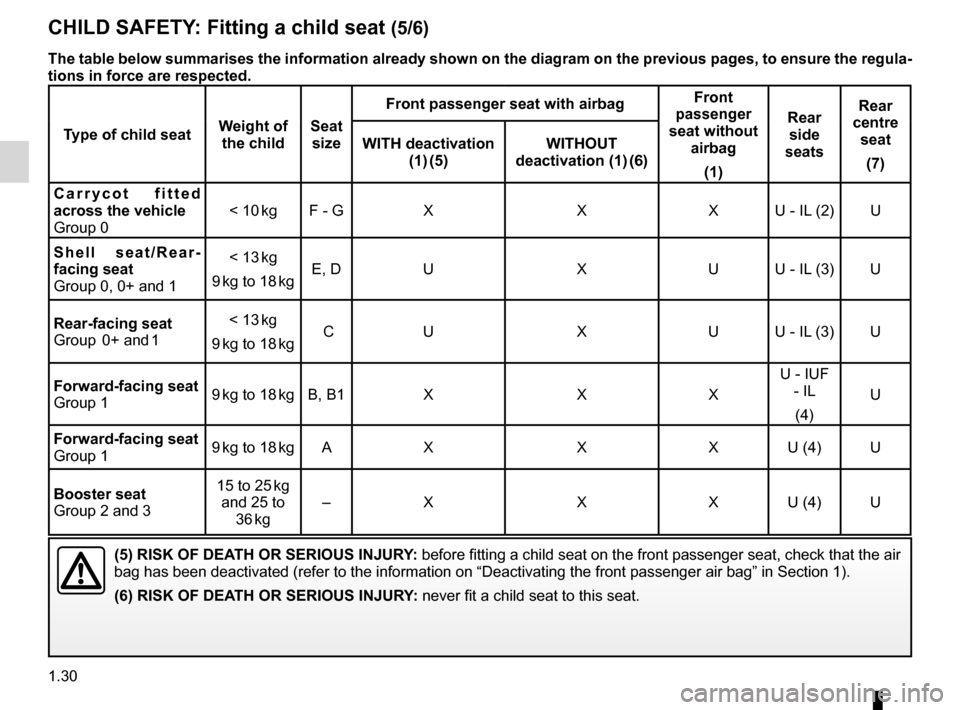

CHILD SAFETY : Fitting a child seat (5/6)
(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a child seat on the front passenger seat, check that the air
bag has been deactivated (refer to the information on “Deactivating \
the front passenger air bag” in Section 1).
(6) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat to this seat.
The table below summarises the information already shown on the diagram on the previous pages, to ensure the regula-
tions in force are respected.
Type of child seat Weight of
the child Seat
size Front passenger seat with airbag
Front
passenger
seat without airbag
(1) Rear
side
seats Rear
centre seat
(7)
WITH deactivation
(1) (5) WITHOUT
deactivation (1) (6)
C a r r y c o t f i t t e d
across the vehicle
Group 0 < 10
kg F - G X XXU - IL (2) U
S h e l l s e a t / R e a r -
facing seat
Group 0, 0+ and 1 < 13
kg
9 kg to 18 kgE, D
U XUU - IL (3) U
Rear-facing seat
Group 0+ and 1 < 13
kg
9 kg to 18 kg C
U XUU - IL (3) U
Forward-facing seat
Group 1 9
kg to 18 kgB, B1 X XXU - IUF
- IL
(4) U
Forward-facing seat
Group 1 9
kg to 18 kgA X XXU (4) U
Booster seat
Group 2 and 3 15 to 25
kg
and 25 to 36 kg –
X XXU (4) U
