2012 DACIA SANDERO heating

front seat adjustment ............................(up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.9
ENG_UD17772_6
Sièges avant (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Front seats
FRONT SEATS
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
23
4
2
5
To move forwards or
backwards
Lift bar 1 to release.
Release the bar in the desired position
and ensure it locks in place properly.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
adjust the seat base to the desired
height, then release the lever.
Heated seats
Depending on the vehicle, with the igni -
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To tilt the seatback
Move handle 5 and tilt the seatback to
the desired position.

rear screendemisting ......................................................... (current page)
JauneNoirNoir texte
1.37
ENG_UD25096_5
Poste de conduite direction à gauche (B90 - L90 Ph2 - F90 Ph2 - R90 \
Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s air bag.
6 Steering column stalk for wind -
screen and rear screen wash/wipe.
On-board computer information re-
adout control.
7 Centre air vents.
8 Location for passenger air bag or
storage compartment.
9 Demister outlet. 10 Side air vent.
11 Passenger air bag activation/deac-
tivation switch.
12 Glove box.
13 Location for radio or storage com-
partment.
14 Electric window control.
15 Central door locking switch.
16 Hazard warning lights switch.
17 Heating and ventilation controls.
18 Cigar lighter.
19 Handbrake.
20 Rear window electric locking con -
trol.
21 Electric door mirror control.
22 Location for ashtray or cup holder.
23 Gear lever.
24 Heated rear screen control.
25 Electric window control.
26 Ignition switch.
27 Headlight beam height adjustment
control.
28 Bonnet release.
29 Fuse flap.

JauneNoirNoir texte
1.39
ENG_UD18230_3
Poste de conduite direction à droite (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
1 Side air vent.
2 Demister outlet.
3 Storage compartment or location
for passenger air bag.
4 Centre air vents.
5 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights.
6 Instrument panel.
7 Location for driver’s air bag (de -
pending on vehicle).
8 Windscreen wiper/washer stalk.
On-board computer information re-
adout control.
9 Demister outlet.
22 Rear window electric locking con -
trol
23 Electric door mirror control.
24 Location for ashtray or cup holder.
25 Gear lever.
26 Heated rear screen control.
27 Electric window control.
28 Glove box.
29 Passenger air bag activation/deac -
tivation switch.
DRIVER’S POSITION, RIGHT -HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
10 Side air vent.
11 Fuse box.
12 Bonnet release.
13 Headlight beam height adjustment
control.
14 Ignition switch.
15 Location for radio or storage com-
partment.
16 Electric window control.
17 Central locking switch.
18 Hazard warning lights switch.
19 Heating and ventilation controls.
20 Cigar lighter.
21 Handbrake.

JauneNoirNoir texte
1.41
ENG_UD19003_9
Tableau de bord : témoins lumineux (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2\
- Dacia)
ENG_NU_817-9_B90_Dacia_1
W ARNING LIGHTS (2/3)
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
6
Electronic fault or preheat -
ing warning light
Preheating warning light
This light should come on when the ig-
nition key is in position M; it indicates
that the heater plugs are in operation.
It goes out when preheating is com -
plete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible
VRear screen de-icing/de -
misting indicator light
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharging
or has discharged. Stop and contact an
approved Dealer.
ÄToxic Fume Filter System
Warning Light
On equipped vehicles, the light comes
on when the ignition is switched on then
goes out.
– If it comes on continuously, consult
an approved dealer as soon as pos-
sible.
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv -
ing” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn
-
ing light
This goes out as soon as the engine
starts. If it comes on when driving, it
indicates an increase in the coolant
temperature. Stop and let the engine
idle for a minute or two; the tempera -
ture should fall. If it does not fall, stop
the engine and allow it to cool before
checking the coolant level. If the level is
normal, there is another cause. Consult
an approved dealer.
ÀOil pressure warning light
It should go out as soon as the
engine starts; if it comes on when you
are driving, stop at once and switch off
the ignition. Check the oil level.
If the level is normal, the indicator light
is being lit by something else. Contact
an approved Dealer.
dDirection indicator tell-tale
light

wipers .................................................................... (current page)
windscreen washer ................................................ (current page)
de-icing ................................................. (up to the end of the DU)
1.53
ENG_UD25180_9
Essuie-vitre/Lave-vitre/Dégivrage (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1

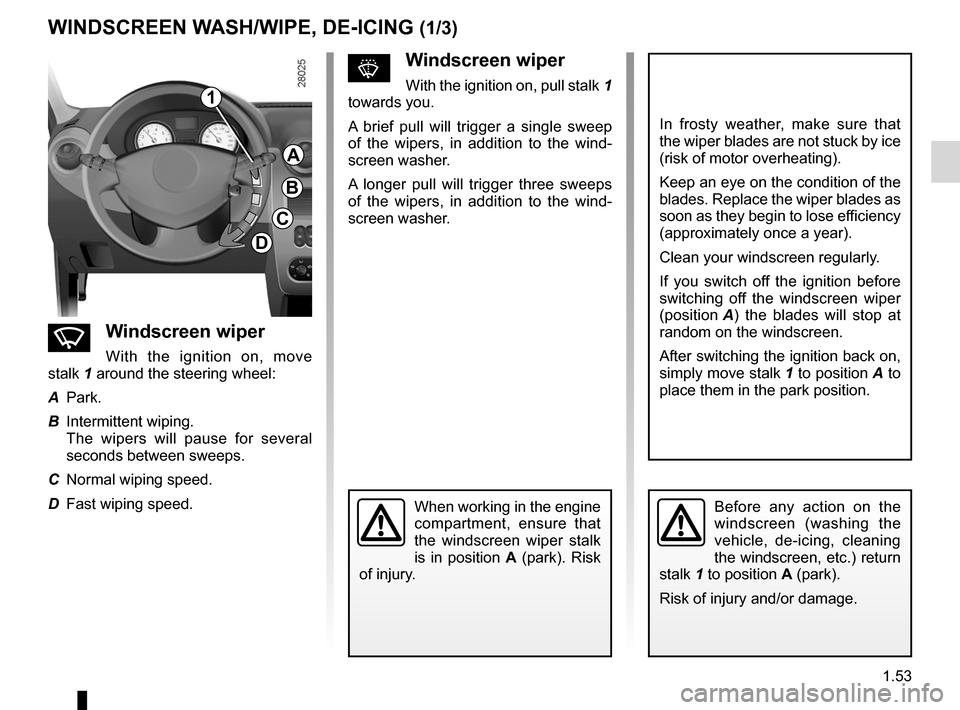

Windscreen Wash/Wipe, De-icing
1
A
B
C
D
WINDSCREEN WASH/WIPE, DE-ICING (1/3)
Before any action on the
windscreen (washing the
vehicle, de-icing, cleaning
the windscreen, etc.) return
stalk 1 to position A (park).
Risk of injury and/or damage.
sWindscreen wiper
With the ignition on, pull stalk 1
towards you.
A brief pull will trigger a single sweep
of the wipers, in addition to the wind -
screen washer.
A longer pull will trigger three sweeps
of the wipers, in addition to the wind -
screen washer.
nWindscreen wiper
With the ignition on, move
stalk 1 around the steering wheel:
A Park.
B Intermittent wiping.
The wipers will pause for several
seconds between sweeps.
C Normal wiping speed.
D Fast wiping speed.
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position A (park). Risk
of injury.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(risk of motor overheating).
Keep an eye on the condition of the
blades. Replace the wiper blades as
soon as they begin to lose efficiency
(approximately once a year).
Clean your windscreen regularly.
If you switch off the ignition before
switching off the windscreen wiper
(position A ) the blades will stop at
random on the windscreen.
After switching the ignition back on,
simply move stalk 1 to position A to
place them in the park position.

rear screendemisting ......................................................... (current page)
1.54
ENG_UD25180_9
Essuie-vitre/Lave-vitre/Dégivrage (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_1
Jaune NoirNoir texte

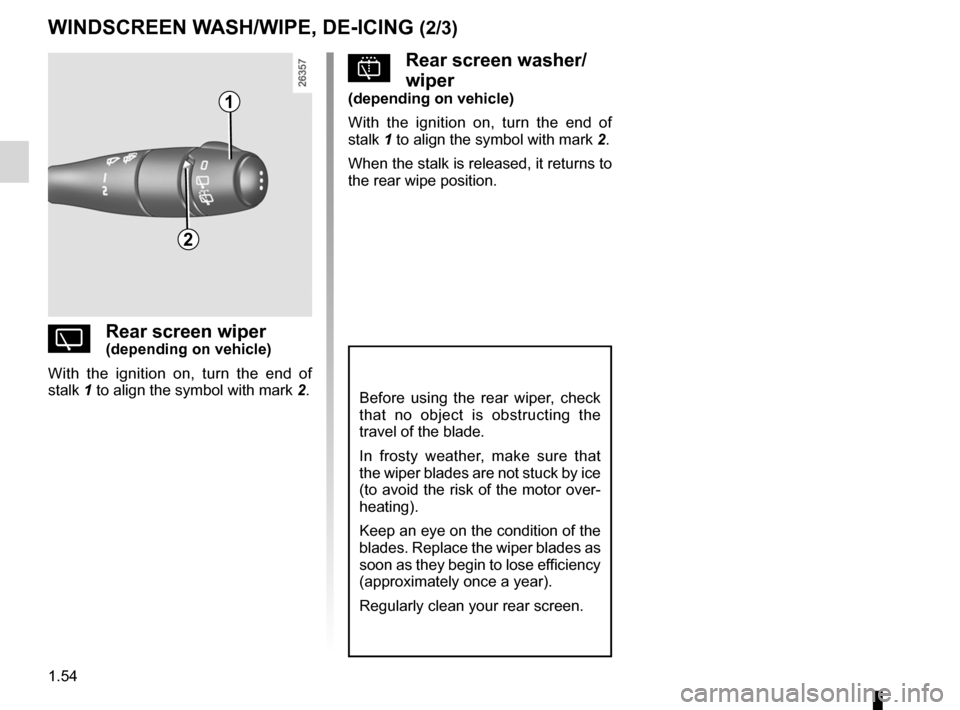

WINDSCREEN WASH/WIPE, DE-ICING (2/3)
2
YRear screen wiper(depending on vehicle)
With the ignition on, turn the end of
stalk 1 to align the symbol with mark 2.
pRear screen washer/
wiper
(depending on vehicle)
With the ignition on, turn the end of
stalk 1 to align the symbol with mark 2.
When the stalk is released, it returns to
the rear wipe position.
Before using the rear wiper, check
that no object is obstructing the
travel of the blade.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(to avoid the risk of the motor over-
heating).
Keep an eye on the condition of the
blades. Replace the wiper blades as
soon as they begin to lose efficiency
(approximately once a year).
Regularly clean your rear screen.
1

running in ............................................................... (current page)
ignition switch ........................................................ (current page)
engine immobiliser (switch) ................................... (current page)
driving .................................................................... (current page)
starting ................................................................... (current page)
2.2
ENG_UD18236_9
Rodage / Contacteur de démarrage (B90 - U90 - L90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_2

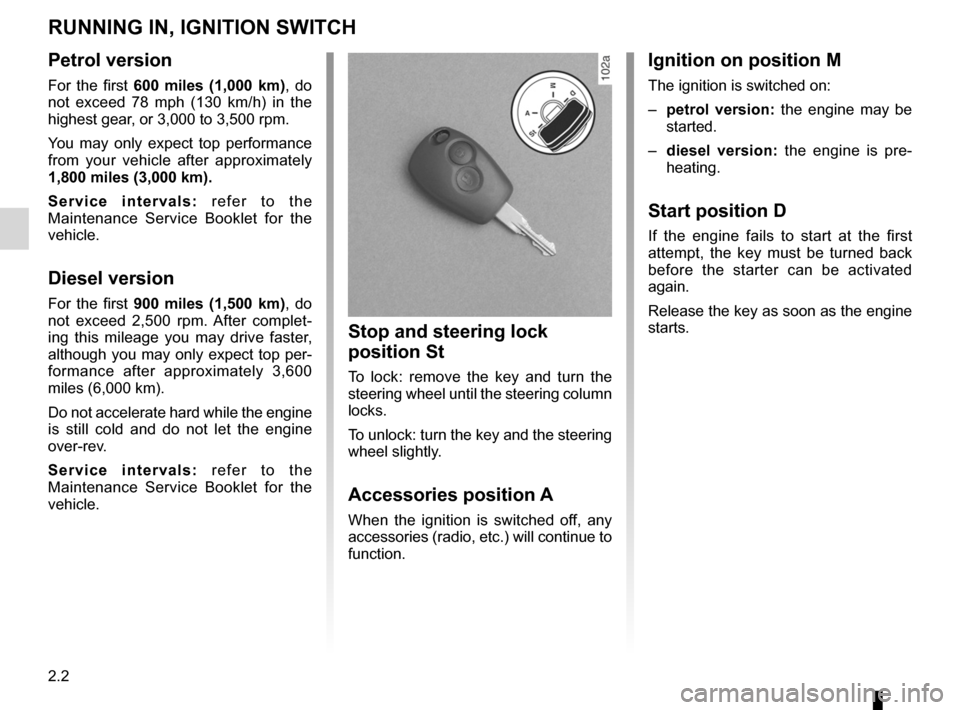

Running in, Ignition switch
RUNNING IN, IGNITION SWITCH
Petrol version
For the first 600 miles (1,000 km), do
not exceed 78 mph (130 km/h) in the
highest gear, or 3,000 to 3,500 rpm.
You may only expect top performance
from your vehicle after approximately
1,800 miles (3,000 km).
S e r v i c e i n t e r v a l s : r e f e r t o t h e
Maintenance Service Booklet for the
vehicle.
Diesel version
For the first 900 miles (1,500 km), do
not exceed 2,500 rpm. After complet -
ing this mileage you may drive faster,
although you may only expect top per-
formance after approximately 3,600
miles (6,000 km).
Do not accelerate hard while the engine
is still cold and do not let the engine
over-rev.
S e r v i c e i n t e r v a l s : r e f e r t o t h e
Maintenance Service Booklet for the
vehicle.
Stop and steering lock
position St
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
Accessories position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
Ignition on position M
The ignition is switched on:
– petrol version: the engine may be
started.
– diesel version: the engine is pre -
heating.
Start position D
If the engine fails to start at the first
attempt, the key must be turned back
before the starter can be activated
again.
Release the key as soon as the engine
starts.

driving ................................................... (up to the end of the DU)
starting .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.3
ENG_UD18206_6
Démarrage, Arrêt du moteur (B90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - Dacia)
ENG_NU_817-9_B90_Dacia_2
Vehicle equipped with an automatic
gearbox
Before starting, move the lever to posi-
tion N or P.
Refer to the information on the
“Automatic gearbox” in Section 2.
Petrol injection
Engine warm or cold
– Activate the starter without de-
pressing the accelerator.
– Release the key as soon as the
engine starts.ÉDiesel injection
Turn the ignition key to ignition “On” po-
sition M, and hold this position until the
preheating warning light goes out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Make sure the engine immobiliser is not
activated. Refer to the information on
the “Engine immobiliser” in Section 1.

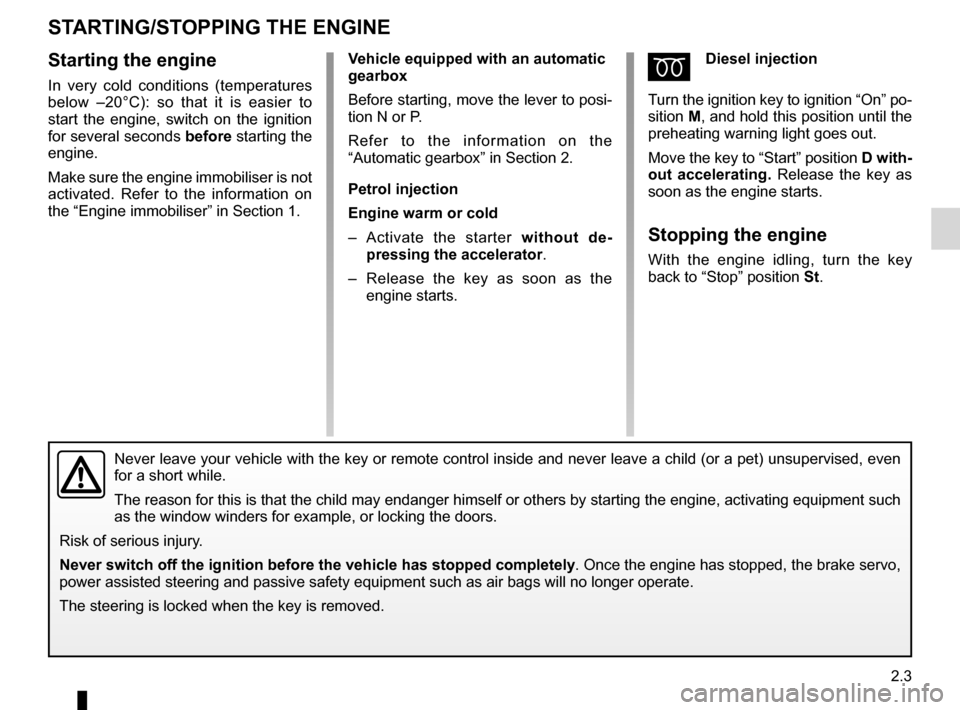

Starting/stopping the engine
STARTING/STOPPING THE ENGINE
Never leave your vehicle with the key or remote control inside and never leave a child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child may endanger himself or others by starting the engine, activating equipment such
as the window winders for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo,
power assisted steering and passive safety equipment such as air bags wi\
ll no longer operate.
The steering is locked when the key is removed.
