Note 1. If wheel sensor 2 for each wheel is indicated, check ABS actuator and electric unit (control unit) power
supply voltage in addition to wheel sensor circuit check.
Note 2. If multiple malfunctions are detected including CAN communication line [U1000], perform diagnosis for
CAN communication line first.
DATA MONITOR
Display Item List
USV LINE [FL-RR]
[C1147] Front side VDC switch-over solenoid valve (cut valve) is open or
shorted, or control line is open or shorted to power supply or
ground.
BRC-72, "
Solenoid and
VDC Change-Over Valve
System Inspection"
USV LINE [FR-RL]
[C1148]Rear side VDC switch-over solenoid valve (cut valve) is open or
shorted, or control line is open or shorted to power supply or
ground.
HSV LINE [FL-RR]
[C1149] Front side VDC switch-over solenoid valve (suction valve) is open
or shorted, or control line is open or shorted to power supply or
ground.
HSV LINE [FR-RL]
[C1150] Rear side VDC switch-over solenoid valve (suction valve) is open
or shorted, or control line is open or shorted to power supply or
ground.
EMERGENCY BRAKE
[C1153] When ABS actuator and el
ectric unit (control unit) is malfunction-
ing. (Pressure increase is too much or too little) BRC-68, "
ABS/TCS/VDC
Control Unit Inspection"
PNP POS SIG
[C1154]Transmission range switch signal or communication line between
the ABS actuator and electric unit (control unit) and TCM is open
or shorted. BRC-78, "Transmission
Range Switch System In-
spection"
BR FLUID LEVEL LOW
[C1155]
Brake fluid level drops or circuit between ABS actuator and elec-
tric unit (control unit) and brake fluid level switch is open or
shorted. BRC-76, "Brake Fluid
Level Switch System In-
spection"
ST ANG SEN COM CIR
[C1156]
CAN communication line or steering angle sensor has generated
an error. BRC-79, "
CAN Commu-
nication System Inspec-
tion"
(Note 2)
VARIANT CODING
[C1170] In case where VARIANT CODING is different. BRC-68, "
ABS/TCS/VDC
Control Unit Inspection"
CAN COMM CIRCUIT
[U1000]• CAN communication line is open or shorted.
• ABS actuator and electric unit (control unit) internal malfunction
• Battery voltage for ECM is suddenly interrupted for approxi-
mately 0.5 seconds or more. BRC-79, "
CAN Commu-
nication System Inspec-
tion"
(Note 2)
Self-diagnostic item
Malfunction detecting condition Check system
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
FR LH SENSOR
(km/h, mph) ××× Wheel speed (km/h, mph) calculated by front LH
wheel sensor signal is displayed.
FR RH SENSOR
(km/h, mph) ××× Wheel speed (km/h, mph) calculated by front RH
wheel sensor signal is displayed.
RR LH SENSOR
(km/h, mph) ×××
Wheel speed (km/h, mph) calculated by rear LH
wheel sensor signal is displayed.
RR RH SENSOR
(km/h, mph) ××× Wheel speed (km/h, mph) calculated by rear RH
wheel sensor signal is displayed.
FR RH IN SOL
(On/Off) —
×× Front RH IN ABS solenoid (On/Off) status is dis-
played.
FR RH OUT SOL
(On/Off) —
×× Front RH OUT ABS solenoid (On/Off) status is
displayed.
FR LH IN SOL
(On/Off) —
×× Front LH IN ABS solenoid (On/Off) status is dis-
played.
Revision: May 2010
2011 Versa

BRC-64
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
FR LH OUT SOL
(On/Off)—
×× Front LH OUT ABS solenoid (On/Off) status is dis-
played.
RR RH IN SOL
(On/Off) —
×× Rear RH IN ABS solenoid (On/Off) status is dis-
played.
RR RH OUT SOL
(On/Off) —
×× Rear RH OUT ABS solenoid (On/Off) status is dis-
played.
RR LH IN SOL
(On/Off) —
×× Rear LH IN ABS solenoid (On/Off) status is dis-
played.
RR LH OUT SOL
(On/Off) —
×× Rear LH OUT ABS solenoid (On/Off) status is dis-
played.
STOP LAMP SW
(On/Off) ×××
Stop lamp switch (On/Off) status is displayed.
MOTOR RELAY
(On/Off) —
×× ABS motor relay signal (On/Off) status is dis-
played.
ACTUATOR RLY
(On/Off) —
×× ABS actuator relay signal (On/Off) status is dis-
played.
ABS WARN LAMP
(On/Off) —
×× ABS warning lamp (On/Off) status is displayed.
OFF LAMP
(On/Off) —
×× VDC OFF lamp (On/Off) status is displayed.
OFF SW
(On/Off) ×××
VDC OFF switch (On/Off) status is displayed.
SLIP LAMP
(On/Off) —
×× SLIP indicator lamp (On/Off) status is displayed.
BATTERY VOLT
(V) ××× Voltage (V) supplied to ABS actuator and electric
unit (control unit) is displayed.
GEAR
(1, 2, 3, 4) ××× A/T gear position (1, 2, 3, 4) determined by TCM
is displayed.
SLCT LVR POSI
(P, R, N, D) ×××
Selector lever position judged by transmission
range switch signal.
YAW RATE SEN
(d/s) ××× Yaw rate (d/s) detected by yaw rate sensor is dis-
played.
ACCEL POS SIG
(%) ×
— ×Throttle valve open/close (%) status judged by
CAN communication signal is displayed.
SIDE G-SENSOR
(m/s
2) ×
— ×Lateral acceleration (m/s
2) detected by side G
sensor is displayed.
STR ANGLE SIG
(deg) ×
— ×Steering angle (deg) detected by steering angle
sensor is displayed.
PRESS SENSOR
(bar) ×
— ×Brake fluid pressure detected by pressure sensor
is displayed.
EBD SIGNAL
(On/Off) ——
×EBD operation (On/Off) status is displayed.
ABS SIGNAL
(On/Off) ——
×ABS operation (On/Off) status is displayed.
TCS SIGNAL
(On/Off) ——
×TCS operation (On/Off) status is displayed.
VDC SIGNAL
(On/Off) ——
×VDC operation (On/Off) status is displayed.
EBD FAIL SIG
(On/Off) ——
×EBD fail signal (On/Off) status is displayed.
ABS FAIL SIG
(On/Off) ——
×ABS fail signal (On/Off) status is displayed.
TCS FAIL SIG
(On/Off) ——
×TCS fail signal (On/Off) status is displayed.
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-69
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CHECK WHEEL SENSORS
Check all wheel sensors. Refer to BRC-67, "
Wheel Sensor System Inspection".
OK or NG
OK >> Replace ABS actuator and electric unit (control unit). Refer to BRC-89, "Removal and Installa-
tion".
NG >> Repair or replace as necessary.
Steering Angle Sensor System InspectionINFOID:0000000005928487
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 3.
NO >> GO TO 2.
2.DATA MONITOR CHECK
Conduct “DATA MONITOR” of t he “STR ANGLE SIG” to check if the status is normal.
OK or NG
OK >> Inspection End.
NG >> GO TO 3.
3.CONNECTOR INSPECTION
1. Disconnect the ABS actuator and el ectric unit (control unit) and steering angle sensor connectors.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace as necessary.
4.CHECKING STEERING ANGLE SENSOR POWER AND GROUND
EMERGENCY BRAKE
VARIANT CODING
Self-diagnosis results
Self-diagnosis results
ST ANGLE SEN CIRCUIT ST ANGLE SEN SIGNAL
Steering condition Data monitor
Straight-ahead -2.5 ° to +2.5 °
Turn wheel 90 ° to the right. Approx. +90°
Turn wheel 90 ° to the left. Approx. -90°
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
BRC-77
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
YES >> GO TO 5
NO >> Repair or replace malfunctioning components.
5.CHECK BRAKE FLUID LEVE L SWITCH GROUND CIRCUIT
Check continuity between brake fluid level switch connector E40 (B)
terminal 2 and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> • Repair or replace malfunctioning components. • Perform the self-diagnosis, and make sure that the
result shows ″NO DTC IS DETECTED ″.
Pressure Sensor System InspectionINFOID:0000000005928494
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Check the self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> Inspection End.
2.CONNECTOR INSPECTION
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and elec tric unit (control unit) connector and stop lamp switch connector.
3. Check terminals for deformation, disconnection, looseness and damage. If any malfunction is found, repair or replace terminals.
4. Reconnect connectors securely.
5. Start engine.
6. Pump brake pedal carefully several times, and perform self-diagnosis.
Is the inspection result normal?
YES >> GO TO 3
NO >> Poor connection of connector terminal. Repair or replace connector.
3.CHECK STOP LAMP SWITCH 2 - Ground : Continuity should exist.
AWFIA0623ZZ
Self-diagnosis results
PRESS SEN CIRCUIT
Revision: May 2010 2011 Versa

BRC-78
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR
SELF-DIAGNOSTIC ITEMS
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch connector.

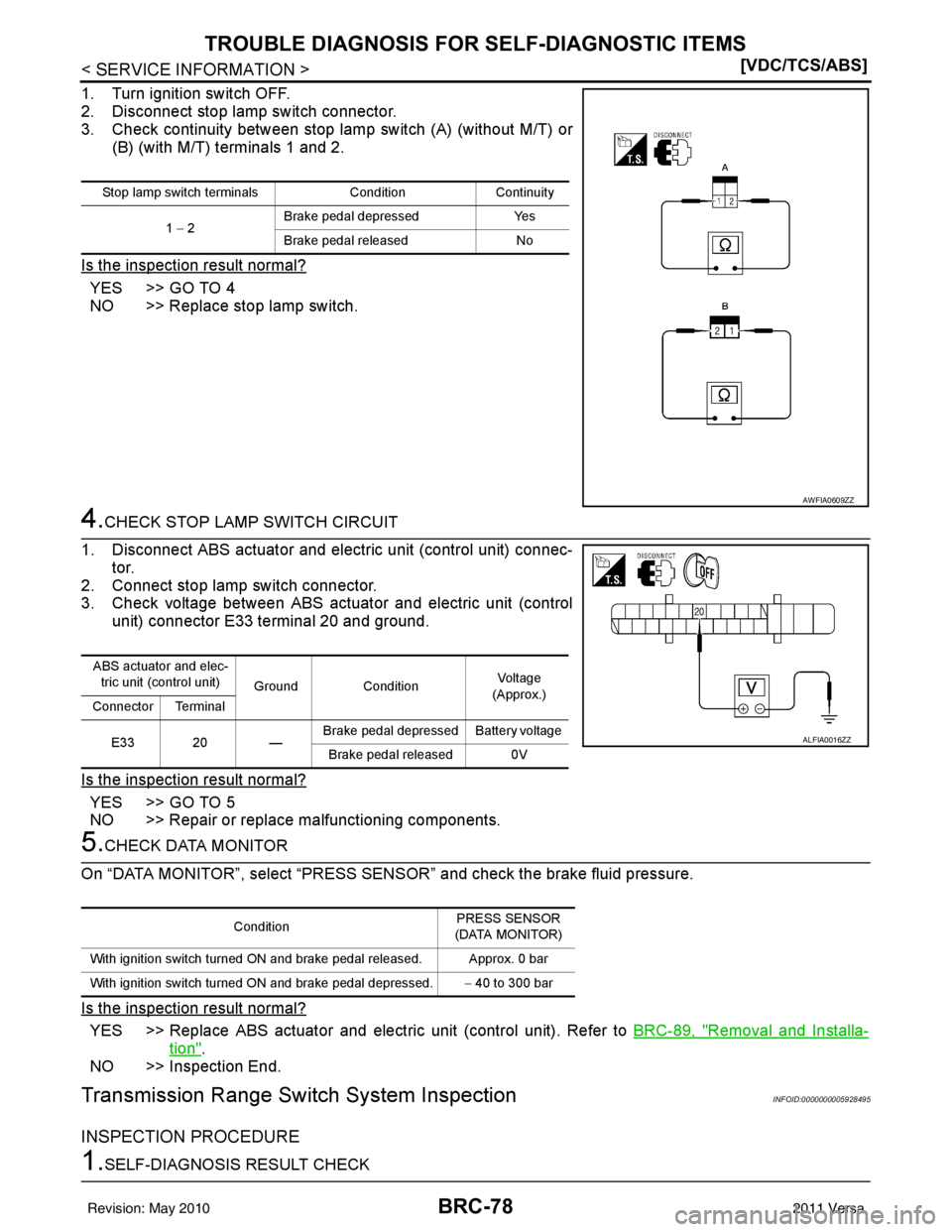

3. Check continuity between stop lamp switch (A) (without M/T) or
(B) (with M/T) terminals 1 and 2.
Is the inspection result normal?
YES >> GO TO 4
NO >> Replace stop lamp switch.
4.CHECK STOP LAMP SWITCH CIRCUIT
1. Disconnect ABS actuator and elec tric unit (control unit) connec-
tor.
2. Connect stop lamp switch connector.
3. Check voltage between ABS actuator and electric unit (control
unit) connector E33 terminal 20 and ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> Repair or replace malfunctioning components.
5.CHECK DATA MONITOR
On “DATA MONITOR”, select “PRESS SENS OR” and check the brake fluid pressure.
Is the inspection result normal?
YES >> Replace ABS actuator and electric unit (control unit). Refer to BRC-89, "Removal and Installa-
tion".
NO >> Inspection End.
Transmission Range Switch System InspectionINFOID:0000000005928495
INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK
Stop lamp switch terminals ConditionContinuity
1 − 2 Brake pedal depressed
Yes
Brake pedal released No
AWFIA0609ZZ
ABS actuator and elec-
tric unit (control unit) Ground Condition Vol tag e
(Approx.)
Connector Terminal
E33 20 — Brake pedal depressed Battery voltage
Brake pedal released 0V
ALFIA0016ZZ
Condition PRESS SENSOR
(DATA MONITOR)
With ignition switch turned ON and brake pedal released. Approx. 0 bar
With ignition switch turned ON and brake pedal depressed. − 40 to 300 bar
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSES FOR SYMPTOMSBRC-81
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
TROUBLE DIAGNOSES FOR SYMPTOMS
ABS Works FrequentlyINFOID:0000000005928498
1.CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK or NG
OK >> GO TO 2.
NG >> Carry out self-diagnosis. Refer to BRC-60, "
CONSULT-III Function (ABS)".
2.CHECK WHEEL SENSORS
Check the following.
• Wheel sensor mounting for looseness
• Wheel sensors for physical damage
• Wheel sensor connectors for terminal damage or loose connections
OK or NG
OK >> GO TO 3.
NG >> Repair as necessary.
3.CHECK WHEEL BEARINGS
Check wheel bearing axial end play. Refer to FA X - 6 , "
On-Vehicle Inspection and Service" or RAX-6, "On-Vehi-
cle Inspection and Service".
OK or NG
OK >> GO TO 4.
NG >> Repair as necessary.
4.CHECK BRAKE FLUID PRESSURE
Check brake fluid pressure distribution.
Refer to BR-9, "
On Board Inspection".
Is brake fluid pressure distribution normal?
YES >> Inspection End.
NO >> Perform Basic Inspection. Refer to BRC-56, "
Basic Inspection".
Unexpected Pedal ActionINFOID:0000000005928499
1.CHECK WARNING LAMP ACTIVATION
Make sure warning lamp remains off while driving.
OK or NG
OK >> GO TO 2.
NG >> Carry out self-diagnosis. Refer to BRC-60, "
CONSULT-III Function (ABS)".
2.CHECK BRAKE PEDAL STROKE
Check brake pedal stroke.
Is pedal stroke excessive?
YES >> Perform Basic Inspection. Refer to BRC-56, "Basic
Inspection".
NO >> GO TO 3.
SBR540A
Revision: May 2010 2011 Versa

BRC-82
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSES FOR SYMPTOMS
3.CHECK CONNECTOR AND BRAKING PERFORMANCE
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check brake effectiveness.
NOTE:
Driving the vehicle with the ABS actuator and electr ic unit (control unit) disconnected may induce DTCs in
electrical control units using CAN communication. After the inspection, clear all DTCs. Refer to BRC-60,
"CONSULT-III Function (ABS)".
OK or NG
OK >> GO TO 4.
NG >> Perform Basic Inspection. Refer to BRC-56, "
Basic Inspection".
4.CHECK WHEEL SENSORS
Check the following.
• Wheel sensor mounting for looseness
• Wheel sensors for physical damage
• Wheel sensor connectors for terminal damage or loose connections
OK or NG
OK >> Check ABS actuator and electric unit (contro l unit) pin terminals for damage and the connection of
harness connector. Reconnect ABS actuator and el ectric unit (control unit) harness connector.
Then retest.
NG >> Repair as necessary.
Long Stopping DistanceINFOID:0000000005928500
1.CHECK BASE BRAKING SYSTEM PERFORMANCE
1. Disable ABS by disconnecting ABS actuator and electric unit (control unit) connector.
2. Drive vehicle and check to see if stopping distance is still long.
NOTE:
Driving the vehicle with the ABS actuator and electr ic unit (control unit) disconnected may induce DTCs in
electrical control units using CAN communication. After the inspection, clear all DTCs. Refer to BRC-60,
"CONSULT-III Function (ABS)".
OK or NG
OK >> Go to BRC-81, "ABS Works Frequently".
NG >> Perform Basic Inspection. Refer to BRC-56, "
Basic Inspection".
NOTE:
Stopping distance may be longer than vehicles without ABS when road condition is slippery.
ABS Does Not WorkINFOID:0000000005928501
CAUTION:
The ABS does not operate when the vehicle speed is 10 km/h (6 MPH) or less.
1.CHECK WARNING LAMP ACTIVATION
Turn ignition switch ON and check for warning lamp activation.
• Warning lamp should activate for approximately 2 seconds after turning the ignition switch ON.
OK or NG
OK >> Carry out self-diagnosis. Refer to BRC-60, "CONSULT-III Function (ABS)".
NG >> Go to BRC-83, "
ABS Warning Lamp Does Not Come On When Ignition Switch Is Turned On".
Pedal Vibration or ABS Operation NoiseINFOID:0000000005928502
NOTE:
During ABS activation, pedal vibration may be felt and a noise may be heard. This is normal and does not indi-
cate a malfunction.
Revision: May 2010 2011 Versa

BRC-90
< SERVICE INFORMATION >[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
INSTALLATION
Installation is in the reverse order of removal.
• Bleed the brake system. Refer to
BR-9, "
Bleeding Brake System".
• Adjust steering angle sensor neutral position. Refer to BRC-85, "
Adjustment of Steering Angle Sensor Neu-
tral Position".
CAUTION:
After installing harness connector in the ABS actuato r and electric unit (control unit), make sure the
connector is securely locked.
Revision: May 2010 2011 Versa
