2011 NISSAN LATIO hatch back

BODY REPAIRBL-287
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

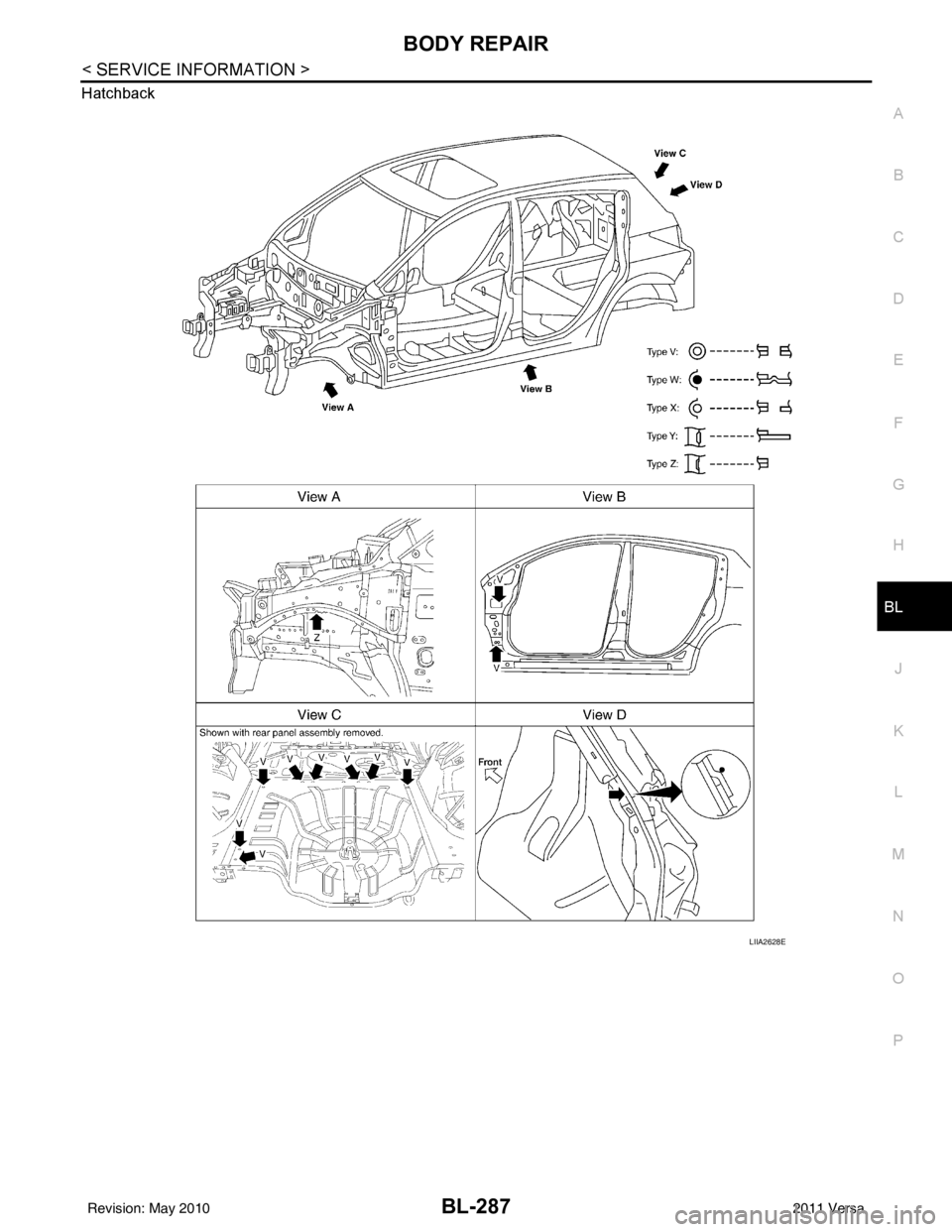

Hatchback
LIIA2628E
Revision: May 2010
2011 Versa

BODY REPAIRBL-293
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

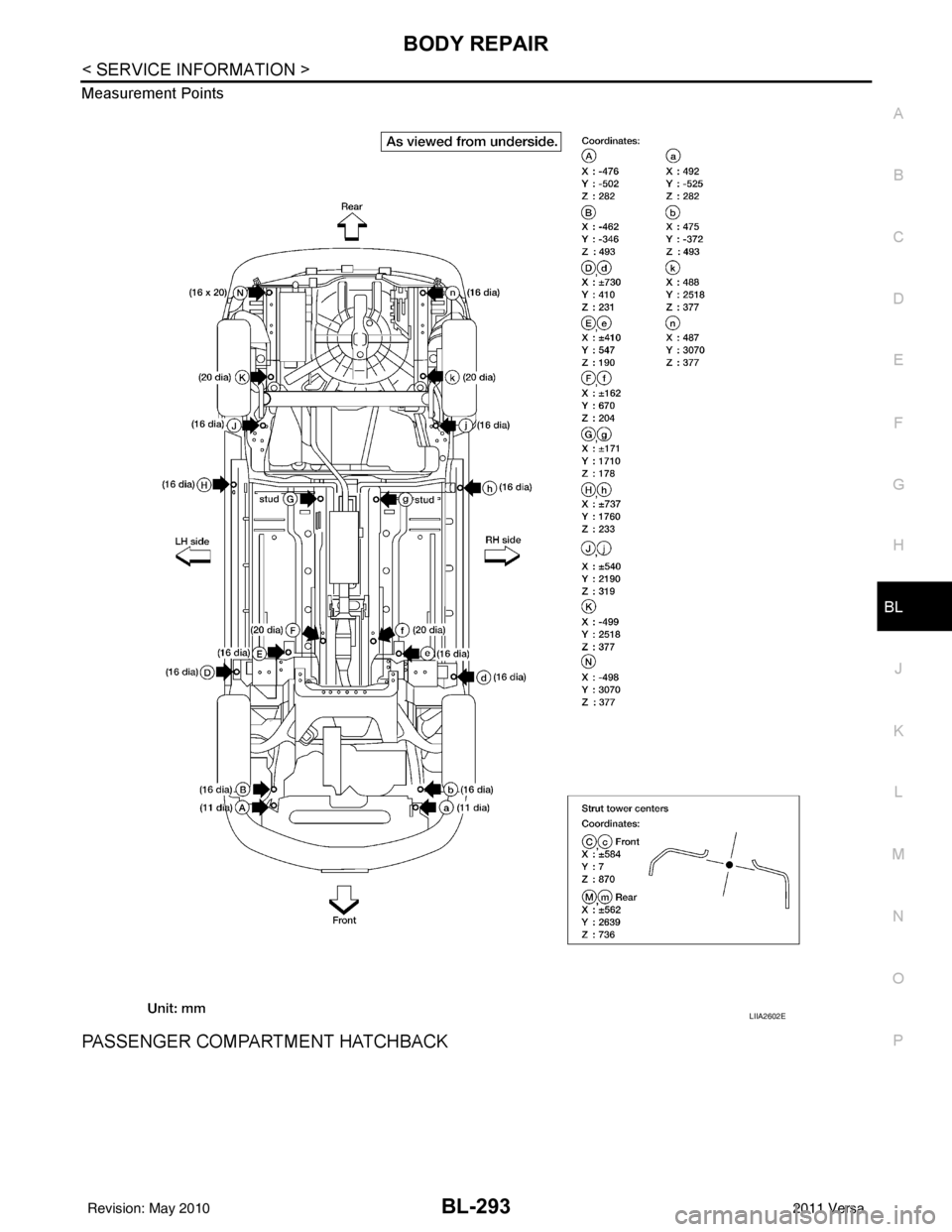

Measurement Points
PASSENGER COMPARTMENT HATCHBACK
LIIA2602E
Revision: May 2010
2011 Versa

BODY REPAIRBL-297
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

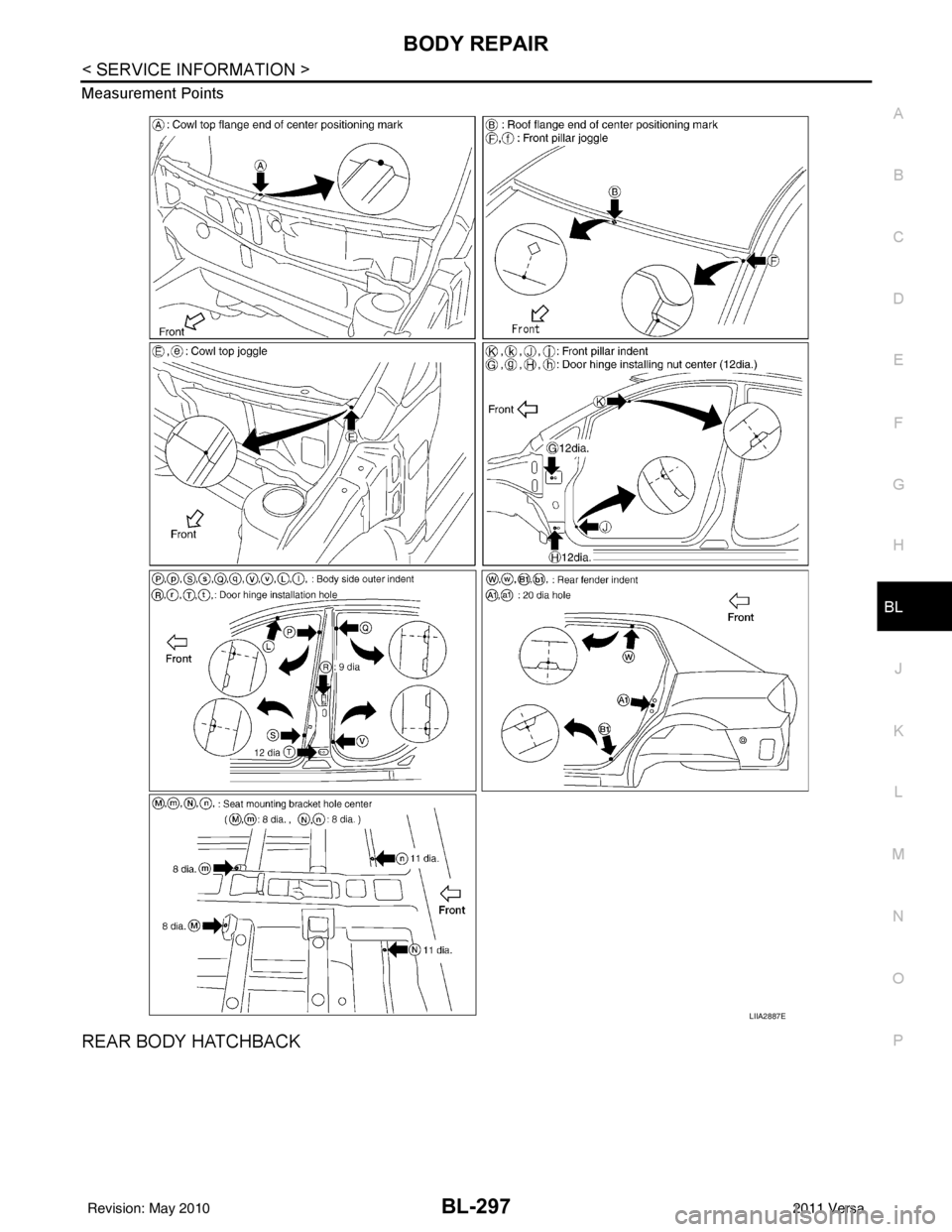

Measurement Points
REAR BODY HATCHBACK
LIIA2887E
Revision: May 2010
2011 Versa

BODY REPAIRBL-303
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

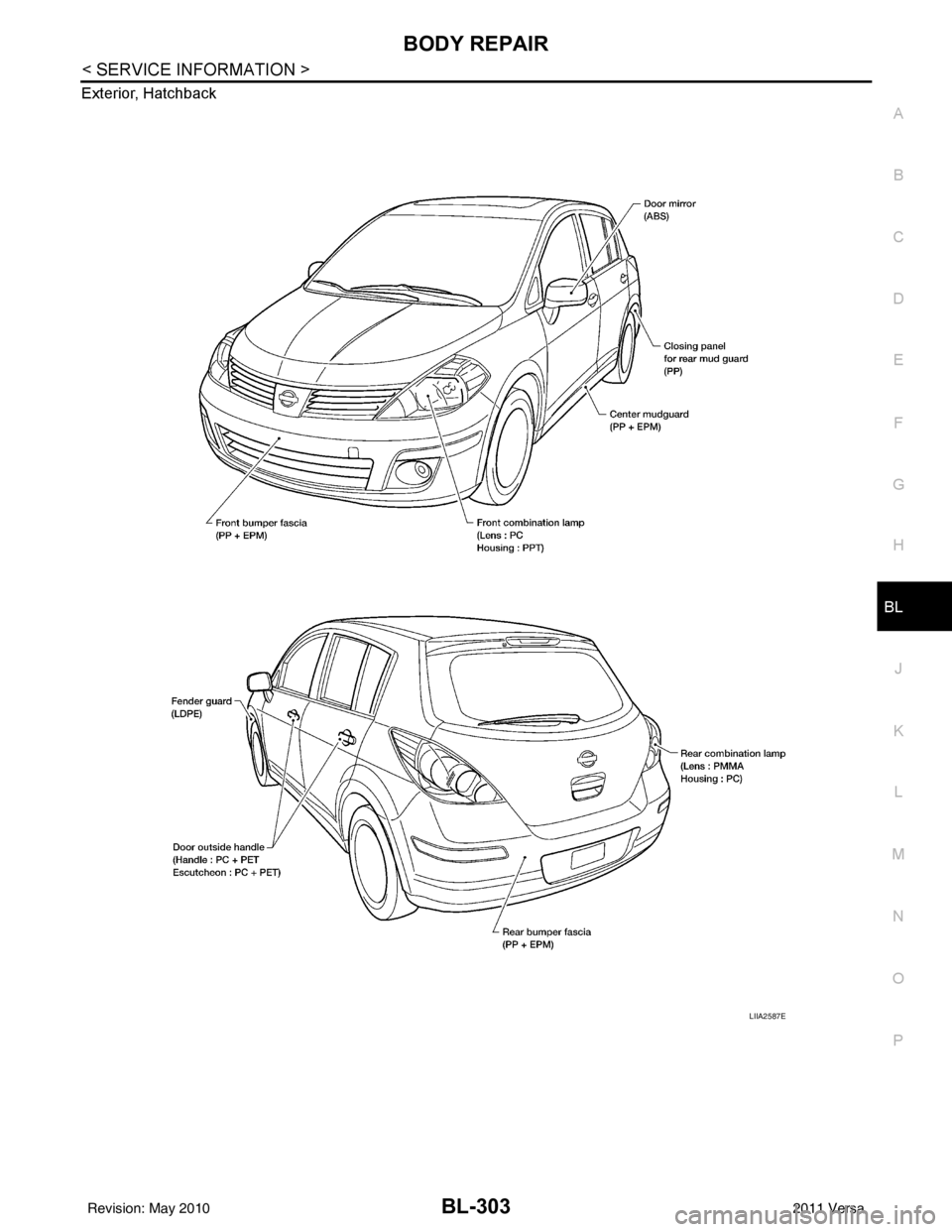

Exterior, Hatchback
LIIA2587E
Revision: May 2010
2011 Versa

BODY REPAIRBL-309
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Install service part.
- Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service part.
2. Fill procedures before installation of service part.
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Fill foam material on wheelhouse outer side. NOTE:
Fill in enough to close gap with service part while avoiding flange
area.
- Install service part.
NOTE:
Refer to label for information on working times.
Hatchback
LIIA1081E
LIIA1082E
Revision: May 2010 2011 Versa

BODY REPAIRBL-329
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

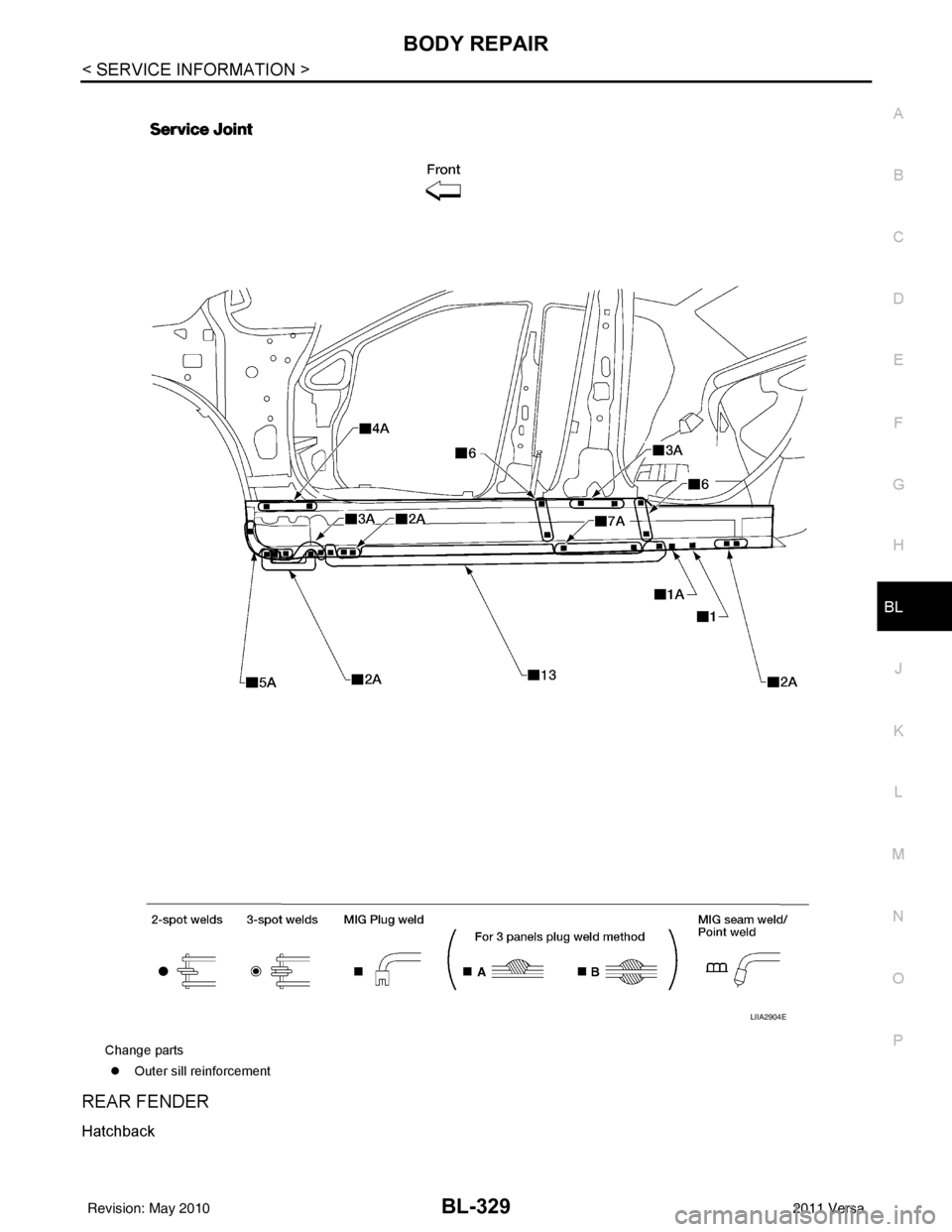

REAR FENDER
Hatchback
Change parts z Outer sill reinforcement
LIIA2904E
Revision: May 2010 2011 Versa

BODY REPAIRBL-331
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

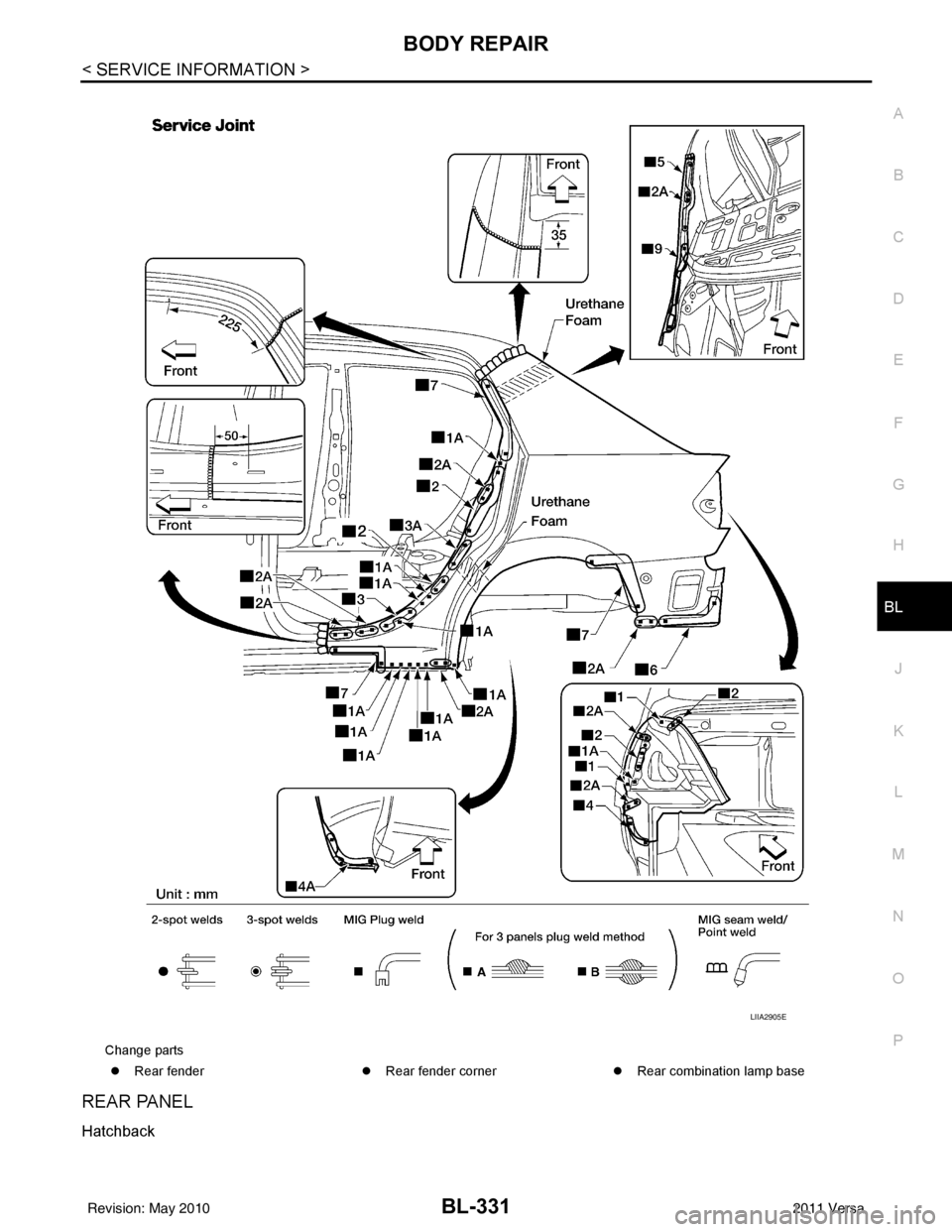

REAR PANEL
Hatchback
Change parts z Rear fender zRear fender corner zRear combination lamp base
LIIA2905E
Revision: May 2010 2011 Versa

BODY REPAIRBL-333
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

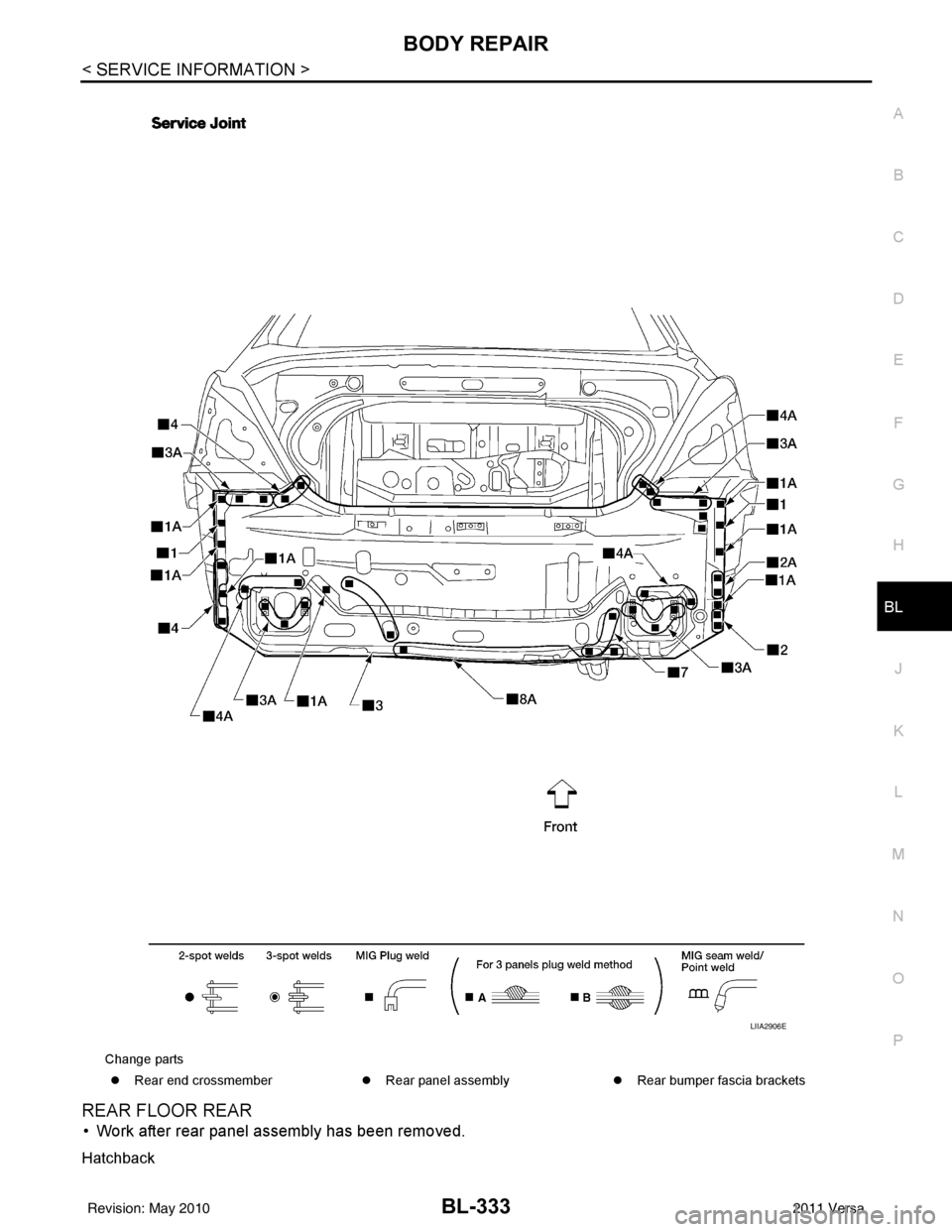

REAR FLOOR REAR
• Work after rear panel assembly has been removed.
Hatchback
Change parts z Rear end crossmember zRear panel assembly zRear bumper fascia brackets
LIIA2906E
Revision: May 2010 2011 Versa
