2011 NISSAN LATIO hatch back

BODY REPAIRBL-335
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
BL
N
O P

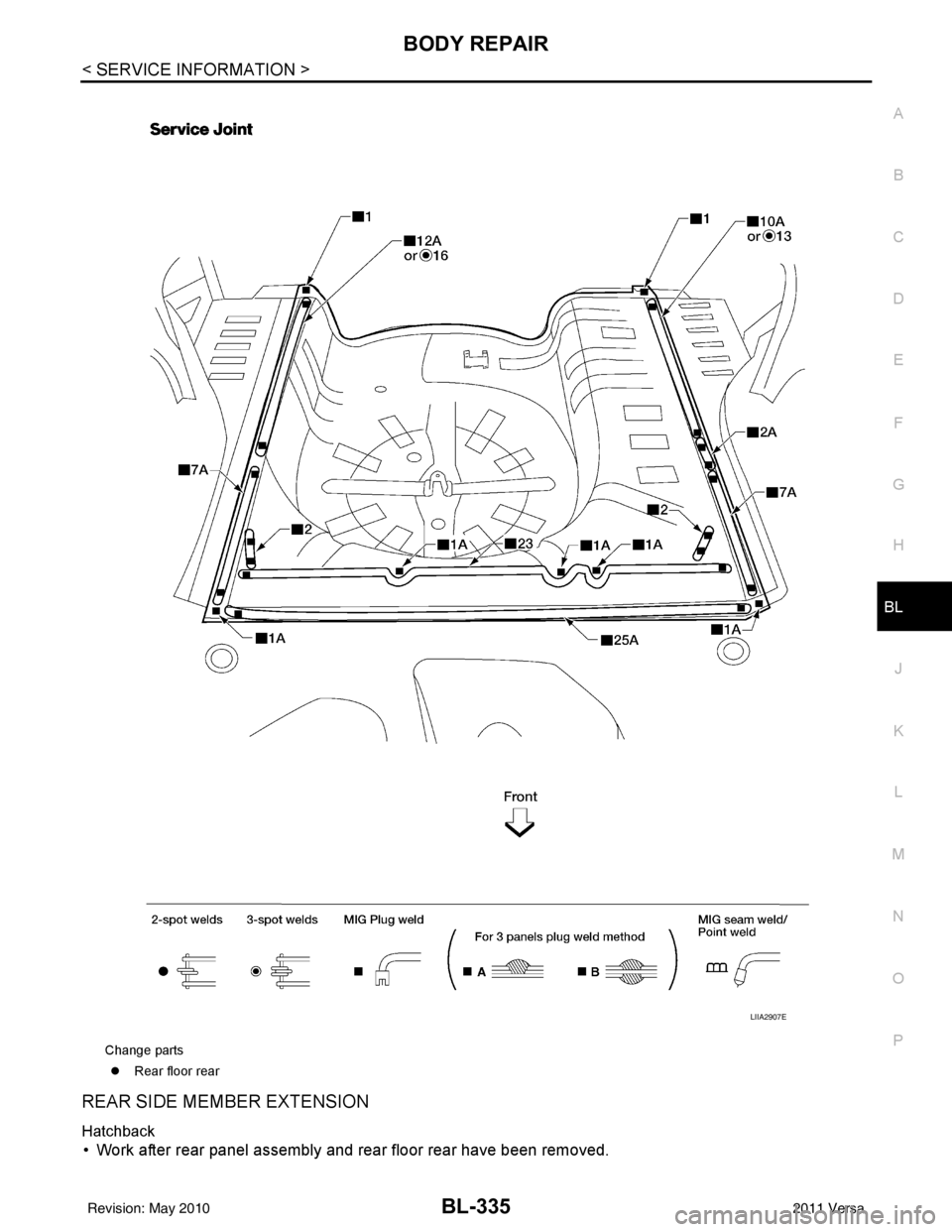

REAR SIDE MEMBER EXTENSION
Hatchback
• Work after rear panel assembly and rear floor rear have been removed.
Change parts z Rear floor rear
LIIA2907E
Revision: May 2010 2011 Versa

EI-1
BODY
C
DE
F
G H
J
K L
M
SECTION EI
A
B
EI
N
O P
CONTENTS
EXTERIOR & INTERIOR
PRECAUTION ....... ........................................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
3
Precaution .................................................................4
PREPARATION ............................................5
PREPARATION .............................................. .....5
Special Service Tool ........................................... ......5
Commercial Service Tool ..........................................5
SYMPTOM DIAGNOSIS ...............................6
SQUEAK AND RATTLE TROUBLE DIAGNO-
SIS .................................................................. .....
6
Work Flow ........................................................... ......6
Generic Squeak and Rattle Troubleshooting ............8
Diagnostic Worksheet .............................................10
CLIP AND FASTENER .......................................12
Description .......................................................... ....12
ON-VEHICLE REPAIR .................................15
FRONT BUMPER ........................................... ....15
Removal and Installation .........................................15
REAR BUMPER ............................................. ....18
Component .......................................................... ....18
Removal and Installation - Hatchback .....................19
Removal and Installation - Sedan ....................... ....21
FRONT GRILLE .................................................23
Removal and Installation .........................................23
COWL TOP .........................................................24
Removal and Installation .........................................24
FENDER PROTECTOR ....................................26
Component .......................................................... ....26
Removal and Installation .........................................26
ROOF SIDE MOLDING .....................................27
Component ..............................................................27
Removal and Installation .........................................27
DOOR OUTSIDE MOLDING .............................29
Component ..............................................................29
Removal and Installation .........................................30
CENTER MUD GUARD .....................................32
Removal and Installation .........................................32
TRUNK LID FINISHER ......................................33
Removal and Installation .........................................33
REAR AIR SPOILER .........................................34
Removal and Installation .........................................34
DOOR FINISHER ..............................................36
Removal and Installation .........................................36
BACK DOOR TRIM ...........................................40
Removal and Installation ..................................... ....40
BODY SIDE TRIM .............................................41
Component ..............................................................41
Removal and Installation .........................................42
REAR PARCEL SHELF FINISHER ..................47
Removal and Installation .........................................47
FLOOR TRIM ....................................................48
Removal and Installation .........................................48
HEADLINING ....................................................50
Component ..............................................................50
Removal and Installation - Hatchback .....................52
Removal and Installation - Sedan ............................54
LUGGAGE FLOOR TRIM .................................56
Revision: May 2010 2011 Versa

EI-18
< ON-VEHICLE REPAIR >
REAR BUMPER
REAR BUMPER
ComponentINFOID:0000000005929555
Hatchback Models
WIIA1406E
1. Bumper side bracket2. Rear fender protector 3. Spring nut
4. Bumper reinforcement bracket 5. Rear bumper reinforcement 6. Energy absorbing foam
7. Rear bumper fascia 8. Rear bumper upper retainer A. Clip C205
Revision: May 2010 2011 Versa

REAR BUMPEREI-19
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
Sedan Models
Removal and Installation - HatchbackINFOID:0000000005929556
REMOVAL
1. Open back door.
2. Disconnect the negative battery terminal.
3. Remove rear combination lamp RH/LH. Refer to LT-88, "
Removal and Installation".
4. Remove rear bumper fascia spring nuts and screws RH/LH.
5. Remove rear fender protector. Refer to EI-26, "
Removal and Installation".
AWKIA0567ZZ
1. Rear bumper upper retainer 2. Rear fender protector 3. Spring nut
4. Bumper side bracket 5. Bumper reinforcement bracket 6. Rear bumper reinforcement
7. Energy absorbing foam 8. Rear bumper fascia 9. Finisher end (if equipped)
10. Rear bumper corner finisher (if equipped) A. Clip C205
B. Metal clip
Revision: May 2010 2011 Versa

ROOF SIDE MOLDINGEI-27
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
ROOF SIDE MOLDING
ComponentINFOID:0000000005929562
Hatchback Models
Sedan Models
Removal and InstallationINFOID:0000000005929563
REMOVAL
1. Using a suitable tool, release the rear roof side molding clip and remove.
2. Lift up rear edge of roof side molding working forward.
3. Release front roof side molding clip, then remove roof side molding.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
WIIA1408E
1. Roof side molding A. Front roof side molding clip B. Rear roof side molding clip
WIIA1409E
1. Roof side moldingA. Front roof side molding clip B. Rear roof side molding clip
Revision: May 2010 2011 Versa

DOOR OUTSIDE MOLDINGEI-29
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
DOOR OUTSIDE MOLDING
ComponentINFOID:0000000005929564
Hatchback Models
WIIA1410E
1. Front door outside molding 2. Rear door outside molding3. Rear door corner cover
C. Clip C101
Revision: May 2010 2011 Versa

EI-34
< ON-VEHICLE REPAIR >
REAR AIR SPOILER
REAR AIR SPOILER
Removal and InstallationINFOID:0000000005929568
Exploded View
Sedan Models
Hatchback Models
Removal - Sedan
1. Remove the rear spoiler nuts.
ALKIA1377ZZ
1. Rear air spoiler assembly 2. Stanchion 3. Adhesive backed foam tape
4. High mounted stop lamp harness 5. High mounted stop lamp LED 6. Bracket
A. Stud B. Clip CF118C. Screw
D. Nut
AWKIA0557ZZ
1. Rear air spoiler assembly 2. High mounted stop lamp harness
Revision: May 2010 2011 Versa

REAR AIR SPOILEREI-35
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
2. Remove inside trunk lid finisher. Refer to EI-59, "Removal and Installation".
3. Disconnect high mounted stop lamp connector.
4. Release adhesive backed foam tape and clips, then carefully lift the rear air spoiler from trunk lid. CAUTION:
Use care not to damage painted surfaces during removal, or releasing of adhesive backed foam
tapes if equipped.
5. Release the high mounted stop lamp harness grommet from trunk lid, then remove rear air spoiler.
Installation - Sedan
Installation is in the reverse order of removal.
NOTE:
• Before installing rear air spoiler, clean the surface where it will be mounted with isopropyl alcohol or equiva-
lent to degrease the surface.
• Before installing, be sure there are no gaps or wa ves in the foam tape (if equipped) where the surfaces
meet.
• During installation, be sure grommet of high mounted stop lamp harness is fully seated into trunk lid opening prior to final rear air spoiler placement.
Removal - Hatchback
1. Remove back door finisher upper. Refer to EI-40.
2. Disconnect high mounted stop lamp connector.
3. Remove the nuts and carefully lift the rear air spoiler from the back door. CAUTION:
Use care not to damage painted surfaces during removal, or releasing of adhesive backed foam
tapes if equipped.
4. Release the high mounted stop lamp harness grommet from back door, then remove rear air spoiler.
Installation - Hatchback
Installation is in the reverse order of removal.
NOTE:
• Before installing rear air spoiler, clean the surface where it will be mounted with isopropyl alcohol or equiva-
lent to degrease the surface.
• Before installing, be sure there are no gaps or wa ves in the foam tape (if equipped) where the surfaces
meet.
• During installation, be sure grommet of high mount ed stop lamp harness is fully seated into back door open-
ing prior to final rear air spoiler placement.
Revision: May 2010 2011 Versa
