2011 Lancia Ypsilon Owner handbook (in English)

FOG LIGHTS
(for versions/markets, where provided)
Replace the bulb as follows:
❒steer the wheel completely;
❒adjust the tabs A fig. 131 and remove the flap
B;
❒adjust the catch C fig. 132 and disconnect the
electrical connector D;
❒remove the cover E by turning it clockwise (see
the word OFF and the arrow on the cover);
❒release the catches F fig. 133 removing them
outwards;
❒release the connector G fig. 134 and replace the
bulb H;
❒refit the new lamp and carry out the procedure
described previously in reverse.REAR LIGHT CLUSTERS
These contain the bulbs for the side lights, brake
lights and direction indicators. The reversing
lights and rear fog lights are located instead in the
rear bumper.
fig. 131
L0F0205
fig. 132
L0F0206
fig. 133
L0F0207
175GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

The bulbs are arranged as follows fig. 135:ADirection indicatorsBBrake lights
DIRECTION INDICATORS/BRAKE LIGHTS
Turn the bulb holder in directionO(open) to
replace the bulbs. After replacing the bulb, turn
the bulb holder in directionC(close).
SIDE LIGHTS
These are LED lights. Contact a Lancia
Dealership for replacement.
3rd
BRAKE LIGHTS
These are located in the tailgate and are LED
lights. Contact a Lancia Dealership for
replacement.fig. 134
L0F0208
fig. 135
L0F0034
176
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

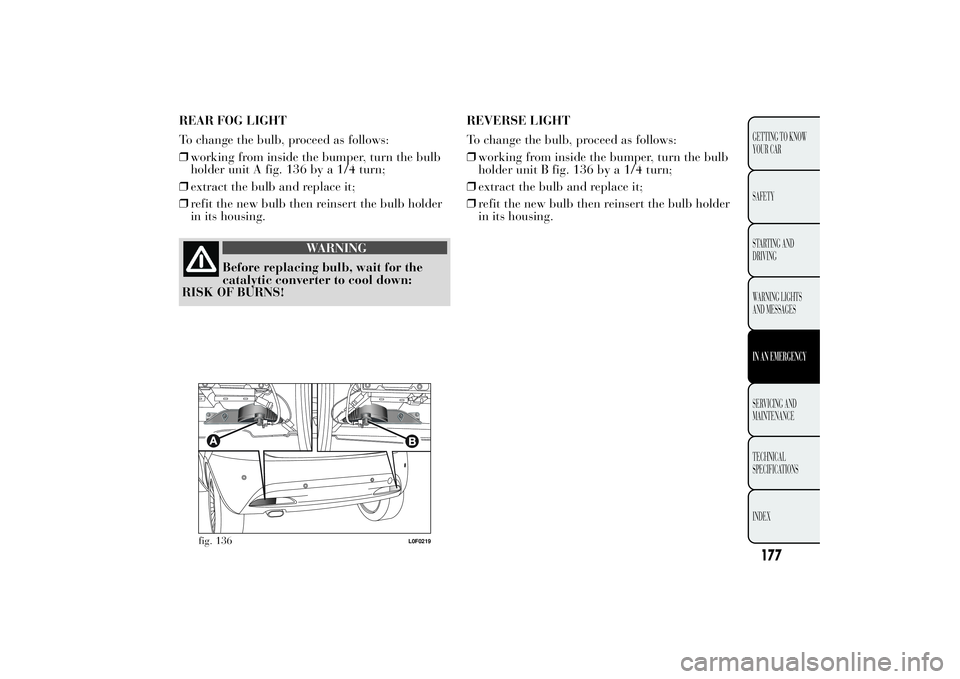

REAR FOG LIGHT
To change the bulb, proceed as follows:
❒working from inside the bumper, turn the bulb
holder unit A fig. 136 by a 1/4 turn;
❒extract the bulb and replace it;
❒refit the new bulb then reinsert the bulb holder
in its housing.
WARNING
Before replacing bulb, wait for the
catalytic converter to
cool down:
RISK OF BURNS!REVERSE LIGHT
To change the bulb, proceed as follows:
❒working from inside the bumper, turn the bulb
holder unit B fig. 136 by a 1/4 turn;
❒extract the bulb and replace it;
❒refit the new bulb then reinsert the bulb holder
in its housing.
fig. 136
L0F0219
177GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

NUMBER PLATE LIGHTS
To replace the bulbs proceed as follows:
❒remove lens A fig. 137;
❒turn the bulb holder B fig. 138 anticlockwise,
extract the bulb C and replace it;
❒refit the lens.
REPLACING INTERIOR BULBSFor the type of bulb and corresponding power
rating, see the paragraph "Changing a bulb".
FRONT ROOF LIGHT
To change the bulbs, proceed as follows:
❒remove the roof light A fig. 139 working at the
points indicated by the arrows;
❒open the flap B fig. 140 and replace the bulbs C
releasing them from the side contacts. Make
sure that the new bulbs are correctly secured
between the contacts;
❒reclose the flap B fig. 140 and fix the roof light
A fig. 139 in its housing making sure that it is
locked.
fig. 137
L0F0259
fig. 138
L0F0214
fig. 139
L0F0066
178
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

REAR ROOF LIGHT
Versions without sun roof
To change the bulb, proceed as follows:
❒operate in the point shown by the arrow and
remove the roof light A fig. 141;
❒open the flap C fig. 142 and replace the bulb B
releasing it from the side contacts;
❒Insert the new bulb and make sure that it is
correctly clamped between the contacts.Versions with sun roof
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❒operate in the point shown by the arrow and
remove the roof light A fig. 143;
fig. 140
L0F0067
fig. 141
L0F0237
fig. 142
L0F0235
179GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

❒replace the bulb B fig. 144 releasing it from the
side contacts;
❒Insert the new bulb and make sure that it is
correctly clamped between the contacts.LUGGAGE COMPARTMENT ROOF LIGHT
To change the bulbs, proceed as follows:
❒open the luggage compartment and extract the
roof light A fig. 145 working in the point shown
by the arrow;
❒open the protection B and replace the bulb;
❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
A
fig. 143
L0F0184
fig. 144
L0F0185
fig. 145
L0F0100
180
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

GLOVE COMPARTMENT LIGHT
To change the bulbs, proceed as follows:
❒open the glove compartment and extract the
roof light A fig. 146;
❒open the protection B and replace the bulb;
❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
REPLACING FUSESGENERAL INFORMATION
Fuses protect the electrical system: they intervene
(blow) in the event of a fault or improper
intervention on the system.
When a device does not work, check the condition
of its protective fuse: the conductor element A
fig. 147 must be intact. If it is not, replace the
blown fuse with another with the same amperage
(same colour).
B = intact fuse;
C = fuse with damaged filament.
To replace a fuse, use the tweeters D hooked to the
fuse box lid on the left-hand side of the
dashboard.
Refer to the tables on the following pages to
identify the protective fuse.
fig. 146
L0F0065
fig. 147
L0F0005
181GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

WARNING
If a fuse blows again, contact a
Lancia Dealership.
WARNING
Never replace a fuse with metal wires
or anything else.
WARNING
Never replace a fuse with another
with a higher
amp rating; DANGER
OF FIRE.
WARNING
If a general protective fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE)
blows
contact a Lancia Dealership.
WARNING
Before replacing a fuse, make sure
that the ignition
key has been
removed and that all the other services are
switched off and/or disengaged.
WARNING
If a general protective fuse for safety
systems (airbag system,
braking
system), power unit systems (engine system,
transmission system) or steering system
intervenes, contact a Lancia Dealership.
