2011 Lancia Ypsilon Owner handbook (in English)

Downwards adjustment:press button A fig. 22
and lower the head restraint.
"Anti-Whiplash" Device
The head restraints are equipped with an
“Anti-Whiplash” device, which reduces the
distance between head and head restraint in the
event of a rear impact, thus mitigating the
"whiplash" effect.
The head restraint may move when the backrest is
pressed by the occupant's torso or hand: this
behaviour is caused by the system and should not
be considered a malfunction.
WARNING
All adjustments must be made with
the car stationary
. Head restraints
must be adjusted so that the head, rather
than the neck, rests on them. Only when they
are adjusted in this manner can they serve
their intended purpose.
WARNING
To make the best use of the head
restraint's protective action,
adjust
the backrest so that you are sitting upright
and keep your head as close as possible
to the head restraint.
REAR
(for versions/markets, where provided)
Two height-adjustable head restraints are
provided for the rear seats. On some versions a
head restraint is also provided for the central seat.
Upwards adjustment:raise the head restraint
until it clicks into place.
fig. 22
L0F0061
31GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Downwards adjustment:press button A fig. 23
and lower the head restraint.
Proceed as follows to remove the head restraints:
❒raise the head restraints to their maximum
height;
❒press buttons A and B fig. 23 at the side of the
two supports, then remove the head restraints
by pulling them upwards.
IMPORTANT If the rear seats are used, always set
the head restraints in the "completely raised"
position.
STEERING WHEELThe steering wheel can be adjusted vertically.
To adjust, move lever A fig. 24 downwards to
position 1, then adjust the wheel to the most
suitable position and lock it in position by moving
lever A to position 2.
WARNING
All adjustments must be carried out
only with the
car stationary and
engine off.
A
B
fig. 23
L0F0201
fig. 24
L0F0078
32GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
It is absolutely forbidden to carry out
any after-market
operation involving
steering system or steering column
modifications (e.g. installation of anti-theft
device) that could badly affect performance
and safety, invalidate the warranty and
also result in the car not meeting type-
approval requirements.
REAR VIEW MIRRORSINTERIOR MIRROR
The mirror is fitted with a safety device that
causes its release in the event of a violent impact
with the passenger. Operate lever A fig. 25 to
adjust the mirror into two different positions:
normal or anti-glare.
fig. 25
L0F0054
33GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

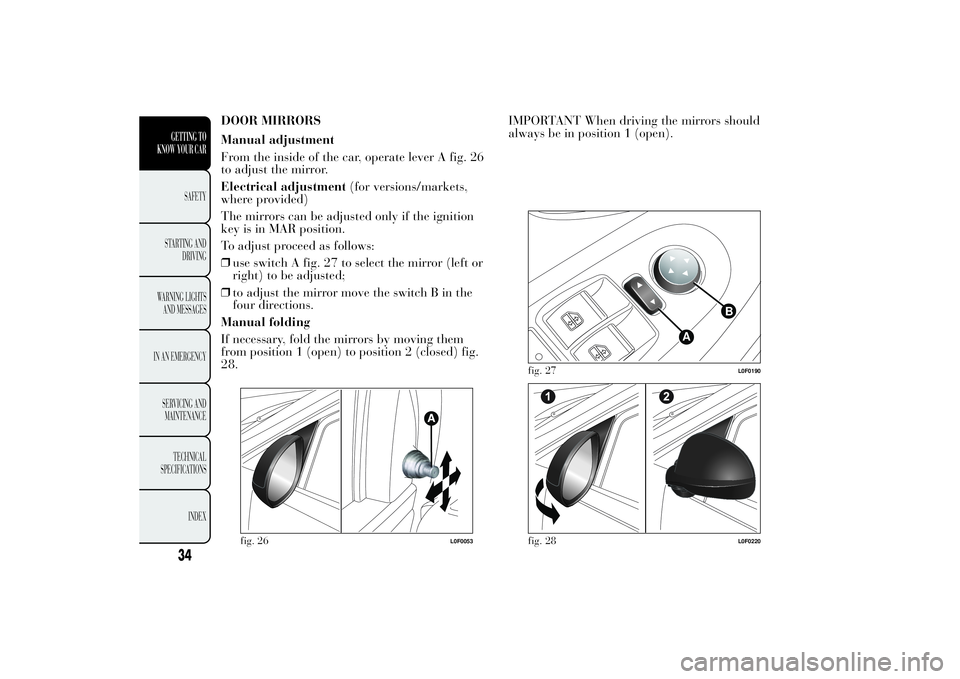

DOOR MIRRORS
Manual adjustment
From the inside of the car, operate lever A fig. 26
to adjust the mirror.
Electrical adjustment(for versions/markets,
where provided)
The mirrors can be adjusted only if the ignition
key is in MAR position.
To adjust proceed as follows:
❒use switch A fig. 27 to select the mirror (left or
right) to be adjusted;
❒to adjust the mirror move the switch B in the
four directions.
Manual folding
If necessary, fold the mirrors by moving them
from position 1 (open) to position 2 (closed) fig.
28.IMPORTANT When driving the mirrors should
always be in position 1 (open).
fig. 26
L0F0053
A
B
fig. 27
L0F0190
fig. 28
L0F0220
34GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CLIMATE CONTROLSIDE AIR DIFFUSERS
A fig. 29 - Adjustable and directable side air
diffusers:
❒use device B to adjust the vent to the required
position;
❒turn wheel C to adjust the air flow.
D - Fixed side air diffuser.CENTRAL AIR DIFFUSERS
A fig. 30 - Adjustable and directable central air
diffusers:
❒use device B to adjust the vent to the required
position;
❒turn wheel C to adjust the air flow.
fig. 29
L0F0103
fig. 30
L0F0104
35GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CLIMATIC COMFORTDIFFUSERS1. Upper fixed diffusers – 2. Adjustable side diffusers – 3. Fixed diffusers for side windows – 4. Adjustable centre air
diffusers – 5. Passenger compartment front foot area diffusersfig. 31
L0F0230
36GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

MANUAL CLIMATE CONTROL(for versions/markets, where provided)
CONTROLS
A Air temperature knob (red=hot/blue=cold) fig.
32
B Air recirculation knob fig. 32
internal air recirculationair intake from outsideIMPORTANT It is advisable to switch the air
recirculation on whilst queueing or in tunnels to
prevent the introduction of polluted air. However,
it is better not to use the function for long periods,
particularly if there are many people on board,
to prevent the windows from misting.
fig. 32
L0F0101
37GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

C Air distribution knob fig. 32
toward the body and the side windowstoward the body, the side windows and the
feettoward the feet onlytoward the feet and the windscreentoward the windscreen only
D Heated rear window activation/deactivation
button fig. 32.
When the function is active, the LED on the
button is lit up.
In order to maintain battery efficiency, the
function is automatically deactivated after about
20 minutes.
E Fan speed knob and climate control system
activation/deactivation fig. 32. Press the knob
to activate the climate control system; the
LED on the knob switches on. This enables
rapid cooling of the passenger compartment.
NoteTo stop the air flow from the vents turn the
knob to 0.
F climate control compressor activation/
deactivation button fig. 32.
Fast windscreen and front side window
demisting/defrosting (MAX-DEF)
Proceed as follows:
❒turn knob A to the red section;❒move slider B to
;
❒turn knob C to
;
❒turn knob E to 4 (maximum fan speed).
IMPORTANT The climate control system is very
useful for speeding up demisting since it
dehumidifies the air. Adjust the controls as
described above and press button
to activate the
climate control system (the LED on the button
will light up).
ADDITIONAL HEATER
(for versions/markets, where provided)
This device speeds up passenger compartment
warming when it is very cold. The additional
heater turns off automatically after reaching the
required comfort conditions.
The heater only works if the outside temperature
and engine coolant temperature are low. The
heater will not activate if the battery voltage is too
low.
SYSTEM MAINTENANCE
In winter, the climate control system must be
turned on at least once a month for about
10 minutes. Have the system inspected at a
Lancia Dealership before the summer.
