< UNIT DISASSEMBLY AND ASSEMBLY >[7AT: RE7R01B]
TRANSMISSION ASSEMBLY
4WD MODELS
13. Snap ring 14. Oil pan gasket 15. Oil pan
16. Clip 17. Oil pan mounting bolt 18. Overflow plug
19. Drain plug 20. Drain plug gasket 21. Magnet
22. Clip 23. Control valve & TCM 24. Joint connector
25. Transmission case 26. Retaining pin 27. Output speed sensor
28. Needle bearing 29. Parking gear 30. Seal ring
31. Output shaft 32. Bearing race
Refer to
GI-4, "
Components" for symbols in the figure.
1. Parking actuator support 2. Parking pawl 3. Pawl shaft
4. Return spring 5. Needle bearing 6. Rear extension
7. Self-sealing bolt 8. Rear oil seal 9. Bracket *: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-22, "
Recommended Chemical Products and Sealants".
Refer to GI-4, "
Components" for symbols in the figure.
JSDIA1841GB
Revision: 2010 May2011 QX56

TRANSMISSION ASSEMBLYTM-221
< UNIT DISASSEMBLY AND ASSEMBLY > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
1. Parking rod 2. Manual plate 3. Manual shaft
4. Retaining pin 5. Detent spring 6. Oil seal
7. Bracket 8. O-ring 9. Self-sealing bolt
10. Baffle plate 11. O-ring 12. Seal ring
13. Snap ring 14. Oil pan gasket 15. Oil pan
16. Clip 17. Oil pan mounting bolt 18. Overflow plug
19. Drain plug 20. Drain plug gasket 21. Magnet
22. Clip 23. Control valve & TCM 24. Joint connector
25. Transmission case 26. Retaining pin 27. Output speed sensor
28. Gasket 29. Needle bearing 30. Parking gear
31. Seal ring 32. Output shaft 33. Bearing race
Refer to GI-4, "
Components" for symbols in the figure.

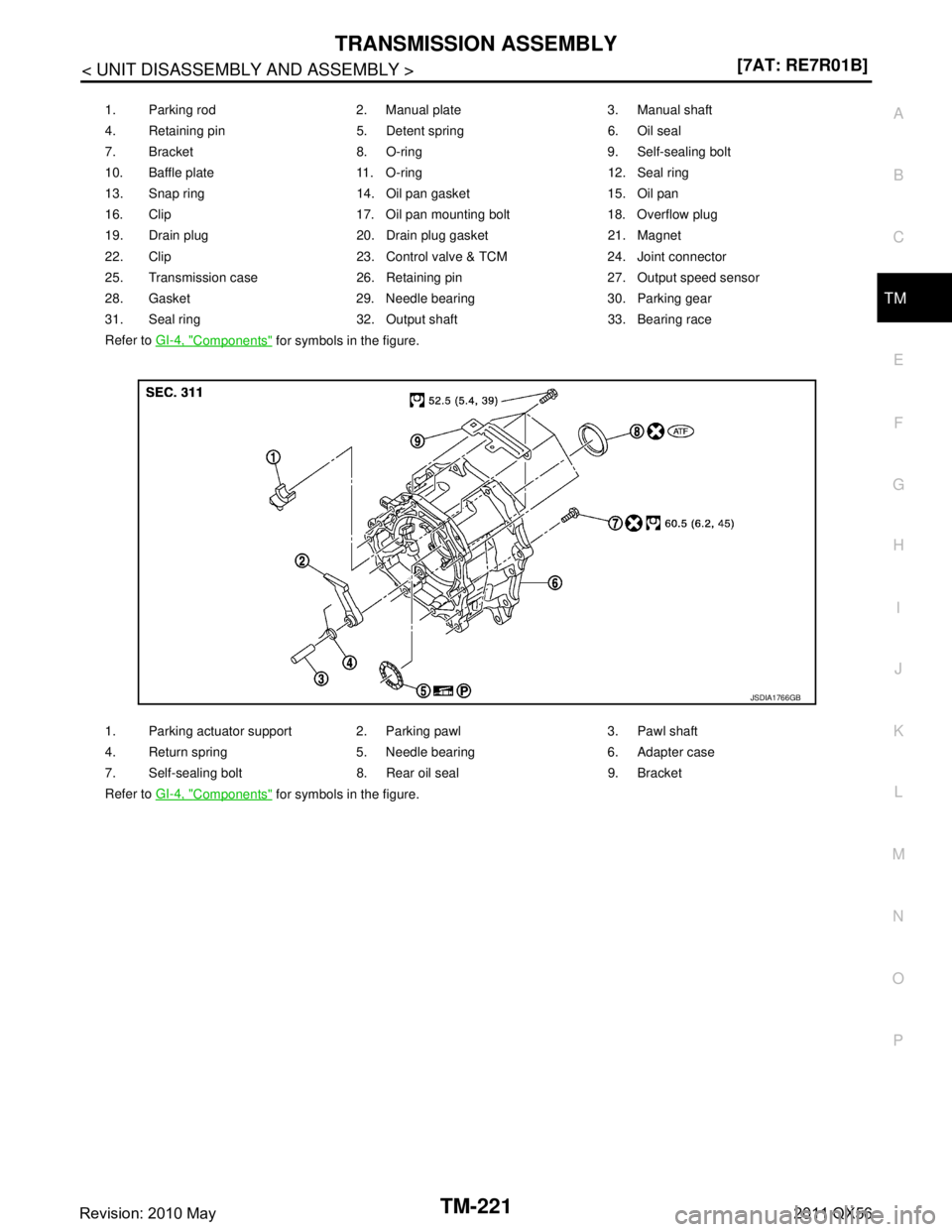

1. Parking actuator support 2. Parking pawl 3. Pawl shaft
4. Return spring 5. Needle bearing 6. Adapter case
7. Self-sealing bolt 8. Rear oil seal 9. Bracket
Refer to GI-4, "
Components" for symbols in the figure.
JSDIA1766GB
Revision: 2010 May2011 QX56

TRANSMISSION ASSEMBLYTM-233
< UNIT DISASSEMBLY AND ASSEMBLY > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
31. Remove snap ring (1) from joint connector (A).
32. Push joint connector (A). CAUTION:
Be careful not to damage connector.
33. Remove clips (1) and oil pan mounting bolts ( ).
34. Remove oil pan (2) and oil pan gasket.
35. Remove magnets (1) from oil pan.
36. Disconnect output speed sensor connector (A). CAUTION:
Be careful not to damage connector.
37. Disengage terminal clips ( ).
JPDIA0007ZZ
JPDIA0008ZZ
: Front
JSDIA1591ZZ
JPDIA0009ZZ
JPDIA1104ZZ
Revision: 2010 May2011 QX56

TM-238
< UNIT DISASSEMBLY AND ASSEMBLY >[7AT: RE7R01B]
TRANSMISSION ASSEMBLY
vii. Remove parking gear (1) from output shaft (2).
viii. Remove seal rings (1) from output shaft.
43. Remove needle bearing from transmission case.
44. Remove output speed sensor
(1) from transmission case.
CAUTION:
 Never subject it to impact by dropping or hitting it.
 Never disassemble.
 Never allow metal filings, etc. to get on the sensor's front
edge magnetic area.
 Never place in an area affected by magnetism.
45. Remove reverse brake snap ring (fixing plate) with 2 flat-bladed screwdrivers.
CAUTION:
 Be careful not to scratch transmission case and reversebrake retaining plate.
 Be careful not to damage snap ring.
NOTE:
Press out snap ring from the transmission case oil pan side gap
with a flat-bladed screwdriver, and remove it using a another
screwdriver.
46. Remove reverse brake retaining plate from transmission case.
JPDIA0029ZZ
JPDIA0030ZZ
SCIA5031E
: Bolt
JSDIA1321ZZ
SCIA5032E
Revision: 2010 May2011 QX56

TRANSMISSION ASSEMBLYTM-247
< UNIT DISASSEMBLY AND ASSEMBLY > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
17. Install snap ring in transmission case. CAUTION:
Be careful not to damage snap ring.
18. Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate.
19. Install needle bearing to transmission case. CAUTION:
Check the direction of needle bearing. Refer to TM-222,
"Location of Needle Bearings and Bearing Races".
20. Install output speed sensor (1) to transmission case. Tighten revolution sensor bolt to the specified torque.
CAUTION:
 Never subject it to impact by dropping or hitting it.
 Never disassemble.
 Never allow metal filings, etc. to get on the sensor's front
edge magnetic area.
 Never place in an area affected by magnetism.
SCIA2439E
Specified clearance “A”
Standard: TM-298, "
Reverse Brake Clearance".
Retaining plate: Refer to TM-298, "
Reverse Brake Clear-
ance"
SCIA3129E
SCIA5031E
: Bolt
JSDIA1321ZZ
Revision: 2010 May2011 QX56

TRANSMISSION ASSEMBLYTM-265
< UNIT DISASSEMBLY AND ASSEMBLY > [7AT: RE7R01B]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
 Make sure that input speed sen sor securely installs input
speed sensor holes (A).
 Hang down output speed sensor harness toward outside
so as not to disturb installa tion of the control valve &
TCM.
 Adjust A/T assembly harness connector of the control
valve & TCM to terminal ho le of transmission case.
 Assemble it so that manual valve cutout is engaged with manual plate projection.
64. Install bolts and clip (1) to the control valve & TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.
*: Reamer bolt
65. Connect output speed sensor connector (A).
66. Engage output speed sensor harness with terminal clips ( ).
JPDIA1106ZZ
SCIA5035E
: Front
Bolt symbol Length mm (in) Number of bolts A 43 (1.69) 3
B 40 (1.57) 2
C 54 (2.13) 6
D 50 (1.97) 2
E* 50 (1.97) 1
JPDIA1105ZZ
JPDIA1104ZZ
Revision: 2010 May2011 QX56
