2011 CHEVROLET VOLT Owner's Manual

Black plate (17,1)Chevrolet Volt Owner Manual - 2011
Seats and Restraints 3-17
{WARNING
You can be seriously injured if the
belt goes over an armrest like
this. The belt would be much too
high. In a crash, you can slide
under the belt. The belt force
would then be applied on the
abdomen, not on the pelvic
bones, and that could cause
serious or fatal injuries. Be sure

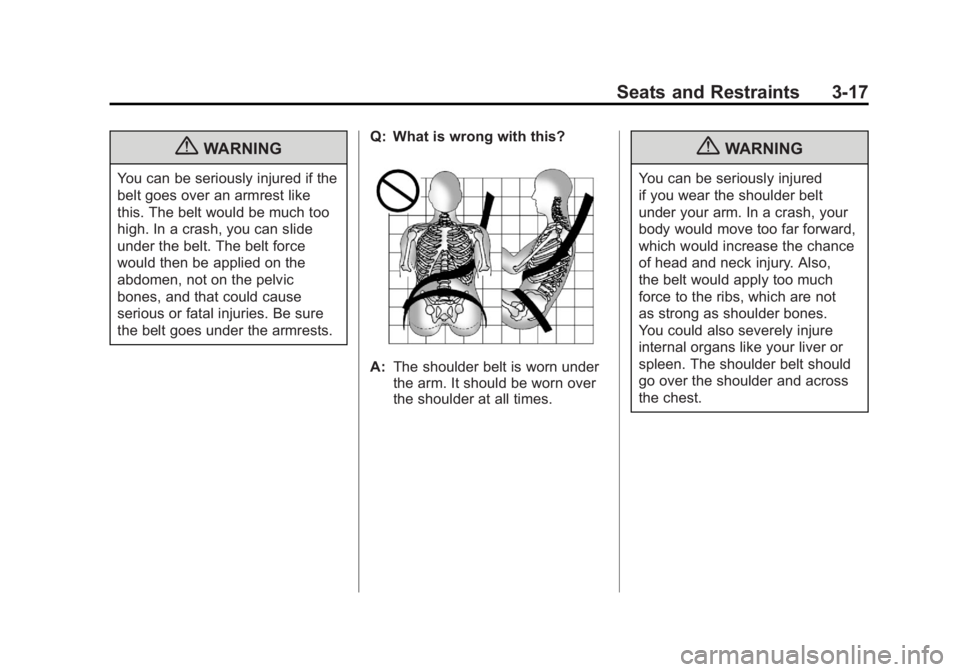

the belt goes under the armrests.Q: What is wrong with this?
A:
The shoulder belt is worn under
the arm. It should be worn over
the shoulder at all times.
{WARNING
You can be seriously injured
if you wear the shoulder belt
under your arm. In a crash, your
body would move too far forward,
which would increase the chance
of head and neck injury. Also,
the belt would apply too much
force to the ribs, which are not
as strong as shoulder bones.
You could also severely injure
internal organs like your liver or
spleen. The shoulder belt should
go over the shoulder and across
the chest.

Black plate (18,1)Chevrolet Volt Owner Manual - 2011
3-18 Seats and Restraints
Q: What is wrong with this?
A:The belt is behind the body.
{WARNING
You can be seriously injured
by not wearing the lap-shoulder
belt properly. In a crash, you
would not be restrained by the
shoulder belt. Your body could
move too far forward increasing
the chance of head and neck
injury. You might also slide
under the lap belt. The belt
force would then be applied right
on the abdomen. That could
cause serious or fatal injuries.
The shoulder belt should go over
the shoulder and across the
chest. Q: What is wrong with this?
A:
The belt is twisted across
the body.

Black plate (19,1)Chevrolet Volt Owner Manual - 2011
Seats and Restraints 3-19
{WARNING
You can be seriously injured by a
twisted belt. In a crash, you would
not have the full width of the belt
to spread impact forces. If a belt
is twisted, make it straight so it
can work properly, or ask your
dealer to fix it.
Lap-Shoulder Belt
All seating positions in the vehicle
have a lap-shoulder belt.
The following instructions explain
how to wear a lap-shoulder belt
properly.
1. If the seat has a safety beltguide, and the safety belt is not
routed through the guide, slide
the edge of the belt webbing
through the opening on the
guide. Be sure the belt is not
twisted. 2. Adjust the seat, if the seat is
adjustable, so you can sit up
straight. To see how, see “Seats”
in the Index.
3. Pick up the latch plate and pull the belt across you. Do not let it
get twisted.
The lap-shoulder belt may lock if
you pull the belt across you very
quickly. If this happens, let the
belt go back slightly to unlock it.
Then pull the belt across you
more slowly.
If the shoulder portion of a
passenger belt is pulled out
all the way, the child restraint
locking feature may be engaged.
If this happens, let the belt go
back all the way and start again.4. Push the latch plate into the
buckle until it clicks.
Pull up on the latch plate to
make sure it is secure. If the belt
is not long enough, see Safety
Belt Extender on page 3‑23.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.

Black plate (20,1)Chevrolet Volt Owner Manual - 2011
3-20 Seats and Restraints
5. To make the lap part tight, pullup on the shoulder belt.
It may be necessary to pull
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants.To unlatch the belt, push the button
on the buckle. The belt should
return to its stowed position.
Before a door is closed, be sure
the safety belt is out of the way. If a
door is slammed against a safety
belt, damage can occur to both the
safety belt and the vehicle.
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for front outboard
occupants. Although the safety
belt pretensioners cannot be seen,
they are part of the safety belt
assembly. They can help tighten
the safety belts during the early
stages of a moderate to severe
frontal, near frontal, or rear crash
if the threshold conditions for
pretensioner activation are met.
And, if the vehicle has side impact
airbags, safety belt pretensioners
can help tighten the safety belts in
a side crash or a rollover event.
Pretensioners work only once.
If the pretensioners activate in a
crash, they need to be replaced,
and other new parts for the vehicle's
safety belt system may be required.
See Replacing Safety Belt System
Parts after a Crash on page 3‑24.

Black plate (21,1)Chevrolet Volt Owner Manual - 2011
Seats and Restraints 3-21
Rear Safety Belt Comfort
Guides
This vehicle may have rear safety
belt comfort guides. If not, they
are available through your dealer.
The guides may provide added
safety belt comfort for older children
who have outgrown booster seats
and for some adults. When installed
and properly adjusted, the comfort
guide positions the belt away from
the neck and head.
There is one guide, if equipped, for
each outside passenger position
in the rear seat. When using a
comfort guide, remove the safety
belt from the seat‐mounted guidebefore using the comfort guide.
To install a comfort guide to the
safety belt:
1. Remove the guide from its
storage clip on the interior body
trim next to the rear seat.
2. Place the guide over the belt,and insert the two edges of the
belt into the slots of the guide.

Black plate (22,1)Chevrolet Volt Owner Manual - 2011
3-22 Seats and Restraints
3. The belt should not be twistedand it should lie flat. The elastic
cord must be under the belt and
the guide on top.
{WARNING
A safety belt that is not properly
worn may not provide the
protection needed in a crash.
The person wearing the belt could
be seriously injured. The shoulder
belt should go over the shoulder
and across the chest. These parts
of the body are best able to take
belt restraining forces.
4. Buckle, position, and releasethe safety belt as described
previously in this section.
Make sure that the shoulder
belt crosses the shoulder.
To remove and store the comfort
guide, squeeze the belt edges
together so that the safety belt can
be removed from the guide. Slide
the guide back into its storage clip
located on the interior body trim
next to the side of the seatback.

Black plate (23,1)Chevrolet Volt Owner Manual - 2011
Seats and Restraints 3-23
Safety Belt Use During
Pregnancy
Safety belts work for everyone,
including pregnant women. Like all
occupants, they are more likely to
be seriously injured if they do not
wear safety belts.
A pregnant woman should wear
a lap-shoulder belt, and the lap
portion should be worn as low as
possible, below the rounding,
throughout the pregnancy.The best way to protect the fetus is
to protect the mother. When a safety
belt is worn properly, it is more likely
that the fetus will not be hurt in a
crash. For pregnant women, as for
anyone, the key to making safety
belts effective is wearing them
properly.
Safety Belt Extender
If the vehicle's safety belt will fasten
around you, you should use it.
But if a safety belt is not long
enough, your dealer will order you
an extender. When you go in to
order it, take the heaviest coat you
will wear, so the extender will be
long enough for you. To help avoid
personal injury, do not let someone
else use it, and use it only for the
seat it is made to fit. The extender
has been designed for adults.
Never use it for securing child seats.
To wear it, attach it to the regular
safety belt. For more information,
see the instruction sheet that comes
with the extender.
Safety System Check
Now and then, check that the
safety belt reminder light, safety
belts, buckles, latch plates,
retractors, and anchorages are
working properly. Look for any
other loose or damaged safety belt
system parts that might keep a
safety belt system from doing its
job. See your dealer to have it
repaired. Torn or frayed safety belts
may not protect you in a crash.
They can rip apart under impact
forces. If a belt is torn or frayed,
get a new one right away.
Make sure the safety belt reminder
light is working. See
Safety Belt
Reminders on page 5‑18 for more
information.
Keep safety belts clean and dry.
See Safety Belt Care on page 3‑24.

Black plate (24,1)Chevrolet Volt Owner Manual - 2011
3-24 Seats and Restraints
Safety Belt Care
Keep belts clean and dry.
{WARNING
Do not bleach or dye safety belts.
It may severely weaken them.
In a crash, they might not be able
to provide adequate protection.
Clean safety belts only with mild
soap and lukewarm water.
Replacing Safety Belt
System Parts after a
Crash
{WARNING
A crash can damage the safety
belt system in the vehicle.
A damaged safety belt system
may not properly protect the
person using it, resulting in
serious injury or even death in
a crash. To help make sure the
safety belt systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as
possible.After a minor crash, replacement of
safety belts may not be necessary.
But the safety belt assemblies that
were used during any crash may
have been stressed or damaged.
See your dealer to have the safety
belt assemblies inspected or
replaced.
New parts and repairs may be
necessary even if the safety belt
system was not being used at the
time of the crash.
Have the safety belt pretensioners
checked if the vehicle has been in a
crash, or if the airbag readiness light
stays on after you start the vehicle
or while you are driving. See
Airbag
Readiness Light on page 5‑19.
