2011 CHEVROLET AVEO Owners Manual

Black plate (11,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-11
Steering Wheel
Adjustment
The lever is located under the
steering column, slightly to the left.
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up ordown into a comfortable position.
3. Pull the lever up to lock the wheel in place.
Do not adjust the tilt lever while
driving.
Interior Lighting
Dome Lamp
The vehicle has a dome lamp
located in the overhead console.
Move the switch to the following
positions:
ON: The light comes on and
stays on.
O: The light comes on when a
door is opened. The light turns off
when all the doors are closed.
OFF: The light remains off even
when a door is opened.
Be sure all doors and trunk lid or
hatch are completely closed or the
battery may drain.
For more information about interior
lighting, see Dome Lamps on
page 6‑5
Exterior Lighting
Uplevel Shown, Base Similar
The lever on the left side of the
steering column operates the
exterior lamps.
3: Turns on the headlamps and
other exterior lamps.
The headlamps automatically turn
off when the ignition key is turned to
LOCK/OFF or ACC/ACCESSORY.

Black plate (12,1)Chevrolet Aveo Owner Manual - 2011
1-12 In Brief
;:Turns on the parking lamps,
together with the taillamps, license
plate lamp, and instrument panel
lights.
OFF: Turns all the lamps off,
except the Daytime Running
Lamps (DRL).
For more information, see:
.Exterior Lamp Controls on
page 6‑1.
.Daytime Running Lamps (DRL)
on page 6‑2.
.Fog Lamps on page 6‑4.
Windshield Wiper/Washer
Sedan Shown
Hatchback Shown The lever is located on the right side
of the steering column. The ignition
must be turned to ON/RUN to
operate the windshield wipers.
HI:
Fast wipes.
LO: Slow wipes.
INT: Move to this position for a
delayed wiping cycle. Turn the band
on the windshield wiper toward
FAST or SLOW for a shorter or
longer delay between wipes. The
wiper speed can only be adjusted
when the lever is in the INT position.
OFF: Turns the windshield
wipers off.

Black plate (13,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-13
Misting Function
Move the lever toward INT for a
single wiping cycle. Hold it there
until the windshield wipers start;
then let go. For several wipes, hold
the band toward INT longer.
Windshield Washer
Pull the windshield washer/wiper
lever toward you to spray washer
fluid on the windshield.
SeeWindshield Wiper/Washer on
page 5‑3. For vehicles with a Rear
Window Wiper/Washer, see Rear
Window Wiper/Washer on page 5‑5.
Climate Controls
For vehicles with these climate
control systems, the heating,
cooling, and ventilation can be
controlled for the vehicle.
Climate Control System with Heater and Air Conditioning
A. Temperature Control
B. Fan Control
C. Air Delivery Mode Control D. Air Conditioning (A/C)
E. Air Recirculation
F. Rear Window Defogger

Black plate (14,1)Chevrolet Aveo Owner Manual - 2011
1-14 In Brief
Climate Control System with Heater Only
A. Temperature Control
B. Fan Control
C. Air Delivery Mode Control D. Rear Window Defogger
E. Outside Air/Recirculation
See
Climate Control Systems on
page 8‑1.
Transmission
Automatic Transmission
Hold Mode
If the vehicle's transmission has
Hold Mode, you can select this
mode to allow the automatic
transmission to stay in a specific
gear range. Select Hold Mode to
help the vehicle maintain traction on
slippery road surfaces, such as
snow, mud, or ice.

Black plate (15,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-15
Press the HOLD button on the shift
lever console to turn on Hold Mode.
Press the button again to turn off
Hold Mode, and return to normal
automatic transmission operation.
When Hold Mode is selected in
D4 (Drive), the transmission is held
in 3 (Third) gear, which locks out
D4 (Drive). This allows for engine
braking when slowing from higher
speeds.When Hold Mode is selected in
2 (Second), the transmission will
start in 2 (Second) gear instead of
1 (First), helping to reduce wheel
spin when starting out on slippery
surface such as snow, mud or ice.
Since selecting Hold Mode in
D4 (Drive) locks the transmission in
3 (Third), and prevents downshifts to
2 (Second) or 1 (First), acceleration
from a stop or near stop on dry
pavement will be slower than
expected. Hold Mode should not be
selected during these situations.
See
Automatic Transmission on
page 9‑25.
Cold Weather Shifting
When operating the vehicle in
severe cold conditions, the
transmission may be prevented
from shifting into D4 gear until the
transmission fluid has warmed up
to its operational temperature.
Five-Speed Manual
Transmission
Up‐Shift Light
Vehicles equipped with a manual
transmission may have an up-shift
light. This light indicates when to
shift to the next higher gear for
better fuel economy.
For the best fuel economy,
accelerate slowly and shift when
the light comes on, if weather, road,
and traffic conditions allow.
It is normal for the light to go on
and off if the accelerator position
changes quickly. Ignore the light
during downshifts.

Black plate (16,1)Chevrolet Aveo Owner Manual - 2011
1-16 In Brief
Reverse Lockout
The manual transmission is
equipped with a lock ring to prevent
shifting into R (Reverse). To shift
into R (Reverse), press down the
clutch pedal, lift up the ring on
the shift lever, and shift into
R (Reverse). Let up on the clutch
pedal slowly while pressing the
accelerator pedal.
SeeManual Transmission on
page 9‑29.Vehicle Features
Radio(s)
Radio with CD Shown
O: Press and release to turn the
system on. Press and hold this knob
for more than two seconds to turn
the system off.
Turn to increase or decrease the
volume. When the system is on, press and
release
Oto mute the system.
Press and release
Oagain to turn
the sound back on.
BAND: Press to choose FM, AM,
or XM™ (if equipped).
uSEEK:Press to seek the next
radio station with a strong signal in
the selected band.
tSEEK: Press to seek the
previous radio station with a strong
signal in the selected band.
[TUNE: Press to go to the next
station manually.
rTUNE: Press to go to the
previous station manually.
SCAN/AST: Press to scan radio
stations. Press and hold to use
Automatic Store.

Black plate (17,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-17
CD/AUX:Press to play a CD when
listening to the radio. CDP appears
on the display when the CD player
has been selected. The CD symbol
will appear on the display when a
CD is loaded. Press CD/AUX while
a CD is playing to pause the CD.
PAUSE flashes on the display.
Press CD/AUX again to start playing
the CD. Press CD/AUX to play a CD
when listening to the audio contents
from another device (AUX mode).
CDP appears on the display when
the CD player has been selected.
The CD symbol will appear on the
display when a CD is loaded.
Press to play a CD while a portable
audio device is playing. Press CD/
AUX a second time for the system
to begin playing audio from the
connected portable audio player.
The portable audio device continues
playing until it is turned off.
For more information about these
and other radio features, see
Operation on page 7‑2.Storing a Favorite Station
A maximum of 36 stations can be
programmed as favorites using the
six pushbuttons positioned below
the radio station frequency labels
and by using the radio favorites
page button (FAV button). Press the
FAV button to go through up to six
pages of favorites, each having six
favorite stations available per page.
If Automatic Store is used, then four
pages of favorites are available.
Each page of favorites can contain
any combination of AM, FM,
or XM™ (if equipped) stations.
See “Storing a Favorite Station”
under AM-FM Radio on page 7‑3
and CD Player on page 7‑10.
Satellite Radio
XM is a satellite radio service
that is based in the 48 contiguous
United States and 10 Canadian
provinces. XM satellite radio has
a wide variety of programming
and commercial-free music,
coast-to-coast, and in digital-quality
sound.
A fee is required to receive the
XM service.
For more information, refer to:
.www.xmradio.com or call
1-800-929-2100 (U.S.)
.www.xmradio.ca or call
1-877-438-9677 (Canada)
See “XM Satellite Radio Service”
under Satellite Radio on page 7‑6.

Black plate (18,1)Chevrolet Aveo Owner Manual - 2011
1-18 In Brief

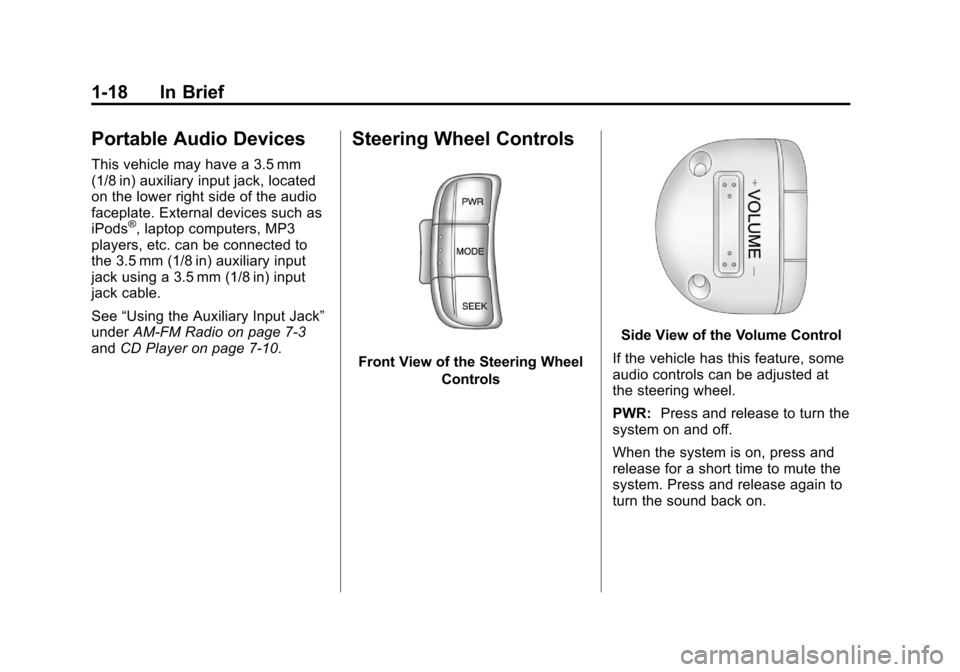

Portable Audio Devices
This vehicle may have a 3.5 mm
(1/8 in) auxiliary input jack, located
on the lower right side of the audio
faceplate. External devices such as
iPods
®, laptop computers, MP3
players, etc. can be connected to
the 3.5 mm (1/8 in) auxiliary input
jack using a 3.5 mm (1/8 in) input
jack cable.
See “Using the Auxiliary Input Jack”
under AM-FM Radio on page 7‑3
and CD Player on page 7‑10.
Steering Wheel Controls
Front View of the Steering Wheel
Controls
Side View of the Volume Control
If the vehicle has this feature, some
audio controls can be adjusted at
the steering wheel.
PWR: Press and release to turn the
system on and off.
When the system is on, press and
release for a short time to mute the
system. Press and release again to
turn the sound back on.
