2011 CHEVROLET AVEO Owners Manual

Black plate (7,1)Chevrolet Aveo Owner Manual - 2011
Seats and Restraints 3-7
5. Pull up the release knob locatedon top of either of the rear
seatbacks.
6. Fold the rear seatback forward and down.
Unfolding the Seatbacks
To return the seatback to the upright
position:
1. Hook the safety belts into thesafety belt guides.
2. Lift the seatback up and push it to its original position.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Push down and rearward firmly on the top of the seatbacks until
it latches securely in the fully
upright position.
4. To reattach the center seat safety belt to the mini buckle,
pull it from the retractor. 5. Push the latch plate at the end
of the safety belt strap into the
mini-buckle until the mechanism
clicks. Make sure the strap is not
twisted. The sliding latch plate
will face the front of the vehicle.
{WARNING
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to
be sure that the safety belts are
properly routed and attached, and
are not twisted.
6. Insert the safety belt strap back into the safety belt guide.

Black plate (8,1)Chevrolet Aveo Owner Manual - 2011
3-8 Seats and Restraints
Rear Seats (Hatchback)
Folding the Rear Seats
The rear seats can be folded to
increase cargo space.
To fold the rear seats:
1. Lower the head restraintscompletely.
2. Unlatch the center safety belt by pressing the red button on the
buckle.
3. Detach the center safety beltfrom the mini buckle by inserting
the ignition key into the slot in
the mini buckle, pressing the
release button, and allowing it to
retract.4. Pull up the release knob, locatedon the top of the seatbacks, and
fold the seatbacks forward
and down.

Black plate (9,1)Chevrolet Aveo Owner Manual - 2011
Seats and Restraints 3-9
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
5. Move the safety belt buckles and safety belt in the center seating
position out of the space
between the seatbacks and the
seat cushion so they are not in
the way as the seat is being
folded.
6. Firmly pull the release handles
on the rear side of the seat
cushion to unlock the seat
cushion.
7. Lift the seat cushion up and flip it forward.8. Clip the hook to the front seat
head restraint to keep the rear
seat secure.
Unfolding the Seats
To return the rear seats to the
normal seating position:
1. Unclip the hook from the frontseat head restraint.
2. Position the buckles in back of the seat latches when moving
the rear seats to the sitting
position.

Black plate (10,1)Chevrolet Aveo Owner Manual - 2011
3-10 Seats and Restraints
Notice:Damage to the safety
belt buckle or rear seat locking
mechanism can occur if the
safety belt and buckles are
pinched under the rear seat
cushion. Do not place the safety
belt and buckles on the floor
under the rear seat cushion when
the rear seat is put back to the
sitting position.
3. Push the seat cushion down to
its original position until it
latches securely. Try to pull up
on the seat to make sure it is
locked in place.
4. Hook the safety belts in theoutboard seating positions into
the retaining clips.
{WARNING
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
(Continued)
WARNING (Continued)
rear seatback, always check to
be sure that the safety belts are
properly routed and attached, and
are not twisted.
5. Lift the seatbacks up and push them back to their original
latched positions.
6. Unhook the safety belts in the outboard seating positions from
the retaining clips.
7. Return the safety belt buckles and the center seat safety belt to
their original position between
the rear seatback and the seat
cushion. Make sure the straps of
the safety belt and buckles are
not twisted.

Black plate (11,1)Chevrolet Aveo Owner Manual - 2011
Seats and Restraints 3-11
8. To reattach the center seatsafety belt to the mini buckle,
pull it from the retractor.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
9. Push down and rearward firmly on the top of the seatbacks until
they latch securely in the fully
upright position.
Safety Belts
This section of the manual
describes how to use safety belts
properly. It also describes some
things not to do with safety belts.
{WARNING
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or be
ejected from the vehicle. You
and your passenger(s) can be
seriously injured or killed. In the
same crash, you might not be,
if you are buckled up. Always
fasten your safety belt, and check
that your passenger(s) are
restrained properly too.
{WARNING
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed. Do not allow people to ride
in any area of your vehicle that is
not equipped with seats and
safety belts. Be sure everyone in
the vehicle is in a seat and using
a safety belt properly.
This vehicle has indicators as a
reminder to buckle the safety belts.
See Safety Belt Reminders on
page 5‑11 for additional information.
In most states and in all Canadian
provinces, the law requires wearing
safety belts. Here is why:
You never know if you will be
in a crash. If you do have a
crash, you do not know if it will
be a serious one.

Black plate (12,1)Chevrolet Aveo Owner Manual - 2011
3-12 Seats and Restraints

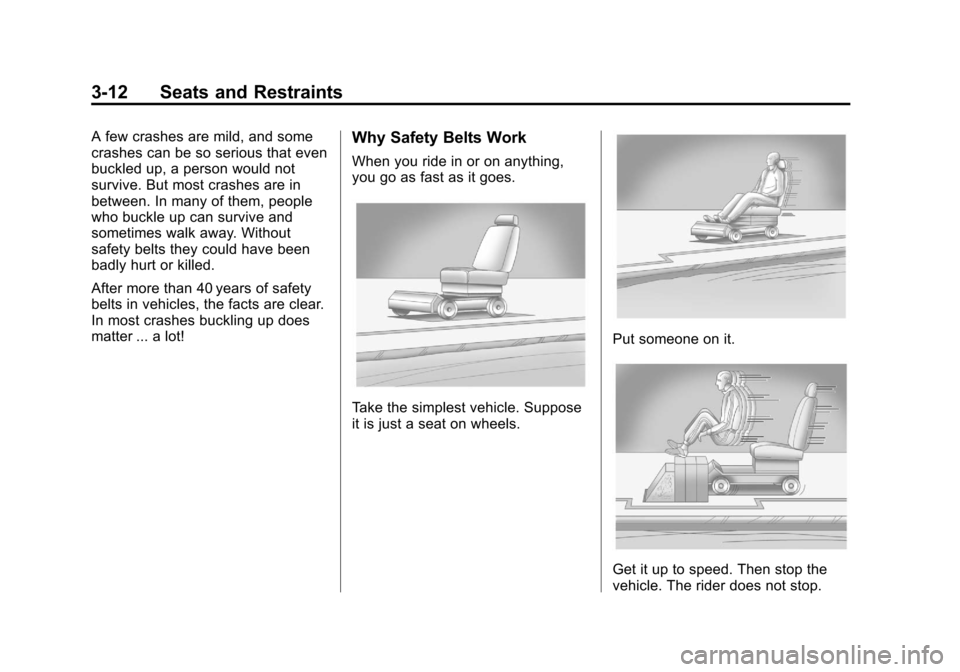

A few crashes are mild, and some
crashes can be so serious that even
buckled up, a person would not
survive. But most crashes are in
between. In many of them, people
who buckle up can survive and
sometimes walk away. Without
safety belts they could have been
badly hurt or killed.
After more than 40 years of safety
belts in vehicles, the facts are clear.
In most crashes buckling up does
matter ... a lot!Why Safety Belts Work
When you ride in or on anything,
you go as fast as it goes.
Take the simplest vehicle. Suppose
it is just a seat on wheels.
Put someone on it.
Get it up to speed. Then stop the
vehicle. The rider does not stop.

Black plate (13,1)Chevrolet Aveo Owner Manual - 2011
Seats and Restraints 3-13

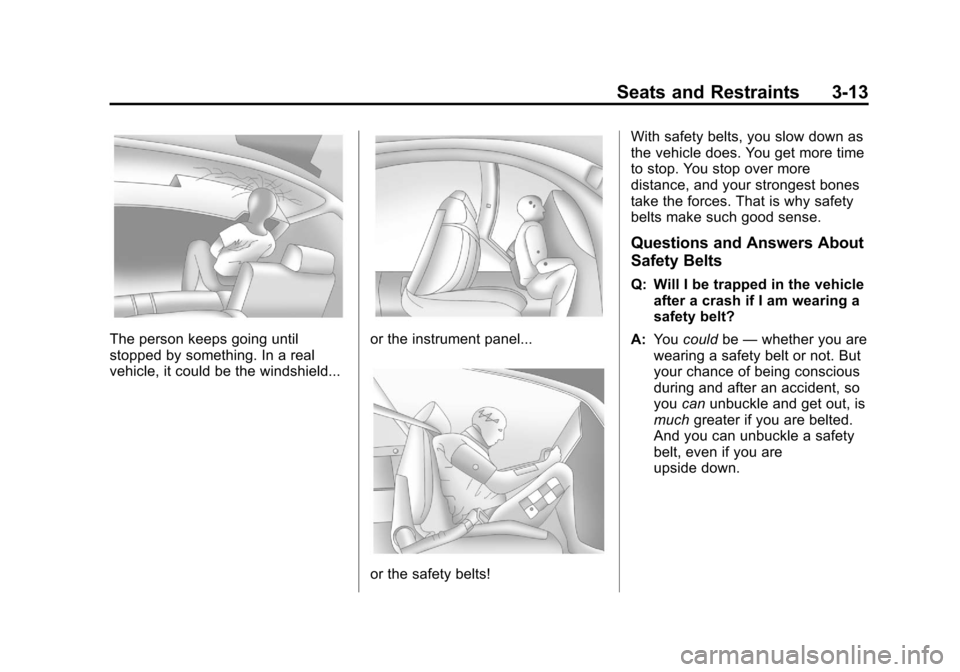

The person keeps going until
stopped by something. In a real
vehicle, it could be the windshield...or the instrument panel...
or the safety belts!With safety belts, you slow down as
the vehicle does. You get more time
to stop. You stop over more
distance, and your strongest bones
take the forces. That is why safety
belts make such good sense.
Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A: You could be—whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident, so
you canunbuckle and get out, is
much greater if you are belted.
And you can unbuckle a safety
belt, even if you are
upside down.

Black plate (14,1)Chevrolet Aveo Owner Manual - 2011
3-14 Seats and Restraints
Q: If my vehicle has airbags, whyshould I have to wear safety
belts?
A: Airbags are supplemental
systems only; so they work with
safety belts —not instead of
them. Whether or not an airbag
is provided, all occupants still
have to buckle up to get the
most protection. That is true not
only in frontal collisions, but
especially in side and other
collisions. Q: If I am a good driver, and I
never drive far from home,
why should I wear safety
belts?
A: You may be an excellent driver,
but if you are in a crash —even
one that is not your fault —you
and your passenger(s) can be
hurt. Being a good driver does
not protect you from things
beyond your control, such as
bad drivers.
Most accidents occur within
40 km (25 miles) of home. And
the greatest number of serious
injuries and deaths occur at
speeds of less than
65 km/h (40 mph).
Safety belts are for everyone.How to Wear Safety Belts
Properly
This section is only for people of
adult size.
Be aware that there are special
things to know about safety belts
and children. And there are different
rules for smaller children and
infants. If a child will be riding in the
vehicle, see Older Children on
page 3‑38 orInfants and Young
Children on page 3‑41. Follow those
rules for everyone's protection.
It is very important for all occupants
to buckle up. Statistics show that
unbelted people are hurt more often
in crashes than those who are
wearing safety belts.
Occupants who are not buckled up
can be thrown out of the vehicle in a
crash. And they can strike others in
the vehicle who are wearing safety
belts.
