2011 CHEVROLET AVEO Owners Manual

Black plate (3,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-3
A.Air Vents on page 8‑4.
B. Turn and Lane‐Change Lever. See Turn and Lane-Change
Signals on page 6‑3.
C. Instrument Cluster on page 5‑8.
D. Windshield Wiper/Washer on
page 5‑3.
Rear Window Wiper/Washer on
page 5‑5 (If Equipped).
E. Clock on page 5‑5.
F. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5‑14.
G. Hood Release. See Hood on
page 10‑6. H.
Horn on page 5‑3.
I. Infotainment on page 7‑1.
J. Climate Control Systems on
page 8‑1.
K. Ashtray. See Ashtrays on
page 5‑7.
L. Cupholders on page 4‑1.
M. Cigarette Lighter. See Cigarette
Lighter on page 5‑6.
N. Hazard Warning Flashers on
page 6‑3.
O. Glove Box on page 4‑1.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.

Black plate (4,1)Chevrolet Aveo Owner Manual - 2011
1-4 In Brief

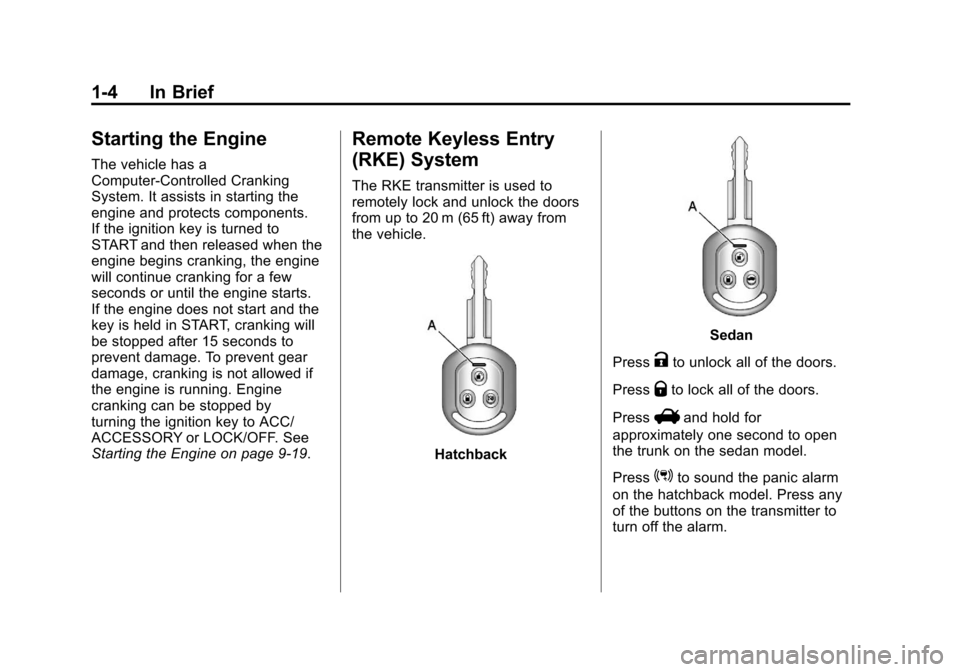

Starting the Engine
The vehicle has a
Computer-Controlled Cranking
System. It assists in starting the
engine and protects components.
If the ignition key is turned to
START and then released when the
engine begins cranking, the engine
will continue cranking for a few
seconds or until the engine starts.
If the engine does not start and the
key is held in START, cranking will
be stopped after 15 seconds to
prevent damage. To prevent gear
damage, cranking is not allowed if
the engine is running. Engine
cranking can be stopped by
turning the ignition key to ACC/
ACCESSORY or LOCK/OFF. See
Starting the Engine on page 9‑19.
Remote Keyless Entry
(RKE) System
The RKE transmitter is used to
remotely lock and unlock the doors
from up to 20 m (65 ft) away from
the vehicle.
Hatchback
Sedan
Press
Kto unlock all of the doors.
Press
Qto lock all of the doors.
Press
Vand hold for
approximately one second to open
the trunk on the sedan model.
Press
3to sound the panic alarm
on the hatchback model. Press any
of the buttons on the transmitter to
turn off the alarm.

Black plate (5,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-5
The LED light (A) on the transmitter
flashes when the buttons on the
transmitter are pressed. If the light
does not flash, the transmitter
battery needs to be replaced.
SeeKeys on page 2‑2 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.
Door Locks
From the outside, lock or unlock the
door using the key or the Remote
Keyless Entry (RKE) transmitter,
if equipped.
From the inside, all of the doors can
be locked and unlocked by pushing
or pulling the manual door lock on
each door. On vehicles equipped with the
central door unlocking system, lock
or unlock all the doors from the
inside using the driver door lock
switch.
For more information see:
.Door Locks on page 2‑5.
.Central Door Unlocking System
on page 2‑6.
Liftgate
To unlock the liftgate on the
hatchback model from outside the
vehicle, use the key in the lock
cylinder or use the RKE transmitter,
if equipped.The handle is located above the
right side of the license plate. Pull
the handle toward you and raise the
liftgate.
To lock the liftgate, use the key or
the RKE transmitter, if equipped.
The liftgate can also be locked or
unlocked by the central door
unlocking system.
For more information see
Liftgate
(Hatchback) on page 2‑9.

Black plate (6,1)Chevrolet Aveo Owner Manual - 2011
1-6 In Brief
Trunk Release
The vehicle may have a release
button located on the driver door.
Press it to open the trunk.
The vehicle may have a trunk
release lever located on the
outboard side of the driver seat.
Pull the lever to open the trunk.For more information see
Trunk on
page 2‑7.
Windows
Manual Windows
Use the window crank to open and
close each window.
The rear windows do not open fully.
For more information see Manual
Windows on page 2‑15. Power Windows
On vehicles with power windows,
the switches for all windows are
located on the driver door armrest.
Each passenger door has a switch
for its own window.
The ignition must be in ON/RUN to
use the power windows. To lower
the window, press and hold the
switch. To raise the window, lift up
on the switch. Release the switch
when the window reaches the
desired level.
For more information see
Power
Windows on page 2‑15.

Black plate (7,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-7
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Lift the bar under the front of theseat to unlock it.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to be sure it is locked in
place.
See Seat Adjustment on page 3‑3
for more information.
Seat Height Adjuster
Turn the knob on the outboard side
of the seat to adjust the height of
the driver seat cushion.
Turn the knob forward to raise and
rearward to lower.
See Seat Adjustment on page 3‑3
for more information.
Manual Lumbar
Move the adjustment lever on the
outboard side of the seatback up or
down to one of three positions to
increase or decrease the lumbar
support.
The highest position provides the
most support and the lowest
position provides the least support.
See Lumbar Adjustment on
page 3‑4 for more information.

Black plate (8,1)Chevrolet Aveo Owner Manual - 2011
1-8 In Brief
Reclining Seatbacks
To recline a manual seatback:
1. Lift the lever.
2. Move the seatback to thedesired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked in place. To return the seatback to the upright
position:
1. Lift the lever fully without
applying pressure to the
seatback, and the seatback will
return to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3‑4 for more information.
Second Row Seats
The rear seatbacks can be folded
down to increase cargo space.
For detailed instructions see Rear
Seats (Sedan) on page 3‑6 orRear
Seats (Hatchback) on page 3‑8.
Head Restraint
Adjustment
The vehicle's front seats have
adjustable head restraints in the
outboard seating positions.
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information see Head
Restraints on page 3‑2.

Black plate (9,1)Chevrolet Aveo Owner Manual - 2011
In Brief 1-9

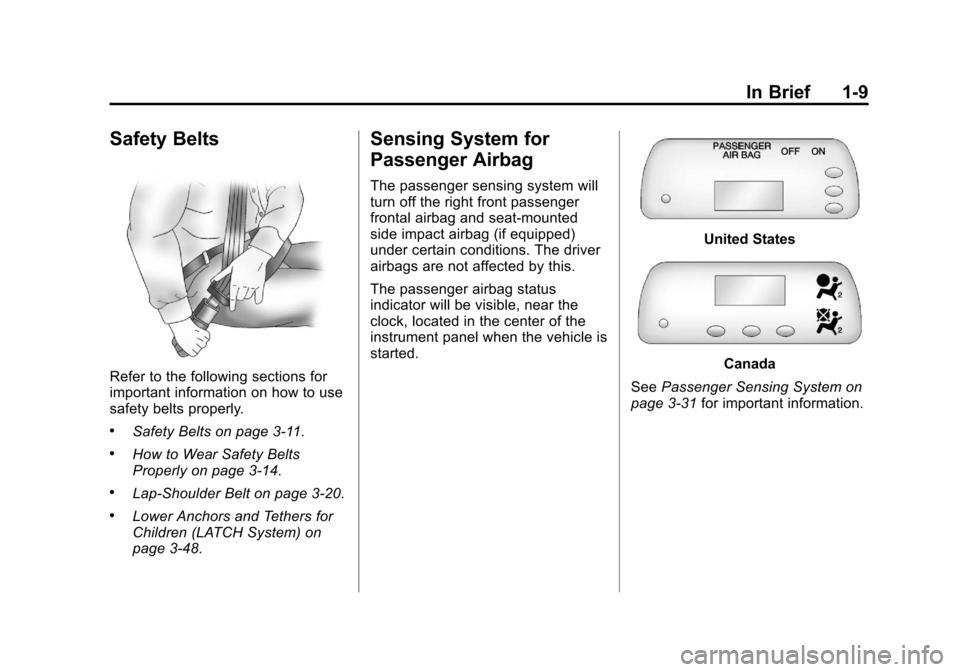

Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑11.
.How to Wear Safety Belts
Properly on page 3‑14.
.Lap-Shoulder Belt on page 3‑20.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑48.
Sensing System for
Passenger Airbag
The passenger sensing system will
turn off the right front passenger
frontal airbag and seat‐mounted
side impact airbag (if equipped)
under certain conditions. The driver
airbags are not affected by this.
The passenger airbag status
indicator will be visible, near the
clock, located in the center of the
instrument panel when the vehicle is
started.
United States
Canada
See Passenger Sensing System on
page 3‑31 for important information.

Black plate (10,1)Chevrolet Aveo Owner Manual - 2011
1-10 In Brief
Mirror Adjustment
Exterior Mirrors
Manual Outside Mirrors
The controls for the outside manual
mirrors are next to each mirror.
SeeManual Mirrors on page 2‑13. Power Outside Mirrors
The control is on the instrument
panel, left of the steering wheel.
The ignition must be turned to
ON/RUN to adjust the mirrors.
1. Select the mirror by moving the
selector switch to L for the driver
side mirror or R for the
passenger side.
2. Press one of the four arrows on the control pad to move the
mirror in the desired direction.
See Power Mirrors on page 2‑13.
Interior Mirror
Hold the inside rearview mirror in
the center to move it for a clearer
view behind your vehicle. Adjust the
mirror to avoid glare from the
headlamps behind you. Push the
tab forward for daytime use and
pull it for nighttime use.
SeeManual Rearview Mirror on
page 2‑14.
