2011 CHEVROLET AVEO Owners Manual

Black plate (13,1)Chevrolet Aveo Owner Manual - 2011
Infotainment System 7-13
Root Directory
The root directory is treated as a
folder. If the root directory has
compressed audio files, the
directory is displayed as ROOT. All
files contained directly under the
root directory are accessed prior to
any other directory.
Empty Directory or Folder
If a root directory or a folder exists
somewhere in the file structure that
contains only folders/subfolders
and no compressed files directly
beneath them, the player advances
to the next folder in the file structure
that contains compressed audio
files. The empty folder does not
display.
No Folder
When a CD contains only
compressed files, the files are
located under the root folder. The
next and previous folder function
does not function on a CD that wasrecorded without folders or playlists.
When displaying the name of the
folder the radio displays ROOT.
When a CD contains only
compressed audio files, but no
folders, all files are located under
the root folder. When the radio
displays the name of the folder, the
radio displays ROOT.
Order of Play
Play will begin from the first track
under the root directory. When all
tracks from the root directory have
been played, play will continue from
files according to their numerical
listing. After playing the last track
from the last folder, the player will
begin playing again at the first track
of the first folder or root directory.
File System and Naming
The song name in the ID3 tag is
displayed. If the song name is not
present in the ID3 tag, then the
radio displays the file name without
the extension (such as MP3/WMA)
instead.Track names longer than
32 characters or 4 pages are
shortened. Parts of words on the
last page of text and the extension
of the filename do not display.
Playing an MP3/WMA
With the ignition in the ON/RUN
position, insert a CD partway into
the slot, label side up. The player
pulls the disc in. The CD should
begin playing. As each new track
starts to play, the track number and
the song name will appear on the
display. If the ignition or radio is
turned off with a CD in the player, it
will stay in the player. When a CD is
in the player and the ignition is
turned on, the radio must be turned
on before the CD will start playback.
When the ignition and radio are
turned on, the CD will start playing
where it stopped, if it was the last
selected audio source.

Black plate (14,1)Chevrolet Aveo Owner Manual - 2011
7-14 Infotainment System
The CD player can play the smaller
8 cm (3 in) single CDs with an
adapter ring. Full-size CDs and the
smaller CDs are loaded in the same
manner.
Sound quality may be reduced due
to CD-R quality, the method of
recording, the quality of the music
that has been recorded, and the
way the CD-R has been handled.
DIR (Directory):Press to repeat
the tracks in the current directory.
DIR displays.
Press DIR again to repeat the
tracks in all of the directories.
ALL displays.
Press DIR again to turn off
repeat play.
uSEEKt(Next/Previous
Folder) (in MP3/WMA Mode):
Press to change the folder. If CD-R
does not have any folders, “ROOT”
flashes on the display for a
short time.
[TUNE (Next Track): Press the
up TUNE arrow to go to the next
track. The track number displays.
The player continues moving
forward through the CD each time
TUNE is pressed.
rTUNE (Previous Track): Press
the down TUNE arrow to go to the
start of the current track. The
track number displays. The player
continues moving backward through
the CD each time TUNE is pressed.
INFO/DISP (Information/Display):
Press to display additional text
information related to the current
MP3/WMA song. A choice of
additional information such as: Song
Title, Album Title, and Artist. Bit
Rate might also display.
When information is not available,
No Info displays.
Press this button for longer than
two seconds to change
display mode. SCROLL (MP3/WMA Mode Only):
Press the SOUND button for longer
than two seconds. The song title or
other available information of a song
scrolls on/off. The offset is scroll on.
The scroll mode can be changed
only when the SOUND button is
pressed for longer than
two seconds.
CD Player Messages
(Radio with CD, and Radio
with Six‐Disc CD)
CHECK CD:
If this message
displays and/or the CD comes out, it
could be for one of the following
reasons:
.It is very hot. When the
temperature returns to normal,
the CD should play.
.The road is very rough. When
the road becomes smoother, the
CD should play.
.The CD is dirty, scratched, wet,
or upside down.

Black plate (15,1)Chevrolet Aveo Owner Manual - 2011
Infotainment System 7-15
.The air is very humid. If so, wait
about an hour and try again.
.The format of the CD is not
compatible. See“Using an MP3”
earlier in this section.
.There was a problem while
burning the CD.
.The label is caught in the CD
player.
If the CD is not playing correctly, for
any other reason, try a known
good CD.
If any error occurs repeatedly or if
an error cannot be corrected,
contact your dealer. If the radio
displays an error message, write it
down and provide it to your dealer
when reporting the problem.
Auxiliary Devices
The infotainment system has a
3.5 mm (1/8 in) auxiliary input jack
located on the lower right side of
the faceplate. This is not an audio
output; do not plug headphones into
the 3.5 mm (1/8 in) auxiliary input
jack. An external audio device such
as an iPod
®, laptop computer, MP3
player, CD changer, etc. can be
connected to the 3.5 mm (1/8 in)
auxiliary input jack for use as
another audio source.
Drivers are encouraged to set up
any auxiliary device while the
vehicle is in P (Park). See Defensive
Driving on page 9‑2 for more
information on driver distraction.
To use a portable audio player,
connect a 3.5 mm (1/8 in) cable to
the radio's 3.5 mm (1/8 in) auxiliary
input jack. When a device is
connected, press the radio AUX
button to begin playing audio from
the device over the vehicle
speakers.
O(Power/Volume): Turn to adjust
the volume. Additional volume
adjustments may have to be made
from the portable device if the
volume is too quiet or too loud.
AUX (Auxiliary): Press to listen to
the radio while a portable audio
device is playing. Press again and
the system begins playing audio
from the connected portable audio
player. If a portable audio player is
not connected, No Aux Input Device
Found may display.
CD/AUX (Auxiliary): Press to play
a CD while a portable audio device
is playing. Press CD/AUX a second
time for the system to begin playing
audio from the connected portable
audio player. The portable audio
device continues playing until it is
turned off.

Black plate (16,1)Chevrolet Aveo Owner Manual - 2011
7-16 Infotainment System
2NOTES

Black plate (1,1)Chevrolet Aveo Owner Manual - 2011
Climate Controls 8-1
Climate Controls
Climate Control Systems
Climate Control Systems . . . . . . 8-1
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . . 8-4
Maintenance
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

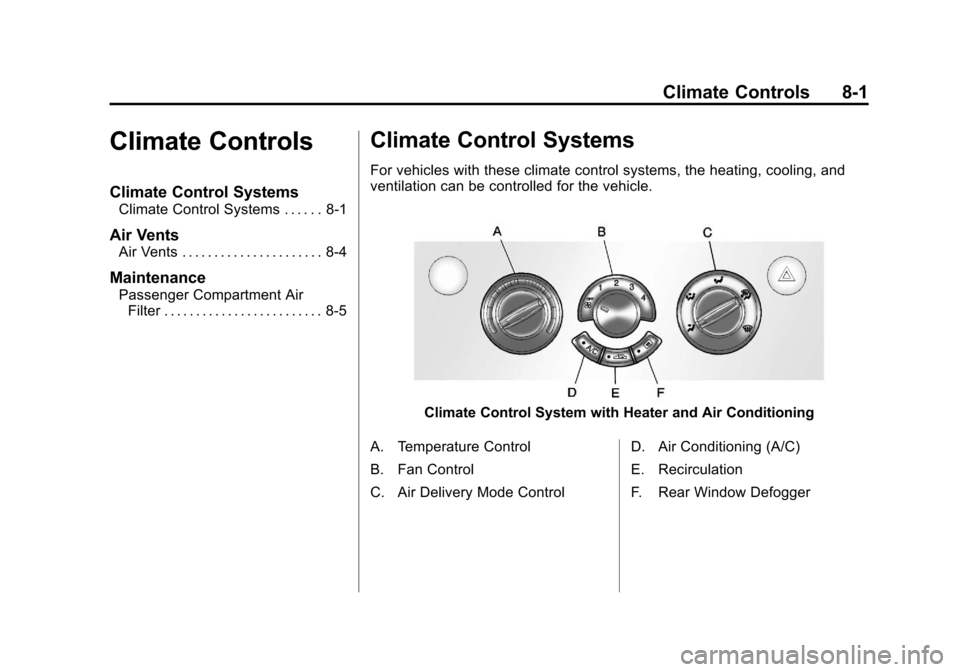

Climate Control Systems
For vehicles with these climate control systems, the heating, cooling, and
ventilation can be controlled for the vehicle.
Climate Control System with Heater and Air Conditioning
A. Temperature Control
B. Fan Control
C. Air Delivery Mode Control D. Air Conditioning (A/C)
E. Recirculation
F. Rear Window Defogger

Black plate (2,1)Chevrolet Aveo Owner Manual - 2011
8-2 Climate Controls

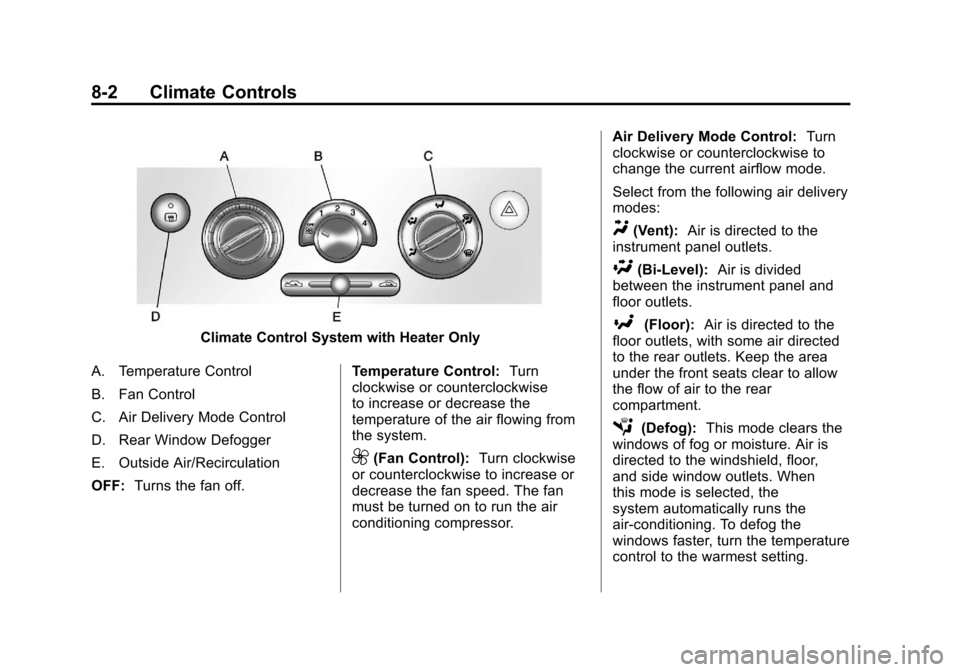

Climate Control System with Heater Only
A. Temperature Control
B. Fan Control
C. Air Delivery Mode Control
D. Rear Window Defogger
E. Outside Air/Recirculation
OFF: Turns the fan off. Temperature Control:
Turn
clockwise or counterclockwise
to increase or decrease the
temperature of the air flowing from
the system.
9(Fan Control): Turn clockwise
or counterclockwise to increase or
decrease the fan speed. The fan
must be turned on to run the air
conditioning compressor. Air Delivery Mode Control:
Turn
clockwise or counterclockwise to
change the current airflow mode.
Select from the following air delivery
modes:
Y(Vent): Air is directed to the
instrument panel outlets.
\(Bi-Level): Air is divided
between the instrument panel and
floor outlets.
[(Floor): Air is directed to the
floor outlets, with some air directed
to the rear outlets. Keep the area
under the front seats clear to allow
the flow of air to the rear
compartment.
É(Defog): This mode clears the
windows of fog or moisture. Air is
directed to the windshield, floor,
and side window outlets. When
this mode is selected, the
system automatically runs the
air-conditioning. To defog the
windows faster, turn the temperature
control to the warmest setting.

Black plate (3,1)Chevrolet Aveo Owner Manual - 2011
Climate Controls 8-3
1(Defrost):This mode quickly
clears the windshield of fog or frost.
Air is directed to the windshield and
side window outlets. When this
mode is selected, the system
automatically runs the
air-conditioning. To defrost the
windows faster, turn the temperature
control to the warmest setting.
Do not drive the vehicle until all the
windows are clear.
A/C (Air Conditioning): For
vehicles with air conditioning, follow
these steps to use the system. Turn
9to the desired speed. The air
conditioning does not operate when
the fan control knob is in the off
position. Press A/C to turn the air
conditioning on and off. When A/C
is pressed, an indicator light comes
on to show that the air conditioning
is on. For quick cool down on hot days, do
the following:
1. Open the windows to let hot air
escape.
2. Press
?.
3. Press A/C.
4. Select the coolest temperature.
5. Select the highest
9speed.
Using these settings together for
long periods of time may cause the
air inside of the vehicle to become
too dry. To prevent this from
happening, after the air in the
vehicle has cooled, turn the
recirculation mode off.
The air conditioning system
removes moisture from the air, so a
small amount of water might drip
under the vehicle while idling or
after turning off the engine. This is
normal.
?(Recirculation): This mode
recirculates and helps to quickly
cool the air inside the vehicle. It can
be used to prevent outside air and
odors from entering the vehicle.
For vehicles with a recirculation
button, press the button to turn the
recirculation mode on. An indicator
light comes on to show that the
recirculation is on. Press the button
again to return to outside air mode.
For vehicles with a lever, move
the lever to choose the
recirculation mode.
Using the recirculation mode for
extended periods may cause the
windows to fog. If this happens,
select the defrost mode.

Black plate (4,1)Chevrolet Aveo Owner Manual - 2011
8-4 Climate Controls
:(Outside Air):This mode
brings outside air into the vehicle.
For vehicles with a recirculation
button, press the button until the
recirculation mode is turned off. The
vehicle then returns to the outside
air mode.
For vehicles with a lever, move the
lever to choose the outside
air mode.
Rear Window and Outside
Mirror Defogger
For vehicles with a rear window and
outside mirror defogger, they only
work when the ignition is turned to
ON/RUN.
The rear window defogger uses a
warming grid to remove fog or frost
from the rear window.
<(Rear Window Defogger):
Press to turn the rear window and
outside mirror defogger on or off. An
indicator light comes on to show
that the feature is on. If the vehicle does not have air
conditioning, the rear window
defogger may turn off about
10 minutes after the button is
pressed. If it remains on, it can be
turned off by pressing
by turning off the engine.
If the vehicle has air conditioning,
the rear window defogger turns off
about 10 minutes after the button is
pressed. The defogger can also be
turned off by turning the engine off.
Notice: Do not use anything
sharp on the inside of the rear
window. If you do, you could cut
or damage the warming grid, and
the repairs would not be covered
by the vehicle warranty. Do not
attach a temporary vehicle
license, tape, a decal, or anything
similar to the defogger grid.
Air Vents
To open an outlet, press on its
cover. Turn the cover to change the
direction of the airflow.
Operation Tips
.Clear away any ice, snow or
leaves from the air inlets at the
base of the windshield that may
block the flow of air into the
vehicle.
.Use of non-GM approved hood
deflectors may adversely affect
the performance of the system.
.Keep the path under the front
seats clear of objects to help
circulate the air inside of the
vehicle more effectively.
