2011 CHEVROLET AVEO Owners Manual

Black plate (5,1)Chevrolet Aveo Owner Manual - 2011
Infotainment System 7-5
Press and hold SCAN/AST to use
Automatic Store. The radio only
scans stations with a strong signal
in the selected band.
AST (Automatic Store):Twelve
preset stations with the strongest
reception in the area can be
automatically stored. The radio will
only scan stations with a strong
signal that are in the selected AM or
FM band. If the Automatic Store
function is started in the FM band,
only FM stations are stored in
preset pages A1 and A2. If the
Automatic Store function is started
in the AM band, only AM stations
are stored in A1 and A2.
A combination of AM, FM, and XM
(if equipped) stations can be stored
manually into the other four favorite
pages. To use Automatic Store:
1. Press and hold SCAN/AST to
use Automatic Store mode.
2. Press the pushbutton below the ON tab on the radio display.
3. Automatic Store searches for radio stations with a strong
signal and automatically sets
presets A1 and A2 with new
stations.
4. After all stations are set, press the pushbutton below the arrow
tab on the radio display to return
to the main radio screen.
To reset the automatically stored
radio stations, press and hold
SCAN/AST. Then press the
pushbutton below the RESE tab on
the radio display. If no stations are
stored on preset pages A1 and A2,
the RESE option does not appear
in the radio display. When the
Automatic Store function is used,
any stations that were previously set
will be deleted and replaced with
new stations.Storing a Radio Station
Drivers are encouraged to set up
radio station favorites while the
vehicle is in P (Park). Tune to
favorite stations using the
pushbuttons, favorites button, and
steering wheel controls. See
Defensive Driving on page 9‑2.
A maximum of 36 stations can be
programmed as favorites using the
6 pushbuttons positioned below the
radio station frequency labels and
by using the radio favorites page
button (FAV button). Press the FAV
button to go through up to six pages
of favorites, each having six favorite
stations available per page.
If Automatic Store is used, then four
pages of favorites are available.
Each page of favorites can contain
any combination of AM, FM, or XM
(if equipped) stations. To store a
station as a favorite:
1. Tune in the desired station.
2. Press and release the FAV button to display the page where
the station is to be stored.

Black plate (6,1)Chevrolet Aveo Owner Manual - 2011
7-6 Infotainment System
3. Press and hold one of the sixnumbered pushbuttons until
a beep sounds. When the
pushbutton is pressed and
released, the station that was
set will return.
4. Repeat the Steps 1 through 3 for each radio station to be stored
as a favorite.
To set up the number of favorites
pages:
1. Press and hold FAV until the radio setup menu displays.
2. Select the desired number of favorites pages by pressing the
pushbutton located below the
displayed page numbers.
3. Press FAV to return to the original main radio screen
showing the radio station
frequency tabs and to begin
the process of programming
favorites for the chosen number
of numbered pages.Satellite Radio
XM™ Satelite Radio Service
XM is a satellite radio service based
in the 48 contiguous United States
and 10 Canadian provinces. XM
Satellite Radio has a wide variety of
programming and commercial-free
music, coast-to-coast, and in
digital-quality sound. A service fee
is required to receive the XM
service. For more information,
contact XM at www.xmradio.com or
call 1-800-929-2100 in the U.S. and
www.xmradio.ca or call
1-877-438-9677 in Canada.
Finding a Channel
BAND: Press to choose FM, AM,
or XM. The display will show the
selection.
uSEEK: Press to seek the next
XM channel.
tSEEK: Press to seek the
previous XM channel.
[TUNE: Press to go to the next
XM channel.
rTUNE: Press to go to the
previous XM channel.
SCAN/AST: Press to scan XM
channels. The radio goes to a
channel, plays for a few seconds,
then goes to the next channel.
Press SCAN/AST again to stop
scanning.
SCAN: Press to scan XM
channels. The radio goes to a
channel, plays for a few seconds,
then goes to the next channel.
Press this button again to stop
scanning.

Black plate (7,1)Chevrolet Aveo Owner Manual - 2011
Infotainment System 7-7
Storing an XM Channel
Drivers are encouraged to set up
XM Channel favorites while the
vehicle is in P (Park). Tune to
favorite stations using the
pushbuttons, favorites button, and
steering wheel controls. See
Defensive Driving on page 9‑2.
A maximum of 36 stations can be
programmed as favorites using the
6 pushbuttons positioned below the
radio station frequency labels and
by using the radio favorites page
button (FAV button). Press the FAV
button to go through up to six pages
of favorites, each having six favorite
stations available per page.
If Automatic Store is used, then four
pages of favorites are available.
Each page of favorites can contain
any combination of AM, FM, or XM
channels. To store an XM channel
as a favorite:
1. Tune in the desired channel.
2. Press and release the FAVbutton to display the page where
the channel is to be stored. 3. Press and hold one of the six
numbered pushbuttons until
a beep sounds. When the
pushbutton is pressed and
released, the channel that was
set will return.
4. Repeat Steps 1 through 3 for each XM channel to be stored
as a favorite.
To set up the number of favorites
pages:
1. Press and hold FAV until the radio setup menu displays.
2. Select the desired number of favorites pages by pressing the
pushbutton located below the
displayed page numbers.
3. Press FAV to return to the original main radio screen
showing the radio frequency
tabs and to begin the process of
programming favorites for the
chosen number of numbered
pages.
XM Radio Messages
UPDATING: The encryption code
in the receiver is being updated, and
no action is required. This process
should take no longer than
30 seconds.
NO SIGNAL: The system is
functioning correctly, but the vehicle
is in a location that is blocking the
XM signal. When the vehicle is
moved into an open area, the signal
should return.
LOADING: The audio system is
acquiring and processing audio and
text data. No action is needed. This
message should disappear shortly.
OFF AIR: This channel is not
currently in service. Tune in to
another channel.
CH UNAVAILABLE: This
previously assigned channel is no
longer assigned. Tune to another
station. If this station was one of the
presets, choose another station for
that preset button.

Black plate (8,1)Chevrolet Aveo Owner Manual - 2011
7-8 Infotainment System
RADIO ID:If tuned to channel 0,
this message alternates with the XM
Radio eight‐digit radio ID label. This
label is needed to activate the
service.
CHECK XM TUNER: If this
message does not clear within a
short period of time, the receiver
could have a fault. Consult with your
dealer.

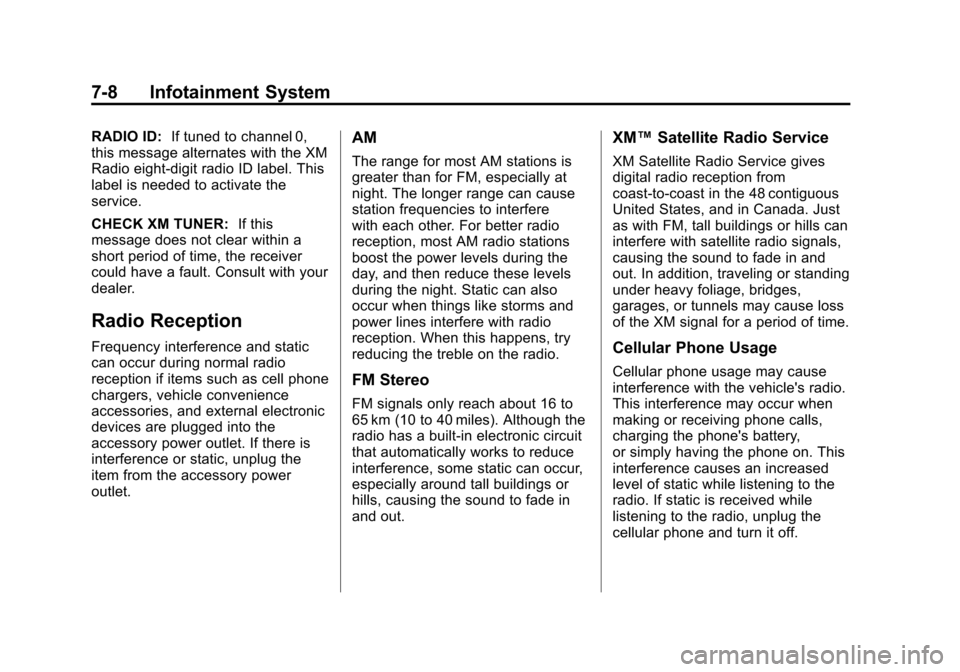

Radio Reception
Frequency interference and static
can occur during normal radio
reception if items such as cell phone
chargers, vehicle convenience
accessories, and external electronic
devices are plugged into the
accessory power outlet. If there is
interference or static, unplug the
item from the accessory power
outlet.
AM
The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere
with each other. For better radio
reception, most AM radio stations
boost the power levels during the
day, and then reduce these levels
during the night. Static can also
occur when things like storms and
power lines interfere with radio
reception. When this happens, try
reducing the treble on the radio.
FM Stereo
FM signals only reach about 16 to
65 km (10 to 40 miles). Although the
radio has a built-in electronic circuit
that automatically works to reduce
interference, some static can occur,
especially around tall buildings or
hills, causing the sound to fade in
and out.
XM™ Satellite Radio Service
XM Satellite Radio Service gives
digital radio reception from
coast-to-coast in the 48 contiguous
United States, and in Canada. Just
as with FM, tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and
out. In addition, traveling or standing
under heavy foliage, bridges,
garages, or tunnels may cause loss
of the XM signal for a period of time.
Cellular Phone Usage
Cellular phone usage may cause
interference with the vehicle's radio.
This interference may occur when
making or receiving phone calls,
charging the phone's battery,
or simply having the phone on. This
interference causes an increased
level of static while listening to the
radio. If static is received while
listening to the radio, unplug the
cellular phone and turn it off.

Black plate (9,1)Chevrolet Aveo Owner Manual - 2011
Infotainment System 7-9
Fixed Mast Antenna
(Hatchback)
Vehicles without OnStar®have a
fixed mast antenna that can
withstand most car washes without
being damaged. If the mast should
ever become slightly bent,
straighten it out by hand. If the mast
is badly bent, replace it.
Check occasionally to make sure
the mast is still tightened to the
antenna base located on the roof of
the vehicle. If tightening is required,
tighten by hand.
Backglass Antenna
(Sedan)
Vehicles without OnStar®have the
AM-FM antenna integrated with the
rear window defogger, located in the
rear window. Make sure that the
inside surface of the rear window is
not scratched and that the lines on
the glass are not damaged. If the
inside surface is damaged, it could
interfere with radio reception. Also, for proper radio reception, the
antenna connector at the top-center
of the rear window needs to be
properly attached to the post on the
glass.
Notice:
Using a razor blade or
sharp object to clear the inside
rear window can damage the rear
window antenna and/or the rear
window defogger. Repairs would
not be covered by the vehicle
warranty. Do not clear the inside
rear window with sharp objects.
Notice: Do not apply aftermarket
glass tinting with metallic film.
The metallic film in some tinting
materials will interfere with or
distort the incoming radio
reception. Any damage caused to
your backglass antenna due to
metallic tinting materials will not
be covered by the vehicle
warranty. Because this antenna is built into
the rear window, there is a reduced
risk of damage caused by car
washes and vandals.
If static is heard on the radio, when
the rear window defogger is turned
on, it could mean that a defogger
grid line has been damaged. If this
is true, the grid line must be
repaired.
If adding a cellular telephone to the
vehicle, and the antenna needs to
be attached to the glass, make sure
that the grid lines for the AM-FM
antenna are not damaged. There is
enough space between the grid
lines to attach a cellular telephone
antenna without interfering with
radio reception.

Black plate (10,1)Chevrolet Aveo Owner Manual - 2011
7-10 Infotainment System
Multi-Band Antenna
Vehicles with OnStar have a
multi-band antenna located on the
roof of the vehicle. The antenna is
used for the AM/FM radio, OnStar
and the XM Satellite Radio Service
System. Keep the antenna clear of
obstructions for clear reception.
If the vehicle has a sunroof, the
performance of the AM/FM radio,
OnStar, and the XM system may be
affected if the sunroof is open.
Audio Players
CD Player
Care of the CD Player
Do not add labels to a CD. It could
get caught in the CD player. Use a
marking pen to write on the top of
the CD if a description is needed.
Do not use CD lens cleaners, they
could damage the CD player.
Notice:If a label is added to a
CD, or more than one CD is
inserted into the slot at a time,
or an attempt is made to play
scratched or damaged CDs, the
CD player could be damaged.
While using the CD player, use
only CDs in good condition
without any label, load one CD at
a time, and keep the CD player
and the loading slot free of
foreign materials, liquids, and
debris.
If an error displays, see “CD
Messages” earlier in this section.
Care of CDs
If playing a CD-R, the sound quality
can be reduced due to CD-R quality,
the method of recording, the quality
of the music that has been
recorded, and the way the CD-R or
CD-RW has been handled. Handle
them carefully. Store CD-Rs in their
original cases or other protective
cases and away from direct sunlight
and dust. The CD player scans the
bottom surface of the disc. If the
surface of a CD is damaged, such
as cracked, broken, or scratched,
the CD does not play properly or not
at all. Do not touch the bottom side
of a CD while handling it; this could
damage the surface. Pick up CDs
by grasping the outer edges or the
edge of the hole and the outer edge.
If the surface of a CD is soiled,
clean it with a soft, lint‐free cloth or
dampen a clean, soft cloth in a mild,
neutral detergent solution mixed
with water. Make sure the wiping
process starts from the center to
the edge.

Black plate (11,1)Chevrolet Aveo Owner Manual - 2011
Infotainment System 7-11
Playing a CD
Radio with CD
Insert a CD partway into the slot,
label side up. The player pulls it in
and the CD begins playing. A CD
can be loaded while the ignition is in
the OFF position.
When the CD is inserted, CD
Loading appears on the display. As
each new track starts to play, the
track number displays.
If the ignition or radio is turned off
with a CD in the player, it will stay in
the player. When a CD is in the
player and the ignition is in the ON/
RUN position, the radio must be
turned on before the CD will start
playing. When the ignition and radio
are turned on, the CD will start
playing where it stopped, if it was
the last selected audio source.
The CD player can play the smaller
8 cm (3 in) single CDs with an
adapter ring. Full-size CDs and the
smaller CDs are loaded in the same
manner.
[TUNE (Next Track):
Press
[TUNE to go to the next
track. The track number will appear
on the display. The player will
continue moving forward through
the CD with each press of
[TUNE.
rTUNE (Previous Track): Press
to go to the start of the current track.
The track number will appear on the
display. The player will continue
moving backward through the CD
with each press of
rTUNE.
BAND: Press to listen to the radio
while a CD is playing. The CD
remains inside the radio for future
listening.
CD/AUX: Press to play a CD when
listening to the radio. CD Loading
appears on the display when the CD
player has been selected. The CD
symbol will appear on the display
when a CD is loaded. Press CD/AUX while a CD is
playing to pause the CD. PAUSE
flashes on the display. Press CD/
AUX again to start playing the CD.
Press CD/AUX to play a CD when
listening to the audio contents from
other device (AUX mode). CD
Loading appears on the display
when the CD player has been
selected. The CD symbol will
appear on the display when a CD is
loaded.
EJECT:
Press to eject a CD. The
CD can be ejected when the ignition
or the radio is turned off.
INFO/DISP (Information/Display):
: Press to display additional text
information related to the current
MP3/WMA song. A choice of
additional information such as: Song
Title , Album Title, Artist, Bit rate
may appear.

Black plate (12,1)Chevrolet Aveo Owner Manual - 2011
7-12 Infotainment System
RPT (Repeat):Press the
pushbutton under the RPT tab on
the display to repeat the current
track, RPT appears on the display.
Press the pushbutton again to stop
repeat.
RDM (Random): Press the
pushbutton below the RDM tab on
the display to play tracks in random,
rather than sequential order, RDM
appears on the display. Press the
pushbutton again to stop
random play.
INT (Scan): Press the pushbutton
below the INT tab on the display to
listen to the first few seconds of
each track on the CD, INTRO
appears on the display. Press the
pushbutton again to stop scanning
and the current track begins to play.Using an MP3
MP3/WMA CD-R Disc Format
If you burn your own MP3/WMA
disc on a personal computer:
.Make sure the MP3/WMA files
are recorded on a CD-R disc.
.Do not mix standard audio and
MP3/WMA files on one disc.
.Make sure each MP3/WMA file
has a .m3u or .wma extension,
other file extensions might
not work.
.Files can be recorded with a
variety of fixed or variable bit
rates. Song title, artist name,
and album are available for
display by the radio when
recorded using ID3 tags version
1 and 2.
.Make sure to finalize the disc
when burning an MP3/WMA disc
using multiple sessions. It is
usually better to burn the disc all
at once. The player is able to read and
play a maximum of 50 folders,
5 sessions, and 999 files. Long file
names and folder names can use
more disc memory space than
necessary. To conserve space on
the disc, minimize the length of the
file and folder names. An MP3/WMA
CD that was recorded using no file
folders can also be played. The
system can support up to eight
folders in depth; however, keep the
depth of the folders to a minimum in
order to keep down the complexity
and confusion in trying to locate a
particular folder during playback.
If a CD contains more than the
maximum of 50 folders, 5 sessions,
and 999 files, the player lets you
access and navigate up to the
maximum, but all items over the
maximum are ignored.
