2010 TOYOTA TUNDRA Owners Manual

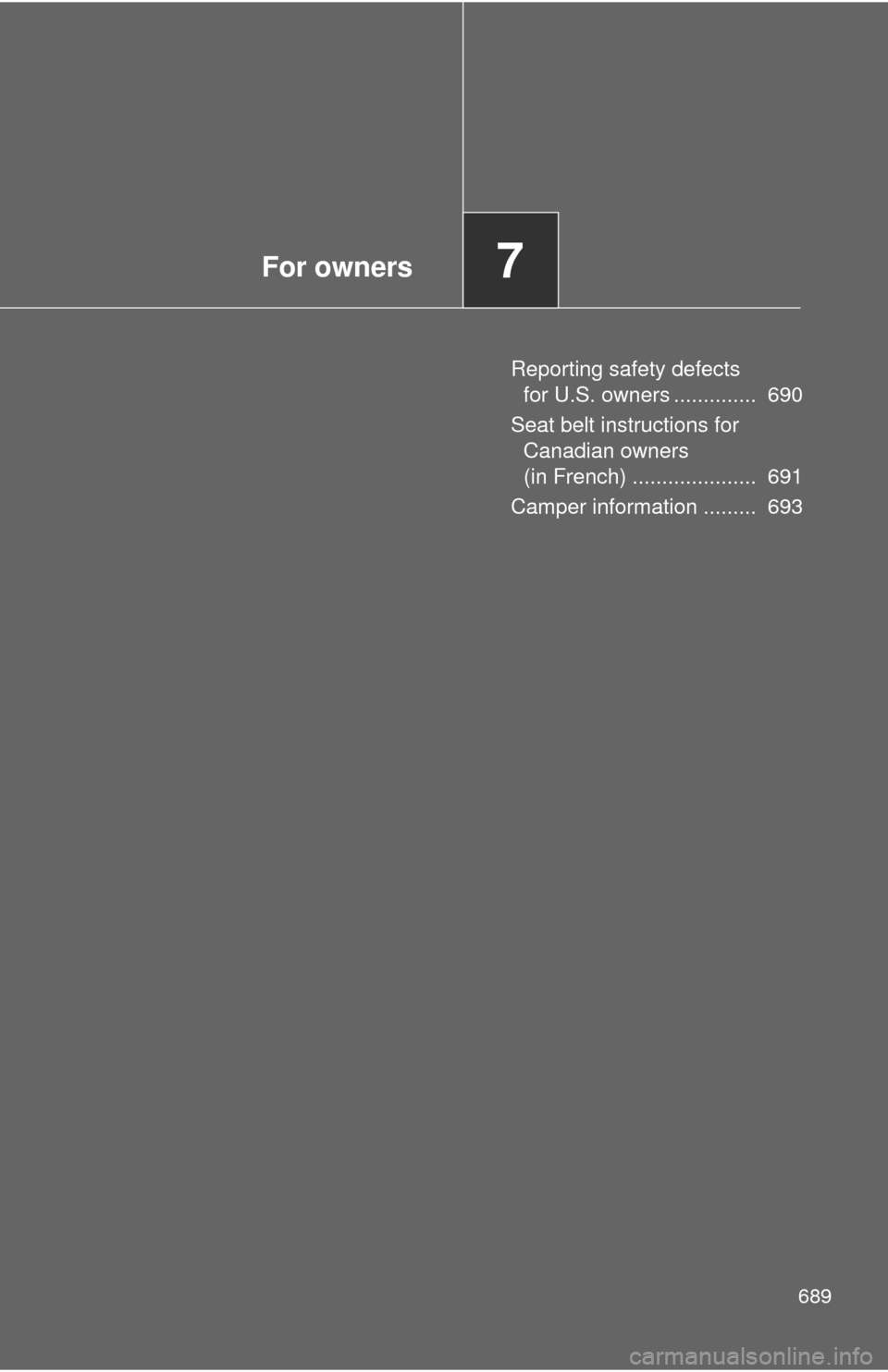

For owners7
689
Reporting safety defects for U.S. owners .............. 690
Seat belt instructions for Canadian owners
(in French) ..................... 691
Camper information ......... 693

690

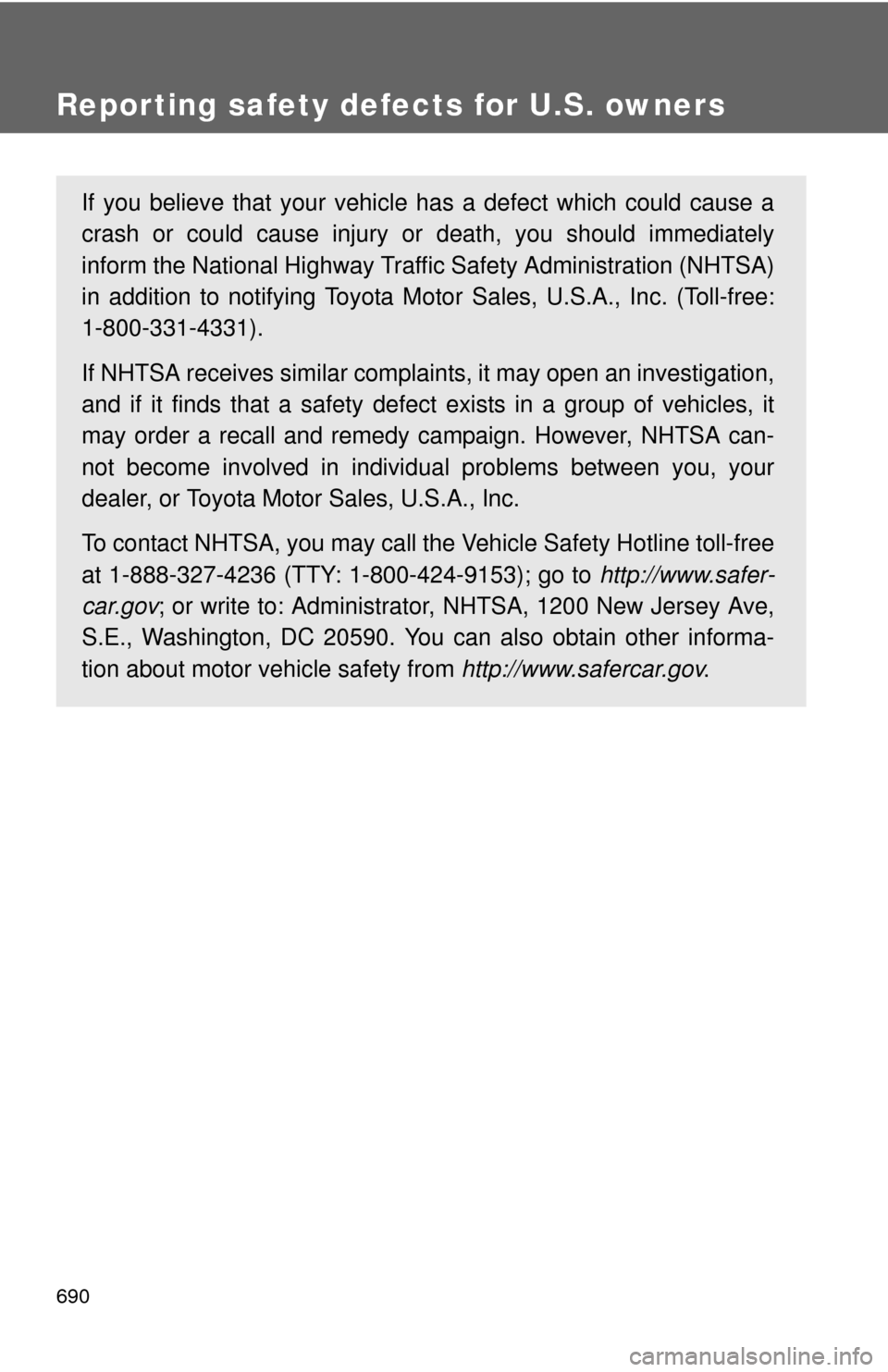

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safer-
car.gov; or write to: Administrator, NHTSA, 1200 New Jersey Ave,
S.E., Washington, DC 20590. You can also obtain other informa-
tion about motor vehicle safety from http://www.safercar.gov.

691
7
For owners

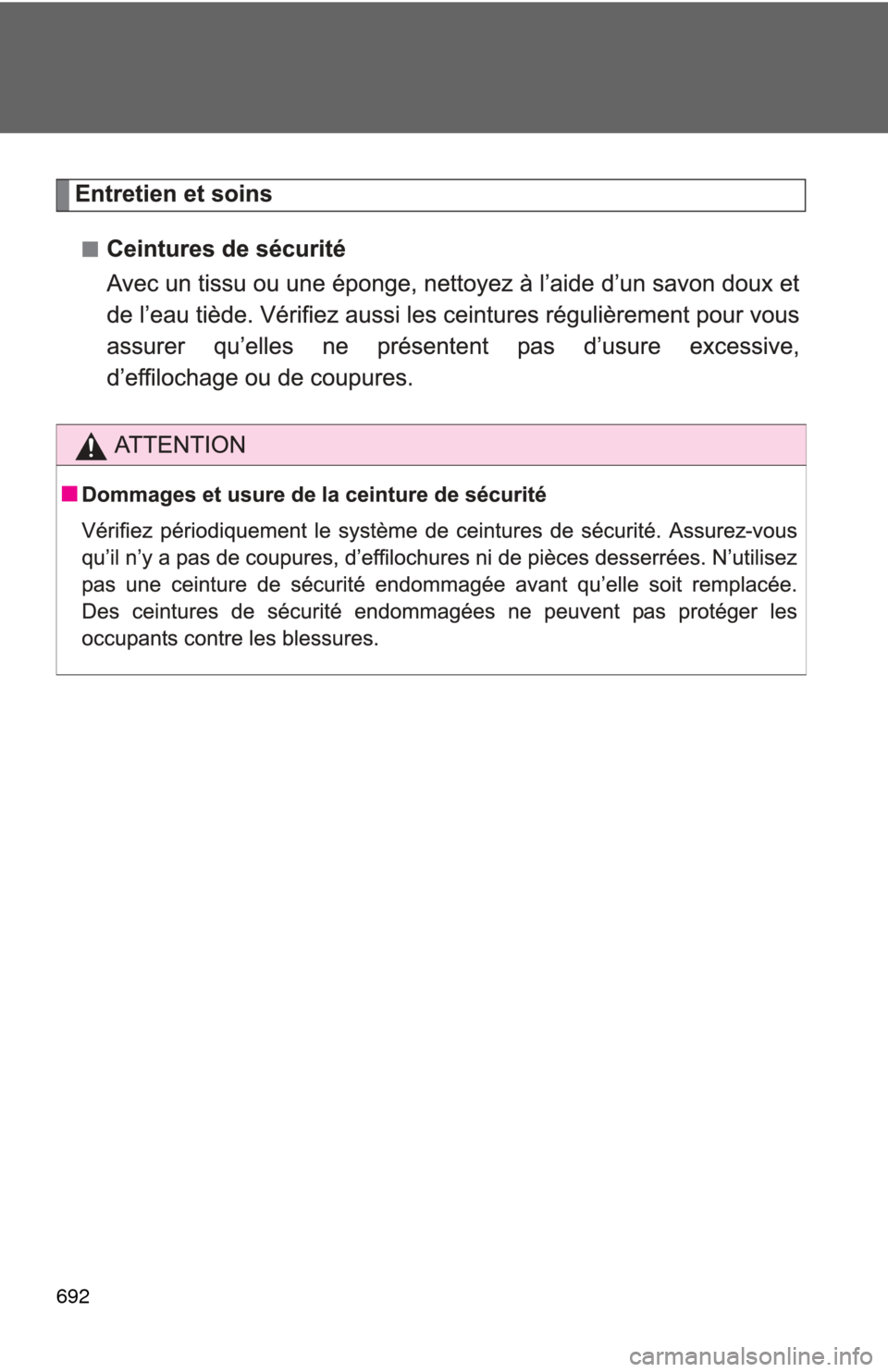

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.

692

693
7
For owners
Camper information
Center of gravity locationThe figures given in the illustration indicate the recommended center
of gravity zone. Regular Cab models with standard bed Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
Regular Cab models with long bed Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
This information has been prepared in accordance with regula-
tion issued by the National Highway Traffic Safety Administration
of the U.S. Department of Transportation. It provides the purchas-
ers and/or prospective purchasers of Toyota vehicles with infor-
mation on truck-camper loading. Your Toyota dealer will help
answer any questions you may have as you read this informa-
tion.

694
Double Cab models with standard bedRecommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
Double Cab models with long bed Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
CrewMax models Recommended location for
cargo center of gravity for
cargo weight rating
Rear end of truck bed
Regular Cab models
42.6 in. (1082mm) 37.6 in. (955 mm)
Double Cab models
CrewMax models

695
7
For owners
Cargo weight rating and proper matchingWhen the truck is used to carry a slide-in camper, the total cargo load
of the truck consists of the manufacturer’s camper weight figure, the
weight of installed additional camper equipment not included in the
manufacturer’s camper weight figu re, the weight of camper cargo,
and the weight of passengers in the camper.
The total cargo load should not exceed the truck’s cargo weight rating
and the camper’s center of gravity should fall within the truck’s rec-
ommended center of gravity zone when installed.
Camper center of gravity
Recommended center of grav-
ity location zone
CAUTION
■Loading precaution
If a load is too far back, it can cause dangerous handling. If it is too far
forward, the front axle may be overloaded.

696
■Cargo weight rating
CWR: Cargo Weight Rating
EngineDriveCabBedGradePassenger
numberC.W.R
(lb.)(kg)
1GR- FE 2WD
Regular Standard
Delux 3 1045 474
Long 3 1125 510
1UR- FE 2WD
Standard 3 1205 547
Long 3 1305 592
4WD Standard 3 1145 519
Long 3 1240 562
3UR- FE 2WD Standard 3 1135 515
Long 3 1450 658
3UR- FE
3UR- FBE 4WD
Standard 3 1080 490
Long 3 1385 628
