2010 TOYOTA TUNDRA Owners Manual

97
1-4. Opening and closing the windows and moon roof
1
Before driving

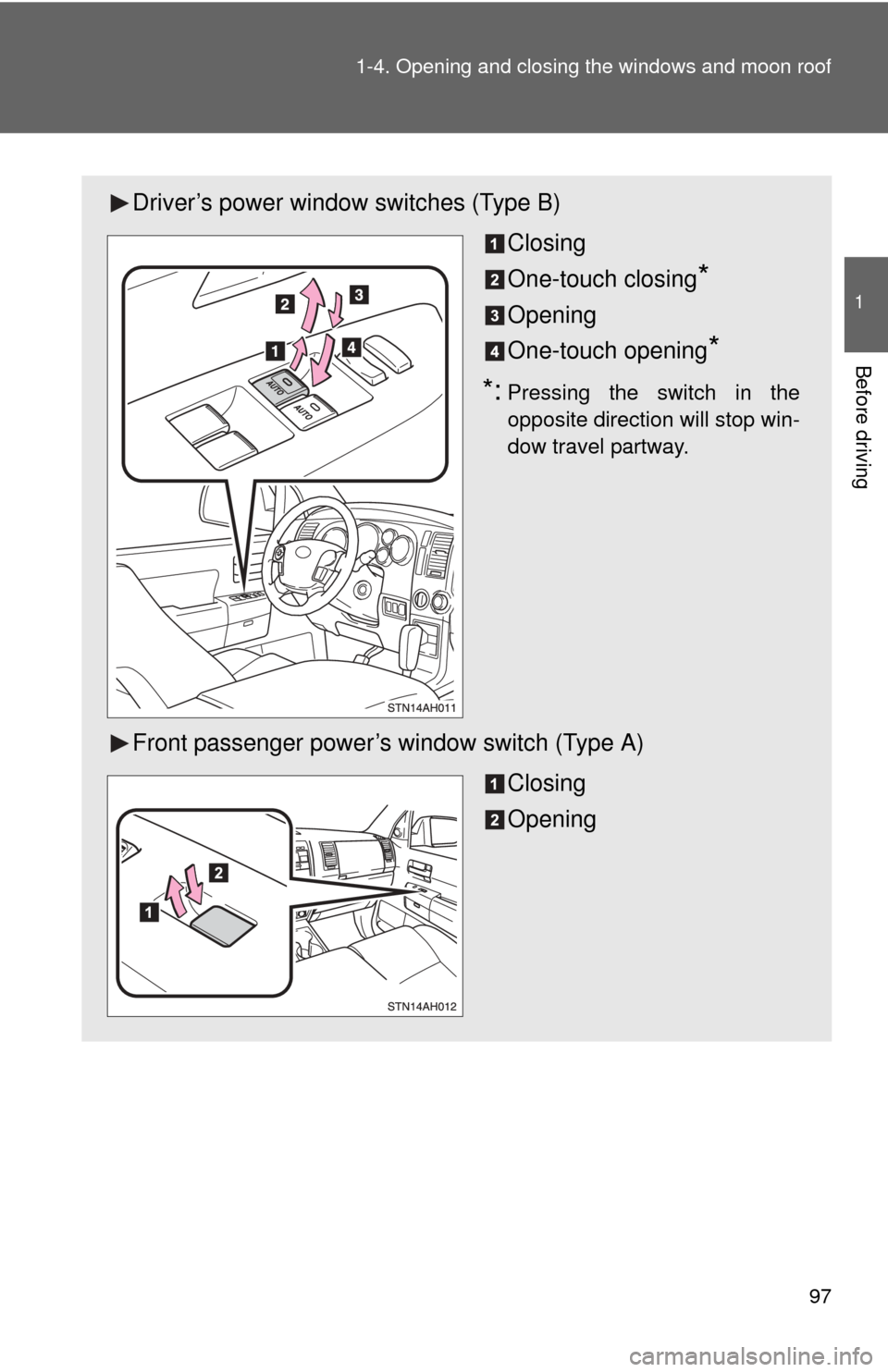

Driver’s power window switches (Type B)
Closing
One-touch closing
*
Opening
One-touch opening
*
*:Pressing the switch in the
opposite direction will stop win-
dow travel partway.
Front passenger power’s window switch (Type A)Closing
Opening

98 1-4. Opening and closing the windows and moon roof
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.

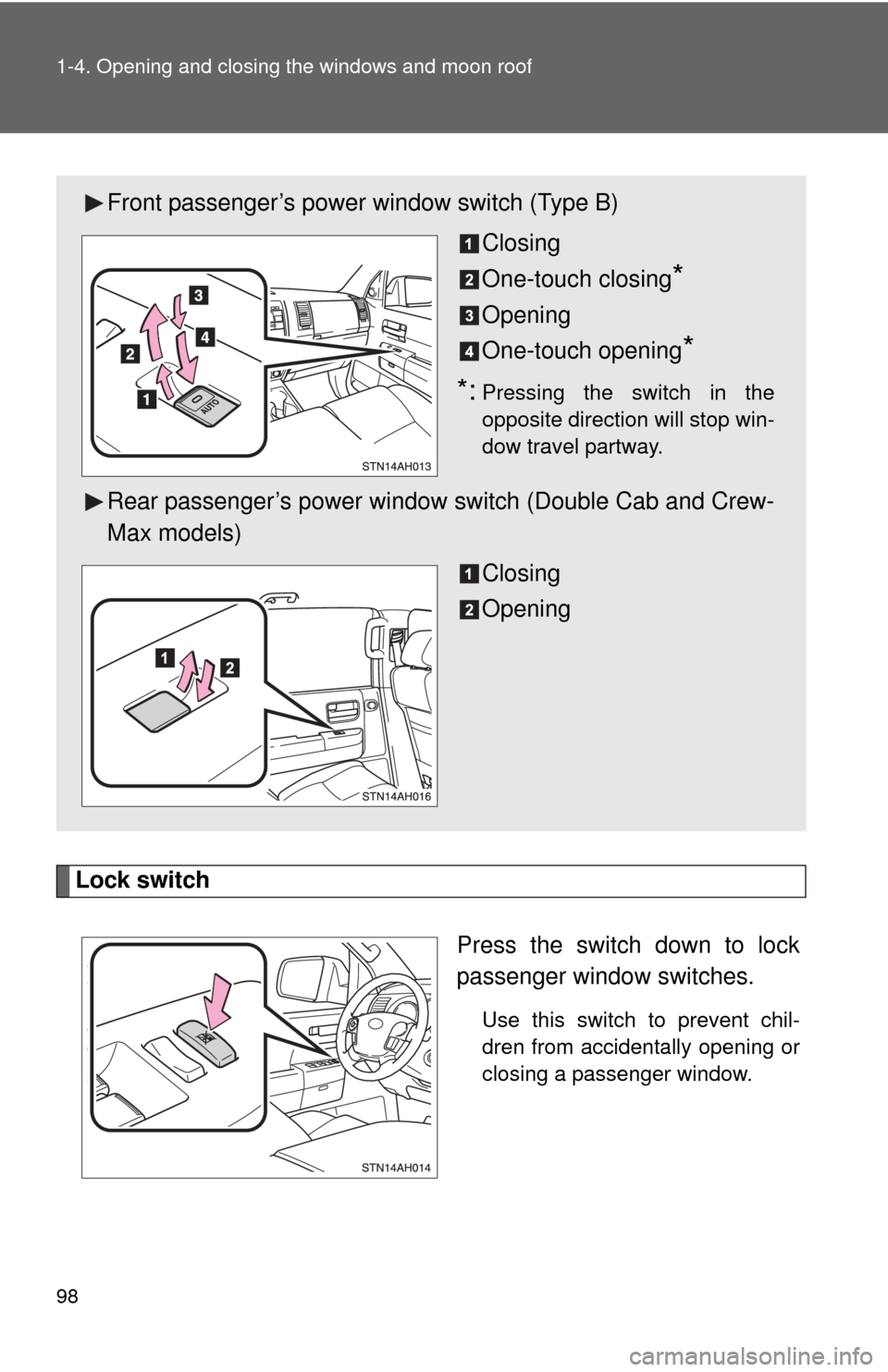

Front passenger’s power window switch (Type B)Closing
One-touch closing
*
Opening
One-touch opening
*
*:Pressing the switch in the
opposite direction will stop win-
dow travel partway.
Rear passenger’s power window switch (Double Cab and Crew-
Max models)Closing
Opening

99
1-4. Opening and closing the windows and moon roof
1
Before driving
■
The power windows can be operated when
The engine switch is in the ON position.
■ Operating the power windows after turning the engine switch off
The power windows can be operated for approximately 43 seconds even
after the engine switch is turned to the ACC position or turned off. They can-
not, however, be operated once either front door is opened.
■ Jam protection function (Type B only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
■ Jam protection function (Type B only)
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

100
1-4. Opening and closing the windows and moon roof

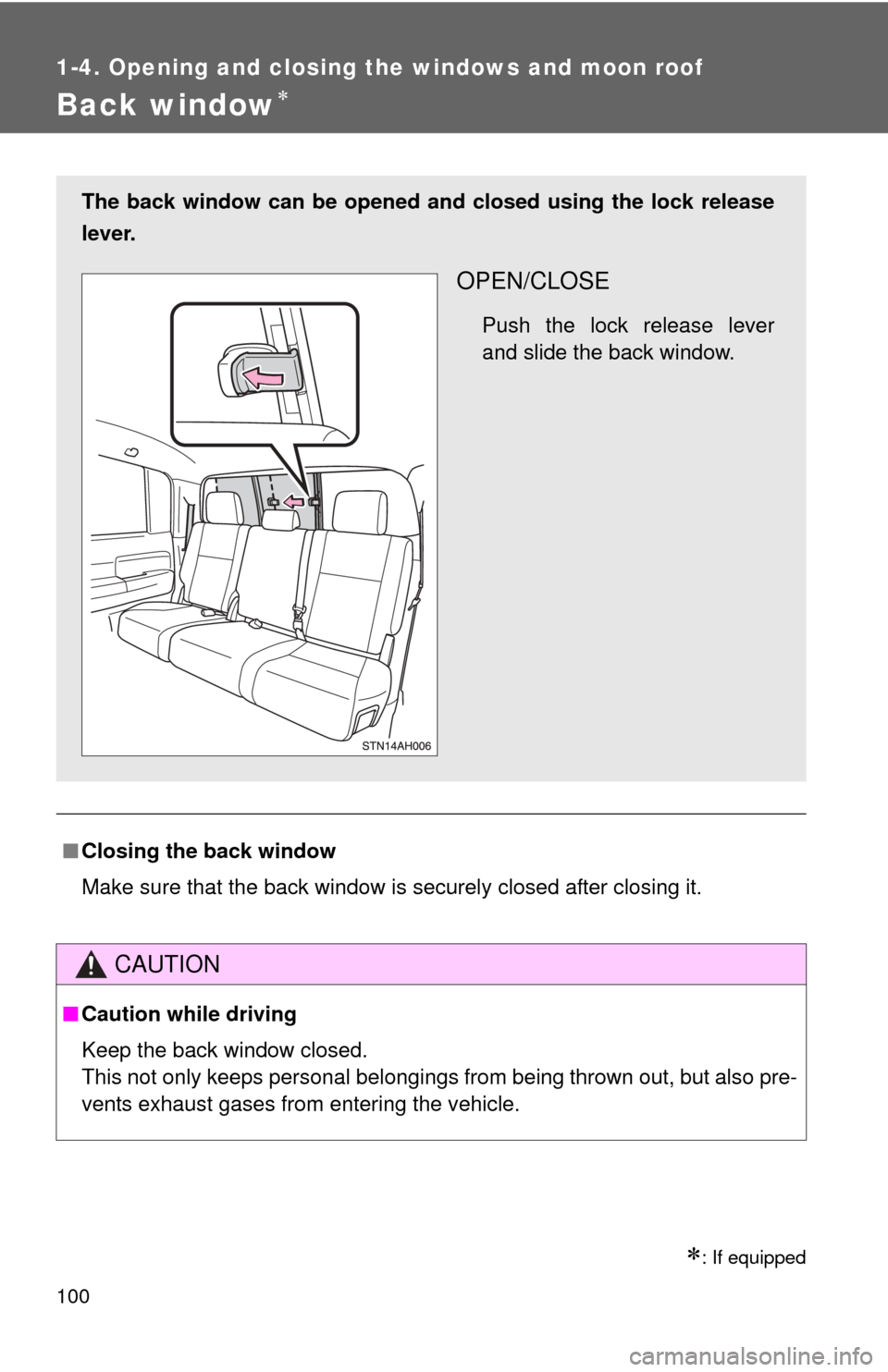

Back window
: If equipped
■Closing the back window
Make sure that the back window is securely closed after closing it.
CAUTION
■Caution while driving
Keep the back window closed.
This not only keeps personal belongings from being thrown out, but also pre-
vents exhaust gases from entering the vehicle.
The back window can be opened and closed using the lock release
lever.
OPEN/CLOSE
Push the lock release lever
and slide the back window.

101
1
1-4. Opening and closing the windows and moon roof
Before driving

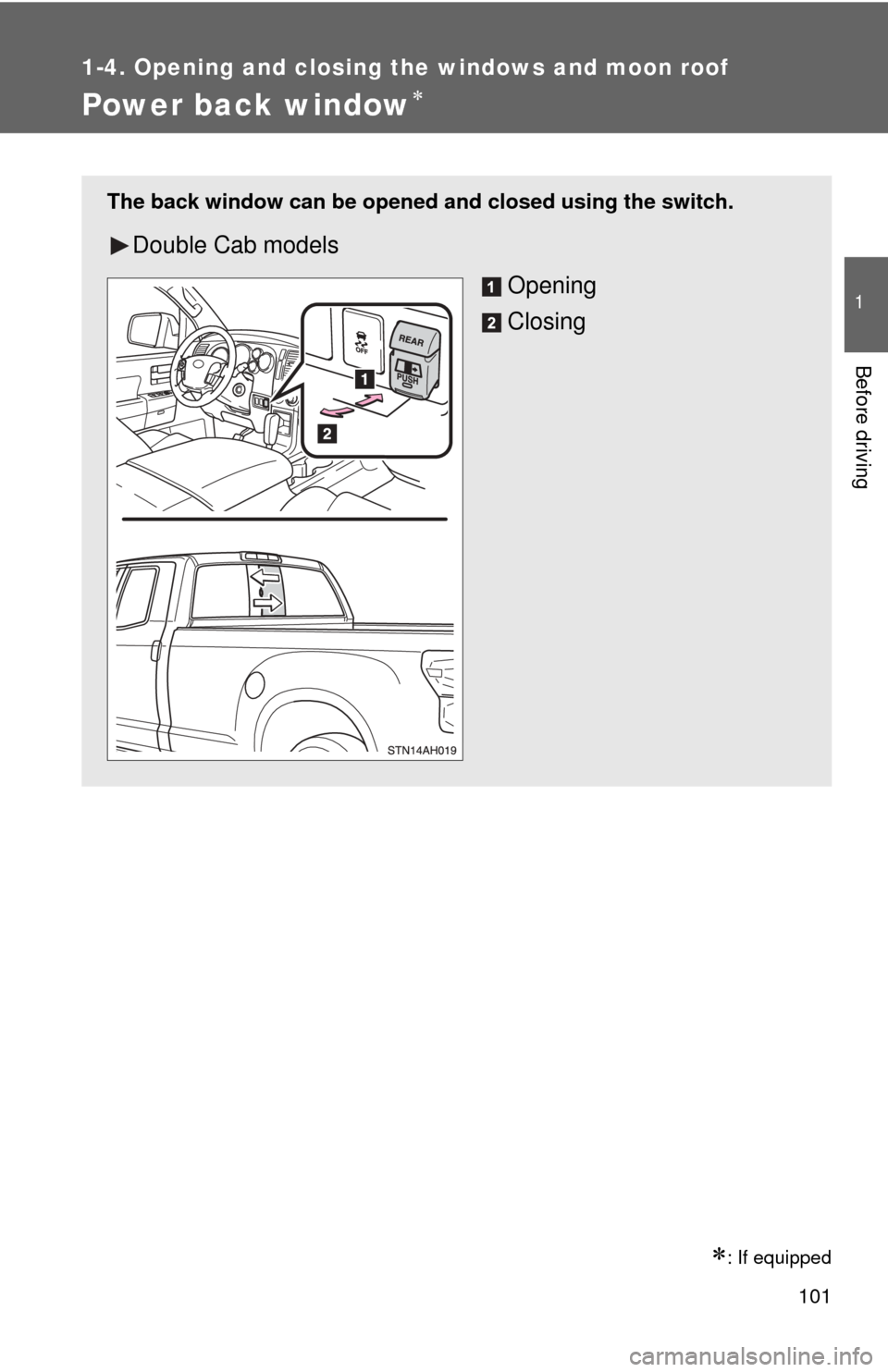

Power back window
: If equipped
The back window can be opened and closed using the switch.
Double Cab modelsOpening
Closing

102 1-4. Opening and closing the windows and moon roof
■The power back window can be operated when
The engine switch is in the ON position.
■ Operating the power back windows after turning the engine switch off
The power back windows can be operated for approximately 43 seconds
even after the engine switch is turned to the ACC position or turned off. They
cannot, however, be operated once either front door is opened.

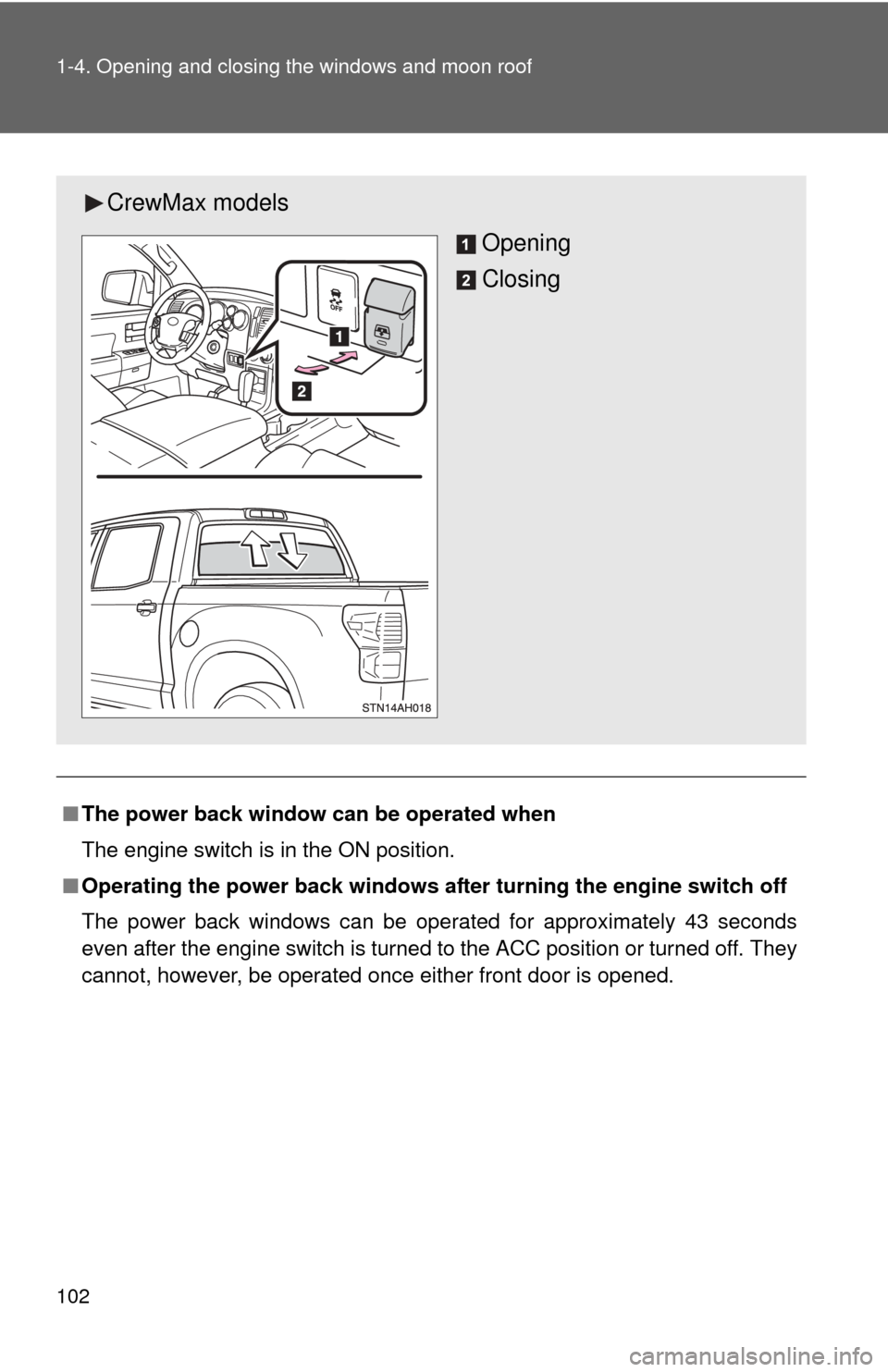

CrewMax models
Opening
Closing

103
1-4. Opening and closing the windows and moon roof
1
Before driving
CAUTION
■
Closing the back window
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power back window.
Closing a back window on someone can cause serious injury, and in some
instances, even death.
■ Caution while driving
Keep the back window closed.
This not only keeps personal belongings from being thrown out, but also pre-
vents exhaust gases from entering the vehicle.

104
1-4. Opening and closing the windows and moon roof

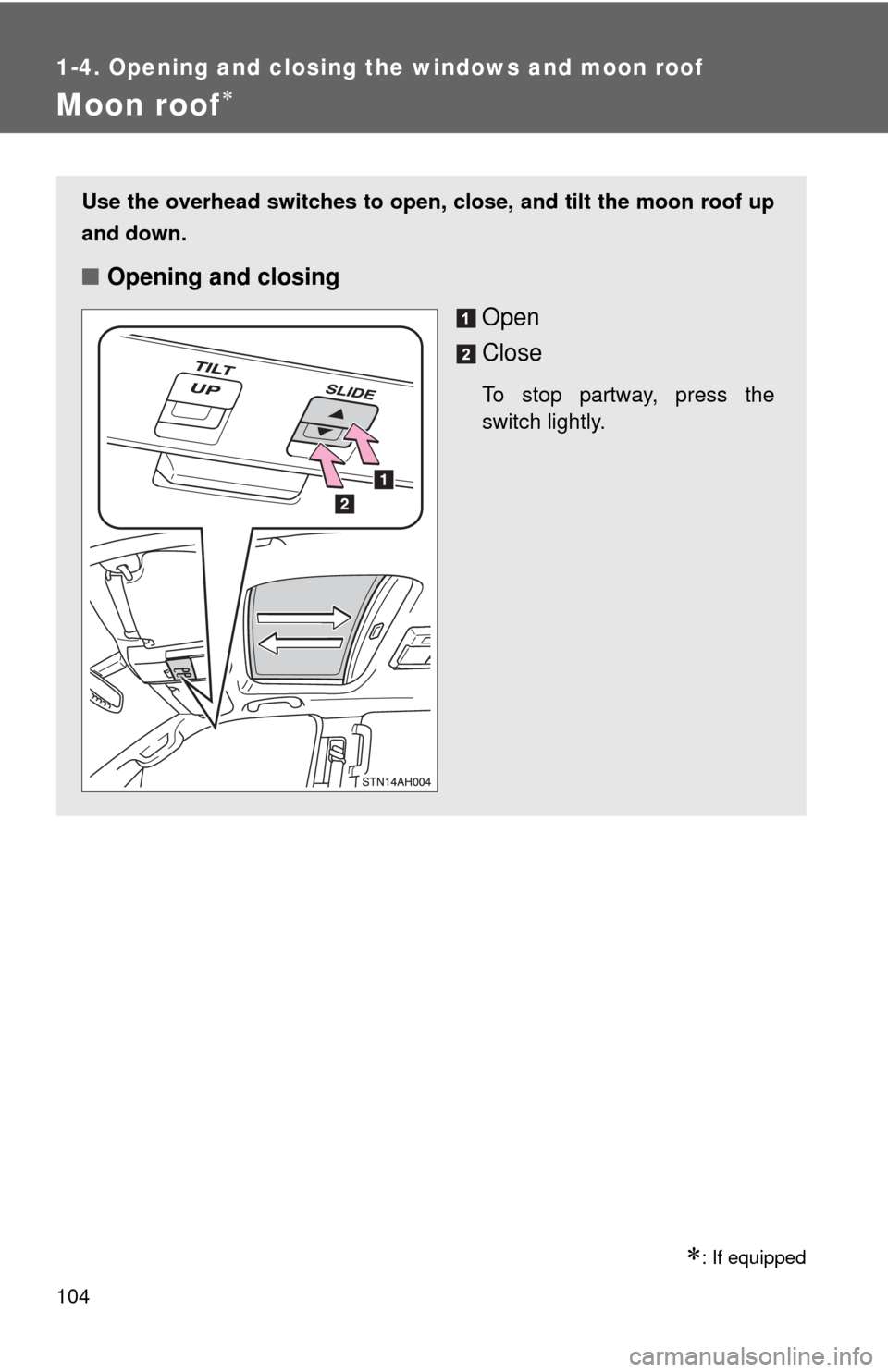

Moon roof
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
■Opening and closing
Open
Close
To stop partway, press the
switch lightly.
