When trouble arises
609
5-2. Steps to take in an emergency

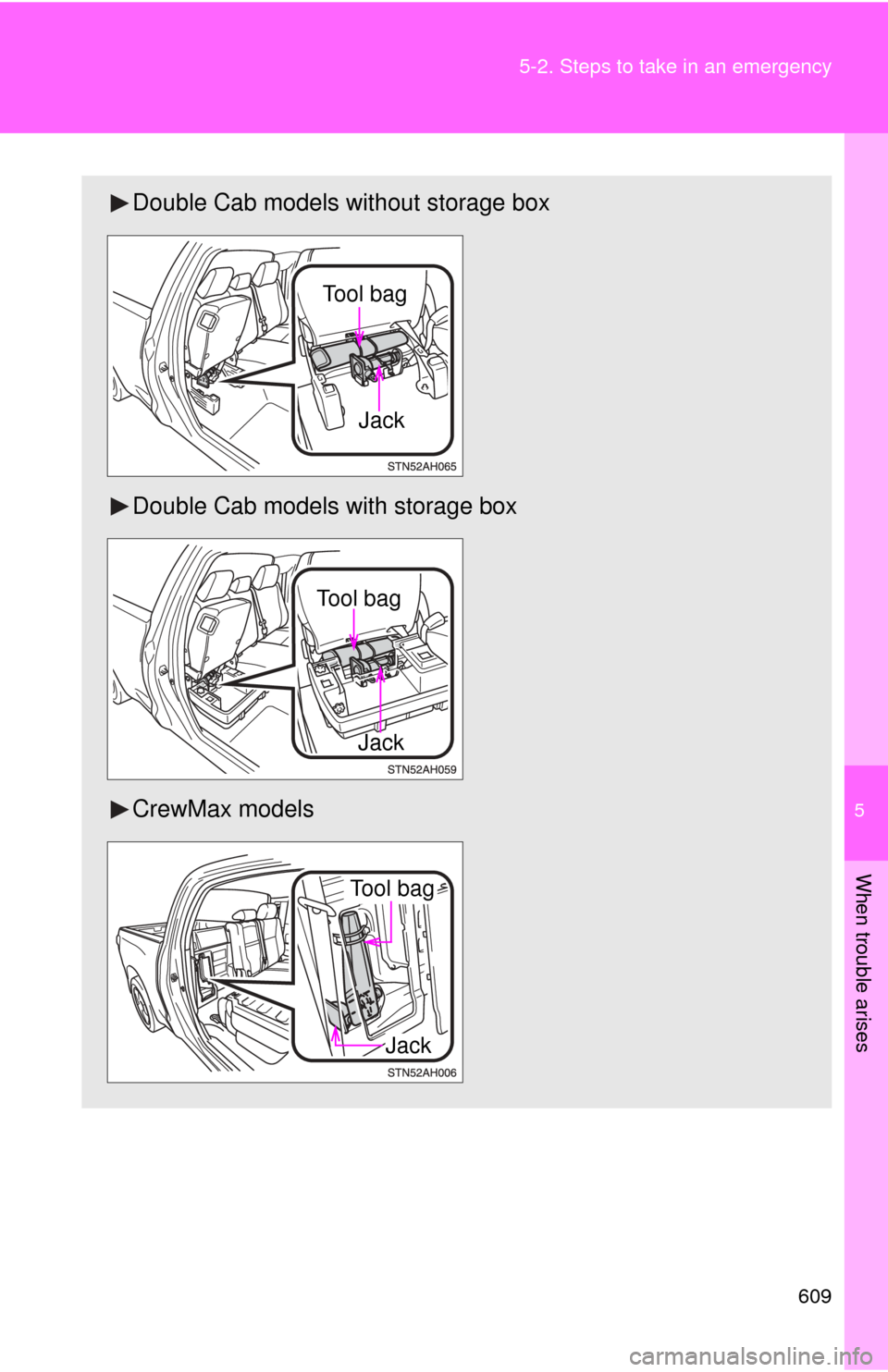

Double Cab models without storage box
Double Cab models with storage box
CrewMax models
To o l b a g
Jack
Tool bag
Jack
Tool bag
Jack

610 5-2. Steps to take in an emergency

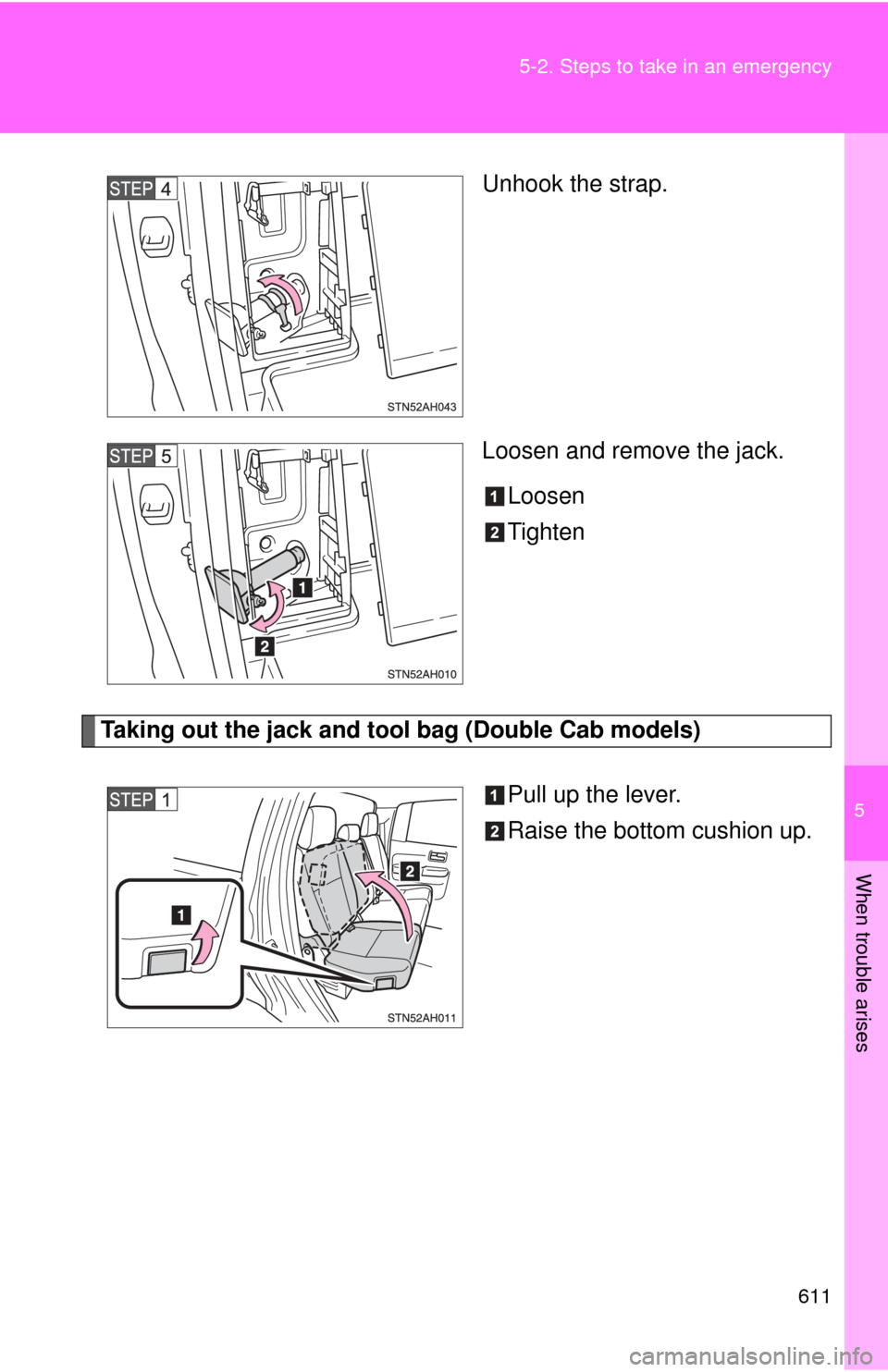

Taking out the jack and tool bag (Regular Cab models)Pull the lever and fold down the
seatback.
Remove the cover.
Unhook the strap and remove
the tool bag.

5
When trouble arises
611
5-2. Steps to take in an emergency
Unhook the strap.
Loosen and remove the jack.
Loosen
Tighten

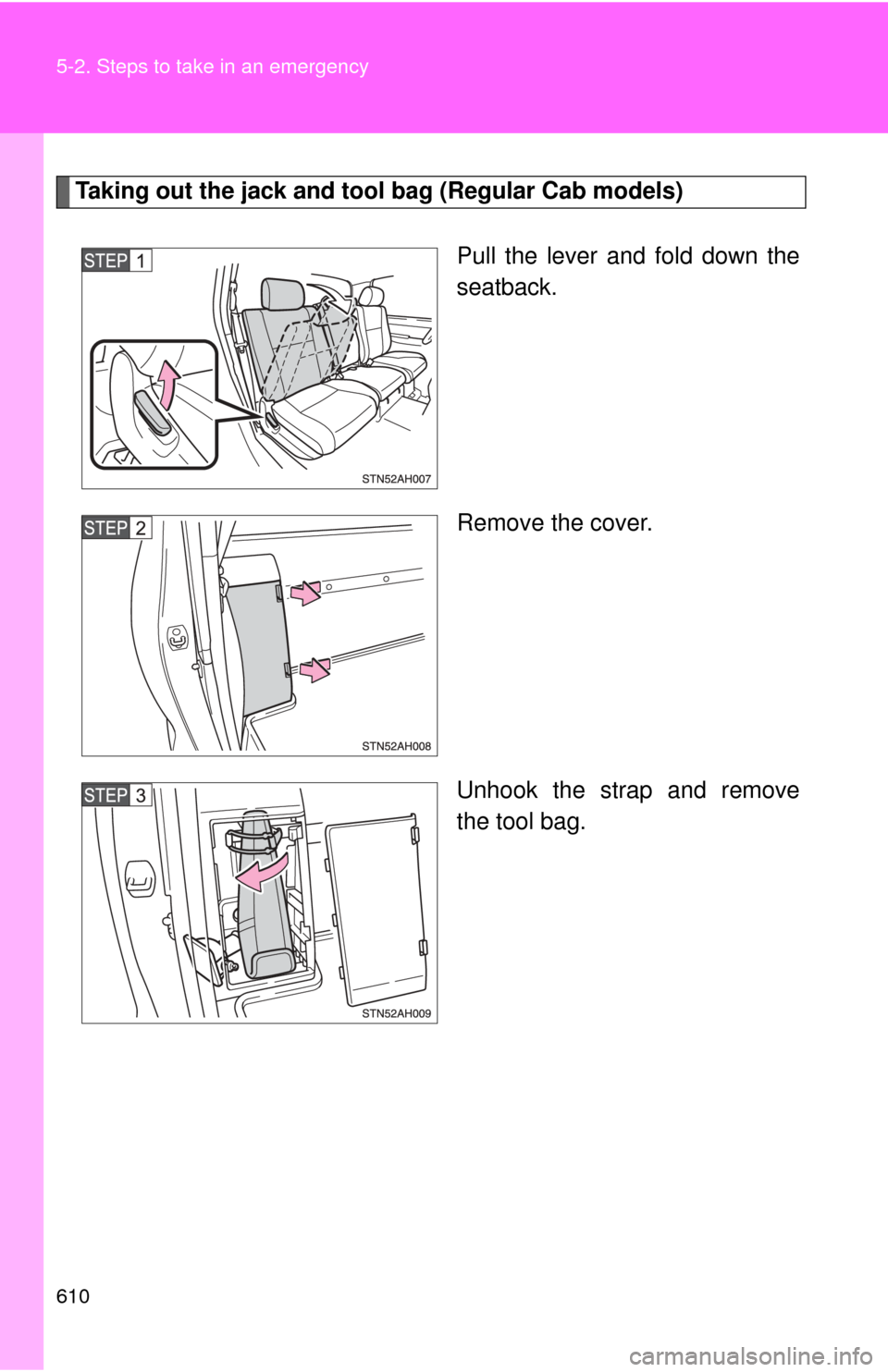

Taking out the jack and tool bag (Double Cab models)
Pull up the lever.
Raise the bottom cushion up.

612 5-2. Steps to take in an emergency

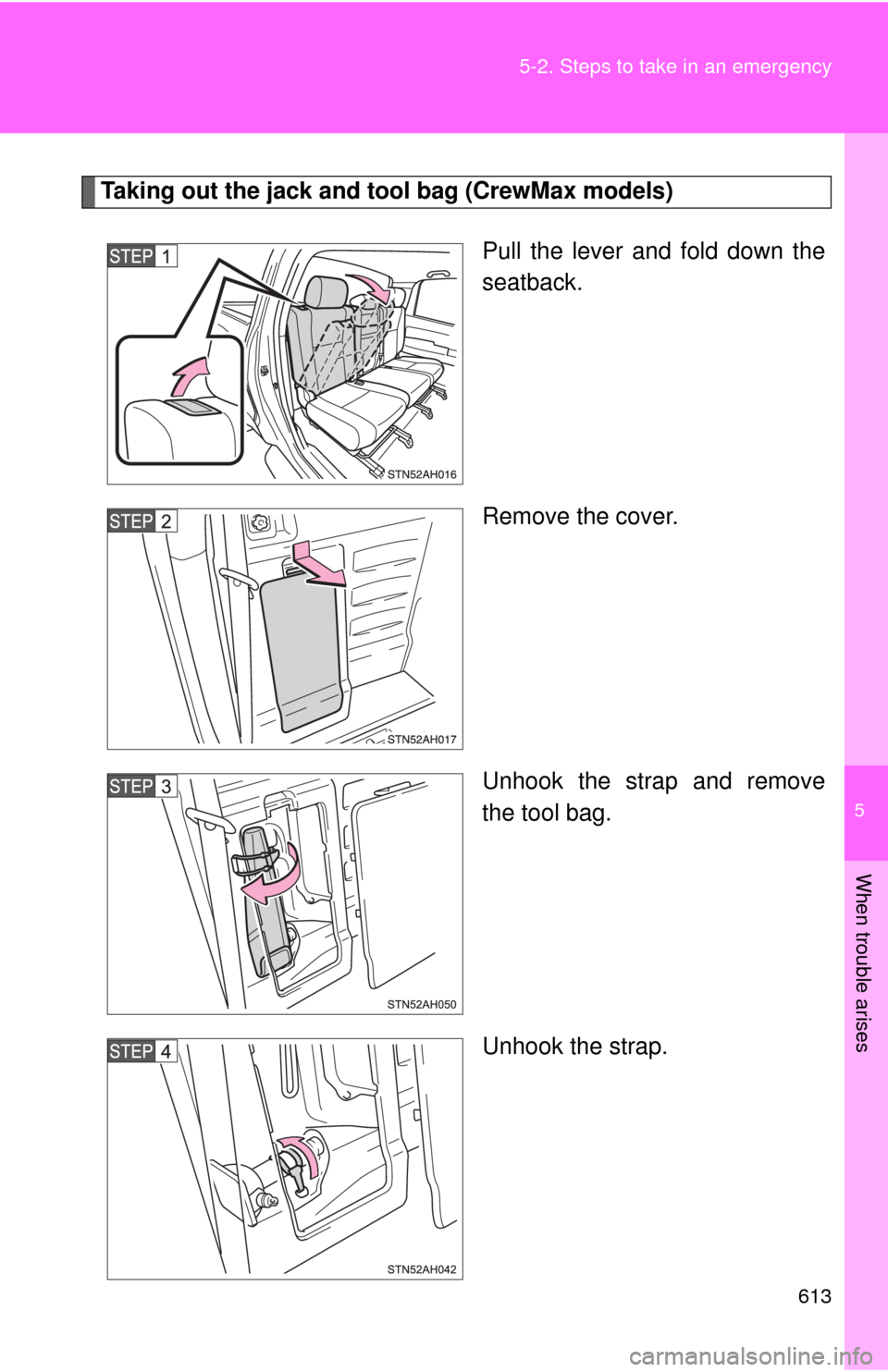

Vehicles with storage boxTurn the knob to the OPEN
direction.
Remove the lid.

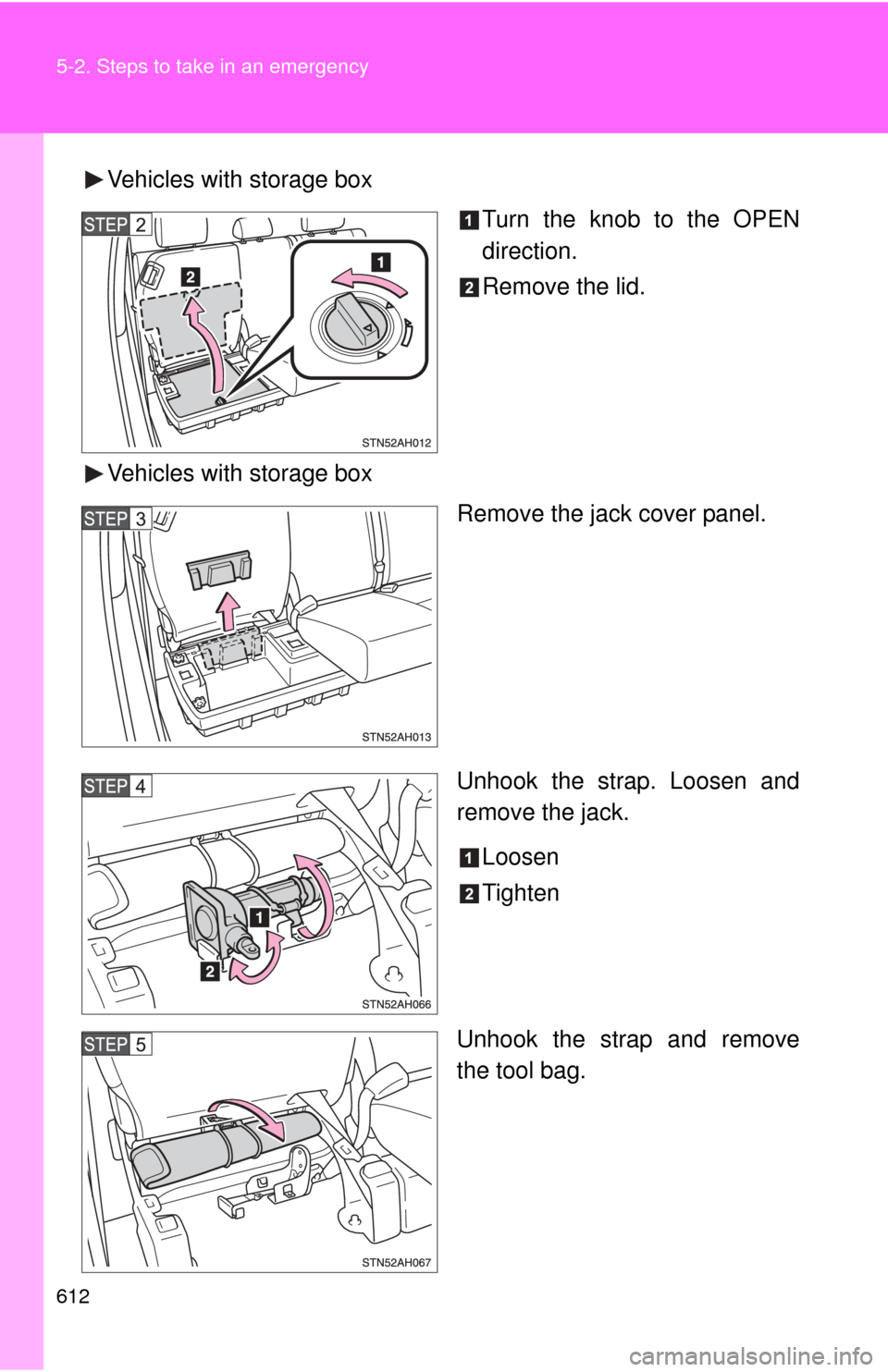

Vehicles with storage box Remove the jack cover panel.
Unhook the strap. Loosen and
remove the jack.
Loosen
Tighten
Unhook the strap and remove
the tool bag.

5
When trouble arises
613
5-2. Steps to take in an emergency
Taking out the jack and t
ool bag (CrewMax models)
Pull the lever and fold down the
seatback.
Remove the cover.
Unhook the strap and remove
the tool bag.

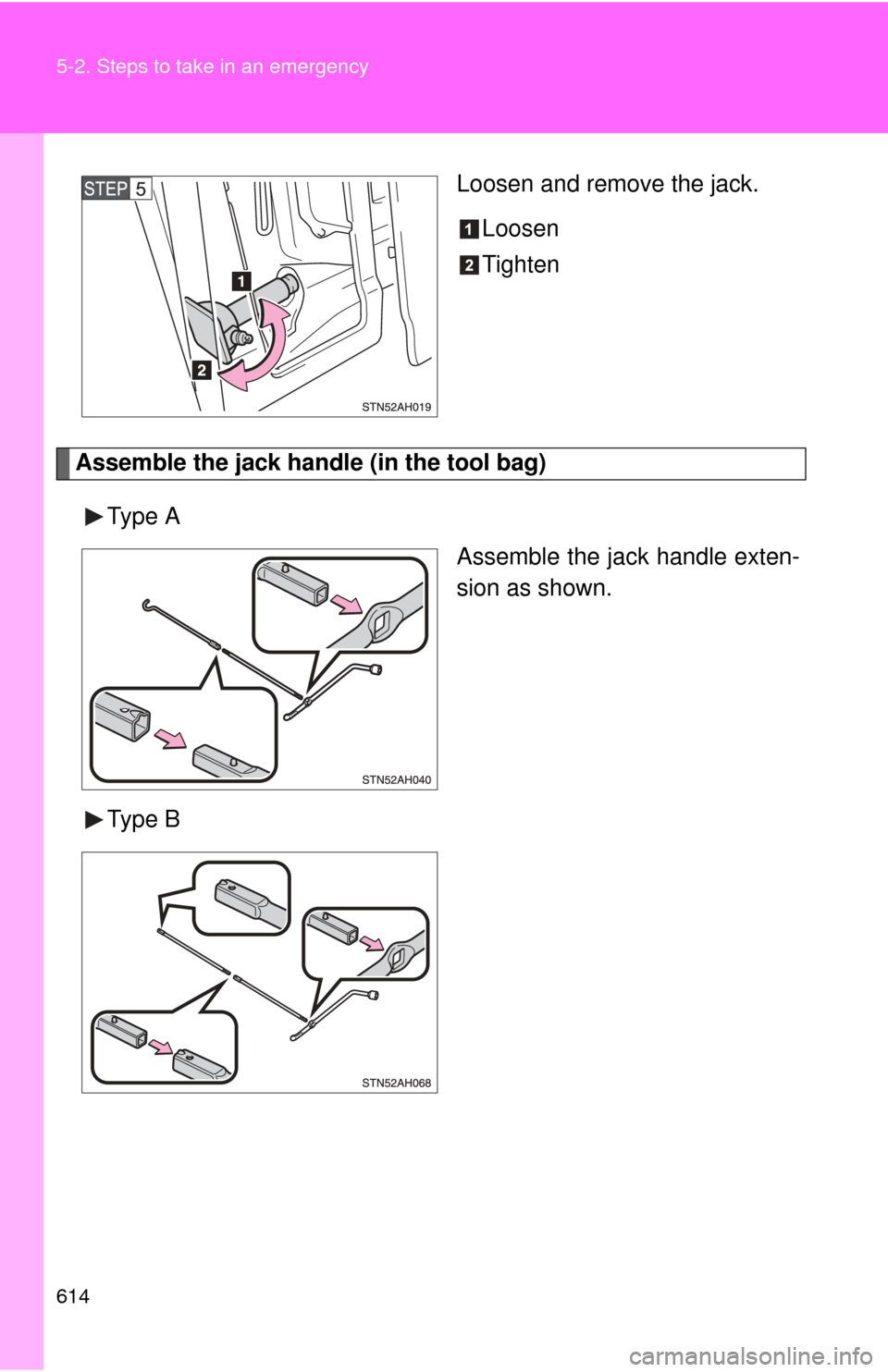

Unhook the strap.

614 5-2. Steps to take in an emergency
Loosen and remove the jack.Loosen
Tighten

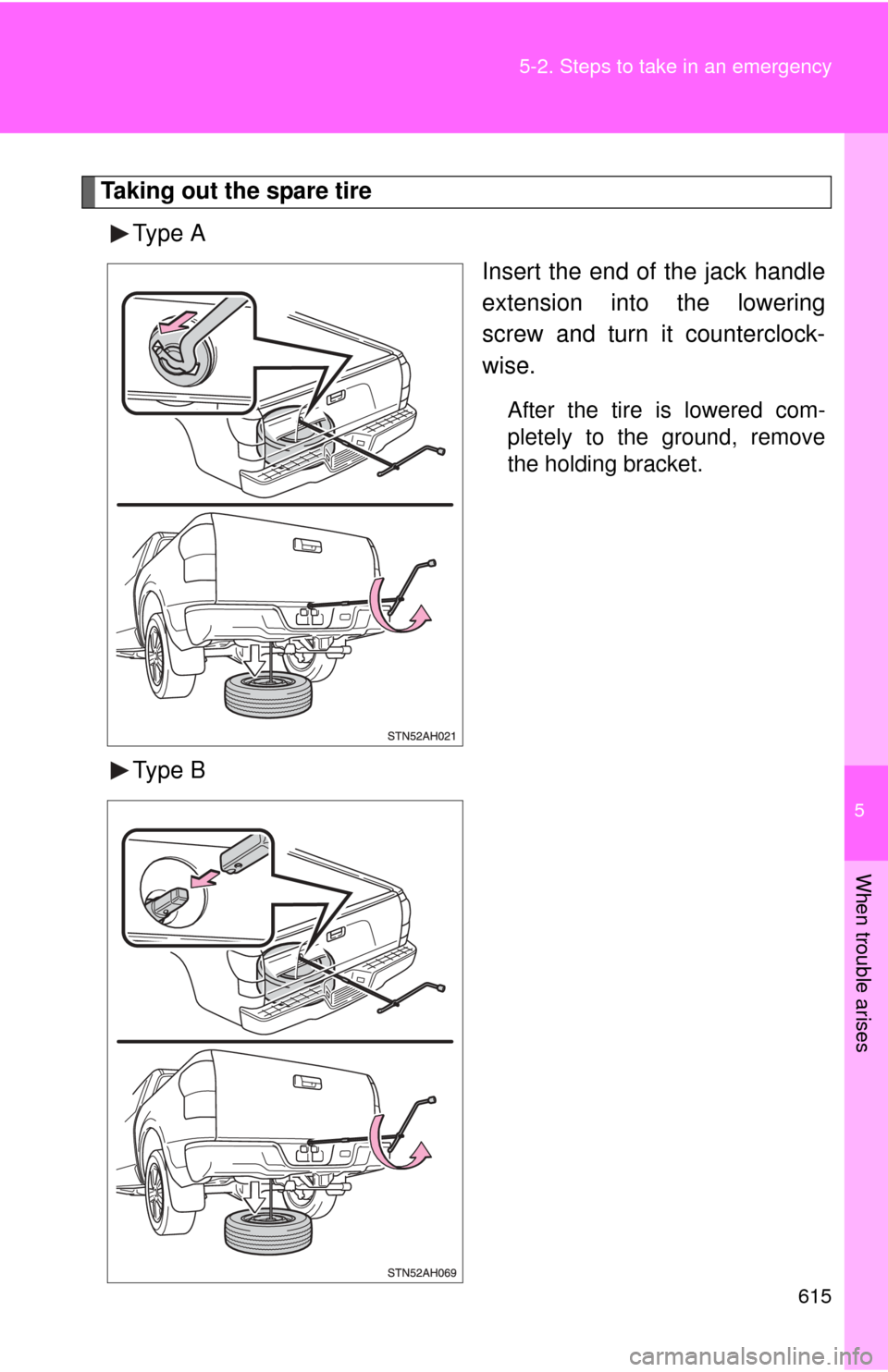

Assemble the jack handle (in the tool bag)
Type A Assemble the jack handle exten-
sion as shown.
Type B

5
When trouble arises
615
5-2. Steps to take in an emergency
Taking out the spare tire
Type A Insert the end of the jack handle
extension into the lowering
screw and turn it counterclock-
wise.
After the tire is lowered com-
pletely to the ground, remove
the holding bracket.
Type B

616 5-2. Steps to take in an emergency

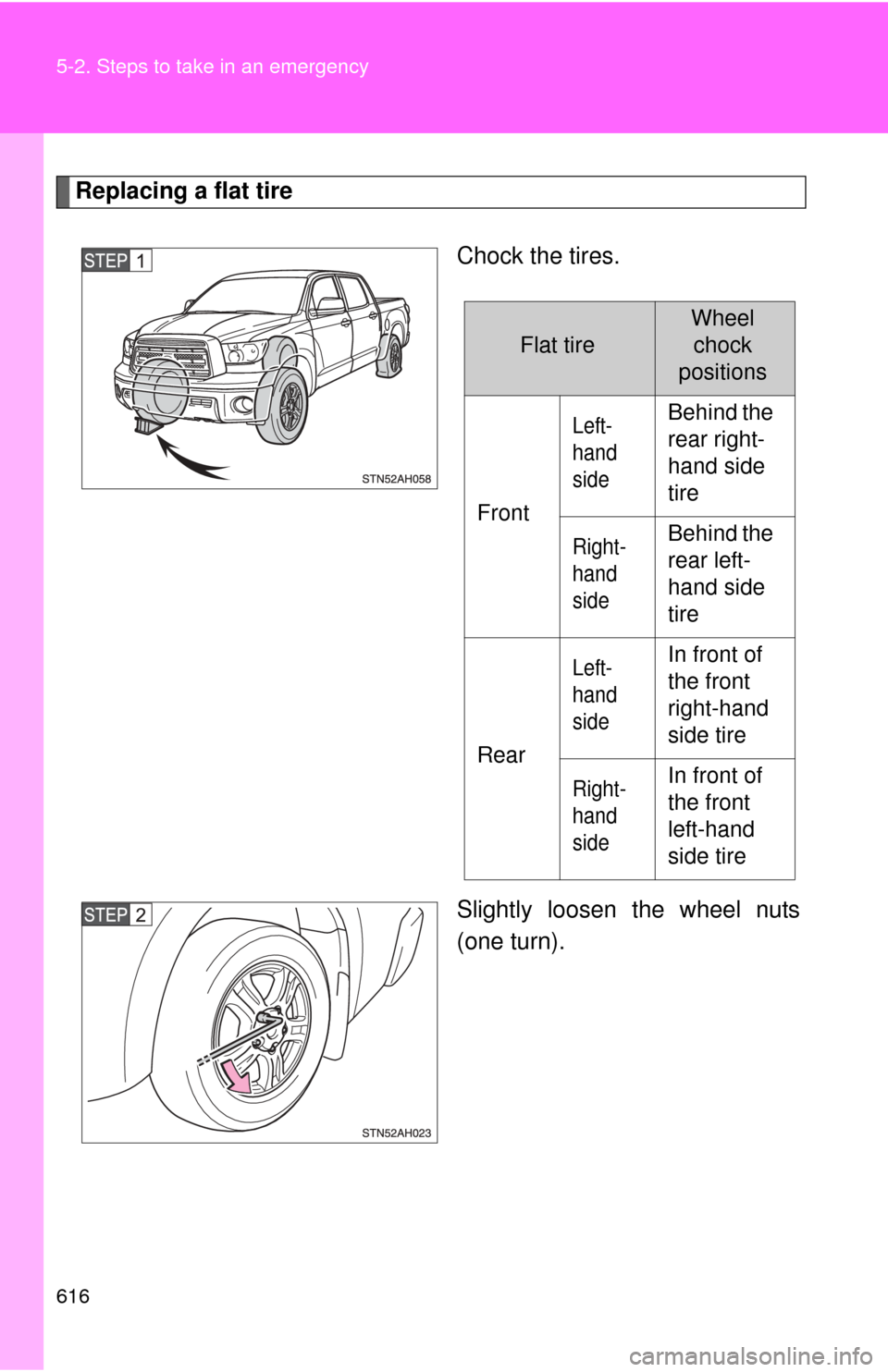

Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts
(one turn).
Flat tire
Wheelchock
positions
Front
Left-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
Rear
Left-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire
