52

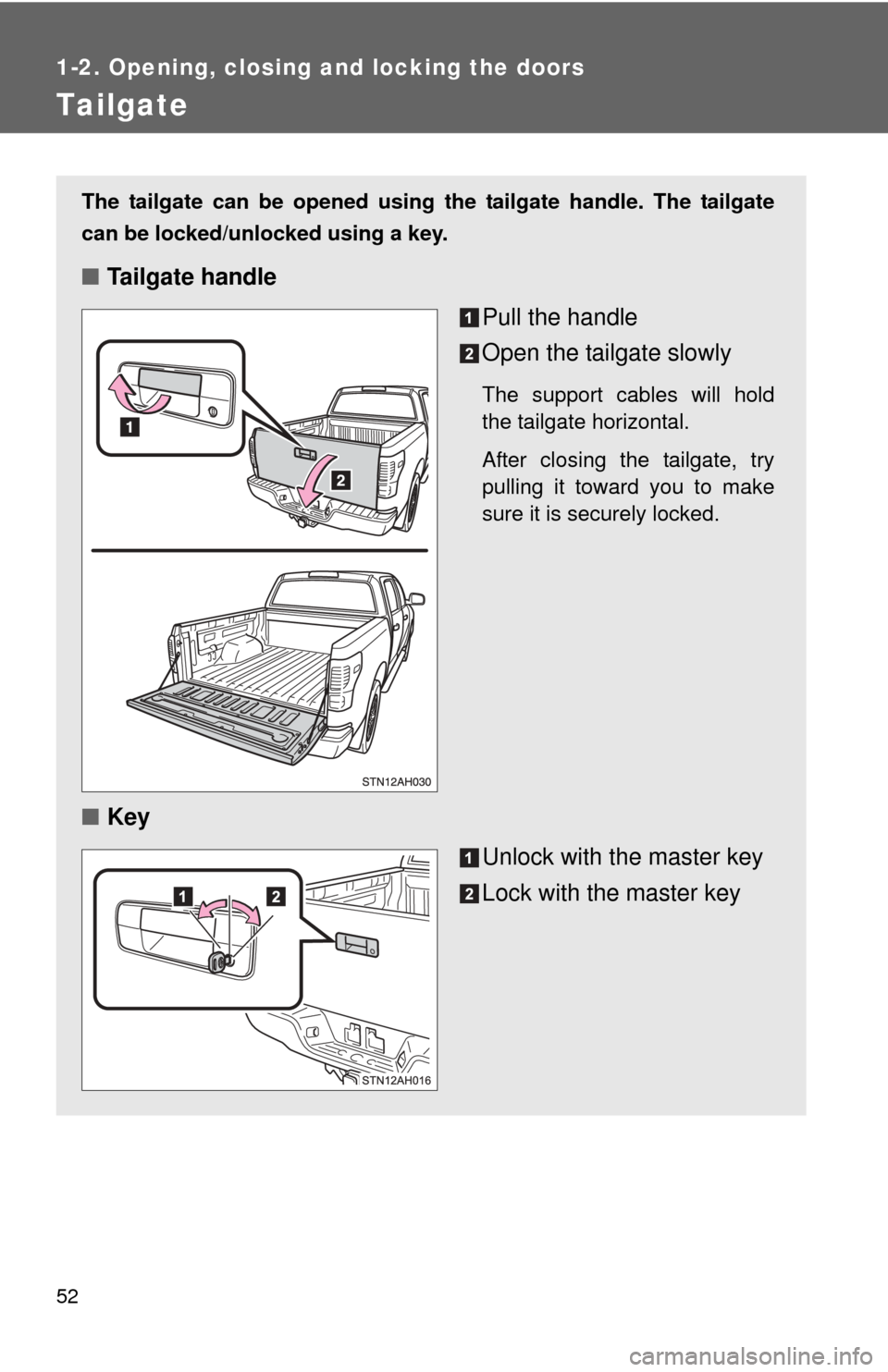

1-2. Opening, closing and locking the doors

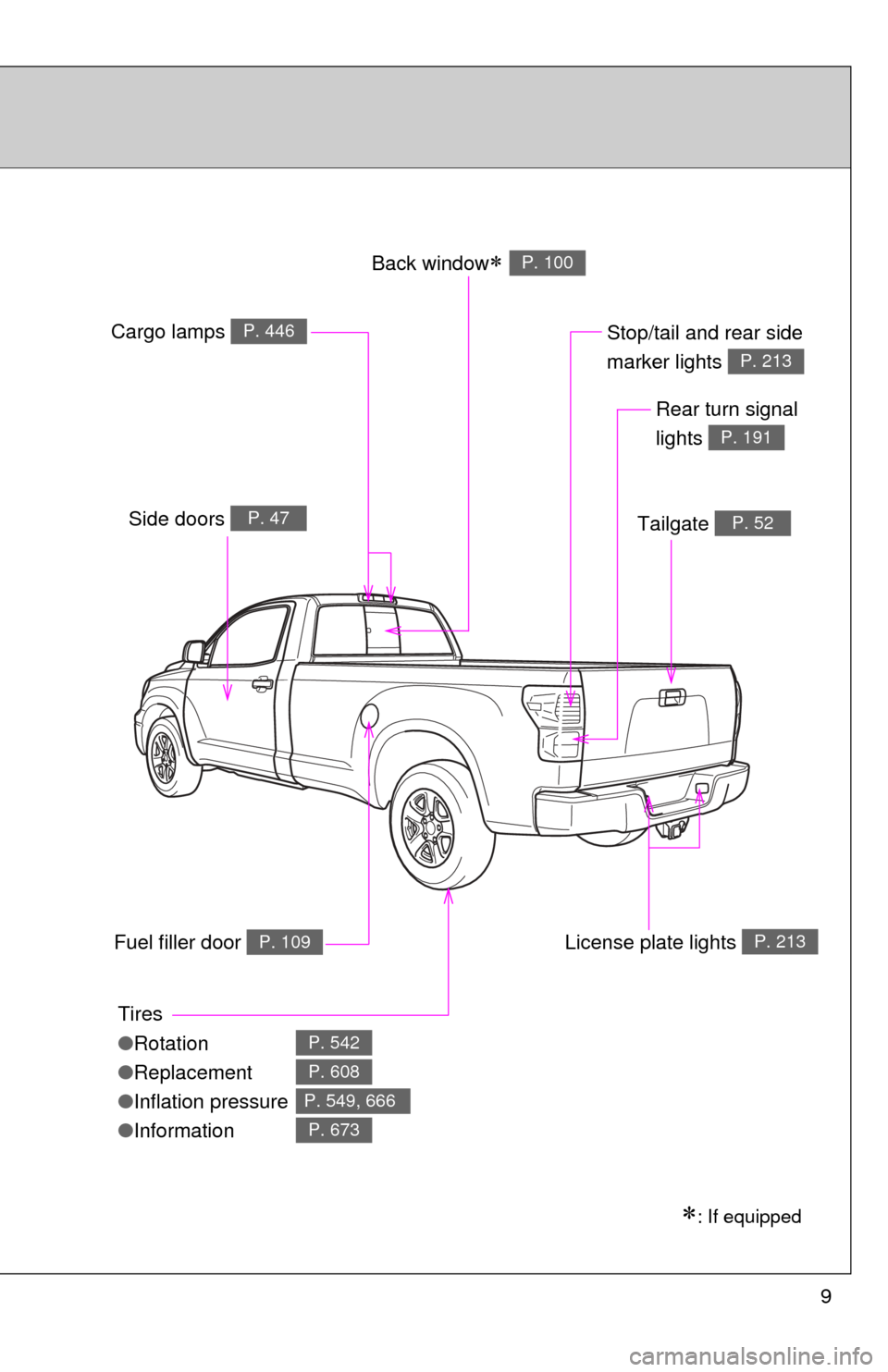

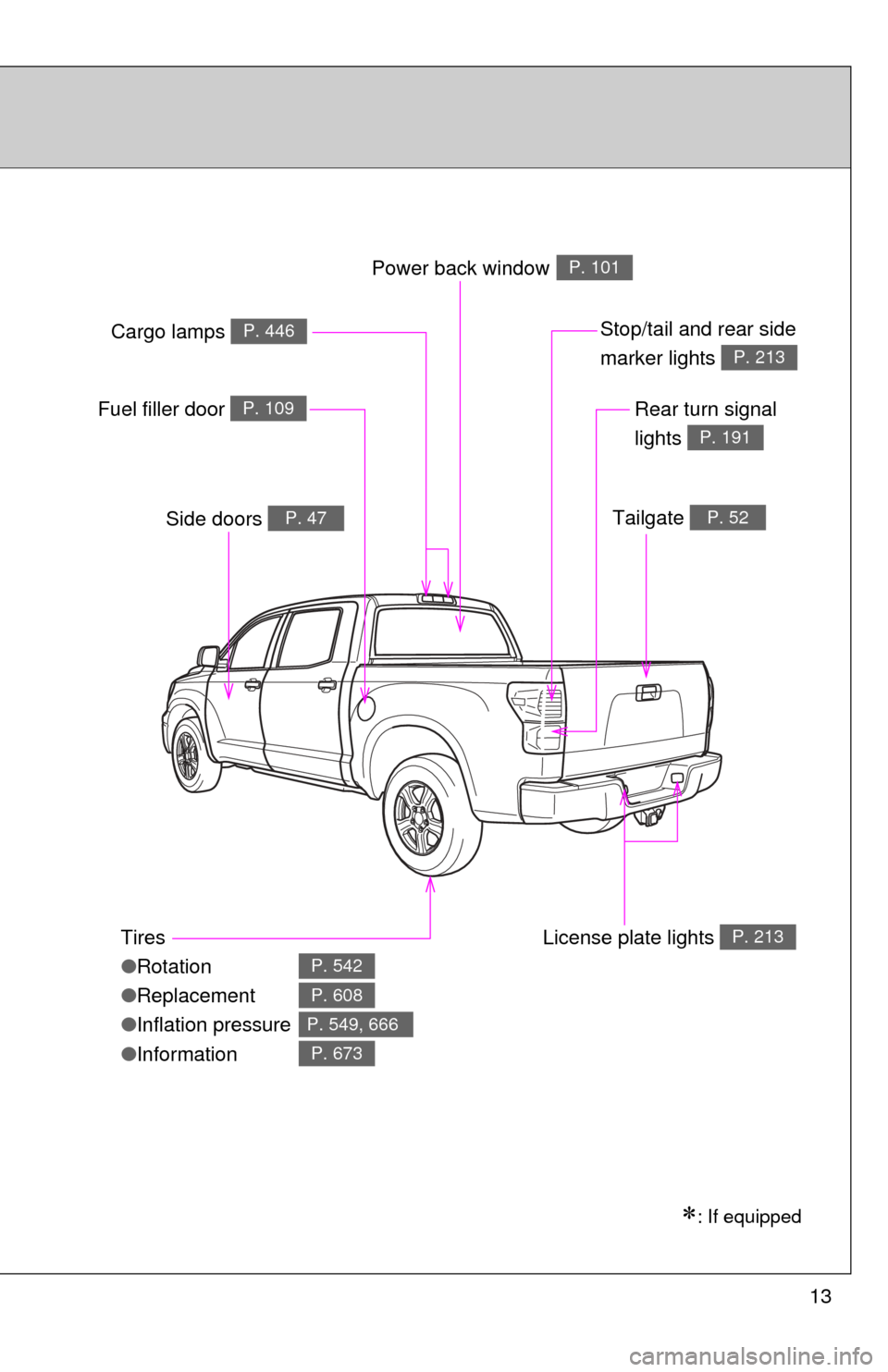

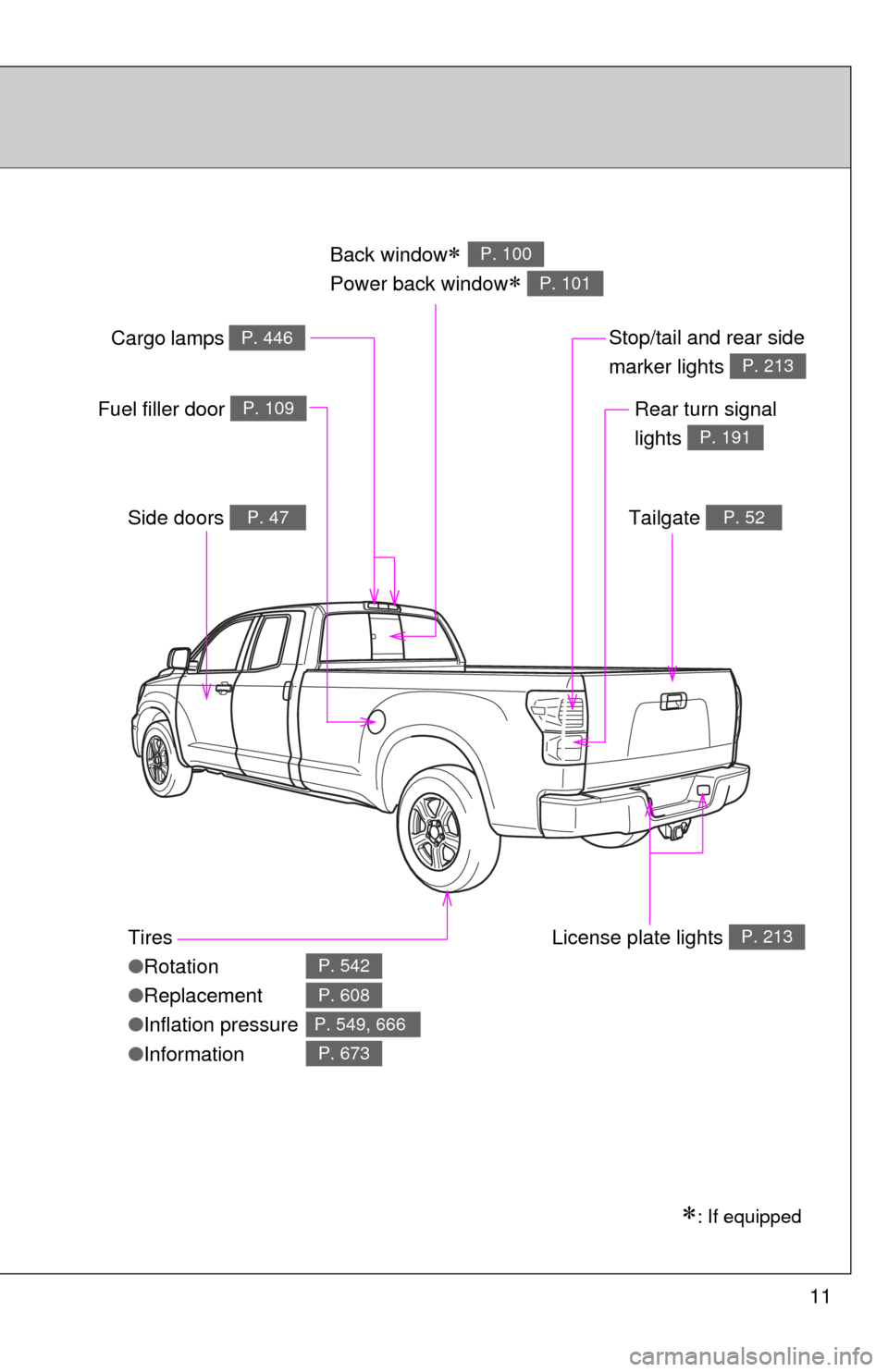

Tailgate
The tailgate can be opened using the tailgate handle. The tailgate
can be locked/unlocked using a key.
■Tailgate handle
Pull the handle
Open the tailgate slowly
The support cables will hold
the tailgate horizontal.
After closing the tailgate, try
pulling it toward you to make
sure it is securely locked.
■Key
Unlock with the master key
Lock with the master key

53
1-2. Opening, closing and locking the doors
1
Before driving
Removing the tailgate

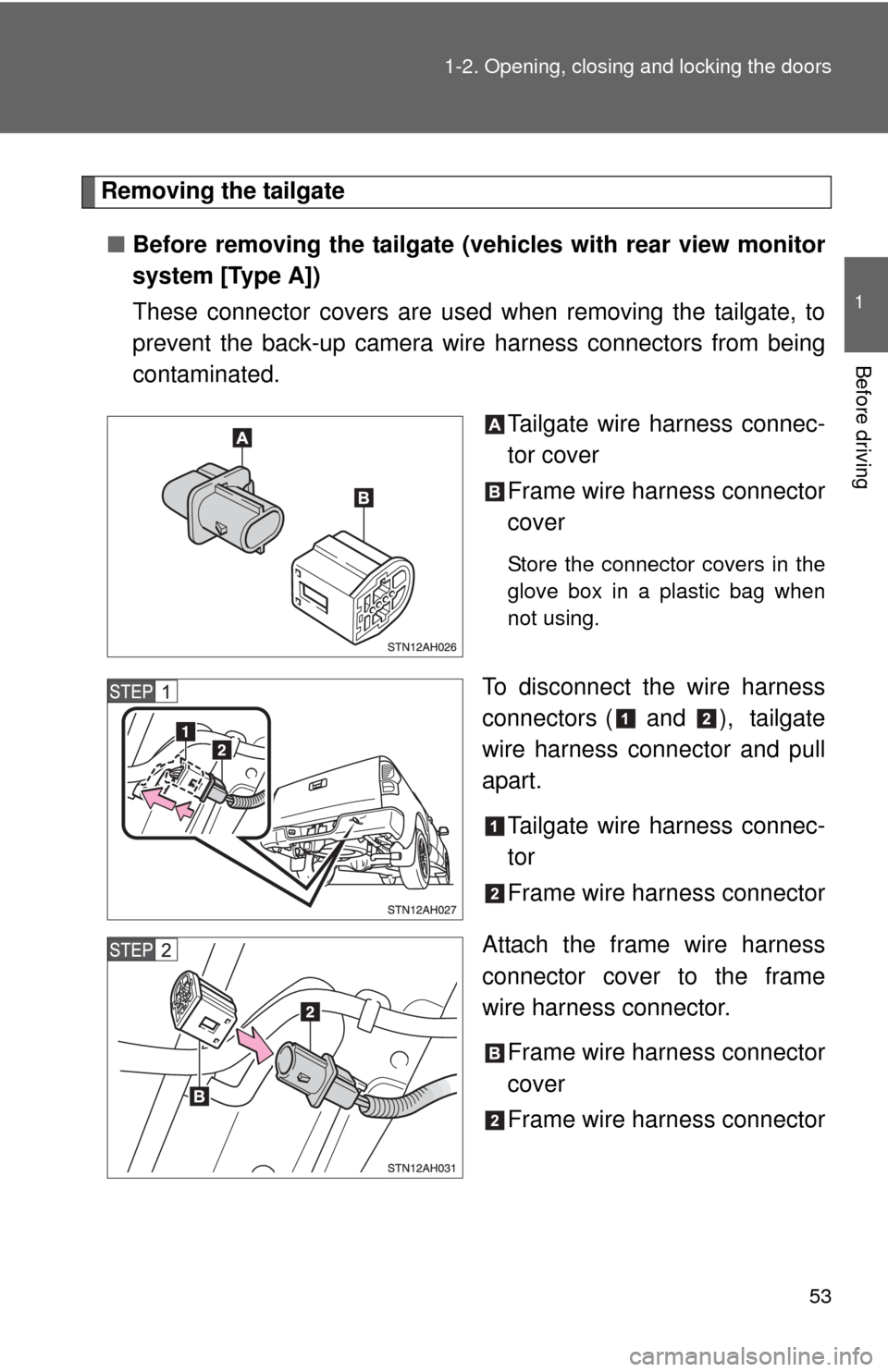

■ Before removing the tailgate (vehicles with rear view monitor
system [Type A])
These connector covers are used when removing the tailgate, to
prevent the back-up camera wire harness connectors from being
contaminated.
Tailgate wire harness connec-
tor cover
Frame wire harness connector
cover
Store the connector covers in the
glove box in a plastic bag when
not using.
To disconnect the wire harness
connectors ( and ), tailgate
wire harness connector and pull
apart.Tailgate wire harness connec-
tor
Frame wire harness connector
Attach the frame wire harness
connector cover to the frame
wire harness connector. Frame wire harness connector
cover
Frame wire harness connector

54 1-2. Opening, closing and locking the doors

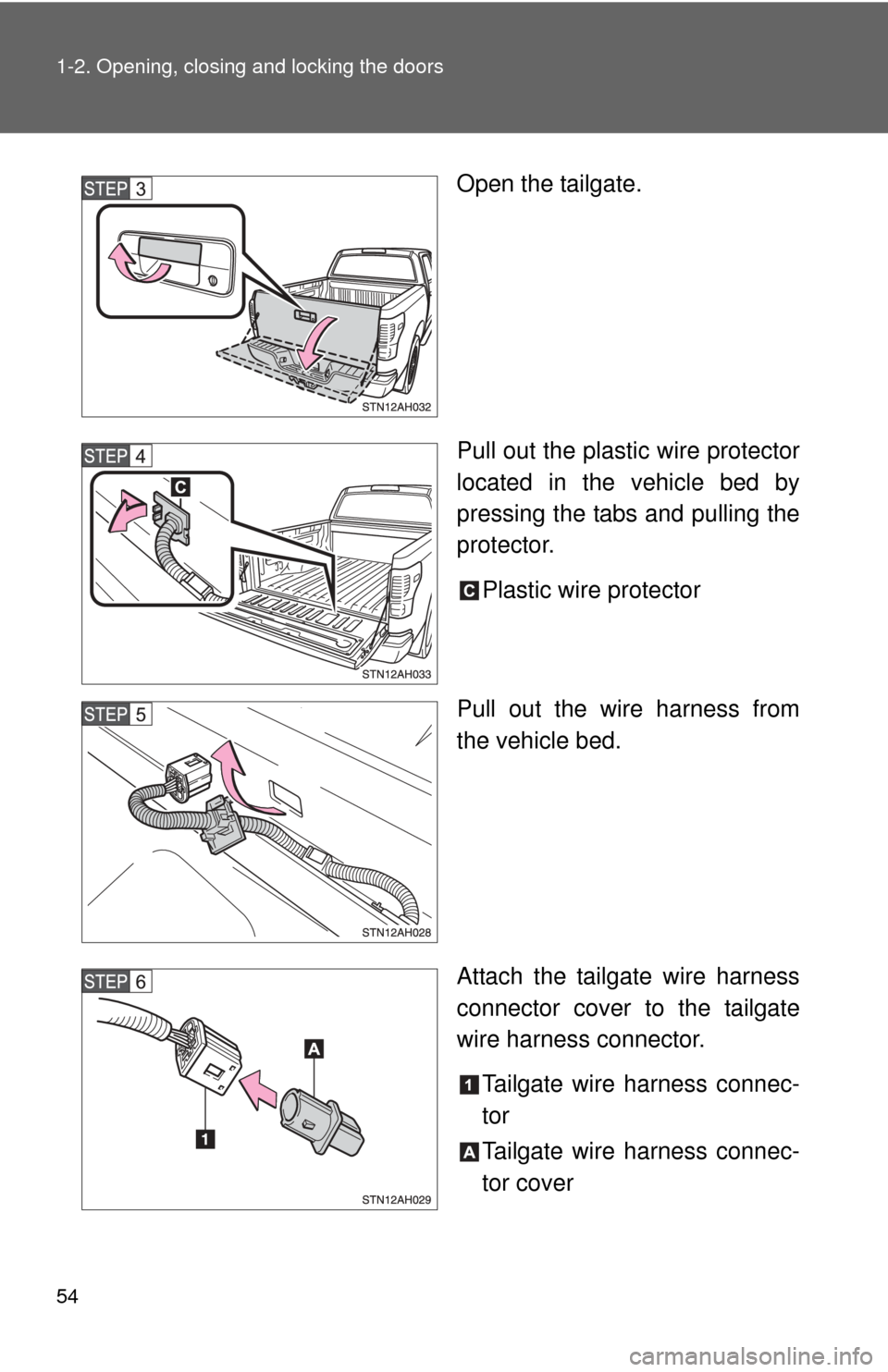

Open the tailgate.
Pull out the plastic wire protector
located in the vehicle bed by
pressing the tabs and pulling the
protector.Plastic wire protector
Pull out the wire harness from
the vehicle bed.
Attach the tailgate wire harness
connector cover to the tailgate
wire harness connector. Tailgate wire harness connec-
tor
Tailgate wire harness connec-
tor cover
