1-2. Opening, closing and locking the doors and trunk
1
Before driving
AVALON_U (OM41437U)
CAUTION
●
Do not attach any accessories other than genuine Toyota parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to fall closed
again after it is opened.
●The trunk lid may fall if it is not opened
fully. It is more difficult to open or close
the trunk lid on an incline than on a
level surface, so beware of the trunk lid
unexpectedly opening or closing by
itself. Make sure that the trunk lid is fully
open and secure before using the
trunk.
● When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
● When closing the trunk lid, make sure
to press it lightly on its outer surface. If
the trunk handle is used to fully close
the trunk lid, it may result in hands or
arms being caught.

50
AVALON_U (OM41437U)
1-3. Adjustable components (seats, steering wheel, mirrors)
Front seats
Manual seat
Seatback angle lever
Seat position lever

51
1-3. Adjustable components (seat
s, steering wheel, mirrors)
1
Before driving
AVALON_U (OM41437U)
Active head restraint
When a front seatback receives
a strong impact during a rear-
end collision, the head restraint
moves slightly forward and
upward to provide support for the
occupants head.
Power seatSeat leg support switch
*
Seat position fore/aft switchSeat cushion (front) angle
switch
*
Vertical height switch*
Seatback angle switch
Lumbar support switch
*
*
: if equipped

52 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41437U)
■Active head restraint
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may cause the head
restraint inner structure to appear. This does not indicate a problem.
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
Inner
structureDuring
rear-end
collision

53
1
1-3. Adjustable components (seats, steering wheel, mirrors)
Before driving
AVALON_U (OM41437U)
Rear seats
■ Keep the flap area clear
To adjust the seat back angle, pull the lock release lever.
Do not place objects on the flap area. If
objects are left in the gap, the reclining
seatback will not lock properly, and may
move unexpectedly.
Flap area

54 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41437U)
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.

55
1
1-3. Adjustable components (seats, steering wheel, mirrors)
Before driving
AVALON_U (OM41437U)

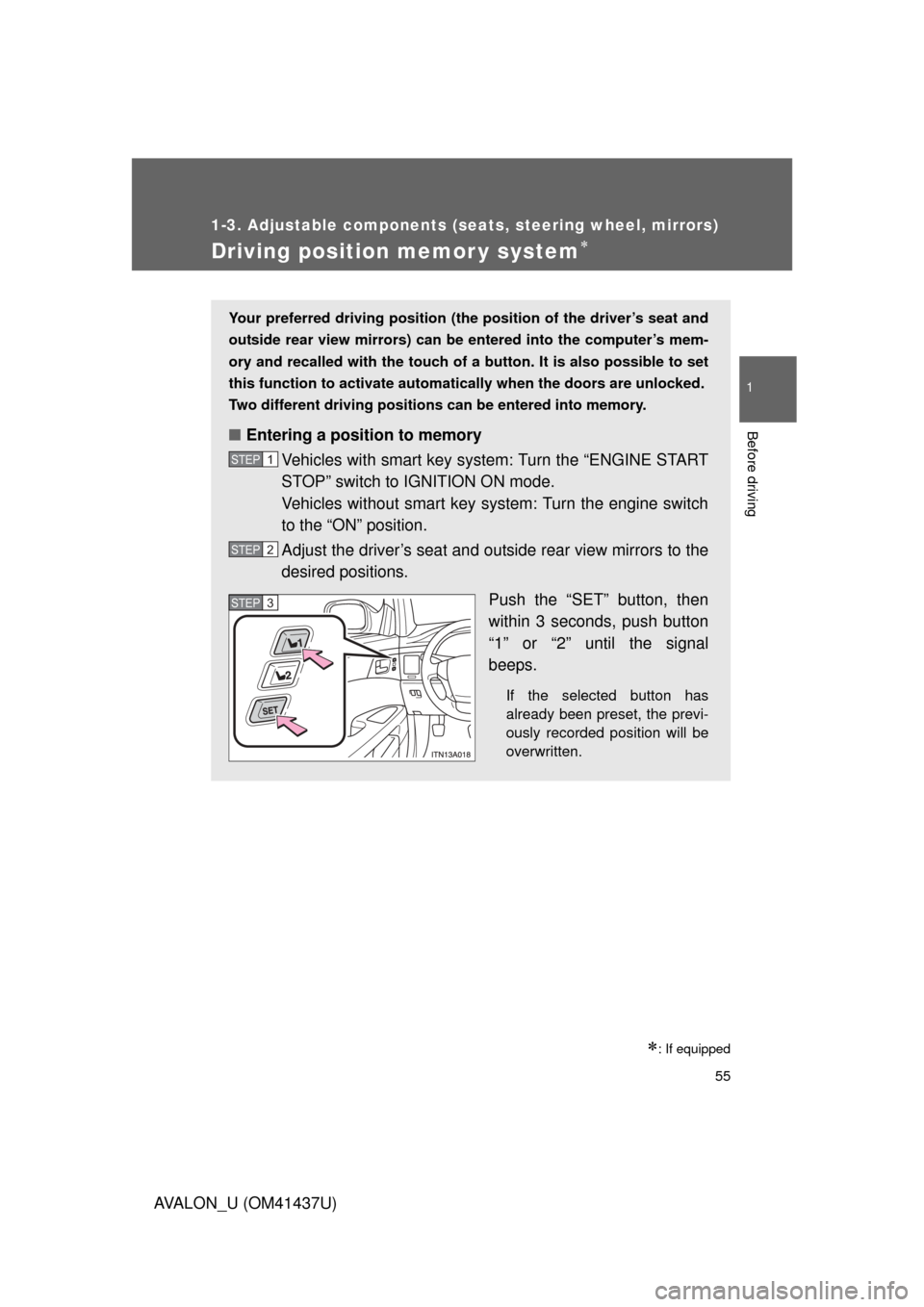

Driving position memor y system
: If equipped
Your preferred driving position (the position of the driver’s seat and
outside rear view mirrors) can be entered into the computer’s mem-
ory and recalled with the touch of a button. It is also possible to set
this function to activate automati cally when the doors are unlocked.
Two different driving positions can be entered into memory.
■ Entering a position to memory
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
to the “ON” position.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions.
Push the “SET” button, then
within 3 seconds, push button
“1” or “2” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3

56 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41437U)
Linking driving position memory with door unlock operation
(vehicles with smart key system)
Memorized driving positions can be recalled when you unlock the
driver’s door using the entry function or wireless remote control and
open the driver’s door.
■ Setting the linked door unlock operation
Set the driving positions into the memory system using the “1”
or “2” buttons. ( P. 5 5 )
Turn the “ENGINE START STOP” switch OFF, then close the
driver’s door.
■ Recalling the memorized position
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
to the “ON” position.
Push button “1” or “2” to recall
the memorized position.
STEP1
STEP2
STEP1
STEP2
