Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direc-
tion and the number of turns.
Turn bolt B the same number
of turns and in the same direc-
tion as step 1 using a Phillips-
head screwdriver.
If you feel that there is a large
deviation, have the headlight
aim adjusted at a Toyota
dealer.
STEP1
STEP2

378
4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)

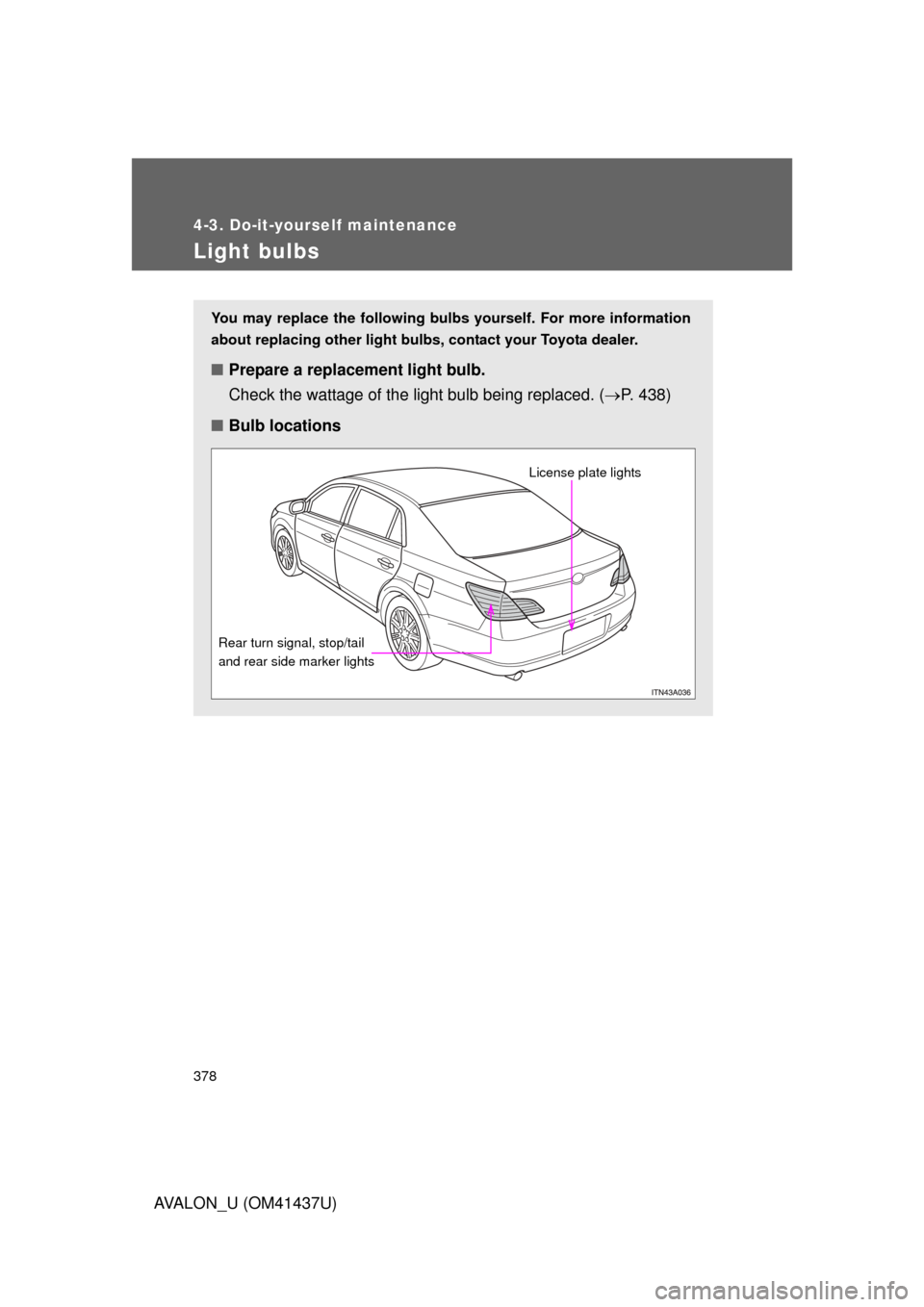

Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs, contact your Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 438)
■ Bulb locations
Rear turn signal, stop/tail
and rear side marker lights License plate lights

4
Maintenance and care
379
4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
Replacing light bulbs

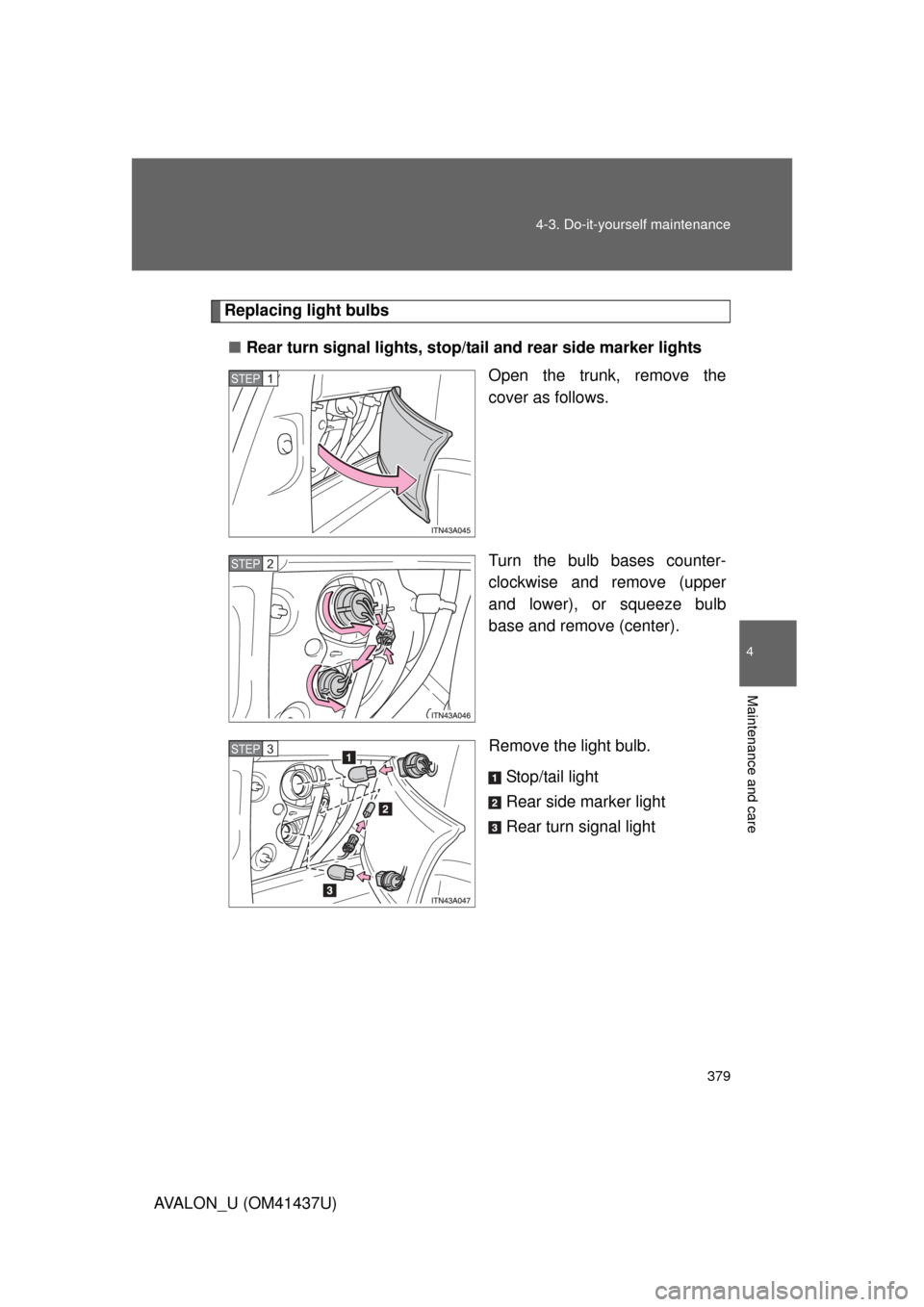

■ Rear turn signal lights, stop/ta il and rear side marker lights
Open the trunk, remove the
cover as follows.
Turn the bulb bases counter-
clockwise and remove (upper
and lower), or squeeze bulb
base and remove (center).
Remove the light bulb.
Stop/tail light
Rear side marker light
Rear turn signal light
STEP1
STEP2
STEP3

380 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)■
License plate lights
Use a flathead screwdriver to
disengage the side of the lamp.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

4
Maintenance and care
381
4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlights
● Fog lights
● Front turn signal/parking lights
● Front side marker lights
● Tail lights
● Back-up lights
● High mounted stoplight
■Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The high mounted stoplights consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to
local laws (SAE).
■ High-intensity discharge (H ID) headlights (if equipped)
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.

382 4-3. Do-it-yourself maintenance
AVALON_U (OM41437U)
CAUTION
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not take apart or repair the low beam discharge headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ High-intensity discharge (HID) headlights (if equipped)
● Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in serious injury or death by electric
shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

When trouble arises5
383
AVALON_U (OM41437U)
5-1. Essential informationEmergency flashers ......... 384
If your vehicle needs to be towed ............................. 385
If you think something is wrong ............................. 389
Fuel pump shut off system ........................... 390
Event data recorder ......... 391
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds... ........................ 393
If you have a flat tire......... 405
If the engine will not start ................................ 414
If the shift lever cannot be shifted from P ................. 416
If you lose your keys ........ 417
If the electronic key does not operate properly (with smart
key system) .................... 418
If the vehicle battery is discharged ..................... 420
If your vehicle overheats ....................... 424
If the vehicle becomes stuck .............................. 427

384
AVALON_U (OM41437U)
5-1. Essential information

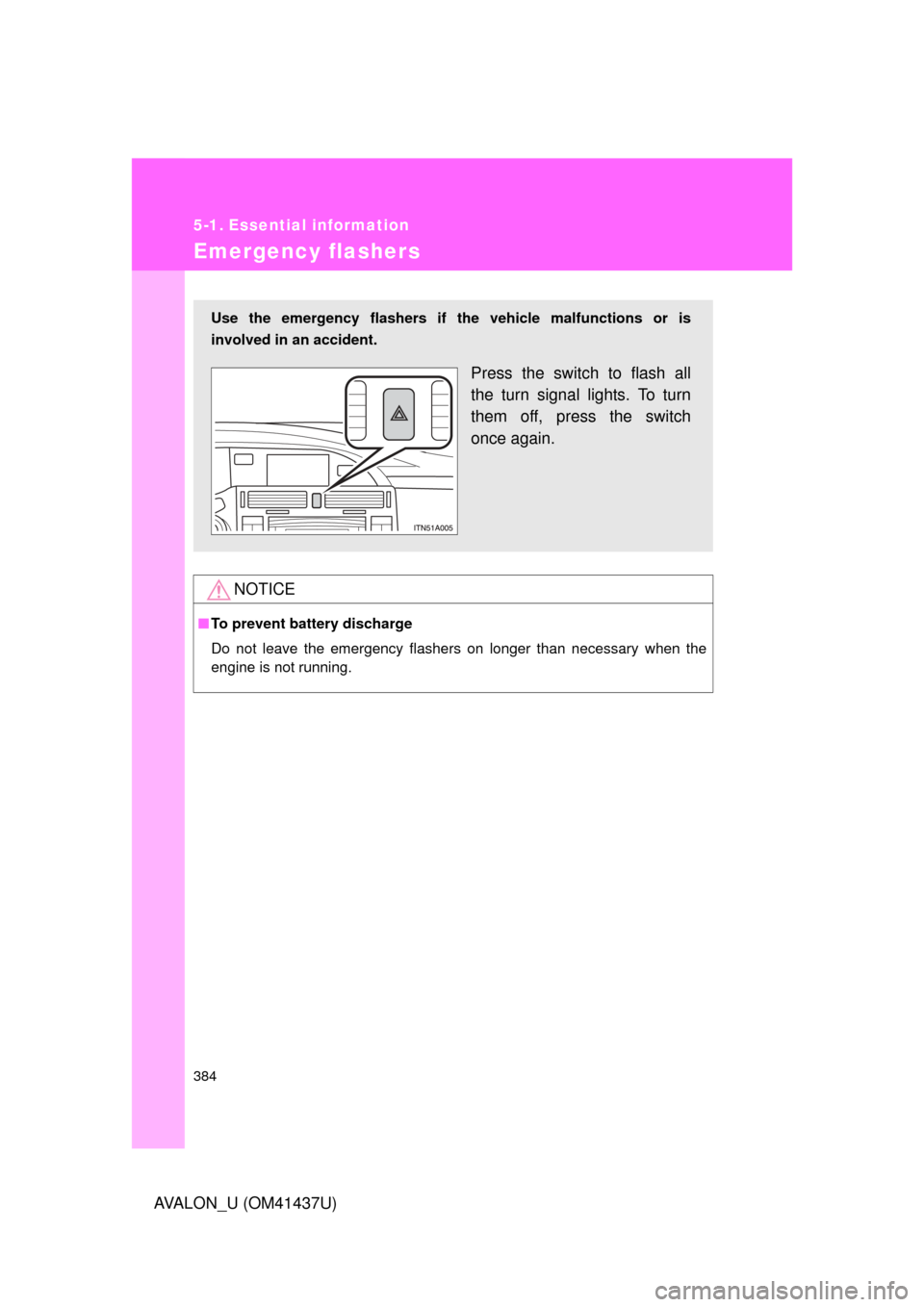

Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
