2010 TOYOTA AVALON Owners Manual

273
3-3. Using the hands-free
system (for cellular phone)
3
Interior features
AVALON_U (OM41437U)
Deleting registered data
Select “Delete Entry” by using a voice command or .
Pattern A Select data to be deleted by either of the following methods,
and select “Confirm” by using a voice command or :
a. Press , and say the nam e of the desired phone num-
ber to be deleted.
b. Press , say “List phones”. While the name of the
desired phone number is being read aloud, press .
Pattern B
Select data to be deleted by using .
Deleting speed dial Select “Delete Speed Dial (Delet e Spd Dial)” by using a voice
command or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” by using a voice command or
.
STEP1
STEP2
STEP2
STEP1
STEP2

274 3-3. Using the hands-free system (for cellular phone)
AVALON_U (OM41437U)
Listing the registered dataSelecting “List names” by using a voice command begins reading the
list of the registered data.
When listing is complete, the system returns to “Phonebook”.
Pressing while a data is being read aloud selects the data, and
the following function will be available.
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

275
3
Interior features
AVALON_U (OM41437U)

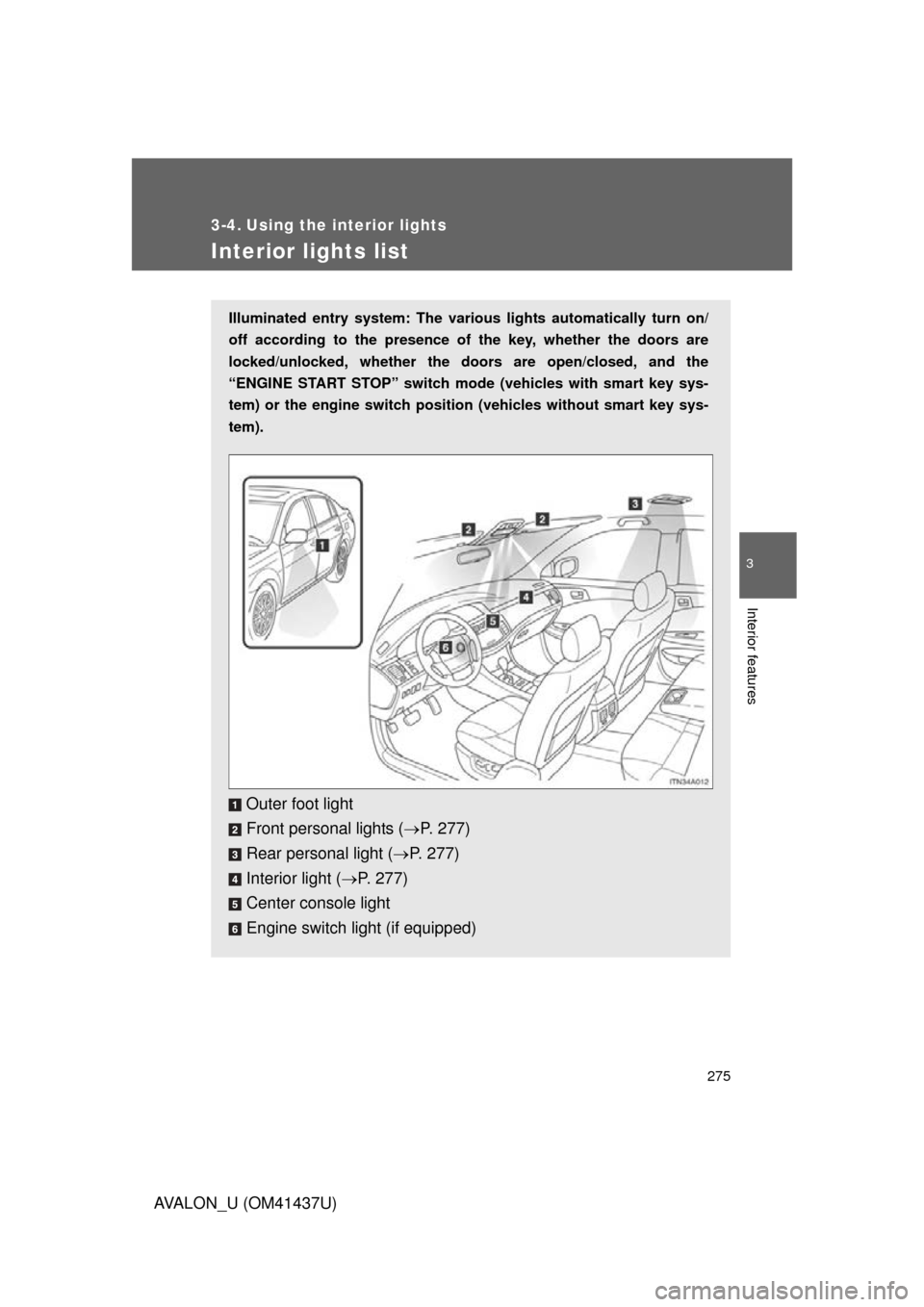

3-4. Using the interior lights
Interior lights list
Illuminated entry system: The various lights automatically turn on/
off according to the presence of the key, whether the doors are
locked/unlocked, whether the doors are open/closed, and the
“ENGINE START STOP” switch mode (vehicles with smart key sys-
tem) or the engine switch position (vehicles without smart key sys-
tem).
Outer foot light
Front personal lights ( P. 277)
Rear personal light ( P. 277)
Interior light ( P. 277)
Center console light
Engine switch light (if equipped)

276 3-4. Using the interior lights
AVALON_U (OM41437U)
■To prevent battery discharge
If the interior lights, personal lights and engine switch light (if equipped)
remain on when the door is not fully closed or the interior light switch in
“DOOR” position, the lights will go off automatically after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Setting (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 457)

277
3-4. Using the interior lights
3
Interior features
AVALON_U (OM41437U)
Interior lights
“ON”
“OFF”
“DOOR”
The interior lights are turned on/
off by the illuminated entry sys-
tem.
Personal lightsFront ON/OFF
Rear ON/OFF

278
AVALON_U (OM41437U)

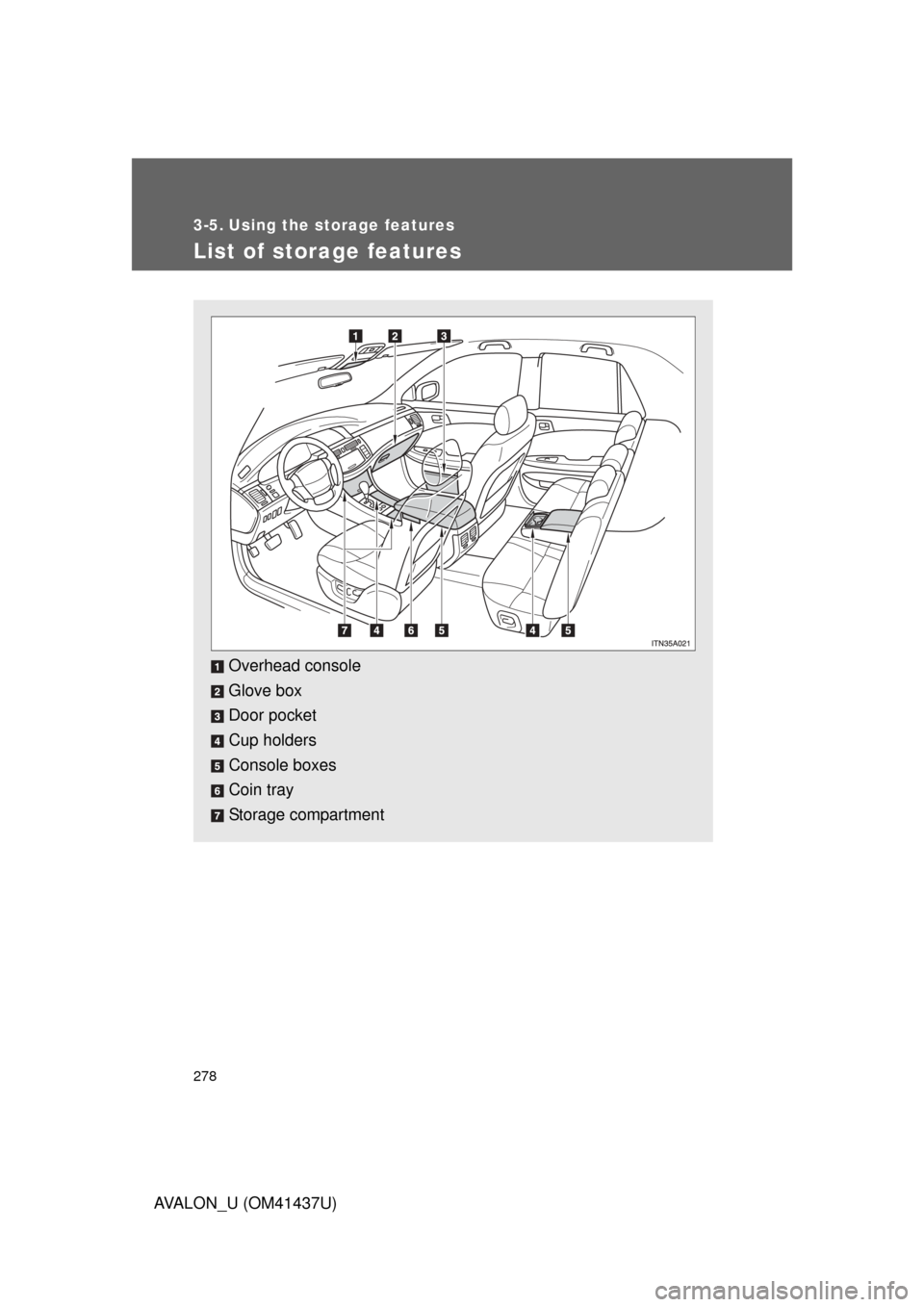

3-5. Using the storage features
List of storage features
Overhead console
Glove box
Door pocket
Cup holders
Console boxes
Coin tray
Storage compartment

279
3-5. Using the
storage features
3
Interior features
AVALON_U (OM41437U)
Glove box
Open
Lock with the mechanical key
or the master key
Unlock with the mechanical
key or the master key
■Glove box light
The glove box light turns on when the instrument panel light switch is on.
■ Trunk opener main switch
The trunk opener main switch is located in the glove box. (  P. 46)
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.

280 3-5. Using the storage features
AVALON_U (OM41437U)
Console boxesFront Lift the lid while pulling the lever.
Rear Lift the lid while pulling the lever.
■When using the front console box lid as an armrest
If necessary, the console box lid can slide
forward. Pull the lid forward by grasping
the front of the lid.
