2010 TOYOTA AVALON Owners Manual

153
2-2. Instrument cluster
2
When driving
AVALON_U (OM41437U)
CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 393)
*: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with smart key system) or the
engine switch is turned to the “ON” position (vehicles without smart
key system) to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)(if equipped)
(U.S.A.)(Canada)
(U.S.A.)(if equipped)(if equipped)
*******
*****
****

154
2-2. Instrument cluster
AVALON_U (OM41437U)

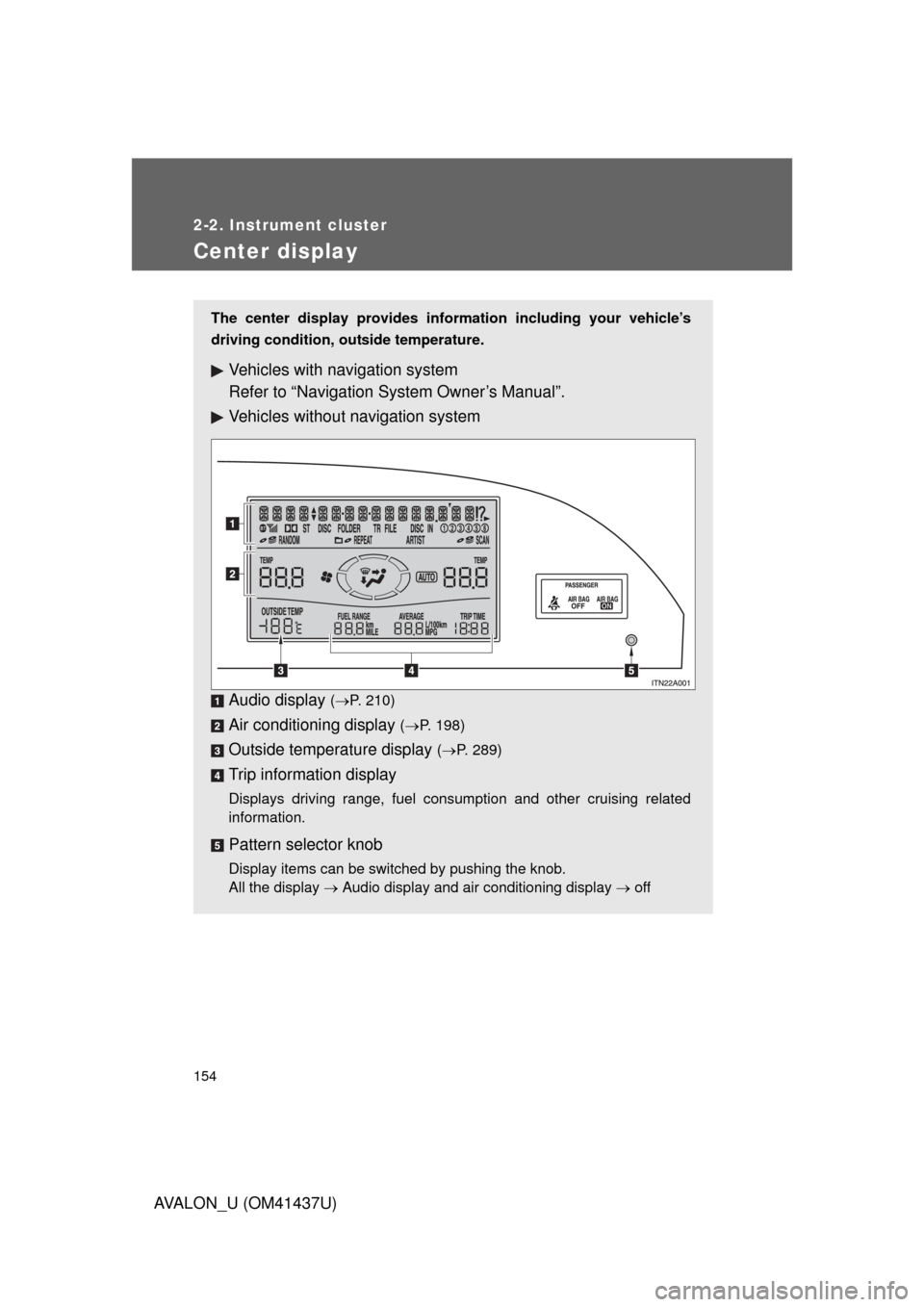

Center display
The center display provides information including your vehicle’s
driving condition, outside temperature.
Vehicles with navigation system
Refer to “Navigation System Owner’s Manual”.
Vehicles without navigation system
Audio display
(P. 210)
Air conditioning display ( P. 198)
Outside temperature display ( P. 289)
Trip information display
Displays driving range, fuel consumption and other cruising related
information.
Pattern selector knob
Display items can be switched by pushing the knob.
All the display  Audio display and air conditioning display  off

155
2-2. Instrument cluster
2
When driving
AVALON_U (OM41437U)

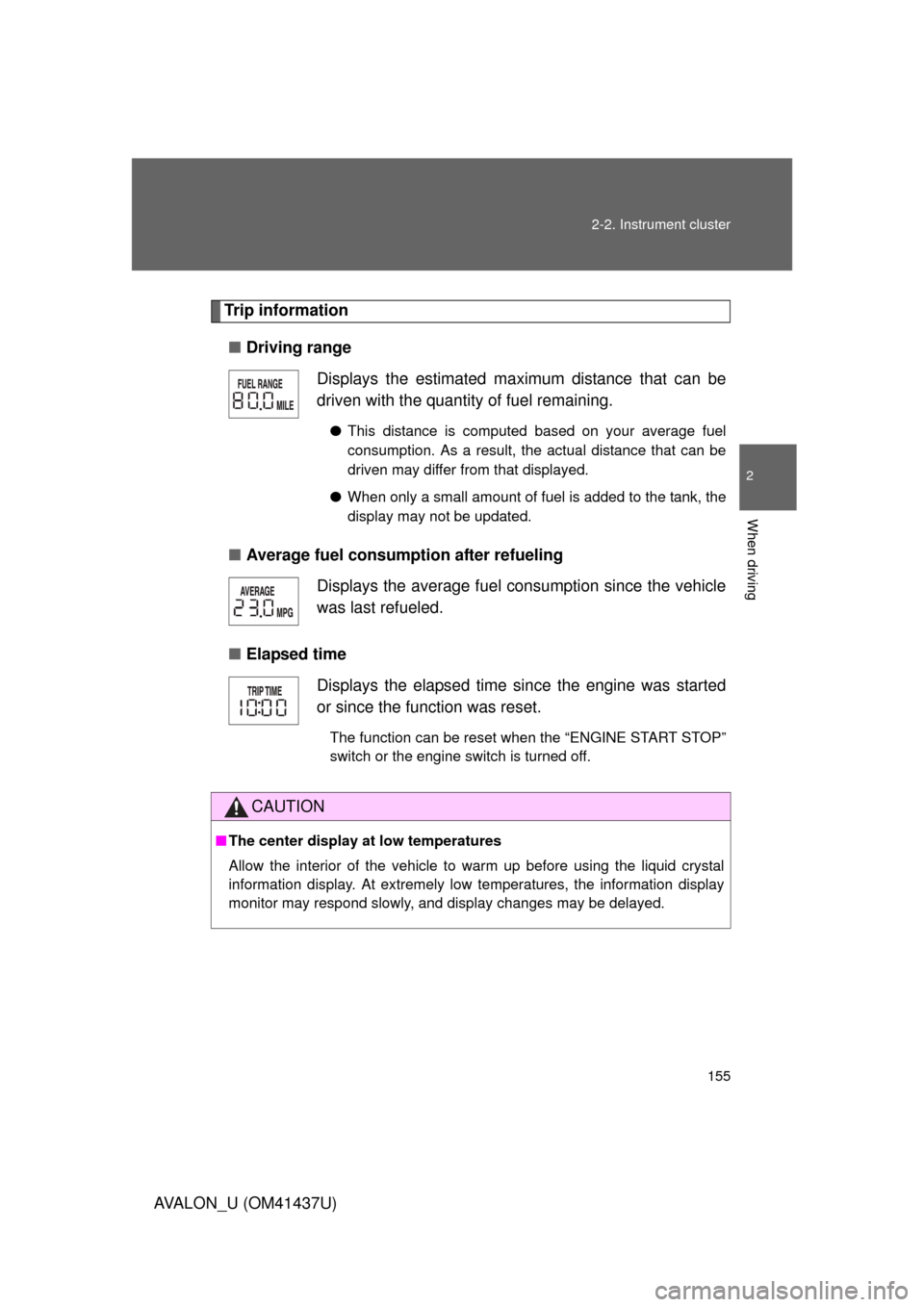

Trip information
■ Driving range
■ Average fuel consumption after refueling
■ Elapsed time Displays the estimated ma
ximum distance that can be
driven with the quantity of fuel remaining.
● This distance is computed based on your average fuel
consumption. As a result, the actual distance that can be
driven may differ from that displayed.
● When only a small amount of fuel is added to the tank, the
display may not be updated.
Displays the average fuel consumption since the vehicle
was last refueled.
Displays the elapsed time since the engine was started
or since the function was reset.
The function can be reset when the “ENGINE START STOP”
switch or the engine switch is turned off.
CAUTION
■The center display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

156
AVALON_U (OM41437U)
2-3. Operating the lights and windshield wipers

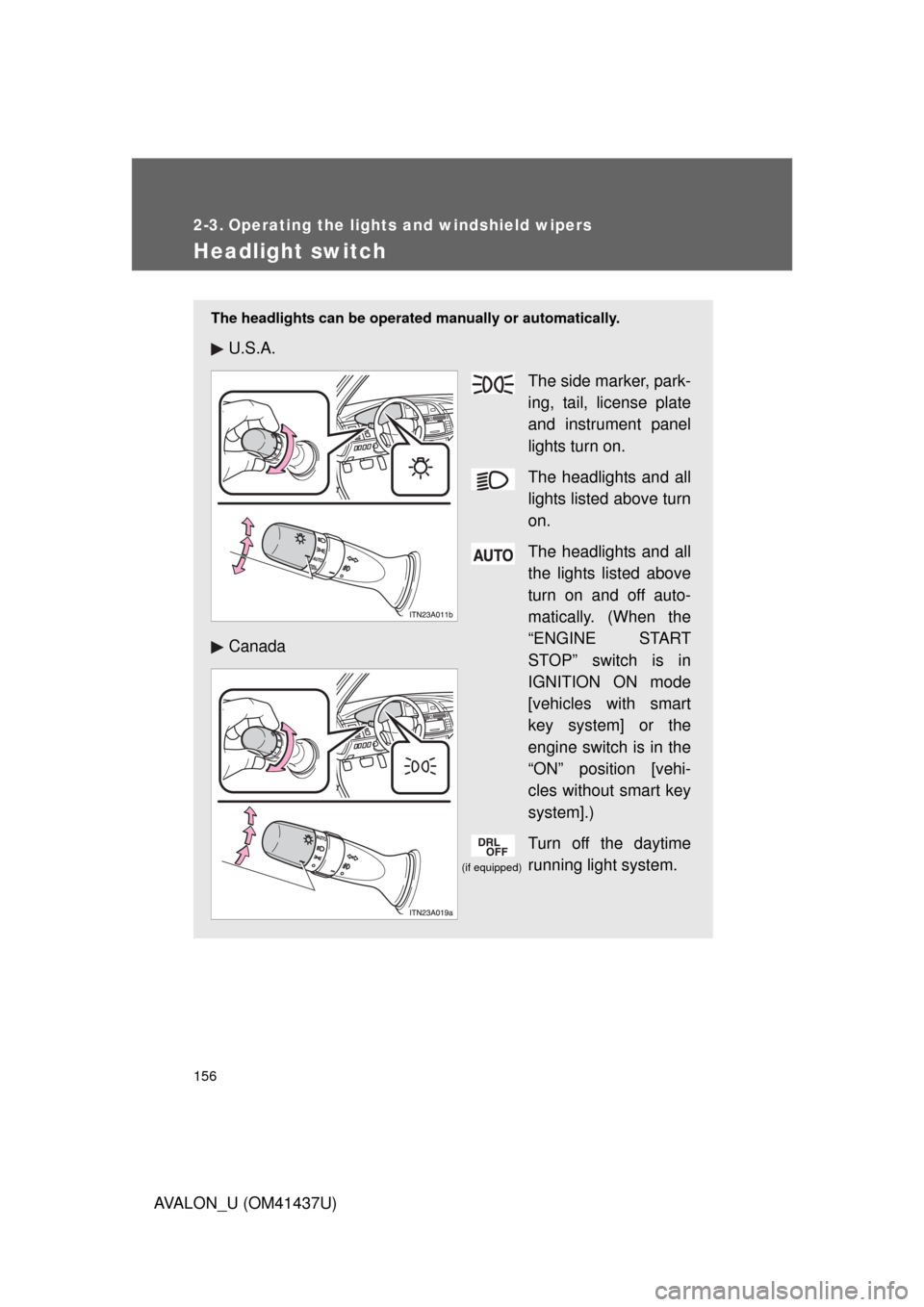

Headlight switch
The headlights can be operated manually or automatically.
U.S.A.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
the lights listed above
turn on and off auto-
matically. (When the
“ENGINE START
STOP” switch is in
IGNITION ON mode
[vehicles with smart
key system] or the
engine switch is in the
“ON” position [vehi-
cles without smart key
system].)
Turn off the daytime
running light system.
Canada
(if equipped)

157
2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41437U)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release to turn them off. You can
flash the high beams with the
headlights on or off.
■Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight con-
trol system to malfunction.

158 2-3. Operating the lights and windshield wipers
AVALON_U (OM41437U)
■Automatic light off system
Vehicles with smart key system
The headlights and tail lights turn off 30 seconds after a door is opened or
closed if the “ENGINE START STOP” switch has been turned to ACCES-
SORY or turned OFF while the headlights are turned on. (The lights turn off
immediately if the button on the key is pressed after all doors are
locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch OFF once and then back to the or position.
Vehicles without smart key system
The headlights and tail lights turn off 30 seconds after a door is opened or
closed if the engine switch has been turned to the “ACC” or “LOCK” position
while the headlights are turned on. (The lights turn off immediately if the
button on the key is pressed after all doors are locked.)
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch OFF once and then back to the or position.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 454)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary if the engine is not running.

159
2-3. Operating the lights and windshield wipers
2
When driving
AVALON_U (OM41437U)

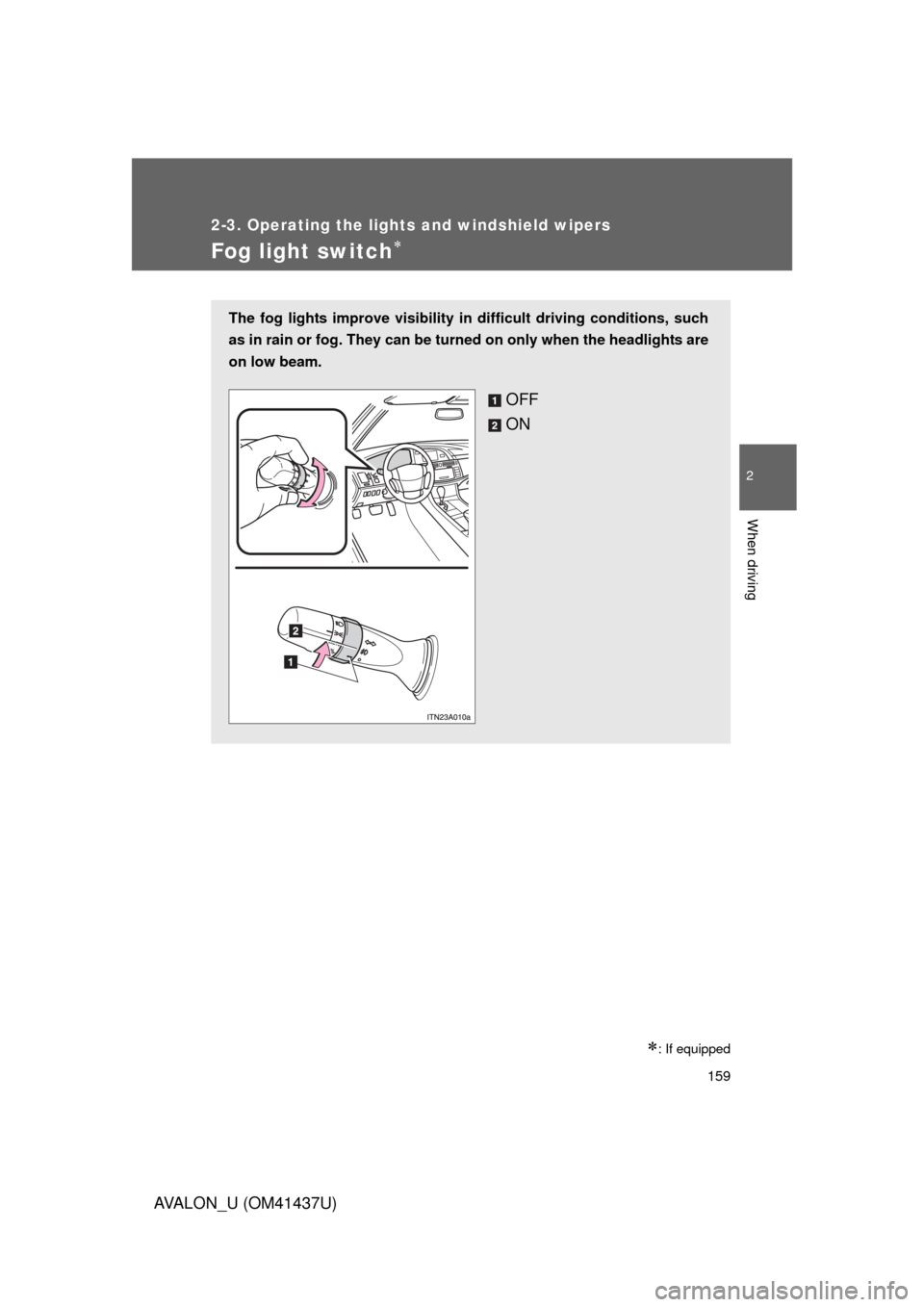

Fog light switch
: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. They can be turned on only when the headlights are
on low beam.
OFF
ON

160
2-3. Operating the lights and windshield wipers
AVALON_U (OM41437U)
Windshield wipers and washer

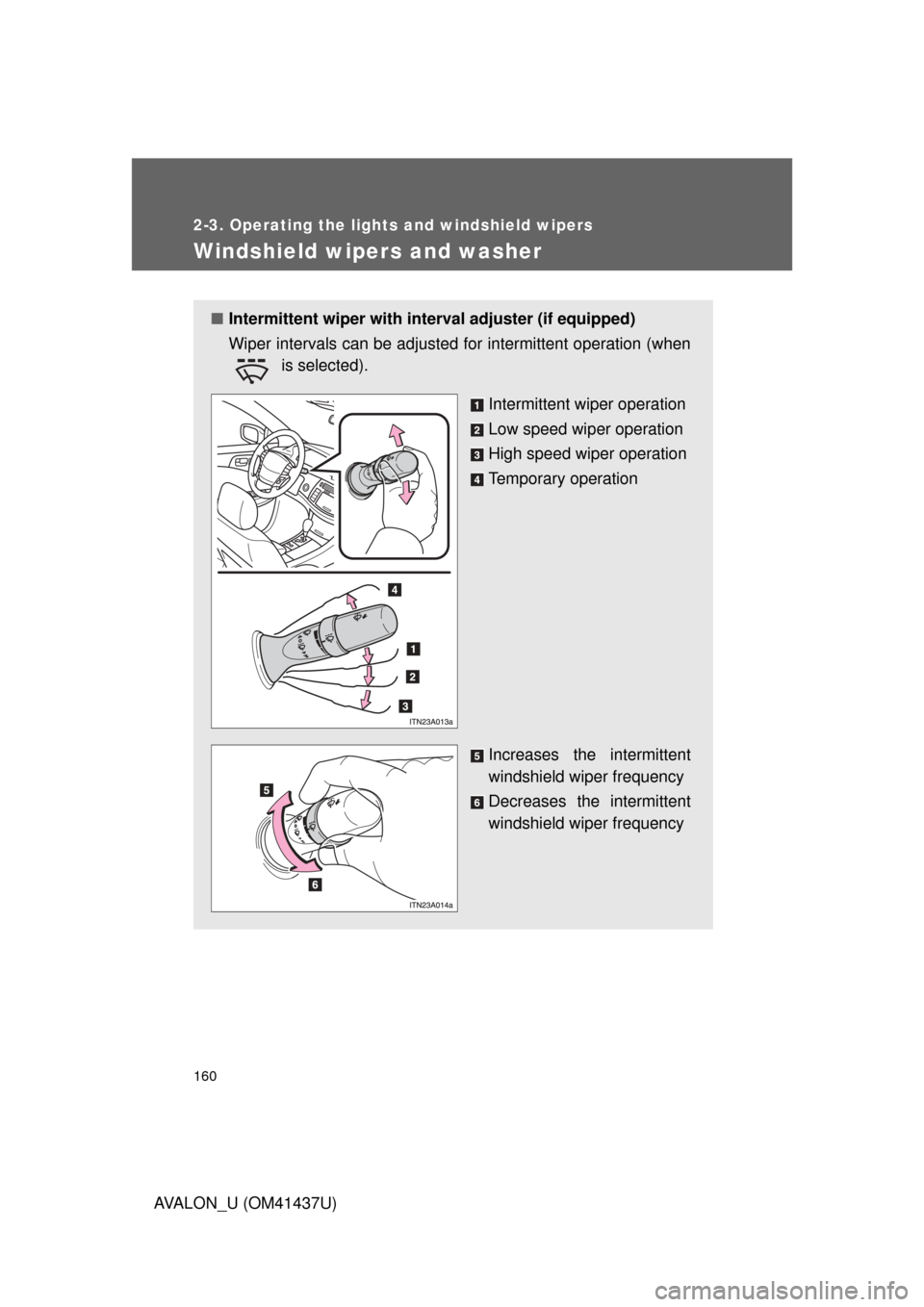

■Intermittent wiper with inte rval adjuster (if equipped)
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
