2010 TOYOTA AVALON Owners Manual

145
2-1. Driving procedures
2
When driving
AVALON_U (OM41437U)
Tur n signal lever
■Turn signals can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode. Vehicles without smart key system
The engine switch is in the “ON” position.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change
The left hand signal will flash
until you release the lever.

146
2-1. Driving procedures
AVALON_U (OM41437U)
Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking
brake pedal with your left
foot while depressing the
brake pedal with your right
foot.CanadaU.S.A.

147
2-1. Driving procedures
2
When driving
AVALON_U (OM41437U)

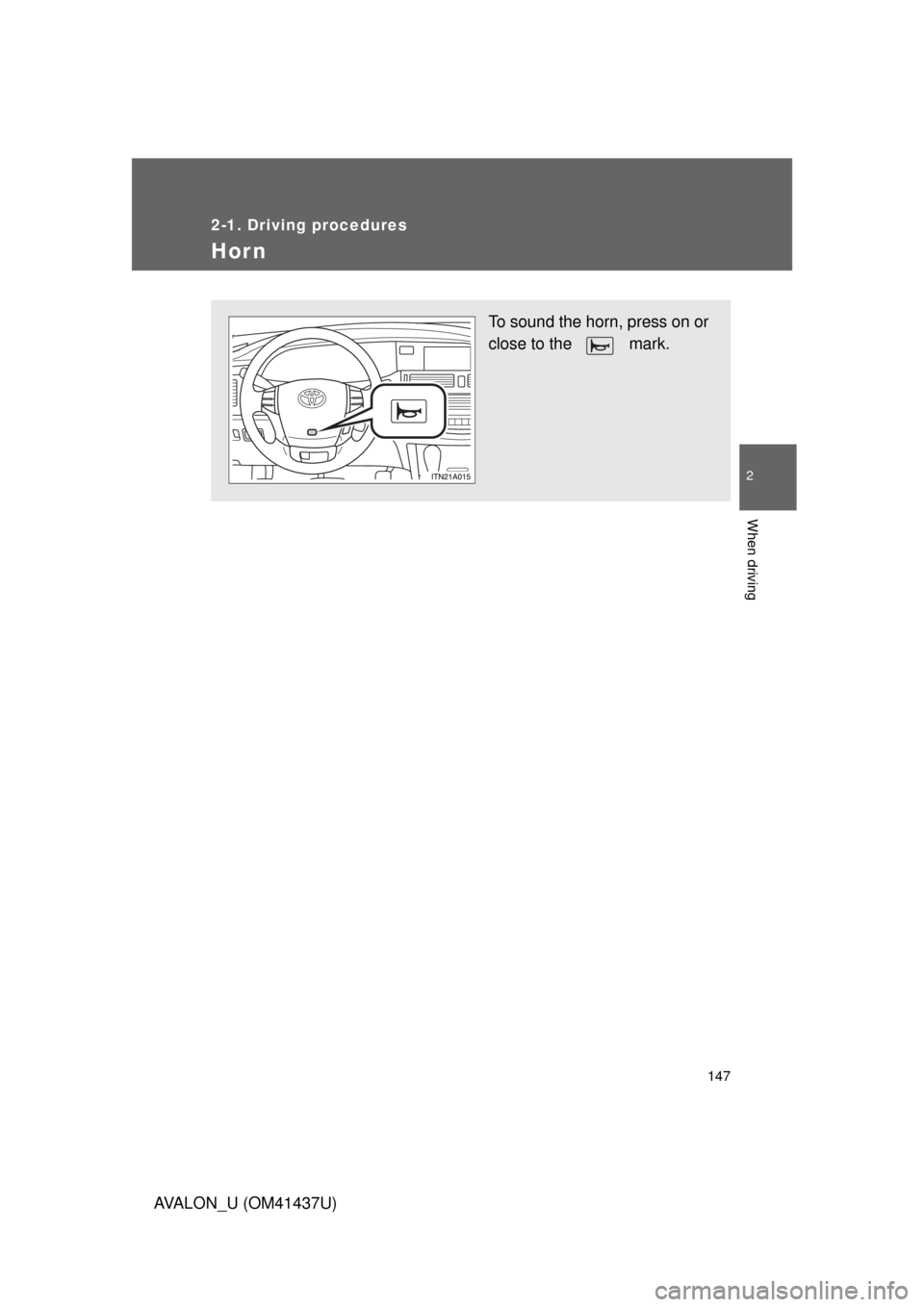

Hor n
To sound the horn, press on or
close to the mark.

148
AVALON_U (OM41437U)
2-2. Instrument cluster

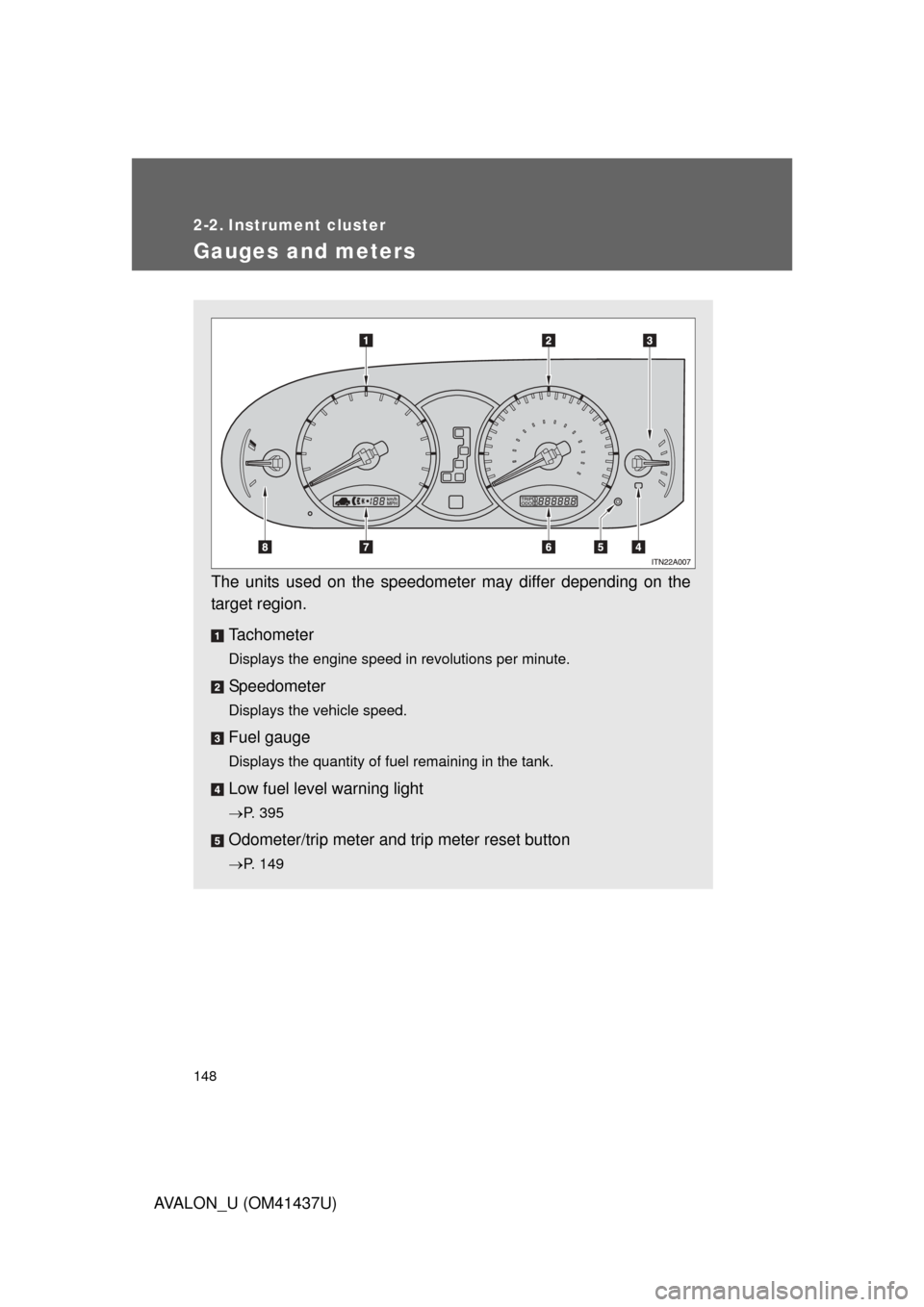

Gauges and meters
The units used on the speedometer may differ depending on the
target region.Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Low fuel level warning light
P. 395
Odometer/trip meter and trip meter reset button
P. 149

149
2-2. Instrument cluster
2
When driving
AVALON_U (OM41437U)
Odometer and trip meter display button
Vehicles with smart key system
Pressing this button switches among odometer and trip meter when
the “ENGINE START STOP” switch is IGNITION ON mode.
Vehicles without smart key system
Pressing this button switches among odometer and trip meter when
the engine switch is in the “ON” position.
Odometer
Trip meter A
Trip meter B
Pushing and holding the button
will reset the trip meter.
Odometer/Trip meter displayOdometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Dynamic laser cruise control display
P. 168
Engine coolant temperature gauge
Displays the engine coolant temperature.

150 2-2. Instrument cluster
AVALON_U (OM41437U)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted.
Darker
Brighter
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the temperature gauge is in the red
zone (“H”). In this case, immediately stop the vehicle in a safe place.
Check the engine after it has cooled completely. ( P. 424)

151
2-2. Instrument cluster
2
When driving
AVALON_U (OM41437U)

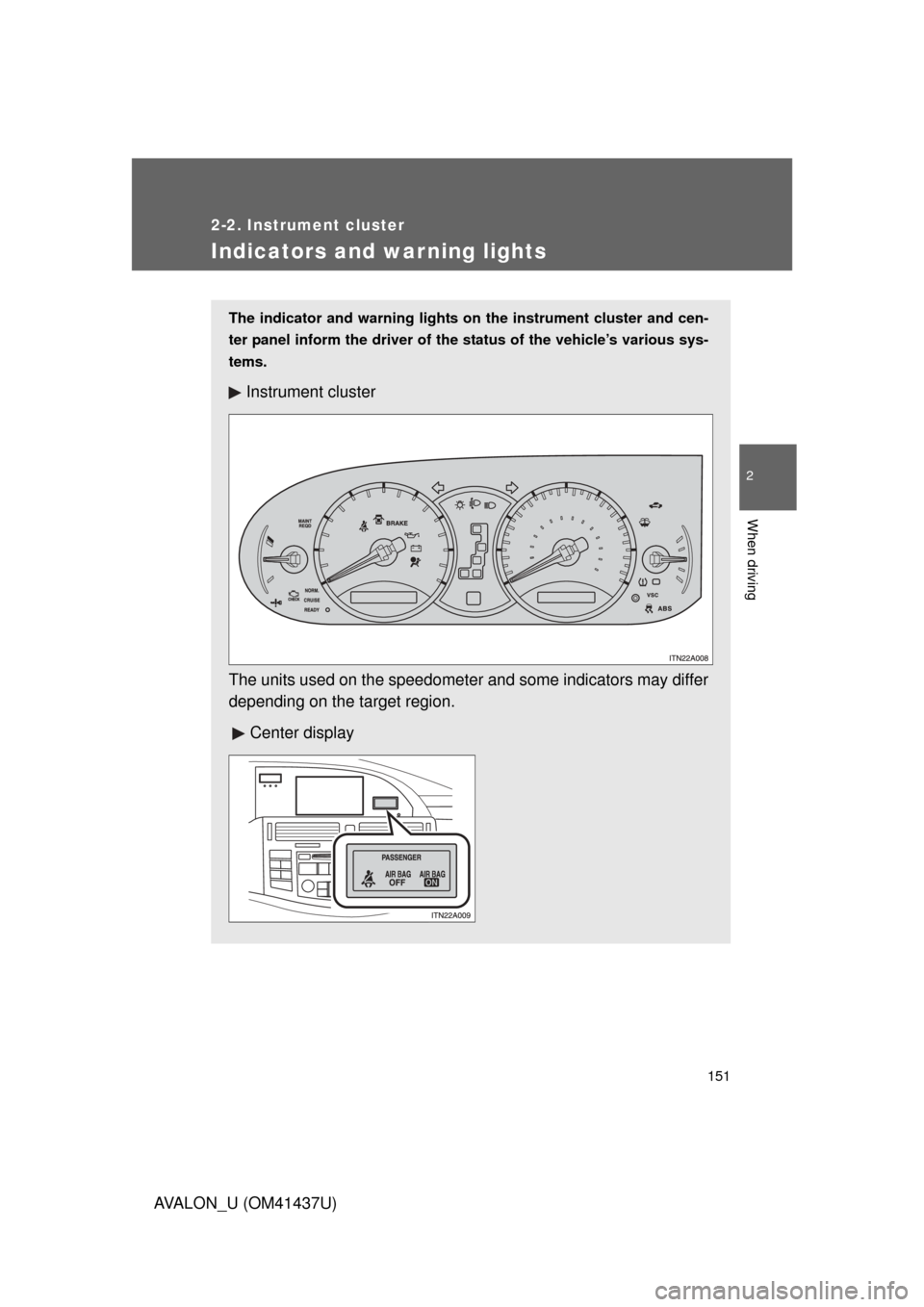

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
The units used on the speedometer and some indicators may differ
depending on the target region.
Center display

152 2-2. Instrument cluster
AVALON_U (OM41437U)
■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 145)Cruise control indicator
(P. 165)
Headlight high beam
indicator ( P. 157)Cruise control indicator
(P. 165, 168)
(U.S.A.)
Headlight indicator
(P. 156)
(if equipped)
Ready mode indicator
(P. 168)
(Canada)
Tail light indicator
(P. 156)
(if equipped)
Conventional cruise
indicator ( P. 168)
Security indicator
(P. 83, 85)Slip indicator ( P. 181)
Shift position and shift
range indicators
(P. 140)
SRS airbag on-off
indicator ( P. 103)
*
*
*
