1-7. Safety information
Before driving
AVALON_U (OM41437U)

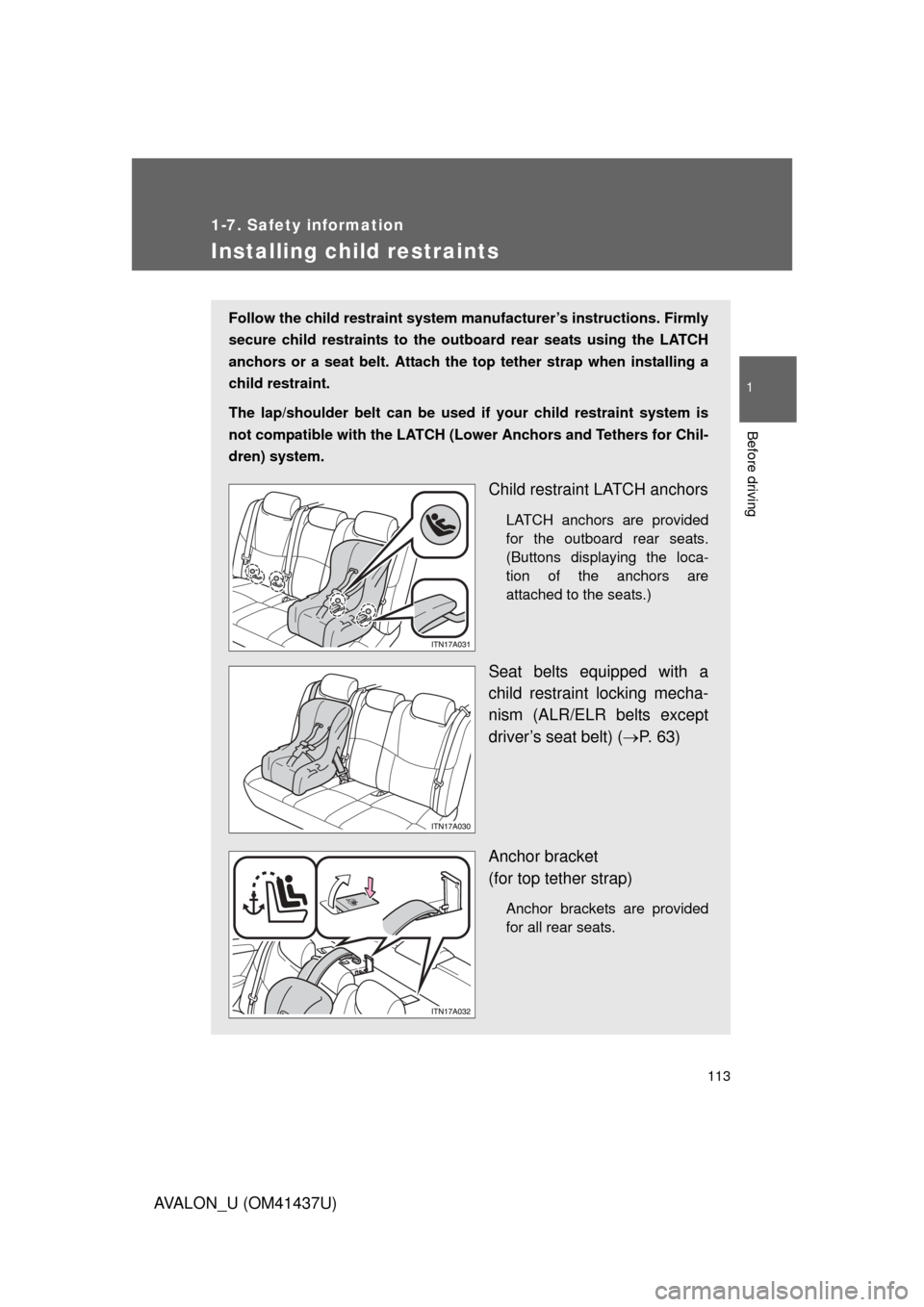

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the ou tboard rear seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing a
child restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outboard rear seats.
(Buttons displaying the loca-
tion of the anchors are
attached to the seats.)
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) ( P. 63)
Anchor bracket
(for top tether strap)
Anchor brackets are provided
for all rear seats.

114 1-7. Safety information
AVALON_U (OM41437U)

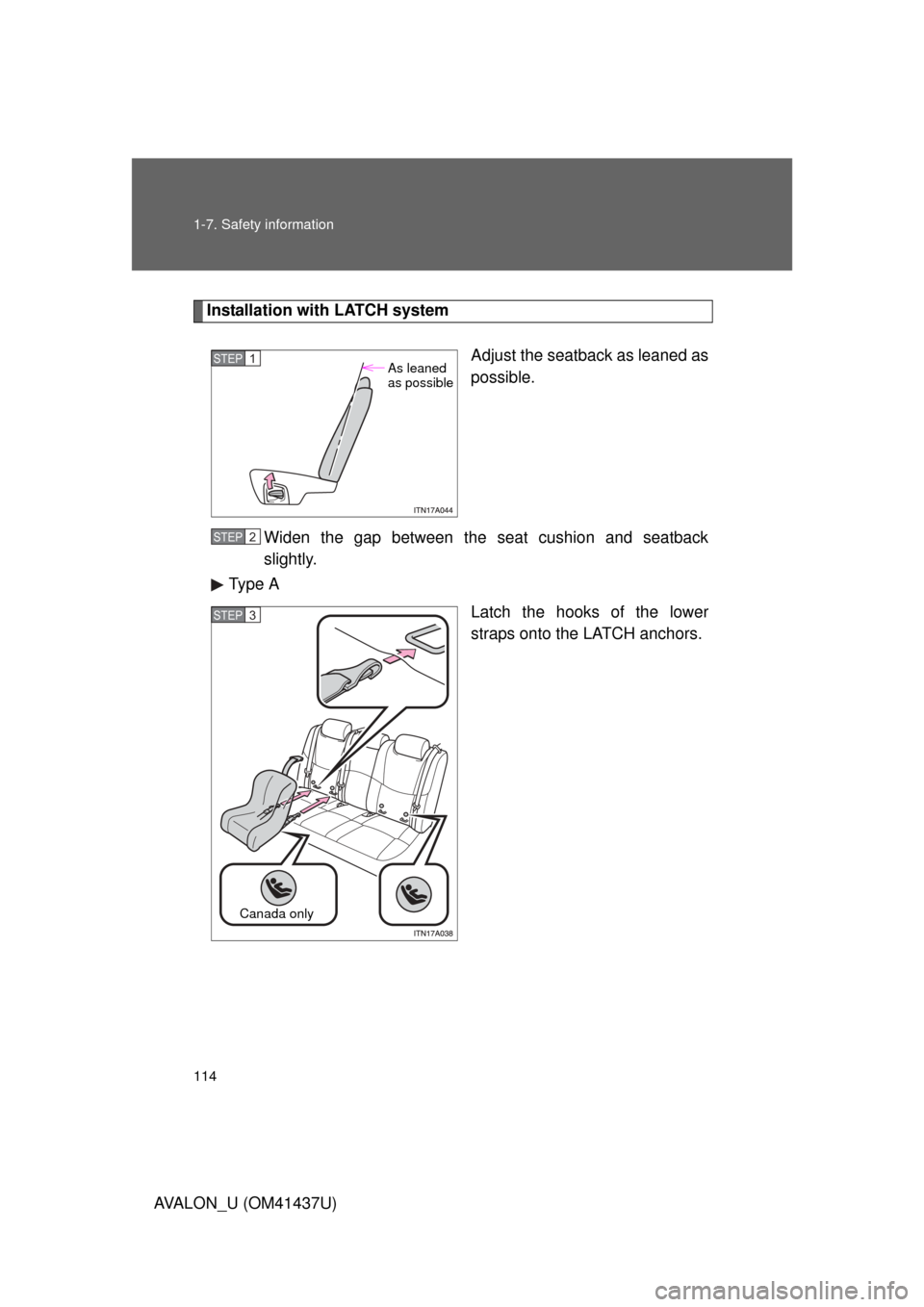

Installation with LATCH systemAdjust the seatback as leaned as
possible.
Widen the gap between the seat cushion and seatback
slightly.
Type A
Latch the hooks of the lower
straps onto the LATCH anchors.
STEP1As leaned
as possible
STEP2
STEP3
Canada only

115
1-7. Safety information
1
Before driving
AVALON_U (OM41437U)

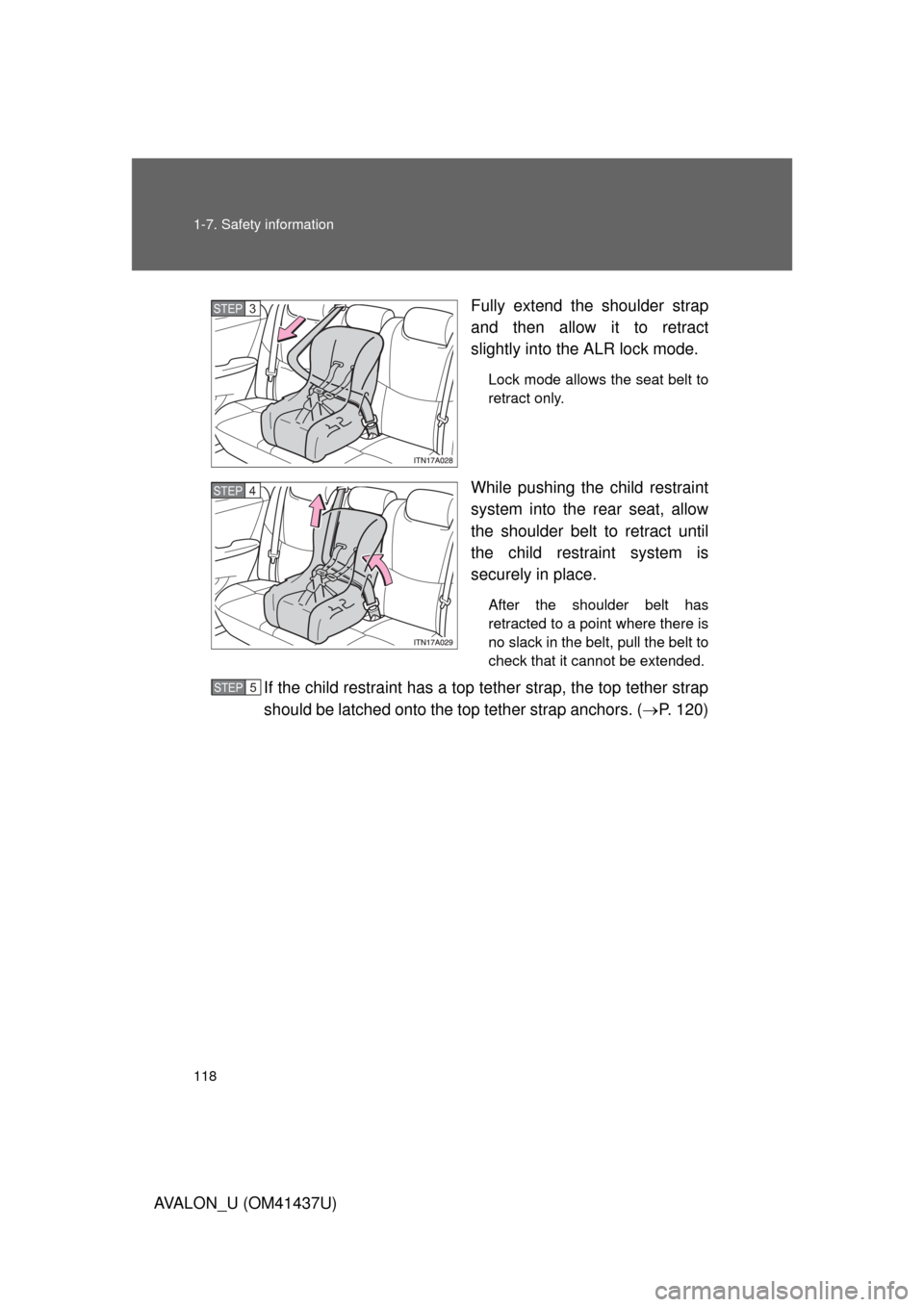

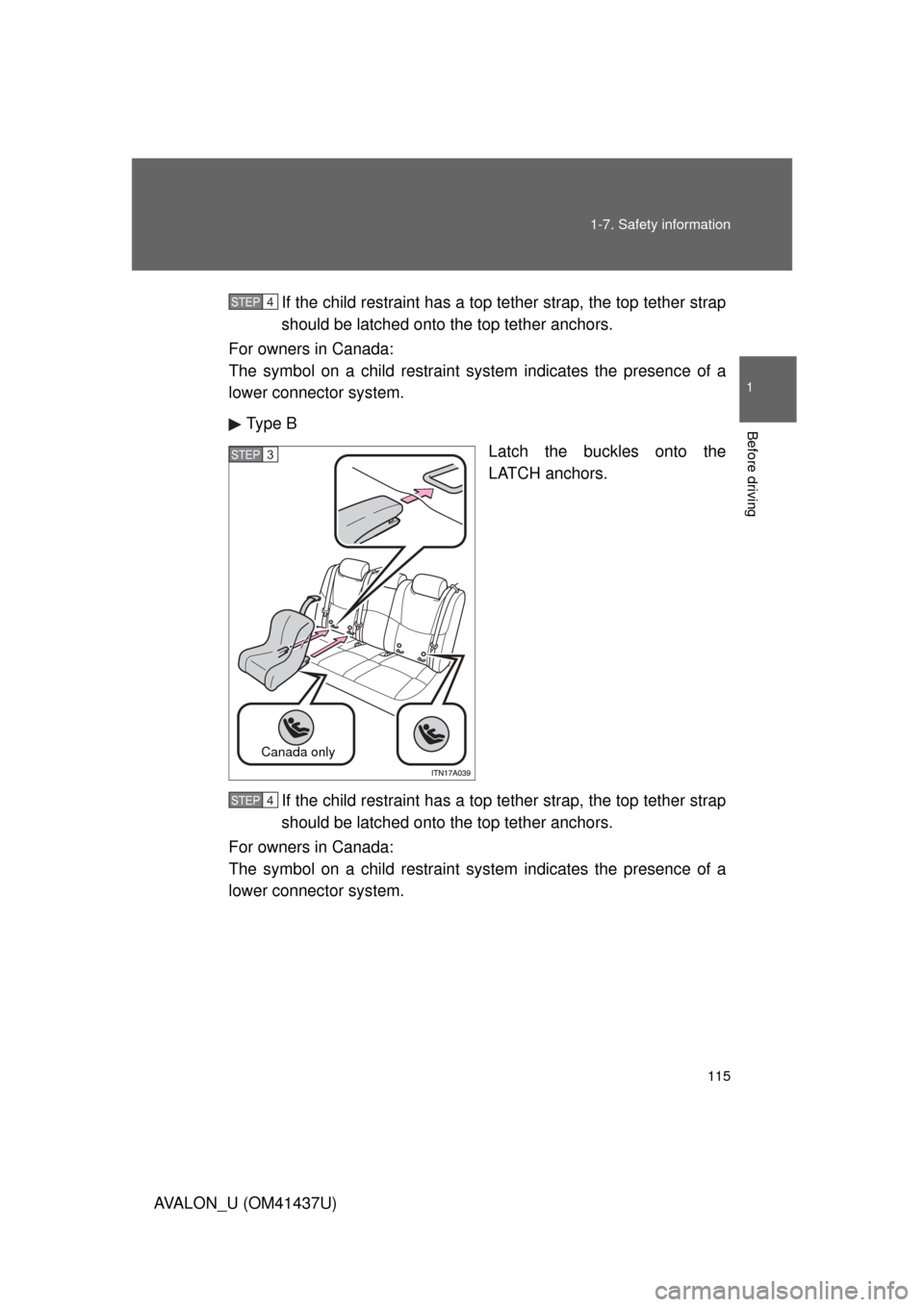

If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether anchors.
For owners in Canada:
The symbol on a child restraint system indicates the presence of a
lower connector system.
Type B Latch the buckles onto the
LATCH anchors.
If the child restraint has a top te ther strap, the top tether strap
should be latched onto the top tether anchors.
For owners in Canada:
The symbol on a child restraint system indicates the presence of a
lower connector system.
STEP4
Canada only
STEP3
STEP4

116 1-7. Safety information
AVALON_U (OM41437U)
Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear-facing Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.

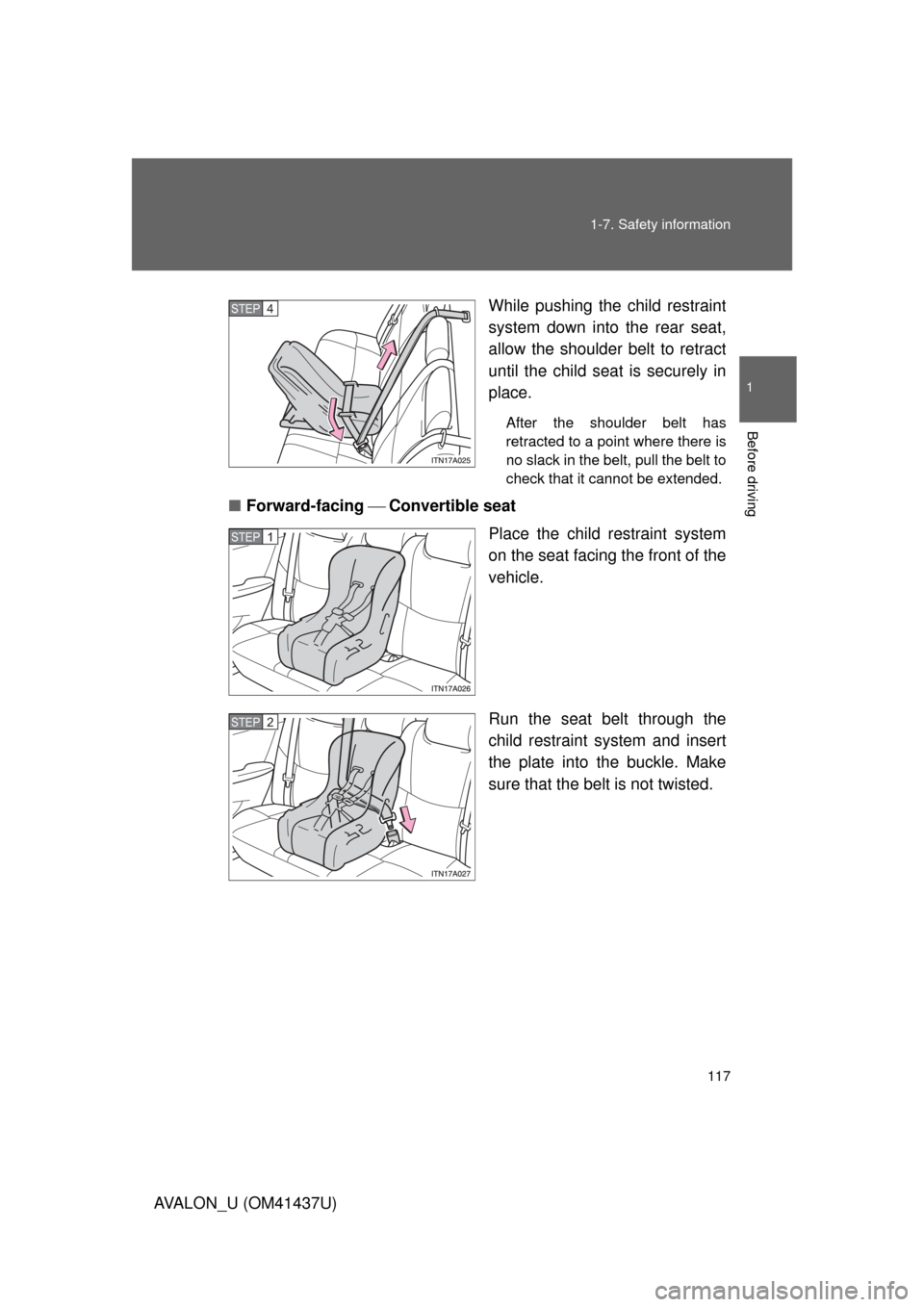

Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP1
STEP2
STEP3

117
1-7. Safety information
1
Before driving
AVALON_U (OM41437U)
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child seat is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■
Forward-facing Convertible seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP4
STEP1
STEP2

118 1-7. Safety information
AVALON_U (OM41437U)Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether strap anchors. ( P. 120)
STEP3
STEP4
STEP4STEP5

119
1-7. Safety information
1
Before driving
AVALON_U (OM41437U)
■

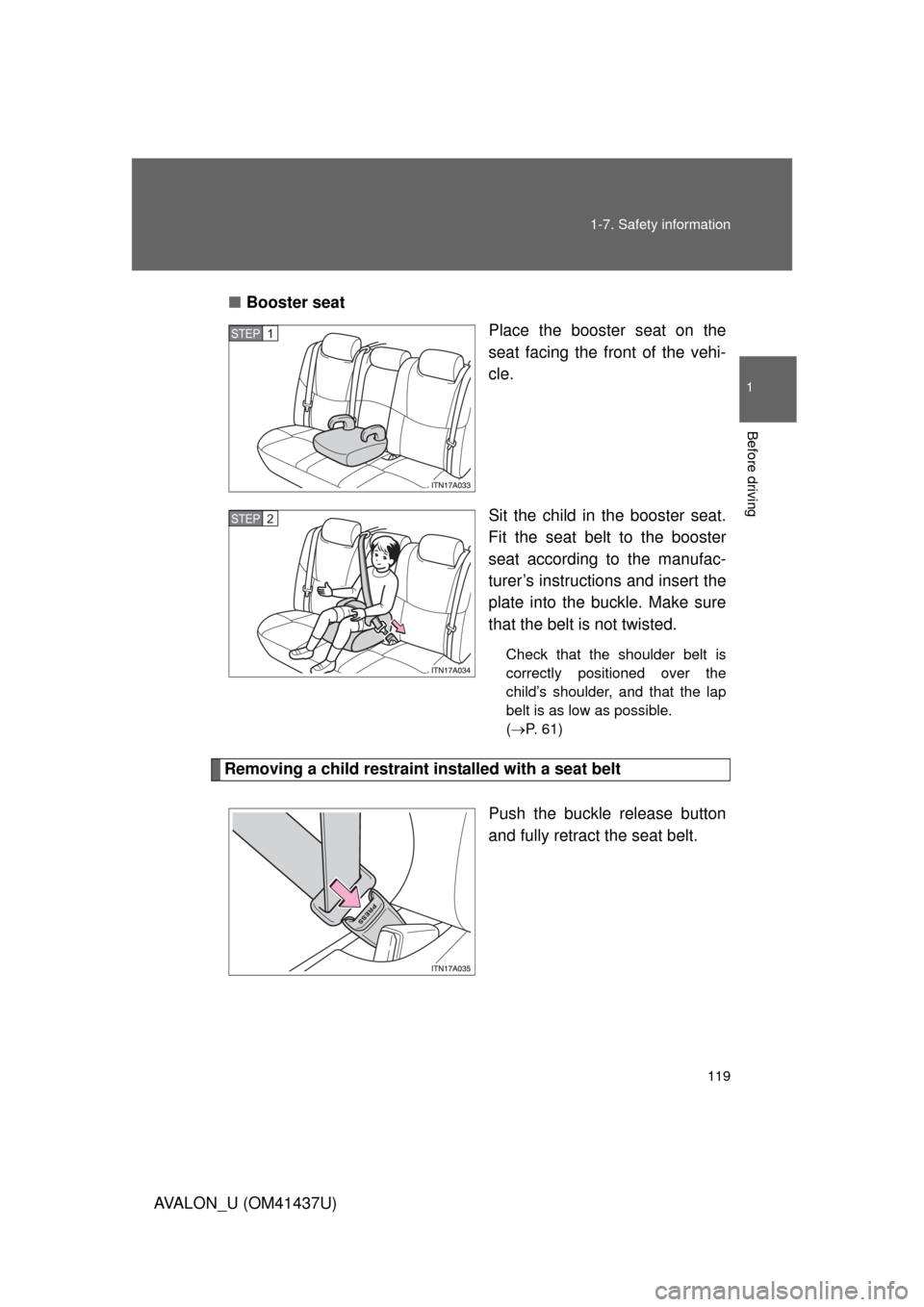

Booster seat
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 61)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
STEP1
STEP2

120 1-7. Safety information
AVALON_U (OM41437U)

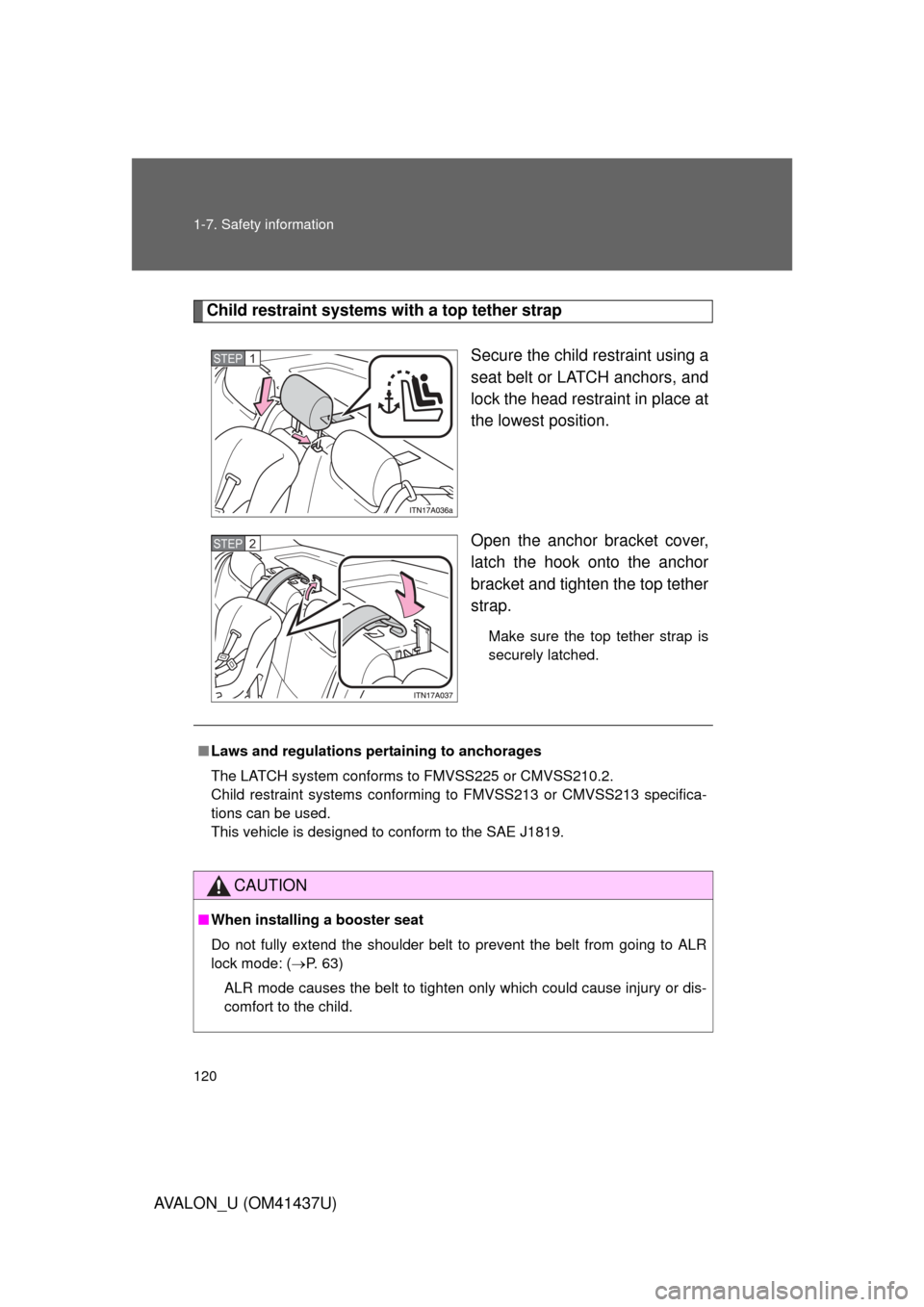

Child restraint systems with a top tether strapSecure the child restraint using a
seat belt or LATCH anchors, and
lock the head restraint in place at
the lowest position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
STEP1
STEP2
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 63)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
