2010 MITSUBISHI OUTLANDER Owners Manual

7-28 Vehicle care and maintenance
7
Check your tires each time you refuel. If one tire looks lower
than the others, check the pressure for all of them.
You should also take the following safety precautions:

Keep your tires inflated to the recommended pressures.
(See the tire and loading information placard attached to
the driver’s door sill.)


Stay within the recommended load limits.


Make sure that the weight of any load in your vehicle is
evenly distributed.


Drive at safe speeds.


After filling your tires to the correct pressure, check them
for damage and air leaks. Be sure to reinstall the caps on
the valve stems.
Replacing tires and wheels
N00939600241
CAUTION
!

Avoid using different size tires from the one listed
and the combined use of different types of tires, as
this can affect driving safety.
Refer to “Tires and wheels” on page 9-10.


On all-wheel drive vehicles, always use tires of the
same size, same type, and same brand, and which
have no wear differences. Using tires that differ in
size, type, brand or the degree of wear, will increase
the differential oil temperature, resulting in possible
damage to the driving system. Further, the drive
train will be subjected to excessive loading, possibly
leading to oil leakage, component seizure, or other
serious problems.


Only Mitsubishi Motors Authorized wheels should
be used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.
BK0115300US.book 28 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-29
7
Tire maintenance
N00939700141
The following maintenance steps are recommended:

Check tire pressures regularly.


Have regular maintenance done on the wheel balance and
front and rear suspension alignment.


Rotate your tires regularly as described in the “Tire rota-
tion” section on page 7-30.
Tread wear indicator
N00939800184
Tread wear indicators are built into the original equipment tires
on your vehicle to help you know when your tires should be
replaced. Many states have laws requiring that you replace
your tires at this point.
These indicators are molded into the bottom of the tread
grooves and will appear when the tire tread is worn down to
1/16 inch (1.6 mm).
When the bands appear next to one another in two or more
places, replace your tires.NOTE

Tire wear indicators can have different marks and loca-
tions depending on the tire manufacturer.
1- Location of the tread wear indicator
2- Tread wear indicator
BK0115300US.book 29 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-30 Vehicle care and maintenance
7

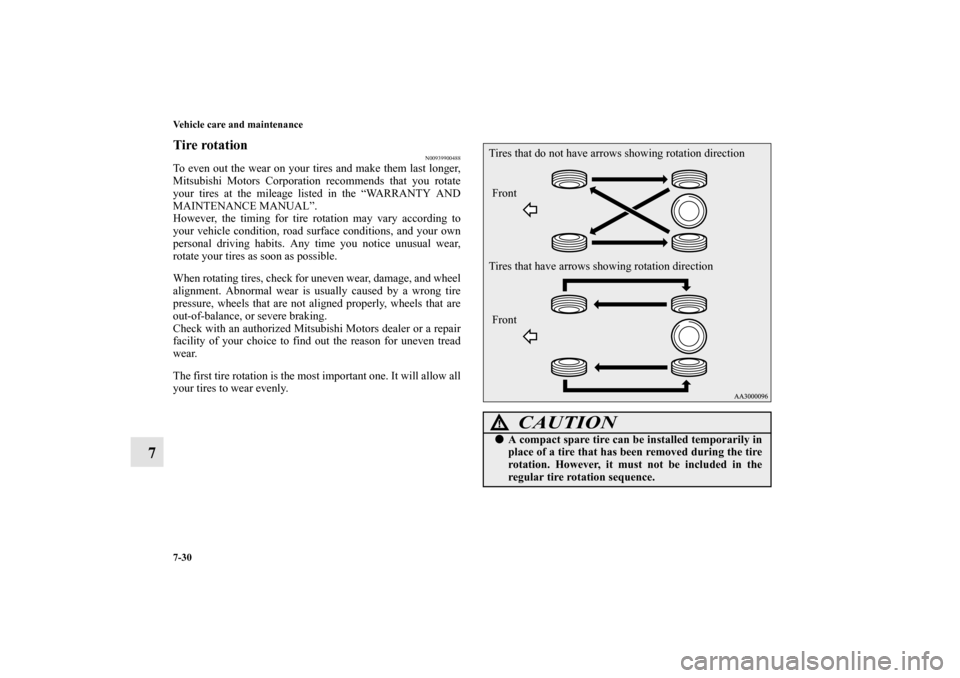

Tire rotation
N00939900488
To even out the wear on your tires and make them last longer,
Mitsubishi Motors Corporation recommends that you rotate
your tires at the mileage listed in the “WARRANTY AND
MAINTENANCE MANUAL”.
However, the timing for tire rotation may vary according to
your vehicle condition, road surface conditions, and your own
personal driving habits. Any time you notice unusual wear,
rotate your tires as soon as possible.
When rotating tires, check for uneven wear, damage, and wheel
alignment. Abnormal wear is usually caused by a wrong tire
pressure, wheels that are not aligned properly, wheels that are
out-of-balance, or severe braking.
Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice to find out the reason for uneven tread
wear.
The first tire rotation is the most important one. It will allow all
your tires to wear evenly.
CAUTION
!

A compact spare tire can be installed temporarily in
place of a tire that has been removed during the tire
rotation. However, it must not be included in the
regular tire rotation sequence.
Tires that do not have arrows showing rotation direction
Tires that have arrows showing rotation directionFront
Front
BK0115300US.book 30 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-31
7
CAUTION
!

If the tires have arrows (A) indicating the correct
direction of rotation, swap the front and rear tires
on the left-hand side of the vehicle and the front and
rear tires on the right-hand side of the vehicle sepa-
rately. Keep each tire on its original side of the vehi-
cle. When installing the tires, make sure the arrows
point in the direction in which the wheels will turn
when the vehicle moves forward. Any tire whose
arrow points in the wrong direction will not perform
to its full potential.
Front
CAUTION
!

Avoid the combined use of different types of tires.
Using different types of tires can affect vehicle per-
formance and safety.
BK0115300US.book 31 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-32 Vehicle care and maintenance
7
Snow tires
N00940000320
In some areas of the country, snow tires are required for winter
driving. If snow tires are required in your area, you must
choose snow tires of the same size and type as the original tires
provided with your vehicle. Snow tires should also be installed
on all four wheels. Otherwise your safety and vehicle handling
can be reduced.
Even where laws may permit it, snow tires should not be oper-
ated at sustained speeds over 75 mph (120 km/h).Tire chains
N00940100116
Brake pedal free play
N00940300293
To check the brake pedal free play (A), turn off the engine and
press the brake pedal several times with your foot. Then press
the pedal down with your fingers until you first feel resistance.
Brake pedal free play:
.1 to .3 inch (3 to 8 mm)
If the free play is not within these limits, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair facility of
your choice for adjustment.
CAUTION
!

Only Mitsubishi Motors Authorized wheels should
be used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.CAUTION
!

Tire chains cannot be used on your vehicle. The
clearance between the chains and the body is not
sufficient to allow proper clearance, and the vehicle
body might be damaged.
BK0115300US.book 32 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-33
7 Parking brake
N00940400164
Parking brake lever strokeCheck the parking brake lever travel occasionally. To check
this, pull the lever up slowly and count the number of clicks of
the ratchet. You should feel the parking brake grab between 3
to 5 notches (clicks).
Also check to see if the lever stays gripped by the ratchet after
pulling.
Parking brake break-inBreak-in the parking brake linings whenever the brake perfor-
mance of the parking brake is insufficient or whenever the
parking brake linings and/or drum/discs are replaced, in order
to assure the best brake performance.
This procedure is described in the vehicle service manual and
can be carried out by an authorized Mitsubishi Motors dealer
WA R N I N G
!

Continued operation of the vehicle with the parking
brake lever out of adjustment may result in the vehi-
cle moving when unattended.
BK0115300US.book 33 ページ ２００９年７月１６日　木曜日　午前９時１３分

7-34 Vehicle care and maintenance
7Wiper blades
N00940700138
Check the wiper blades occasionally. Clean them regularly to
remove deposits of salt and road film. Use a sponge or cloth
and a mild detergent or non-abrasive cleaner to clean the blades
and glass areas.
Replace the blades if they continue to streak or smear.NOTE

Do not run the wipers on dry glass for a long time. This
wears out the rubber and can scratch the glass.
During cold weatherIf the blades are frozen to the windshield or rear window, do
not operate the wipers until the ice has melted and the blades
are freed, otherwise the wiper motor may be damaged.
Emission-control system maintenance
N00940800328
Your vehicle is equipped with an emission-control system that
meets all the requirements of the U.S. Environmental Protec-
tion Agency and Environment Canada. The emission-control
system is made of:

a positive crankcase ventilation system


an evaporative emission-control system


an exhaust emission-control system
To be sure the emission-control system works properly, have
your vehicle inspected and maintained by an authorized Mit-
subishi Motors dealer or a repair facility of your choice. This
should be done at the time or mileage specified in the “WAR-
RANTY AND MAINTENANCE MANUAL”.
These, and all the other “general” maintenance services listed
in this manual, need to be performed to keep your vehicle run-
ning properly and reliably.
You should also have an inspection and service any time you
suspect a malfunction.
NOTE

To meet government regulations and promote cleaner air,
your vehicle is equipped with an onboard diagnostic sys-
tem (OBD). The engine electronic control module that
controls OBD functions stores various data (especially
about the exhaust emissions). This data will be erased if
the battery cable is disconnected, which could make a
rapid diagnosis difficult. Do not disconnect the battery
cable when the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) is ON.
BK0115300US.book 34 ページ ２００９年７月１６日　木曜日　午前９時１３分

Vehicle care and maintenance
7-35
7
Spark plugs
N00940900143
Spark plugs must fire properly to ensure proper engine perfor-
mance and emission-control.
Do not reuse spark plugs by cleaning or regapping. Spark plugs
should be replaced at the mileage specified in the “WAR-
RANTY AND MAINTENANCE MANUAL”.
Your vehicle is equipped with iridium tipped spark plugs,
which are identified by marks on the ceramic. They do not
require replacement as frequently as the conventional type
spare plug and will last much longer.NOTE

Use the recommended or equivalent spark plugs listed
under “Engine specifications” on page 9-9. Use of other
plugs could cause engine damage, loss of performance or
radio noise.
Fuel hoses
N00941000040
Check the hose surfaces for any heat and mechanical damage,
hard and brittle rubber, cracking, tears, cuts and abrasions. Pay
special attention to the hoses closest to high heat sources such
as the exhaust manifold. Check all the hose connections, such
as clamps and couplings, to make sure they are secure and that
there are no leaks. If you see any wear or damage, replace the
hoses immediately.Intake valve clearance
N00950100050
Have the valve clearance checked at an authorized Mitsubishi
Motors dealer at the mileage specified in the “WARRANTY
AND MAINTENANCE MANUAL”.
If the engine sounds abnormally loud, have adjustments made
by an authorized Mitsubishi Motors dealer.
Ty p e 1
Ty p e 2 Iridium tipped type
