4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U

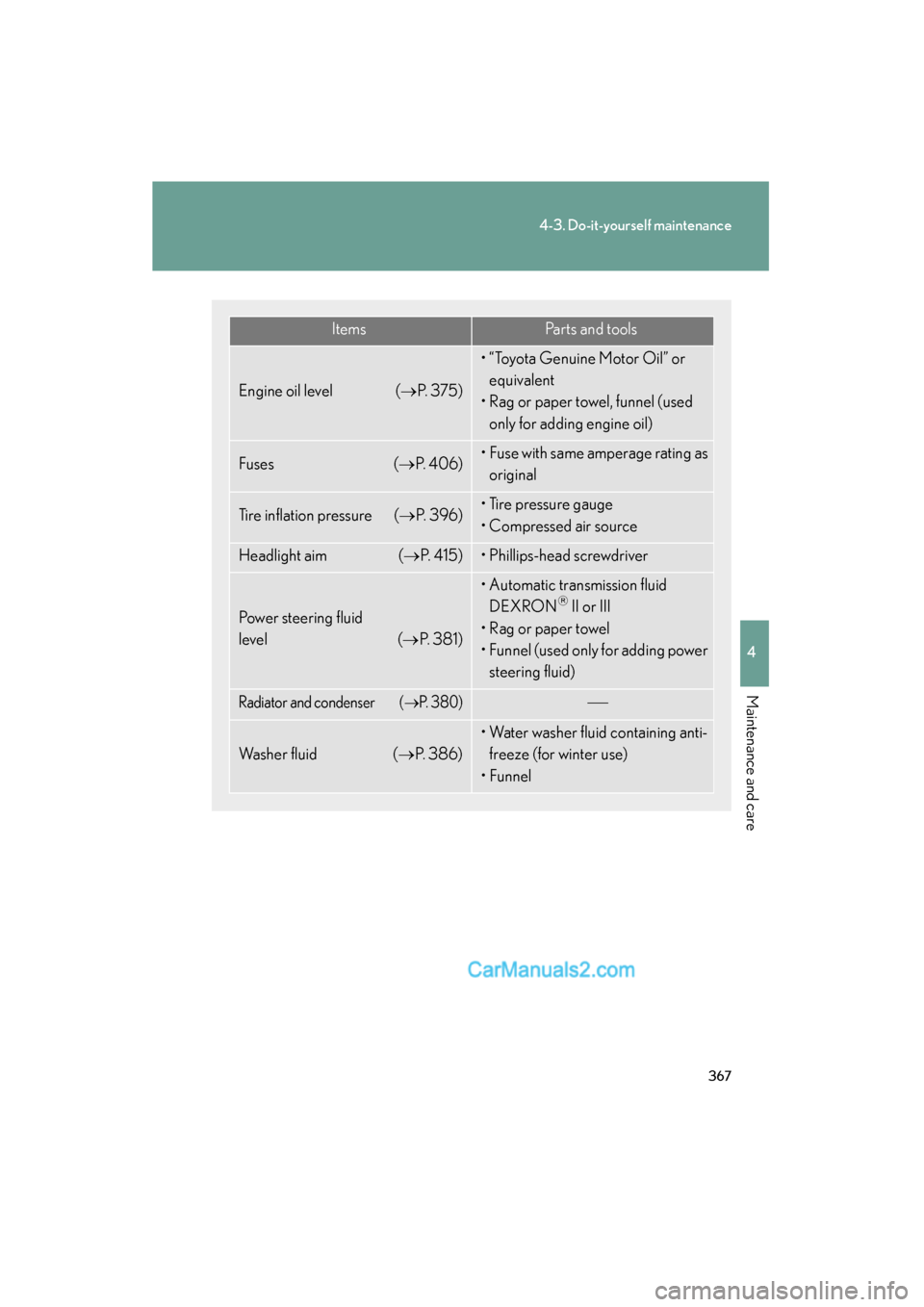

ItemsParts and tools
Engine oil level (oP. 3 7 5 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (o P. 4 0 6 )• Fuse with same amperage rating as
original
Tire inflation pressure ( oP. 396)• Tire pressure gauge
• Compressed air source
Headlight aim ( oP. 4 1 5 )• Phillips-head screwdriver
Power steering fluid
level (o P. 3 8 1 )
• Automatic transmission fluid
DEXRON

368
4-3. Do-it-yourself maintenance
ES350_U

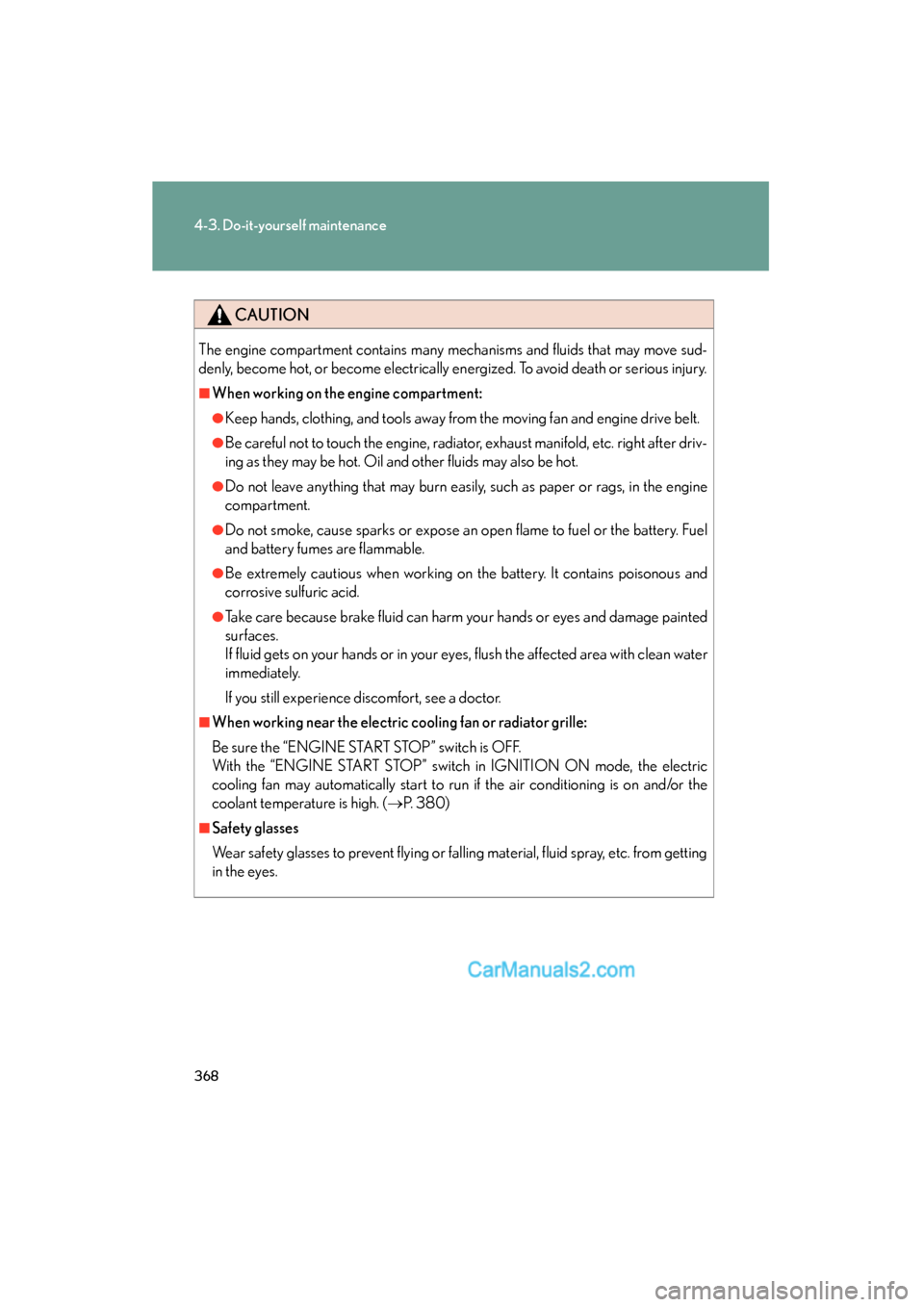

CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean water
immediately.
If you still experience discomfort, see a doctor.
■When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (oP. 3 8 0 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U

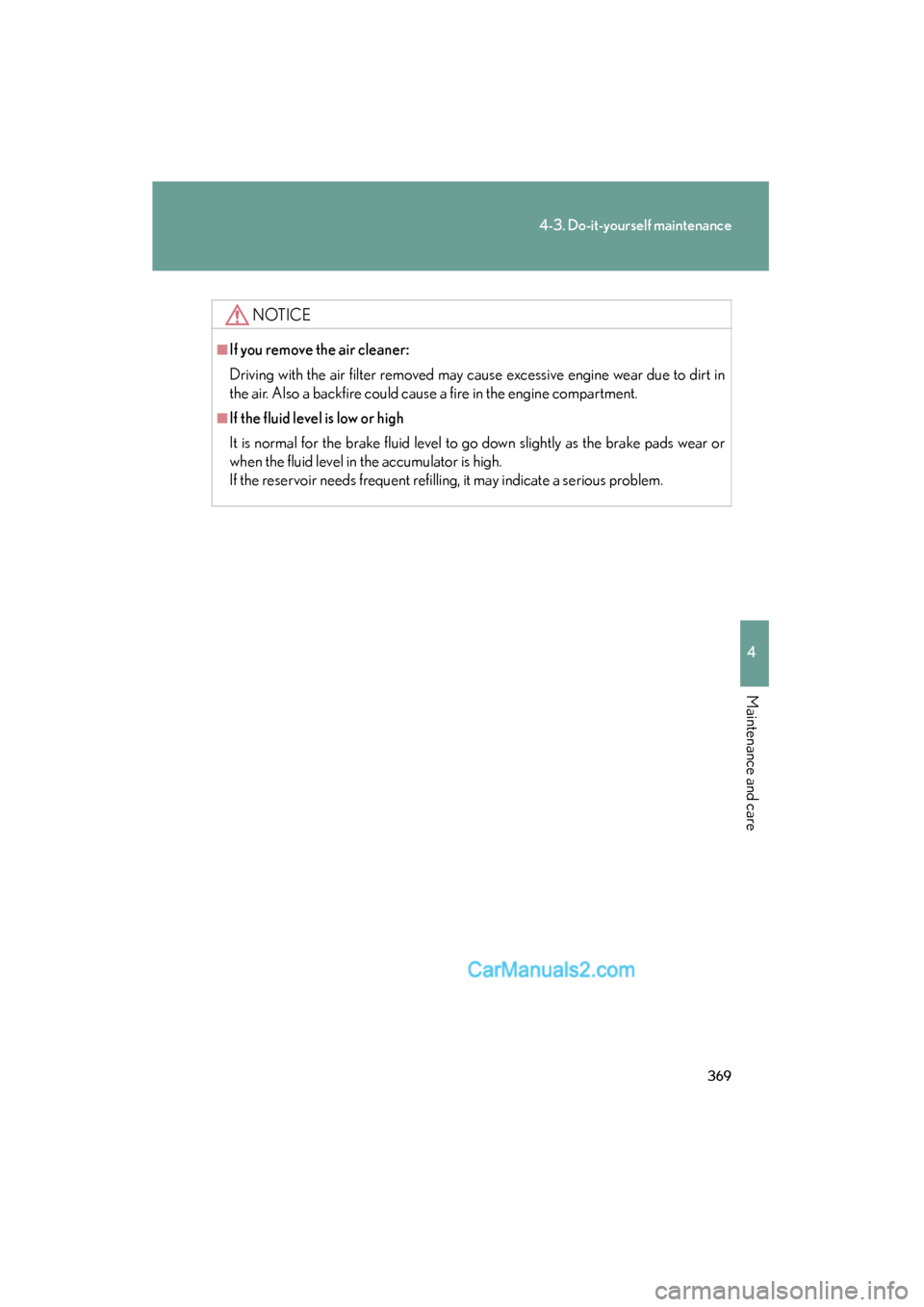

NOTICE
■If you remove the air cleaner:
Driving with the air filter removed may cause excessive engine wear due to dirt in
the air. Also a backfire could cause a fire in the engine compartment.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

370
4-3. Do-it-yourself maintenance
ES350_U

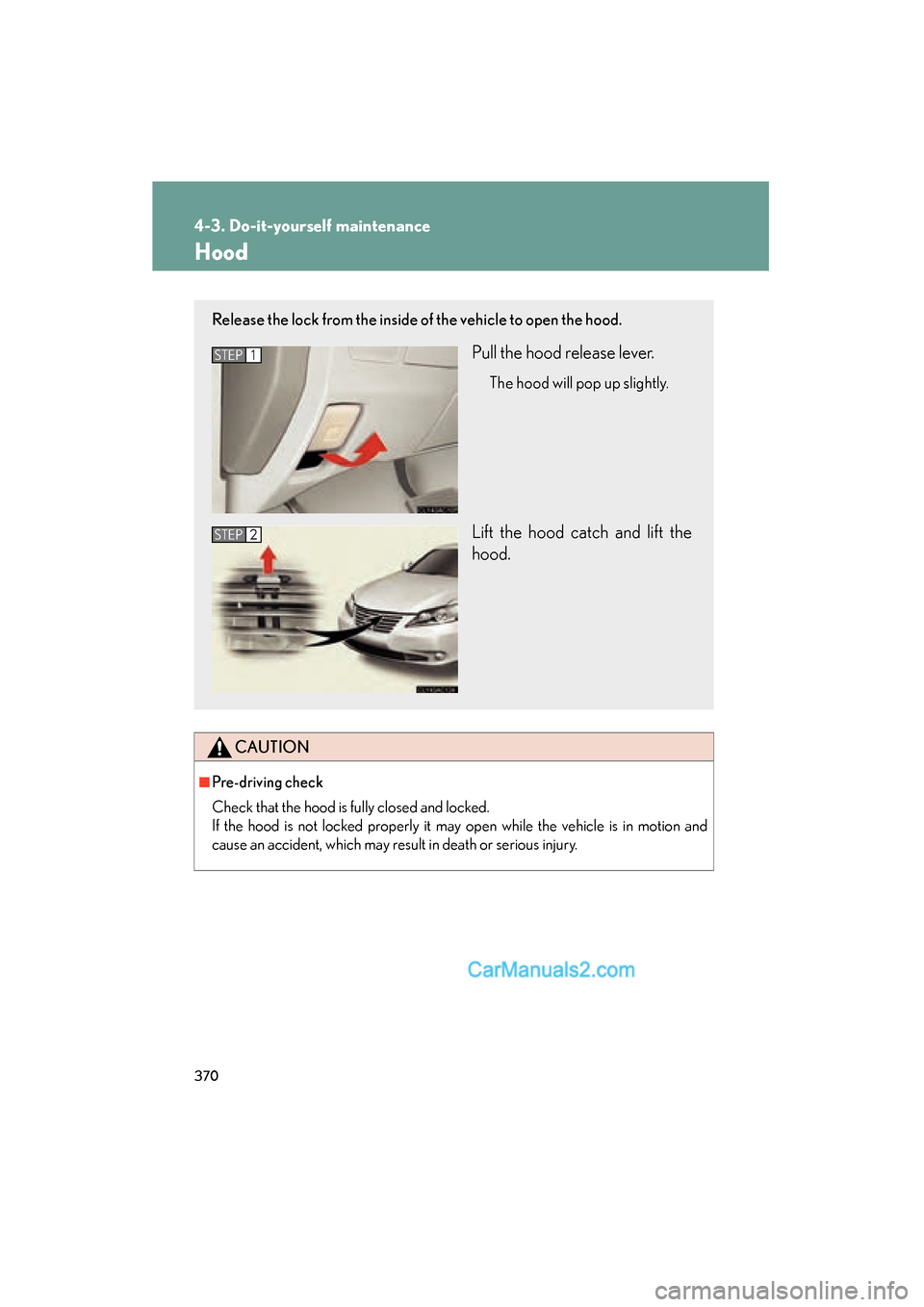

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
STEP1
STEP2

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U

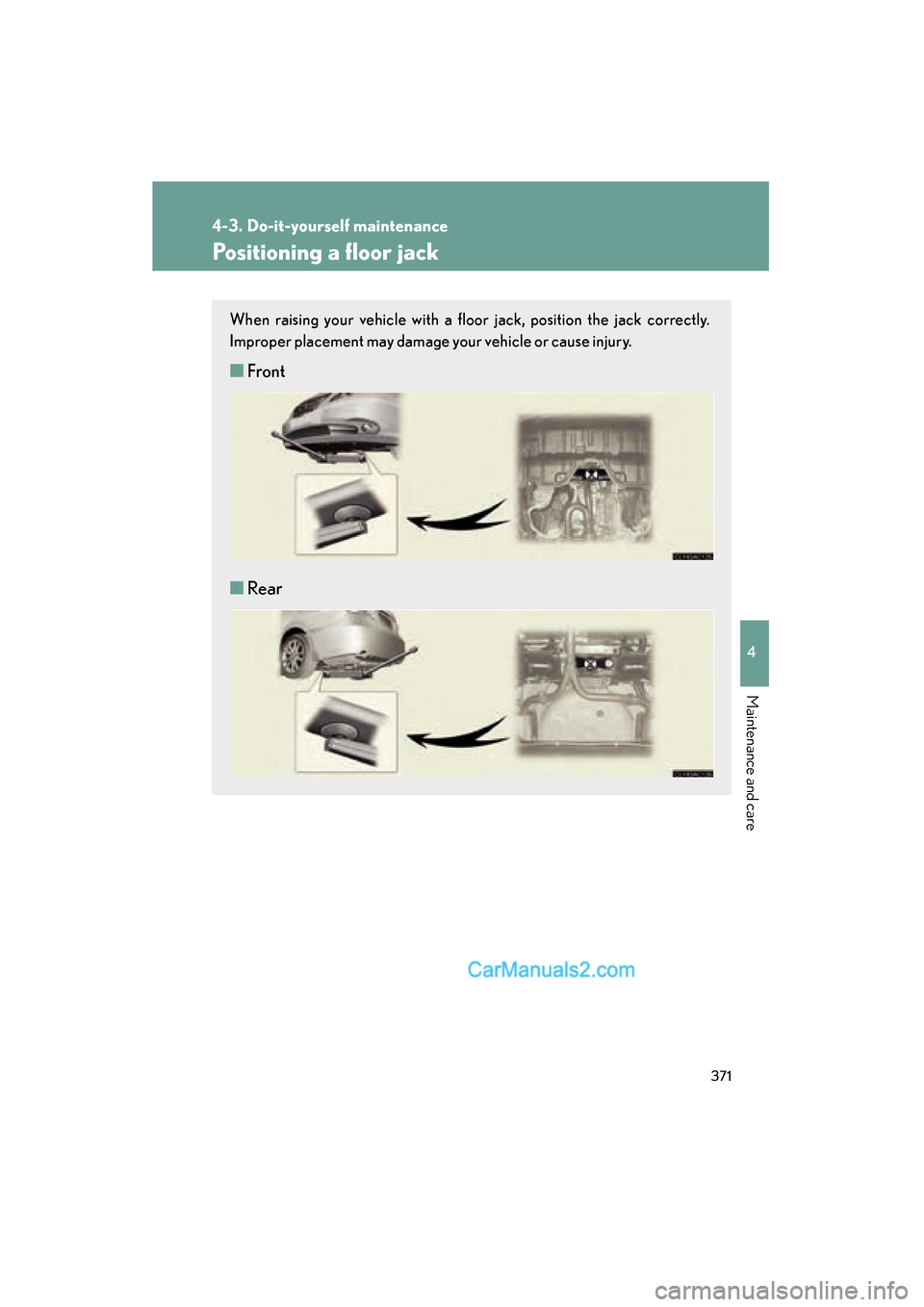

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Front
■ Rear

372
4-3. Do-it-yourself maintenance
ES350_U

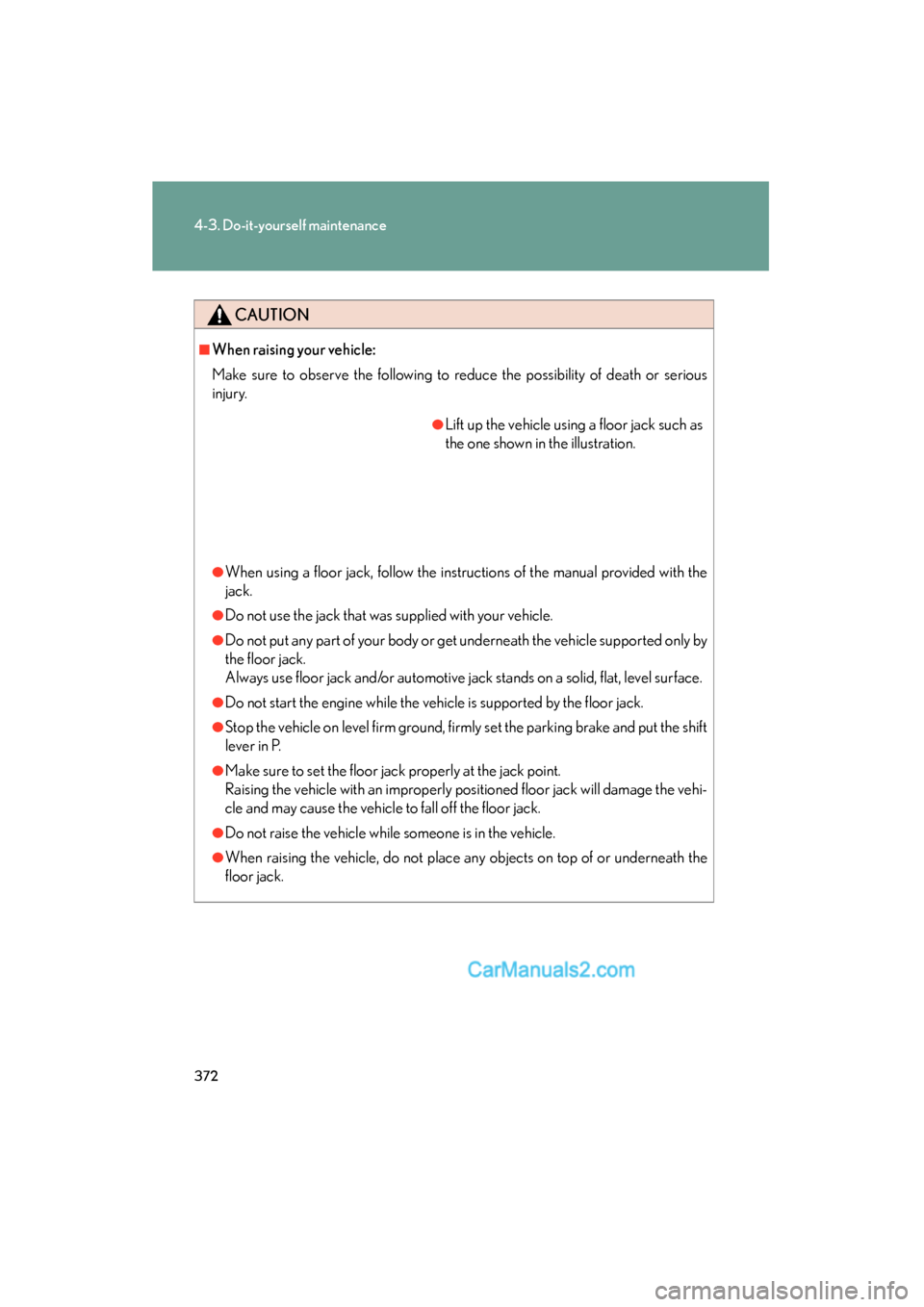

CAUTION
■When raising your vehicle:
Make sure to observe the following to reduce the possibility of death or serious
injury.
●When using a floor jack, follow the instructions of the manual provided with the
jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body or get underneath the vehicle supported only by
the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level surface.
●Do not start the engine while the vehicle is supported by the floor jack.
●Stop the vehicle on level firm ground, firmly set the parking brake and put the shift
lever in P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U
Engine compartment
Power steering fluid reservoir(oP. 381)
Engine oil filler cap (oP. 3 76 )
Engine oil level dipstick (oP. 3 7 5 )
Brake fluid reservoir (oP. 380)
Battery ( oP. 383)Fuse box ( oP. 4 0 6 )
Electric cooling fans
Condenser ( oP. 380)
Radiator ( oP. 380)
Washer fluid tank (oP. 386)
Engine coolant reservoir (oP. 378)

374
4-3. Do-it-yourself maintenance
ES350_U

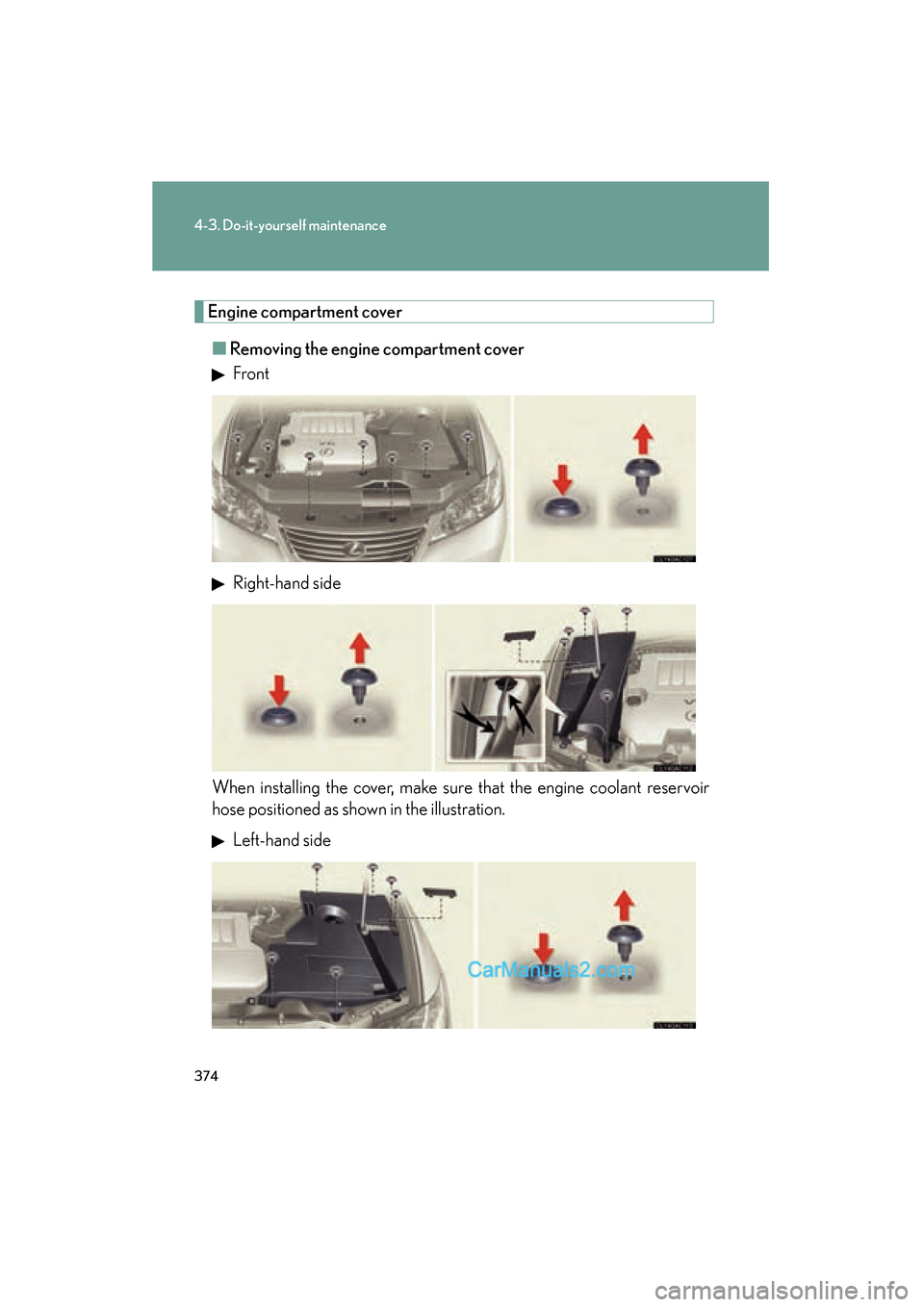

Engine compartment cover■ Removing the engine compartment cover
Front
Right-hand side
When installing the cover, make sure that the engine coolant reservoir
hose positioned as shown in the illustration. Left-hand side
