2010 Lexus ES350 Owner's Manuals

263
3-3. Using the Bluetooth® audio system
3
Interior features
ES350_U

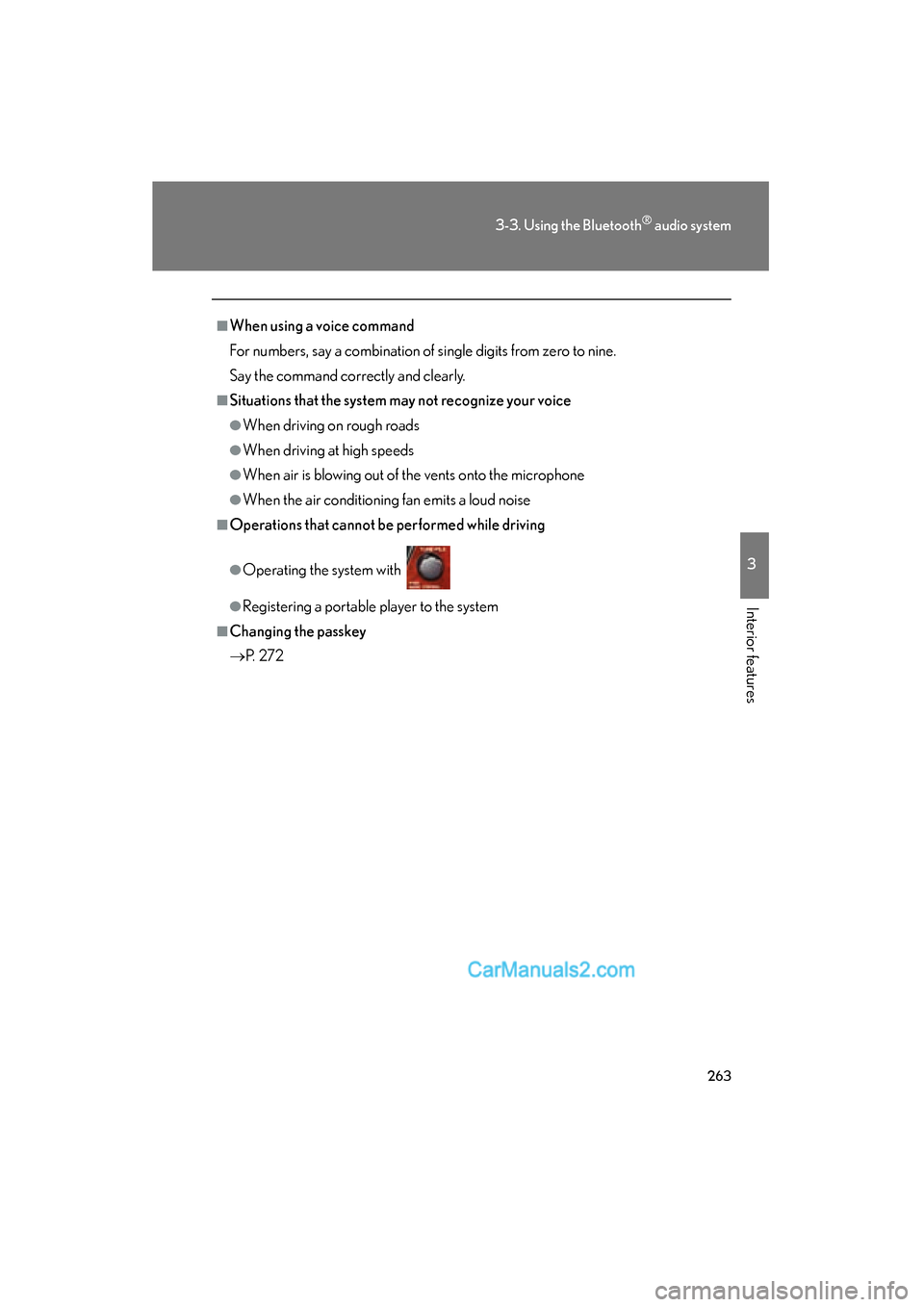

■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
oP. 2 7 2

264
3-3. Using the Bluetooth® audio system
ES350_U
Operating a Bluetooth® enabled portable player
Selecting an albumTo select the desired album, press (

265
3-3. Using the Bluetooth® audio system
3
Interior features
ES350_U
Fast-forwarding and rewinding tracksTo fast-forward or rewind, press and hold “

266
3-3. Using the Bluetooth® audio system
ES350_U

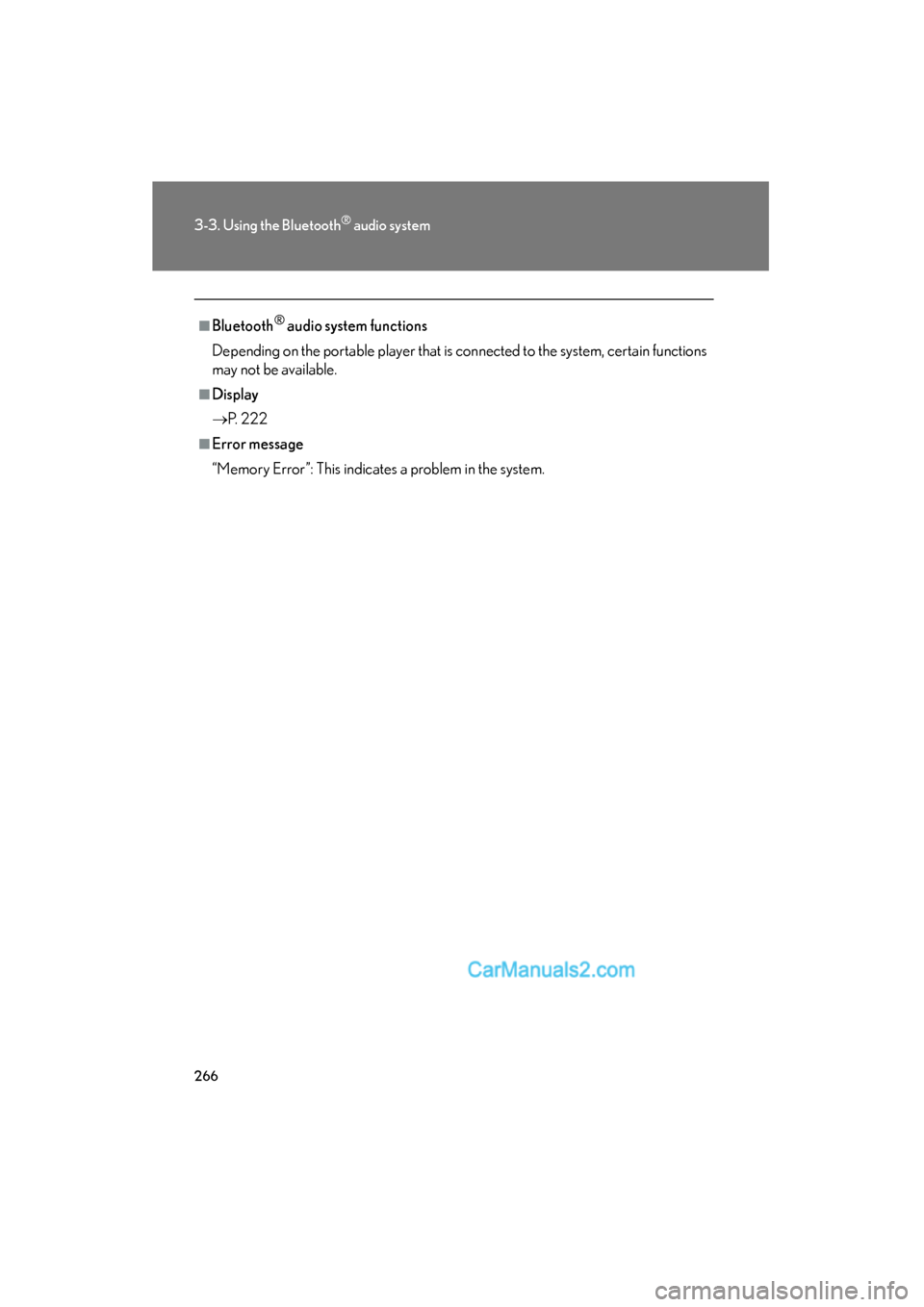

■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
o P. 222
■Error message
“Memory Error”: This indicates a problem in the system.

267
3-3. Using the Bluetooth® audio system
3
Interior features
ES350_U

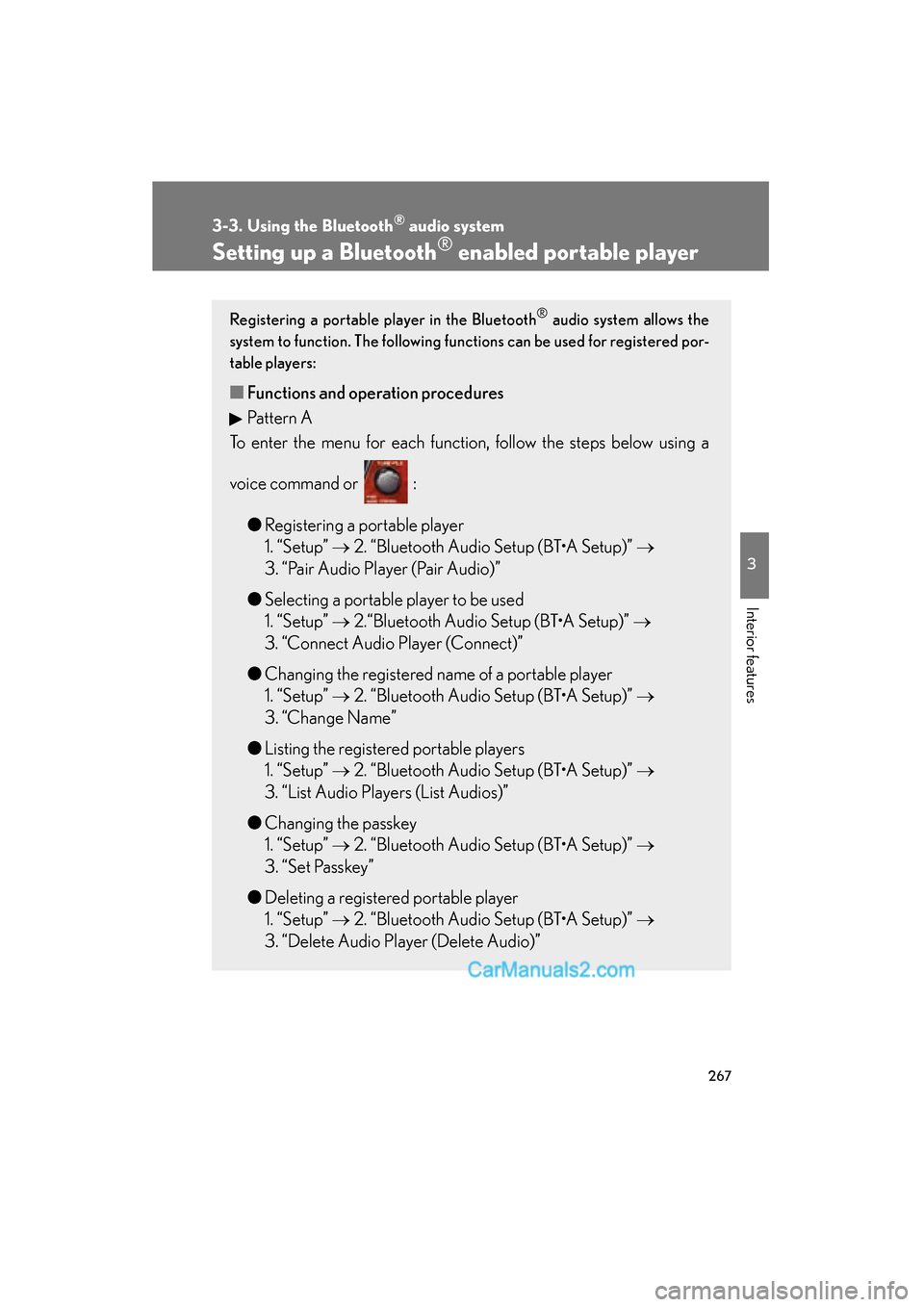

Setting up a Bluetooth® enabled portable player
Registering a portable player in the Bluetooth® audio system allows the
system to function. The following functions can be used for registered por-
table players:
■ Functions and operation procedures
Pattern A
To enter the menu for each function, follow the steps below using a
voice command or :
●Registering a portable player
1. “Setup” o 2. “Bluetooth Audio Setup (BT•A Setup)” o
3. “Pair Audio Player (Pair Audio)”
● Selecting a portable player to be used
1. “Setup” o 2.“Bluetooth Audio Setup (BT•A Setup)” o
3. “Connect Audio Player (Connect)”
● Changing the registered name of a portable player
1. “Setup” o 2. “Bluetooth Audio Setup (BT•A Setup)” o
3. “Change Name”
● Listing the registered portable players
1. “Setup” o 2. “Bluetooth Audio Setup (BT•A Setup)” o
3. “List Audio Players (List Audios)”
● Changing the passkey
1. “Setup” o 2. “Bluetooth Audio Setup (BT•A Setup)” o
3. “Set Passkey”
● Deleting a registered portable player
1. “Setup” o 2. “Bluetooth Audio Setup (BT•A Setup)” o
3. “Delete Audio Player (Delete Audio)”

268
3-3. Using the Bluetooth® audio system
ES350_U

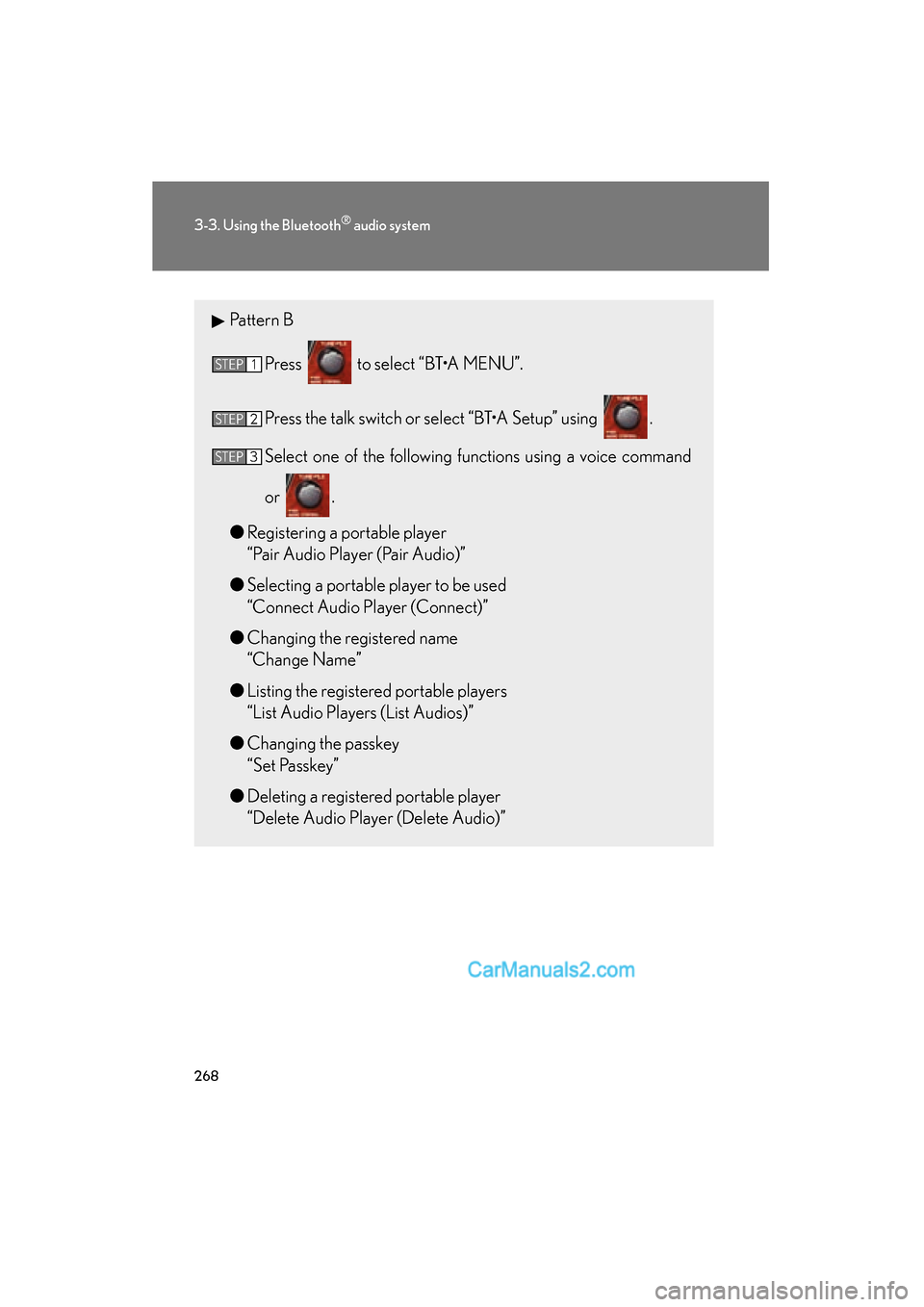

Pattern BPress to select “BT•A MENU”.
Press the talk switch or select “BT•A Setup” using .
Select one of the following functions using a voice command
or .
● Registering a portable player
“Pair Audio Player (Pair Audio)”
● Selecting a portable player to be used
“Connect Audio Player (Connect)”
● Changing the registered name
“Change Name”
● Listing the registered portable players
“List Audio Players (List Audios)”
● Changing the passkey
“Set Passkey”
● Deleting a registered portable player
“Delete Audio Player (Delete Audio)”
STEP1
STEP2
STEP3

269
3-3. Using the Bluetooth® audio system
3
Interior features
ES350_U

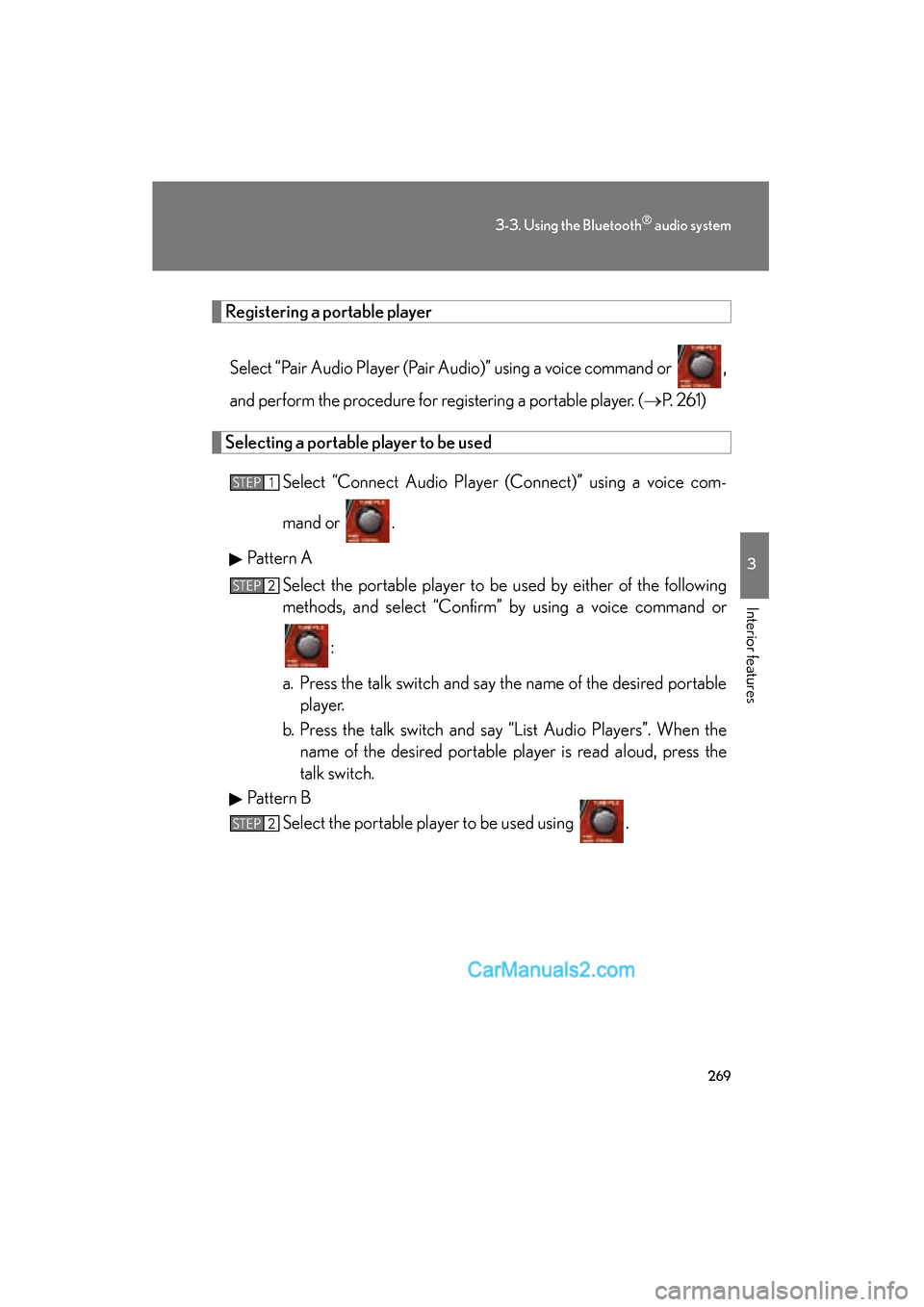

Registering a portable playerSelect “Pair Audio Player (Pair Audio)” using a voice command or ,
and perform the procedure for registering a portable player. ( oP. 2 6 1 )
Selecting a portable player to be used
Select “Connect Audio Player (Connect)” using a voice com-
mand or .
Pattern A Select the portable player to be used by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the
talk switch.
Pattern B Select the portable player to be used using .
STEP1
STEP2
STEP2

270
3-3. Using the Bluetooth® audio system

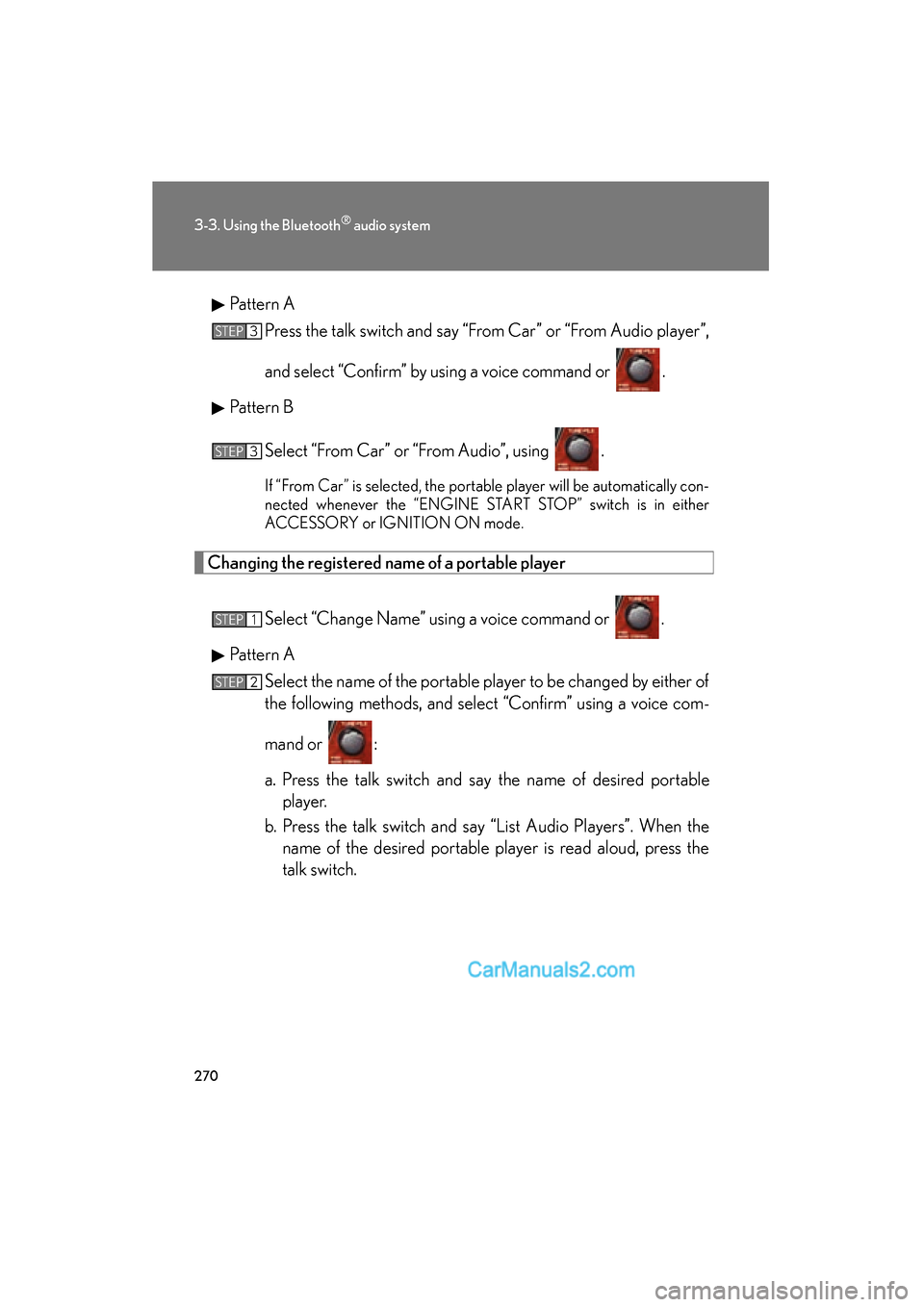

ES350_UPattern A
Press the talk switch and say “From Car” or “From Audio player”,
and select “Confirm” by using a voice command or .
Pattern B
Select “From Car” or “From Audio”, using .
If “From Car” is selected, the portable player will be automatically con-
nected whenever the “ENGINE START STOP” switch is in either
ACCESSORY or IGNITION ON mode.
Changing the registered name of a portable player
Select “Change Name” using a voice command or .
Pattern A Select the name of the portable player to be changed by either of
the following methods, and select “Confirm” using a voice com-
mand or :
a. Press the talk switch and say the name of desired portableplayer.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the
talk switch.
STEP3
STEP3
STEP1
STEP2
