2010 Lexus ES350 Owner's Manuals

5
When trouble arises
447
5-2. Steps to take in an emergency
ES350_U
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

448
5-2. Steps to take in an emergency
ES350_U

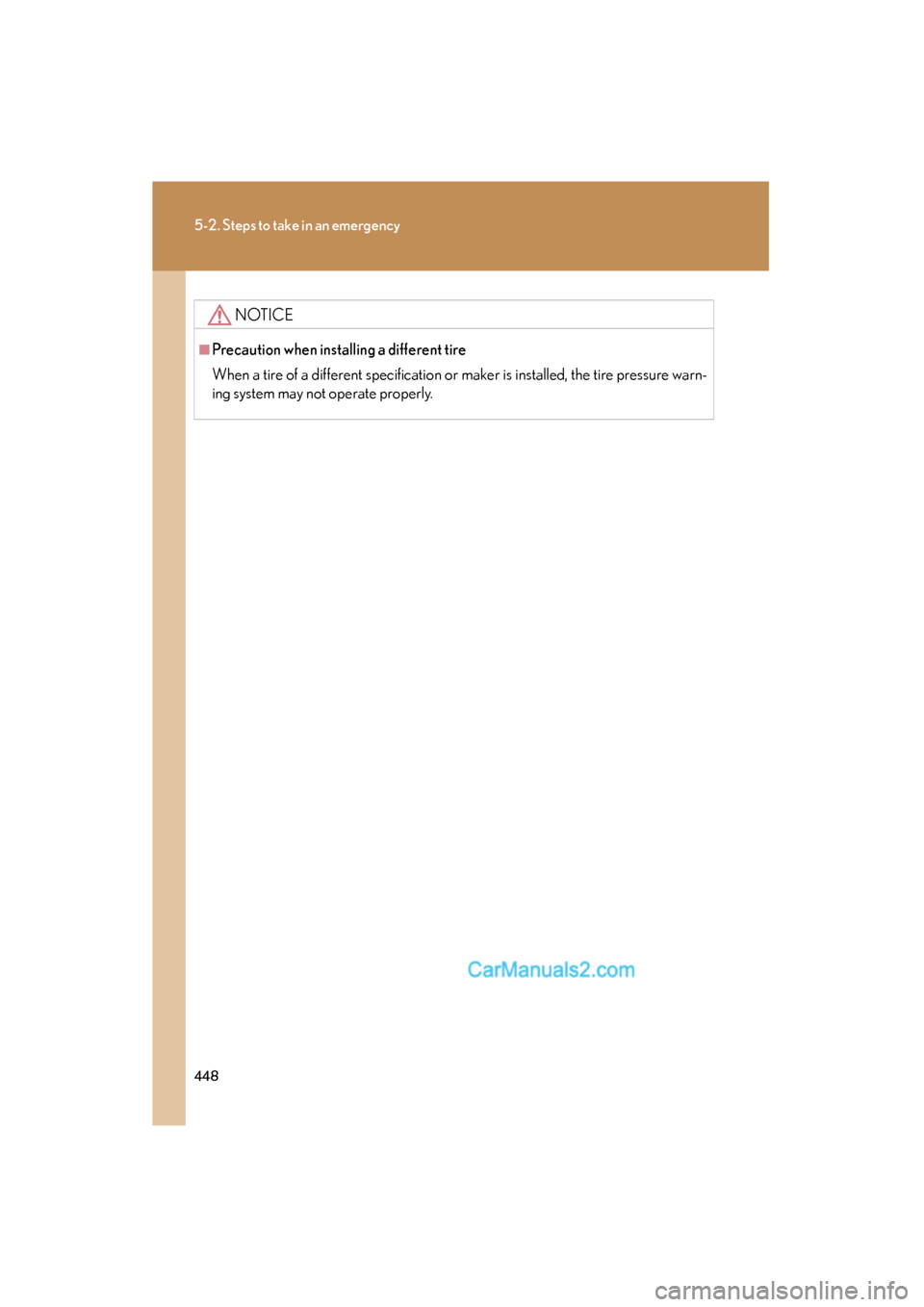

NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

5
When trouble arises
449
5-2. Steps to take in an emergency
ES350_U
If a warning message is displayed
Stop the vehicle immediately.The following warnings indicate the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning messageDetails
(Flashing)
Indicates an abnormal engine oil pressure. A buzzer also sounds.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning message turns on again after performing the fol-
lowing actions, contact your Lexus dealer.

450
5-2. Steps to take in an emergency
ES350_U
Have the vehicle inspected by your Lexus dealer immediately.Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning messageDetails
(Flashing)
Indicates a malfunction in the steering lock system.
(Flashing)
(If equipped)
Indicates a malfunction in the pre-collision system. A buzzer also sounds.

5
When trouble arises
451
5-2. Steps to take in an emergency
ES350_U
Warning messageDetails
(If equipped)
Indicates intuitive parking assist malfunction.A buzzer also sounds.
The malfunctioning assist-sensor is shown flashing on
the display.
(Flashing and then con-
tinuously on)
(Flashing)or
(Flashing)
(If equipped)Indicates a malfunction in the radar cruise control
system. A buzzer also sounds.
Stop the vehicle in a safe place. Switch the “ENGINE
START STOP” switch to OFF and then to IGNITION
ON mode again to reset the cruise control system.

452
5-2. Steps to take in an emergency
ES350_U
Follow the correction procedure.After taking the specified steps to correct the suspected problem, check
that the warning message turns off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed. The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
Indicates that the hood is
not fully closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

5
When trouble arises
453
5-2. Steps to take in an emergency
ES350_U
Warning messageDetailsCorrection procedure
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened). A buzzer also sounds.
Close the moon roof.
(Flashing)
Indicates that the parking
brake is still engaged
(with the vehicle having
reached a speed of more
than 3 mph [5 km/h]).A buzzer also sounds.
Release the parking
brake.
Indicates that the washer
fluid level is low.A buzzer also sounds.
Add washer fluid.

454
5-2. Steps to take in an emergency
ES350_U
Warning messageDetailsCorrection procedure
Indicates that engine oil
level is low.A buzzer also sounds.Check the level of engine
oil, and add if necessary.
(USA only)
Indicates that the engine
oil is scheduled to be
changed.A buzzer also sounds.
Check and the engine oil,
and change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(USA only)
Indicates that the engine
oil should be changed.A buzzer also sounds.
Check and change the
engine oil.Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
