2-2. Instrument cluster
2
When driving
ES350_U
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Brighter
Darker
When the headlight switch is
turned to ON, the brightness will
be reduced slightly unless the con-
trol dial is turned fully up.
Odometer and trip meter
●Odometer
Displays the total distance the vehicle has been driven.
●Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
Engine coolant temperature gauge
Displays the engine coolant temperature.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red zone (H). In
this case, immediately stop the vehicle in a safe place, and check the engine after
it has cooled completely. ( oP. 4 8 0 )

136
2-2. Instrument cluster
ES350_U
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

137
2-2. Instrument cluster
2
When driving
ES350_U
Center panel (without navigation system)
Center panel (with navigation system)

138
2-2. Instrument cluster
ES350_U
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(o P. 131)
(if equipped)
AFS OFF indicator light
(o P. 146)
Headlight high beam indi-
cator ( oP. 1 4 5 )Slip indicator ( oP. 171)
(USA)
Headlight indicator
(o P. 1 4 5 )VSC off indicator
(o P. 1 7 2 )
(Canada)
Tail light indicator
(o P. 1 4 5 )
(without
navigation
system)
SRS airbag on-off indica-
tor (o P. 9 6 )
Front fog light indicator
(o P. 1 4 8 )
(with navi-
gation sys-
tem)
SRS airbag on-off indica-
tor (o P. 9 6 )
Eco Driving Indicator
Light (oP. 1 4 4 )
Shift position and shift range indica-
tors ( o
P. 1 2 8)
Cruise control indicator
(o P. 152, 155)
Cruise control “SET” indi-
cator ( oP. 152, 155)
(if equipped)
Radar cruise control indi-
cator ( oP. 1 5 5 )
*
*
*
*
*
*

139
2-2. Instrument cluster
2
When driving
ES350_U
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning lights not
come on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
■Warning lights
Warning lights inform the driver of malfunctions or suspected prob-
lem in any of the vehicle’s systems. ( oP. 4 3 9 )
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your Lexus
dealer.
(USA)(Canada)(USA)(Canada)
(USA)(Canada)(if equipped)(without
navigation system)(with naviga-
tion system)
******
*****

140
2-2. Instrument cluster
ES350_U

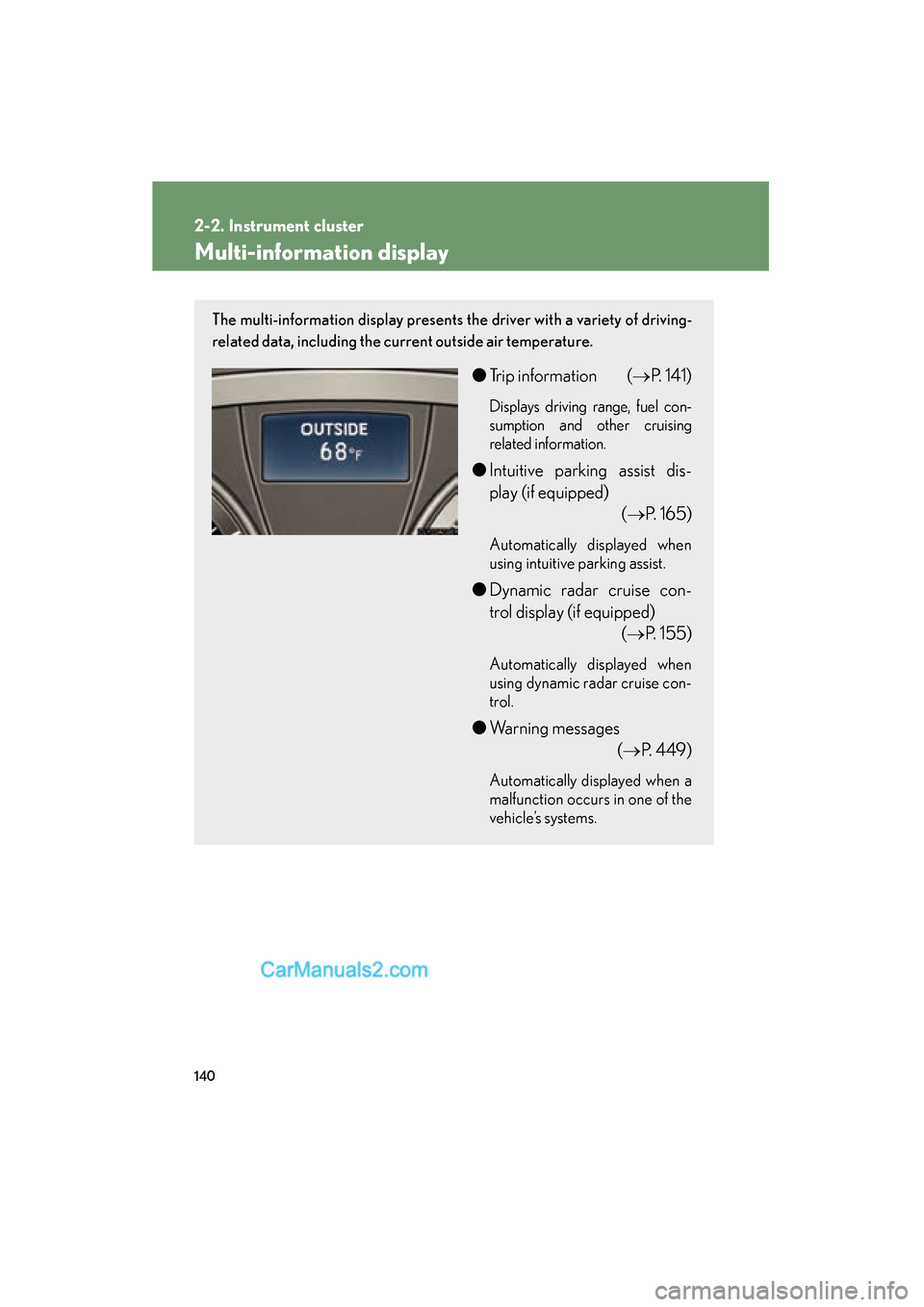

Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
●Trip information ( oP. 141)
Displays driving range, fuel con-
sumption and other cruising
related information.
●Intuitive parking assist dis-
play (if equipped)
(oP. 1 6 5 )
Automatically displayed when
using intuitive parking assist.
●Dynamic radar cruise con-
trol display (if equipped)
(oP. 1 5 5 )
Automatically displayed when
using dynamic radar cruise con-
trol.
●Warning messages
(oP. 4 4 9 )
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.

141
2-2. Instrument cluster
2
When driving
ES350_U

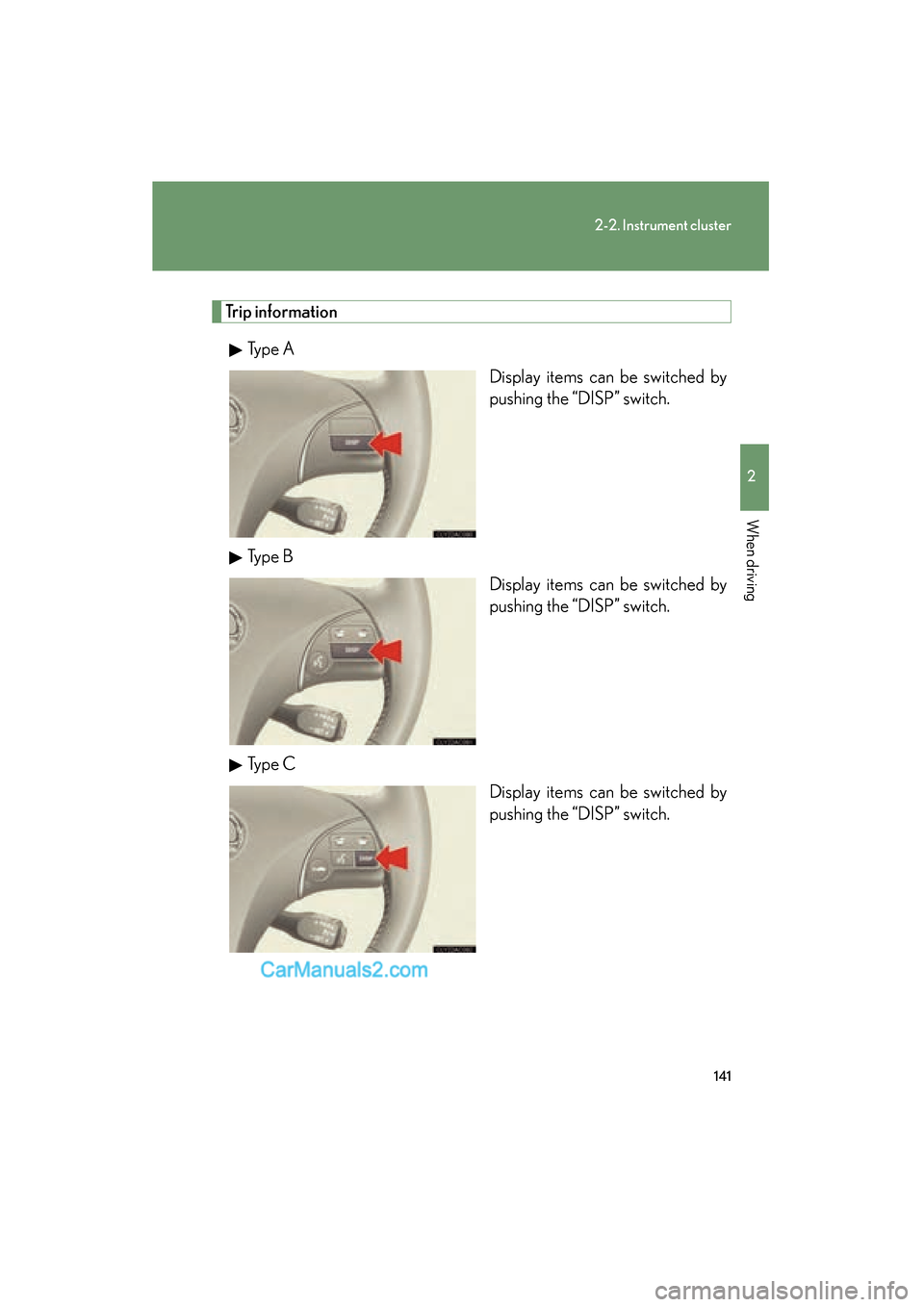

Trip informationTy p e A Display items can be switched by
pushing the “DISP” switch.
Ty p e B Display items can be switched by
pushing the “DISP” switch.
Ty p e C Display items can be switched by
pushing the “DISP” switch.

142
2-2. Instrument cluster
ES350_U■

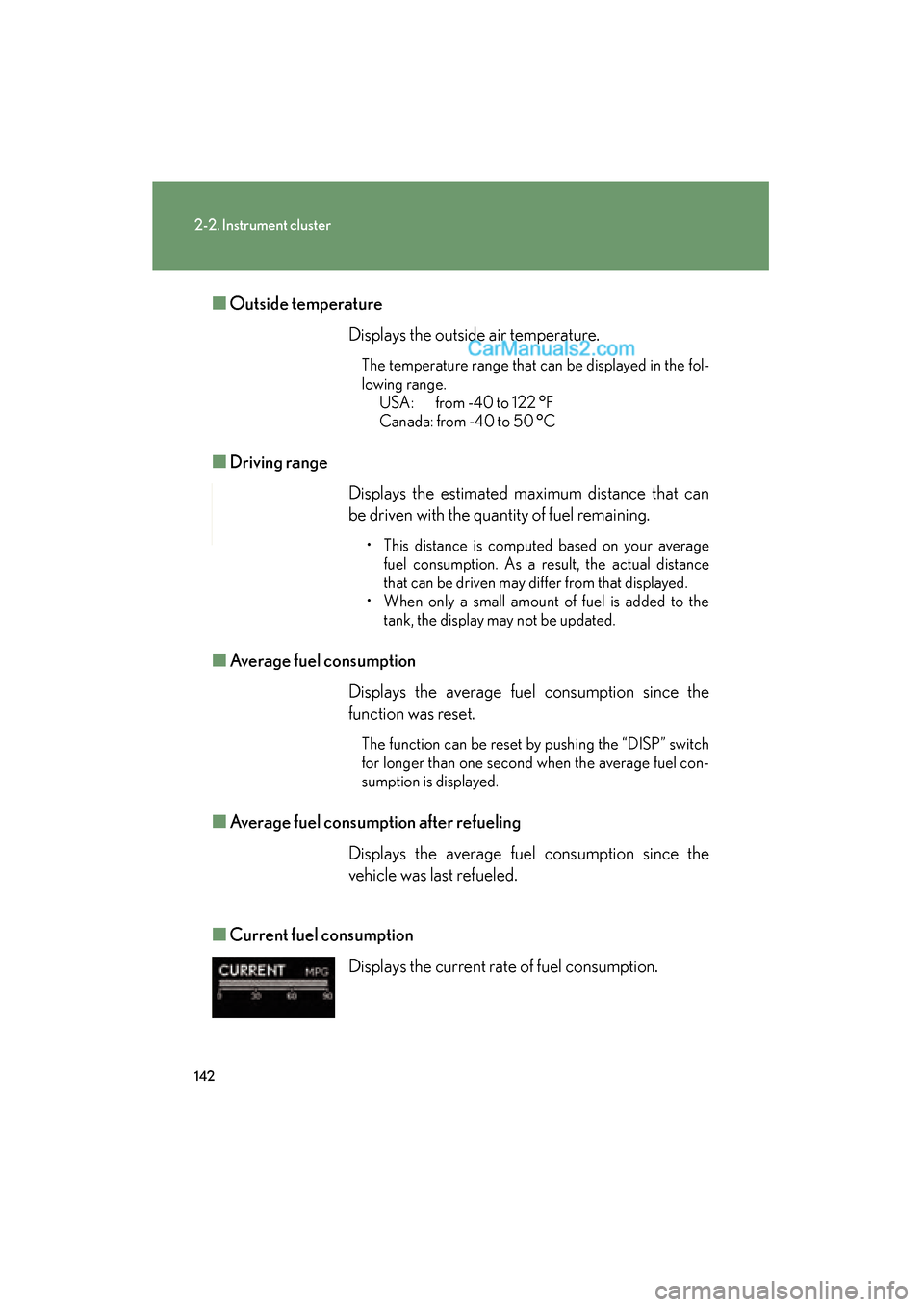

Outside temperature
■ Driving range
■ Average fuel consumption
■ Average fuel consumption after refueling
■ Current fuel consumption Displays the outside air temperature.
The temperature range that can be displayed in the fol-
lowing range.
USA: from -40 to 122 °F
Canada: from -40 to 50 °C
Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining.
• This distance is computed based on your averagefuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average fuel consumption since the
function was reset.
The function can be reset by pushing the “DISP” switch
for longer than one second when the average fuel con-
sumption is displayed.
Displays the average fuel consumption since the
vehicle was last refueled.
Displays the current rate of fuel consumption.
