2010 Lexus ES350 Owner's Manuals

Interior features3
199
ES350_U
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system .... 256
Using the Bluetooth
®
audio system ......................... 259
Operating a Bluetooth
®
enabled portable player .... 264
Setting up a Bluetooth
®
enabled portable player .... 267
Bluetooth
® audio system
setup ......................................... 274
3-4. Using the hands-free system
(for mobile phone)
Hands-free system for mobile phones ...................... 275
Using the hands-free system (for mobile phone)............... 279
Making a phone call .............. 287
Setting a mobile phone......... 292
Security and system setup ... 297
Using the phone book............ 301
3-5. Using the interior lights Interior lights list .................... 308
• Interior lights ......................... 310
• Personal lights ....................... 310 3-6. Using the storage features
List of storage features........... 311
• Glove box ............................... 312
• Console box .......................... 313
• Overhead console............... 314
• Cup holders ........................... 315
• Auxiliary box ......................... 317
3-7. Other interior features Sun visors .................................. 318
Vanity mirror ............................ 319
Clock ......................................... 320
Ashtray ...................................... 321
Cigarette lighter .................... 322
Power outlet ............................ 323
Seat heaters ............................ 324
Seat heaters and ventilators ............................. 326
Armrest .................................... 328
Rear sunshade ........................ 329
Extended trunk........................ 331
Coat hooks .............................. 332
Floor mat .................................. 333
Trunk features ......................... 334
Garage door opener ............ 336
Compass .................................. 342
Safety Connect ...................... 346

200
ES350_U
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .The air conditioning system will begin to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Press to switch to automatic mode. Automatically switches between outside air and recirculated
air modes.
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display
Changes the air outlets used Off
Fan speed
Airflow display
Fan speed display
Passenger’s side
temperature
setting display
Driver's side
temperature control
Air conditioning
ON/OFF switch Outside air or
recirculated air mode
Windshield defogger Passenger’s side
temperature control
Dual operation switch
STEP1
STEP2

201
3-1. Using the air conditioning system and defogger
3
Interior features
ES350_UPress “

202
3-1. Using the air conditioning system and defogger
ES350_U■

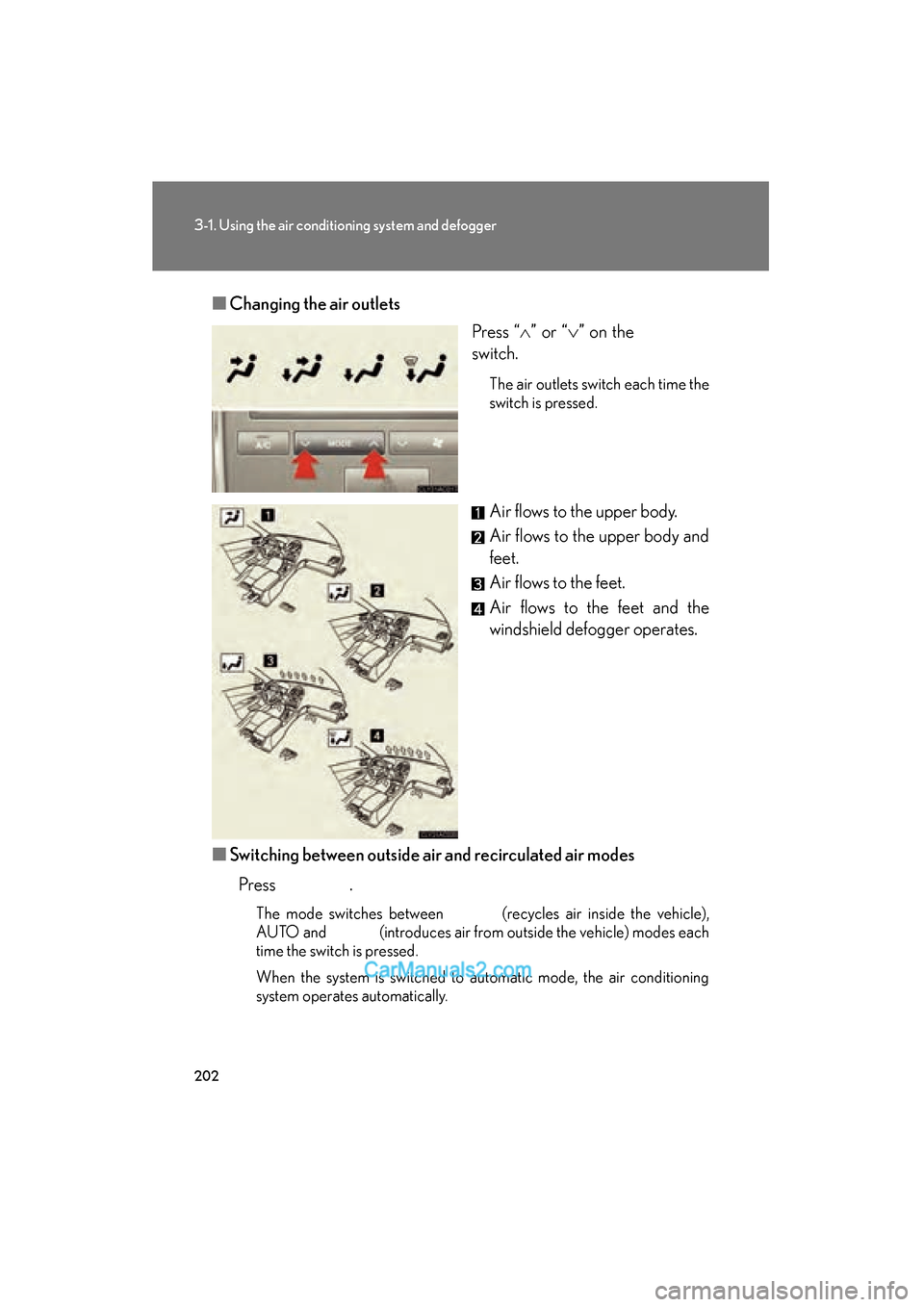

Changing the air outlets
Press “

203
3-1. Using the air conditioning system and defogger
3
Interior features
ES350_U

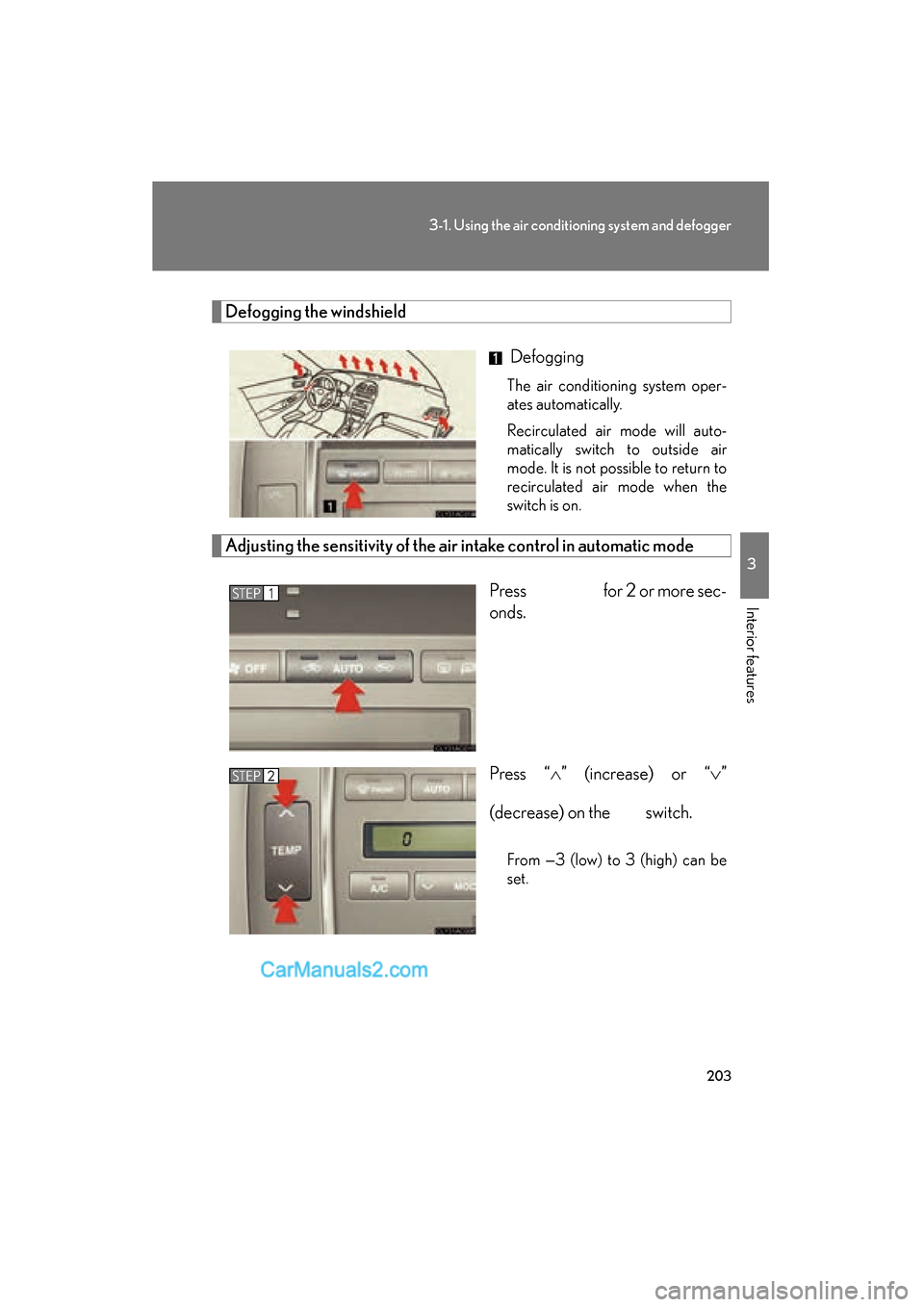

Defogging the windshield
Defogging
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return to
recirculated air mode when the
switch is on.
Adjusting the sensitivity of the air intake control in automatic mode
Press for 2 or more sec-
onds.
Press “

204
3-1. Using the air conditioning system and defogger
ES350_U

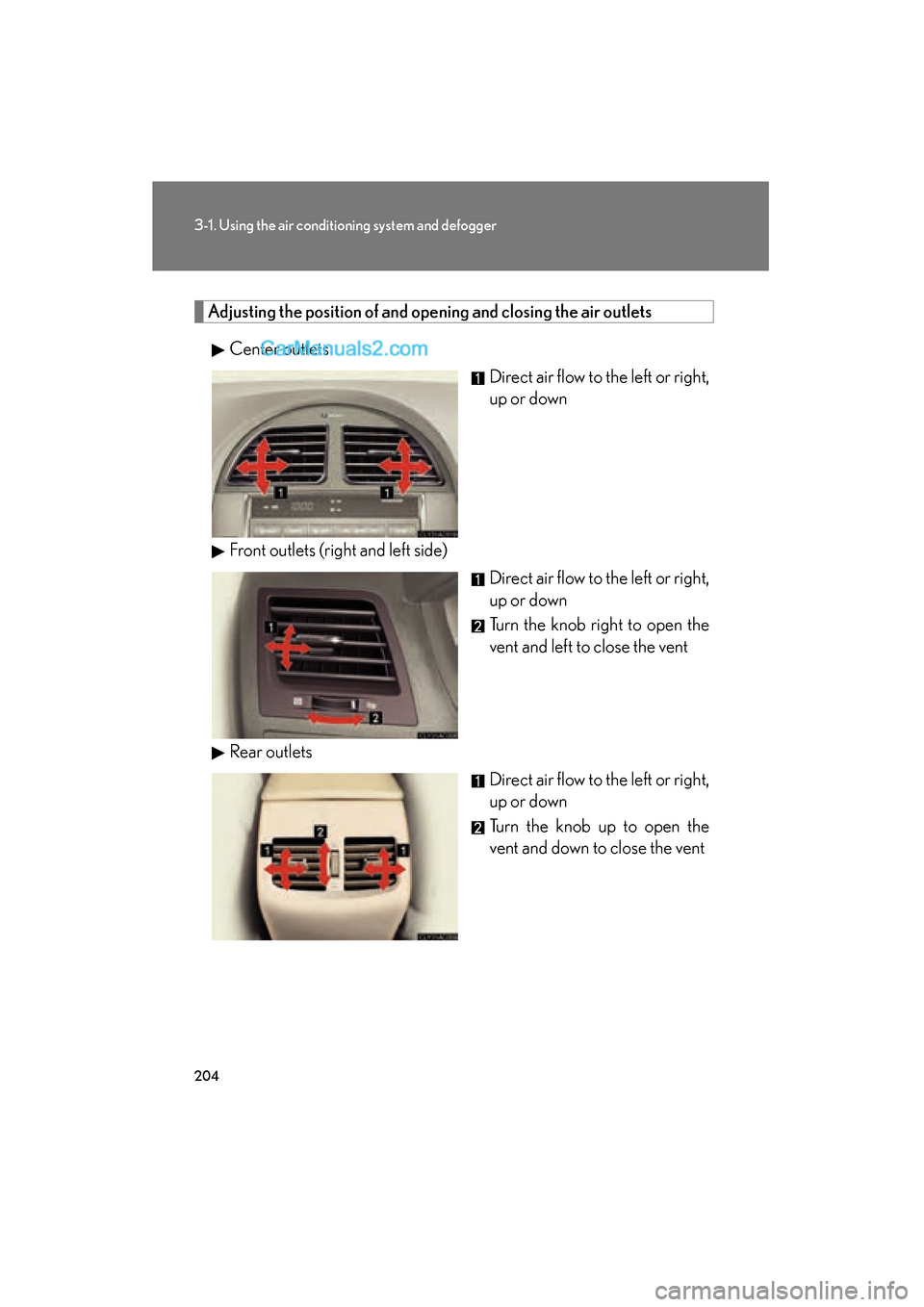

Adjusting the position of and opening and closing the air outlets
Center outlets Direct air flow to the left or right,
up or down
Front outlets (right and left side) Direct air flow to the left or right,
up or down
Turn the knob right to open the
vent and left to close the vent
Rear outlets Direct air flow to the left or right,
up or down
Turn the knob up to open the
vent and down to close the vent

205
3-1. Using the air conditioning system and defogger
3
Interior features
ES350_U

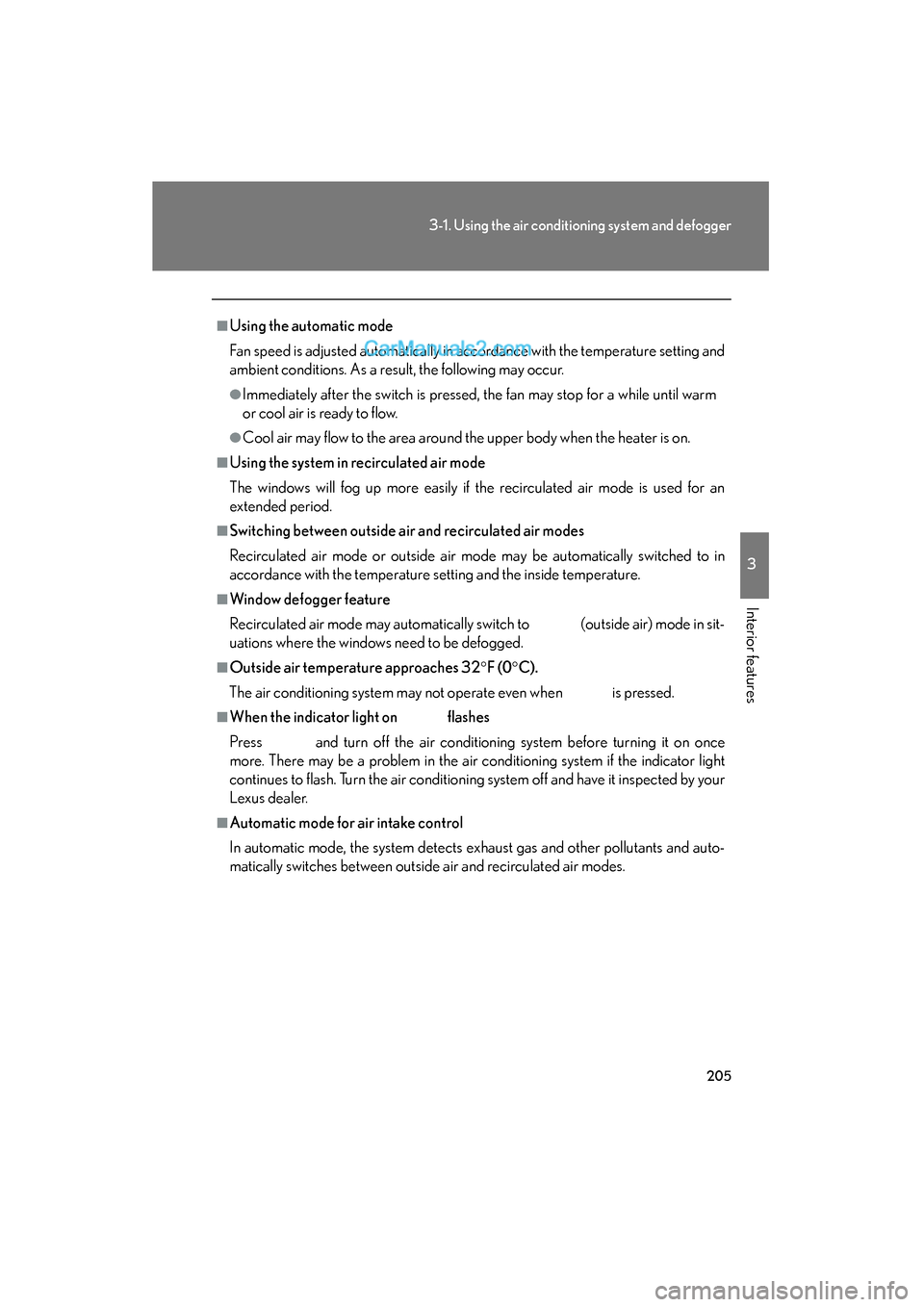

■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●Immediately after the switch is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for an
extended period.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to in
accordance with the temperature setting and the inside temperature.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in sit-
uations where the windows need to be defogged.
■Outside air temperature approaches 32 qF (0 qC).
The air conditioning system may not operate even when
is pressed.
■When the indicator light on flashes
Press
and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.

206
3-1. Using the air conditioning system and defogger
ES350_U

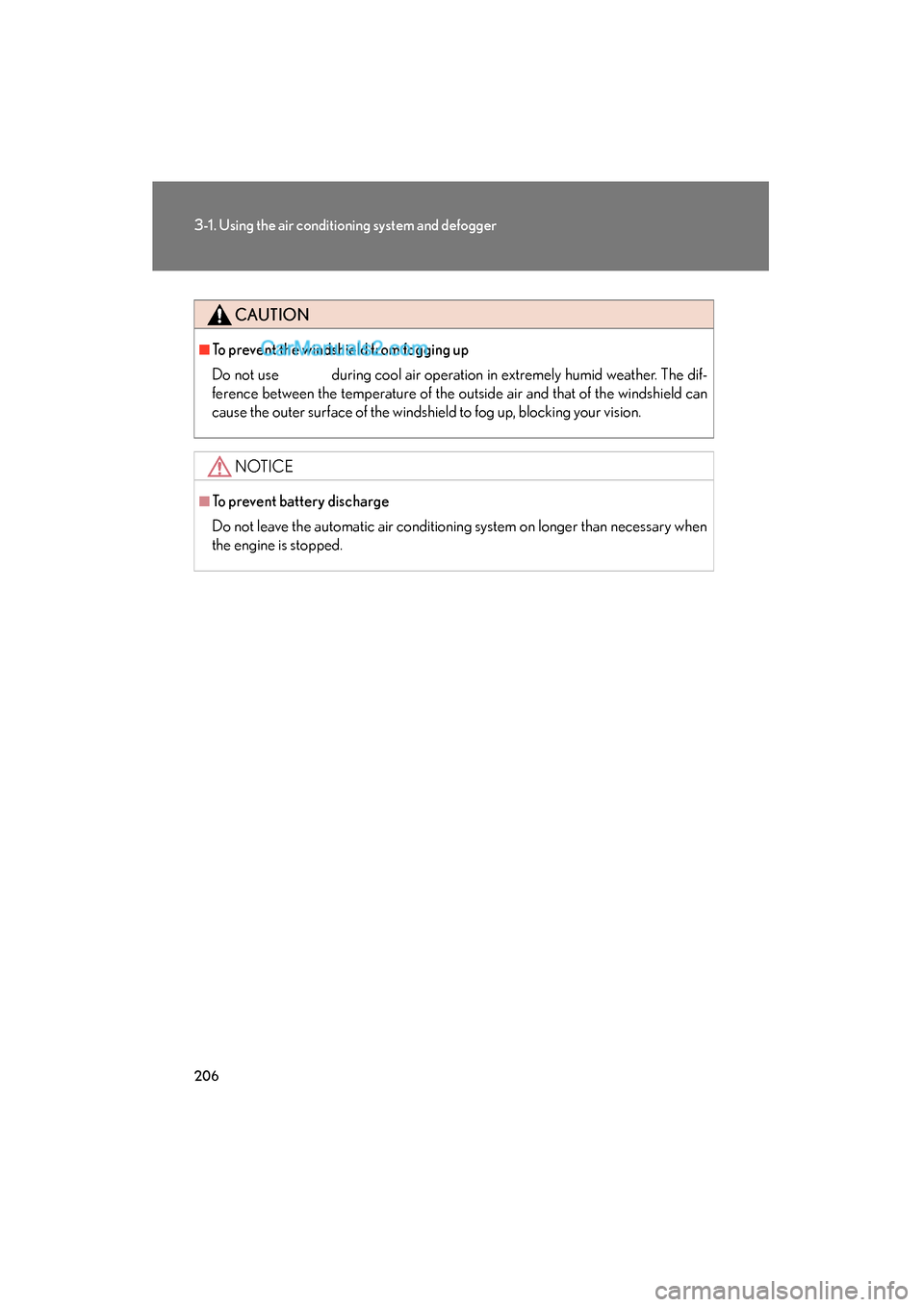

CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The dif-
ference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the automatic air conditioning system on longer than necessary when
the engine is stopped.
