2010 JEEP GRAND CHEROKEE Owner handbook (in English)

Automatic Door Locks — If Equipped
If this feature is selected, your door locks will
lock automatically when the vehicle speed is
above 15 mph (24 km/h) and all doors are
closed. This feature will reset whenever a door
is opened.
This feature is selectable and can be turned on
or off. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
Automatic Unlock On Exit Feature —
If Equipped
If Auto Unlock is enabled, this feature will unlock
all the doors when the driver’s door is opened if
the vehicle is stopped and in PARK or NEU-
TRAL. Refer to “Electronic Vehicle Information
Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
Child-Protection Door Lock
System — Rear Doors
To provide a safer environment for small chil-
dren riding in the rear seats, the rear doors are
equipped with Child-Protection Door Lock sys-
tem.
To engage or disengage the Child-
Protection Door Lock system
1. Open the rear door.
2. Insert the tip of the emergency key into the
lock and rotate to the LOCK or UNLOCK posi-
tion.
3. Repeat steps 1 and 2 for the opposite rear
door.
Child-Protection Door Lock Location
Child-Protection Door Lock Function
21

WARNING!
Avoid trapping anyone in a vehicle in a colli-
sion. Remember that the rear doors can only
be opened from the outside when the Child-
Protection locks are engaged (locked).
NOTE:
For emergency exit from the rear seats when
the Child-Protection Door Lock System is
engaged, manually raise the door lock knob
to the unlocked position, roll down the win-
dow, and open the door using the outside
door handle.
KEYLESS ENTER-N-GOThe Passive Entry system is an enhancement to
the vehicle’s Remote Keyless Entry (RKE) sys-
tem and a feature of Keyless Enter-N-Go. This
feature allows you to lock and unlock the vehi-
cle’s door(s) without having to press the RKE
transmitter lock or unlock buttons.
NOTE:
• Passive Entry may be programmed ON/
OFF, refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings (Customer-Programmable Features)” in
“Understanding Your Instrument Panel”
for further information.
• If a passive entry door handle has not
been used for 72 hours, the passive entry
feature for the handle may time out. Pull-
ing the deactivated front door handle will
reactivate the door handle’s passive entry
feature.
• If wearing gloves on your hands, or if it
has been raining on the passive entry
door handle, the unlock sensitivity can be
affected, resulting in a slower response
time.
• If you unlock the doors using the passive
entry door handles, but do NOT pull the
handle, the doors will automatically lock
after 30 seconds.
To Unlock From The Driver’s Side:
With a valid Passive Entry RKE transmitter
within 5 ft (1.5 m) of the driver’s door handle,
grab the driver’s front door handle to unlock the
driver’s door automatically. The interior door
panel lock knob will raise when the door is
unlocked. NOTE:
If “Unlock All Doors 1st Press” is pro-
grammed all doors will unlock when you
grab hold of the driver’s front door handle.
To select between “Unlock Driver Door 1st
Press” and “Unlock All Doors 1st Press”,
refer to “Electronic Vehicle Information Cen-
ter (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understand-
ing Your Instrument Panel” for further
information.
Grabbing The Driver’s Door Handle
22

To Unlock From The Passenger Side:
With a valid Passive Entry RKE transmitter
within 5 ft (1.5 m) of the passenger door handle,
grab the front passenger door handle to unlock
all four doors automatically. The interior door
panel lock knob will raise when the door is
unlocked.
NOTE:
All doors will unlock when the front passen-
ger door handle is grabbed regardless of the
driver’s door unlock preference setting
(“Unlock Driver Door 1st Press” or “Unlock
All Doors 1st Press”).
Preventing Inadvertent Locking Of Passive
Entry RKE Transmitter In Vehicle
To minimize the possibility of unintentionally
locking a Passive Entry RKE transmitter inside
your vehicle, the Passive Entry system is
equipped with an automatic door unlock fea-
ture which will function if there is no Key Fob
present in the ignition.If one of the vehicle doors is open and the door
panel switch is used to lock the vehicle, once all
open doors have been closed, the vehicle
checks the inside and outside of the vehicle for
any valid Passive Entry RKE transmitters. If one
of the vehicle’s Passive Entry RKE transmitters
is detected inside the vehicle, and no other
valid Passive Entry RKE transmitters is detected
outside the vehicle, the Passive Entry System
automatically unlocks all vehicle doors and
chirps the horn three times (on the third attempt
ALL doors will lock and the Passive Entry RKE
transmitter can be locked in the vehicle).
To Enter the Liftgate
With a valid Passive Entry RKE transmitter
within 3 ft (1.0 m) of the liftgate, press the
button on the right side of the chrome accent
bar, which is located on the liftgate below the
flipper glass to lock or unlock the vehicle.NOTE:
If “Unlock All Doors 1st Press” is pro-
grammed in EVIC, all doors will unlock when
you push the button on the liftgate. If
Un-
lock Driver Door 1st press is programmed
in EVIC, the liftgate and Flipper glass will
unlock when you press the button on the
liftgate For further information, refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Pro-
grammable Features)” in “Understanding
Your Instrument Panel”.
Liftgate Passive Entry Button
23

To Lock the Vehicle’s Doors
The front door handles have LOCK buttons
located on the outside of the handle.
With one of the vehicle’s Passive Entry RKE
transmitters within 5 ft (1.5 m) of the driver or
passenger front door handle, press the door
handle LOCK button to lock all four doors.NOTE:
•
After pressing the door handle LOCK but-
ton, you must wait 2 seconds before you
can unlock the doors with the same pas-
sive entry door handle. However, the RKE
unlock function will work during this time
period.
• The passive entry system will not operate
if the RKE transmitter battery is dead.
The vehicle doors can also be locked by using
the RKE transmitter lock button or the lock
button located on the vehicle’s interior door
panel.
WINDOWS
Power Windows
The power window controls are located on the
driver’s door trim panel. There is a single switch
on the front passenger door and rear doors
which operate the front passenger and rear
passenger door windows. The window controls
will operate only when the ignition switch is in
the ON/RUN or ACC position. The power window switches remain active for
up to 10 minutes after the ignition switch has
been turned OFF. Opening a vehicle front door
will cancel this feature.
Outside Door Handle Lock Button
Power Window Switches
24

WARNING!
Never leave children in a vehicle with the key
in the ignition switch or leave a vehicle with
Keyless Enter-N-Go in the ACC or ON/RUN
position. Occupants, particularly unattended
children, can become entrapped by the win-
dows while operating the power window
switches. Such entrapment may result in se-
rious injury or death.
Auto-Down
Both the driver and front passenger window
switches have an “Auto-Down” feature. Press
the window switch past the first detent, release,
and the window will go down automatically. To
cancel the “Auto-Down” movement, operate
the switch in either the up or down direction
and release the switch.
To open the window part way, press to the first
detent and release it when you want the win-
dow to stop. The power window switches remain active for
10 minutes after the ignition has been turned
OFF. Opening either front door will cancel this
feature.
Auto Up Feature with Anti-Pinch Protection —
Driver and Front Passenger Door Only
Lift the window switch to the second detent,
release, and the window will go up automati-
cally.
To stop the window from going all the way up
during the Auto Up operation, push down on
the switch briefly.
To close the window part way, lift the window
switch to the first detent and release when you
want the window to stop.
NOTE:
If the window runs into any obstacle during
Auto Up it will reverse direction and then go
back down. Remove the obstacle and use
the window switch again to close the win-
dow. Any impact due to rough road condi-
tions may trigger the auto reverse function
unexpectedly during Auto Up. If this hap-pens, pull the switch lightly to the first
detent and hold it to close the window manu-
ally.
WARNING!
There is no anti-pinch protection when the
window is almost closed. Be sure to clear all
objects from the window before closing.
Resetting the Auto Up Feature
Should the Auto Up feature stop working, the
window probably needs to be reset. To reset
Auto Up:
1. Pull the window switch up to close the
window completely and continue to hold the
switch up for an additional two seconds after
the window is closed.
2. Push the window switch down firmly to the
second detent to open the window completely
and continue to hold the switch down for an
additional two seconds after the window is fully
open.
25

Window Lockout Button
The Window Lockout button on the driver’s
door allows you to disable the window controls
on the rear doors. To disable the window con-
trols on the rear doors, press the Window
Lockout button. To enable the window controls,
press the Window Lockout button again.
Wind Buffeting
Wind buffeting can be described as the per-
ception of pressure on the ears or a helicopter-
type sound in the ears. Your vehicle may exhibit
wind buffeting with the windows down, or the
sunroof (if equipped) in certain open or partiallyopen positions. This is a normal occurrence
and can be minimized. If the buffeting occurs
with the sunroof open, adjust the sunroof open-
ing to minimize the buffeting.
LIFTGATETo open the liftgate, pull up on the handle and
lift. Manually unlocking the vehicle doors with
the plunger or a key in the lock cylinder will not
unlock the liftgate.
WARNING!
Driving with the liftgate open can allow poi-
sonous exhaust gases into your vehicle. You
and your passengers could be injured by
these fumes. Keep the liftgate closed when
you are operating the vehicle.
Liftgate Flipper GlassThe liftgate flipper glass is also unlocked when
the liftgate is unlocked. To open the flipper
glass, push up on the window switch located
on the liftgate.
Window Lockout Button
Liftgate Release
Liftgate Glass Release
26

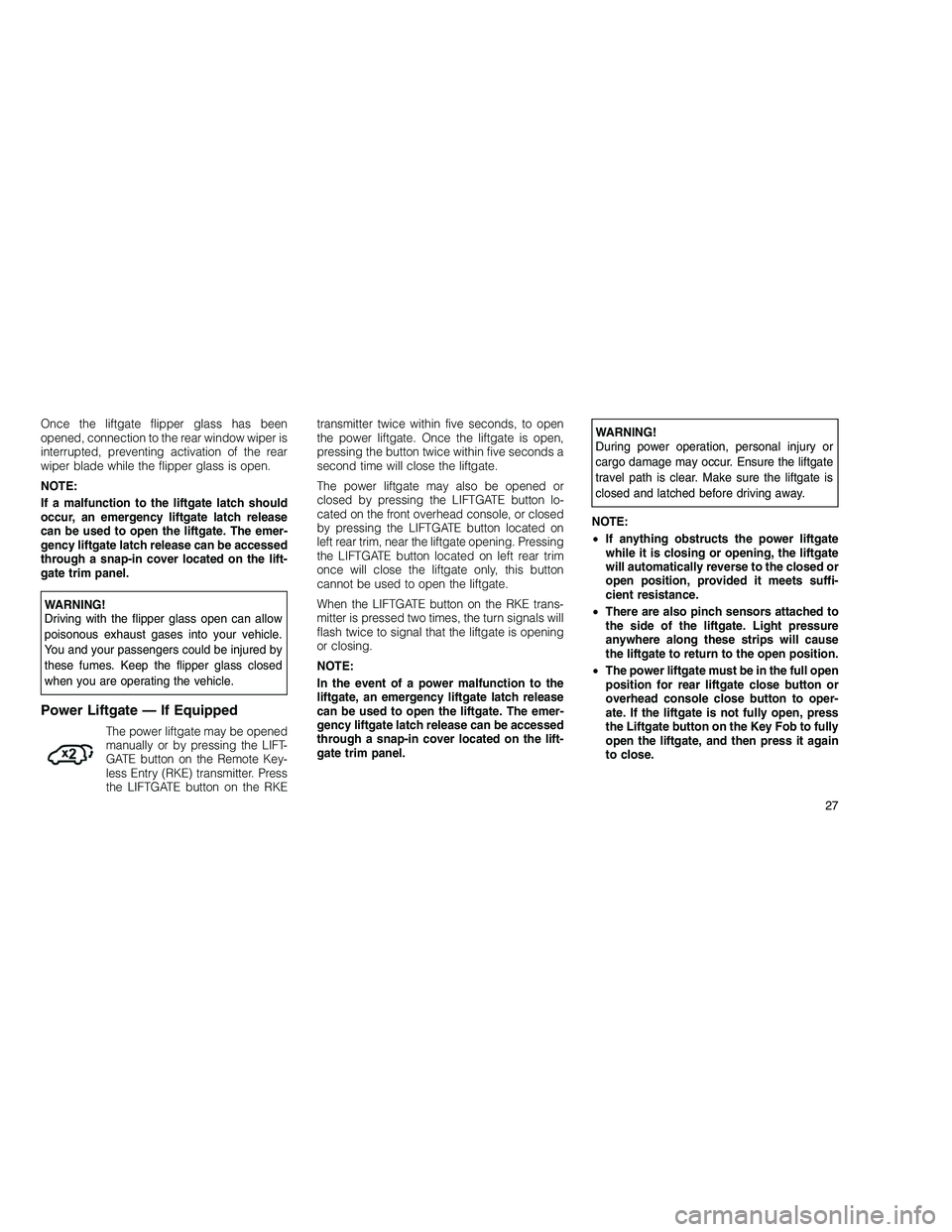

Once the liftgate flipper glass has been
opened, connection to the rear window wiper is
interrupted, preventing activation of the rear
wiper blade while the flipper glass is open.
NOTE:
If a malfunction to the liftgate latch should
occur, an emergency liftgate latch release
can be used to open the liftgate. The emer-
gency liftgate latch release can be accessed
through a snap-in cover located on the lift-
gate trim panel.
WARNING!
Driving with the flipper glass open can allow
poisonous exhaust gases into your vehicle.
You and your passengers could be injured by
these fumes. Keep the flipper glass closed
when you are operating the vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened
manually or by pressing the LIFT-
GATE button on the Remote Key-
less Entry (RKE) transmitter. Press
the LIFTGATE button on the RKEtransmitter twice within five seconds, to open
the power liftgate. Once the liftgate is open,
pressing the button twice within five seconds a
second time will close the liftgate.
The power liftgate may also be opened or
closed by pressing the LIFTGATE button lo-
cated on the front overhead console, or closed
by pressing the LIFTGATE button located on
left rear trim, near the liftgate opening. Pressing
the LIFTGATE button located on left rear trim
once will close the liftgate only, this button
cannot be used to open the liftgate.
When the LIFTGATE button on the RKE trans-
mitter is pressed two times, the turn signals will
flash twice to signal that the liftgate is opening
or closing.
NOTE:
In the event of a power malfunction to the
liftgate, an emergency liftgate latch release
can be used to open the liftgate. The emer-
gency liftgate latch release can be accessed
through a snap-in cover located on the lift-
gate trim panel.
WARNING!
During power operation, personal injury or
cargo damage may occur. Ensure the liftgate
travel path is clear. Make sure the liftgate is
closed and latched before driving away.
NOTE:
• If anything obstructs the power liftgate
while it is closing or opening, the liftgate
will automatically reverse to the closed or
open position, provided it meets suffi-
cient resistance.
• There are also pinch sensors attached to
the side of the liftgate. Light pressure
anywhere along these strips will cause
the liftgate to return to the open position.
• The power liftgate must be in the full open
position for rear liftgate close button or
overhead console close button to oper-
ate. If the liftgate is not fully open, press
the Liftgate button on the Key Fob to fully
open the liftgate, and then press it again
to close.
27

•If the liftgate handle is pulled while the
power liftgate is closing, the liftgate will
reverse to the full open position.
• If the liftgate handle is pulled while the
power liftgate is opening, the liftgate mo-
tor will disengage to allow manual opera-
tion.
• The power liftgate buttons will not oper-
ate if the vehicle is in gear or the vehicle
speed is above 0 mph (0 km/h).
• The power liftgate will not operate in tem-
peratures below 22°F ( 30°C) or tem-
peratures above 150°F (65°C). Be sure to
remove any buildup of snow or ice from
the liftgate before pressing any of the
power liftgate switches.
•
If the power liftgate encounters multiple
obstructions within the same cycle, the
system will automatically stop and the lift-
gate must be opened or closed manually.
• If your liftgate is power closing and you
put the vehicle in gear, the liftgate will
continue to power close. However, ve-
hicle movement may result in a detection
of an obstruction.
WARNING!
• Driving with the liftgate open can allow
poisonous exhaust gases into your vehicle.
You and your passengers could be injured
by these fumes. Keep the liftgate closed
when you are operating the vehicle.
• If you are required to drive with the liftgate
open, make sure that all windows are
closed, and the climate control blower
switch is set at high speed. Do not use the
recirculation mode.
Gas props support the liftgate in the open
position. However, because the gas pressure
drops with temperature, it may be necessary to
assist the props when opening the liftgate in
cold weather.
OCCUPANT RESTRAINTSSome of the most important safety features in
your vehicle are the restraint systems:
• Three-point lap and shoulder belts for the
driver and all passengers •
Advanced Front Airbags for driver and front
passenger
• Supplemental Active Head Restraints (AHR)
located on top of the front seats (integrated
into the head restraint)
• Supplemental driver side knee airbag
• Supplemental Side Airbag Inflatable Cur-
tains (SABIC) for the driver and passengers
seated next to a window — if equipped
• Supplemental Seat-Mounted Side Airbags
(SAB) — if equipped
• An energy-absorbing steering column and
steering wheel
• Knee bolsters/blockers for front seat occu-
pants
• Front seat belts incorporate pretensioners to
enhance occupant protection by managing
occupant energy during an impact event
•
All seat belt systems (except the driver’s)
include Automatic Locking Retractors (ALRs),
which lock the seat belt webbing into position
by extending the belt all the way out and then
28
