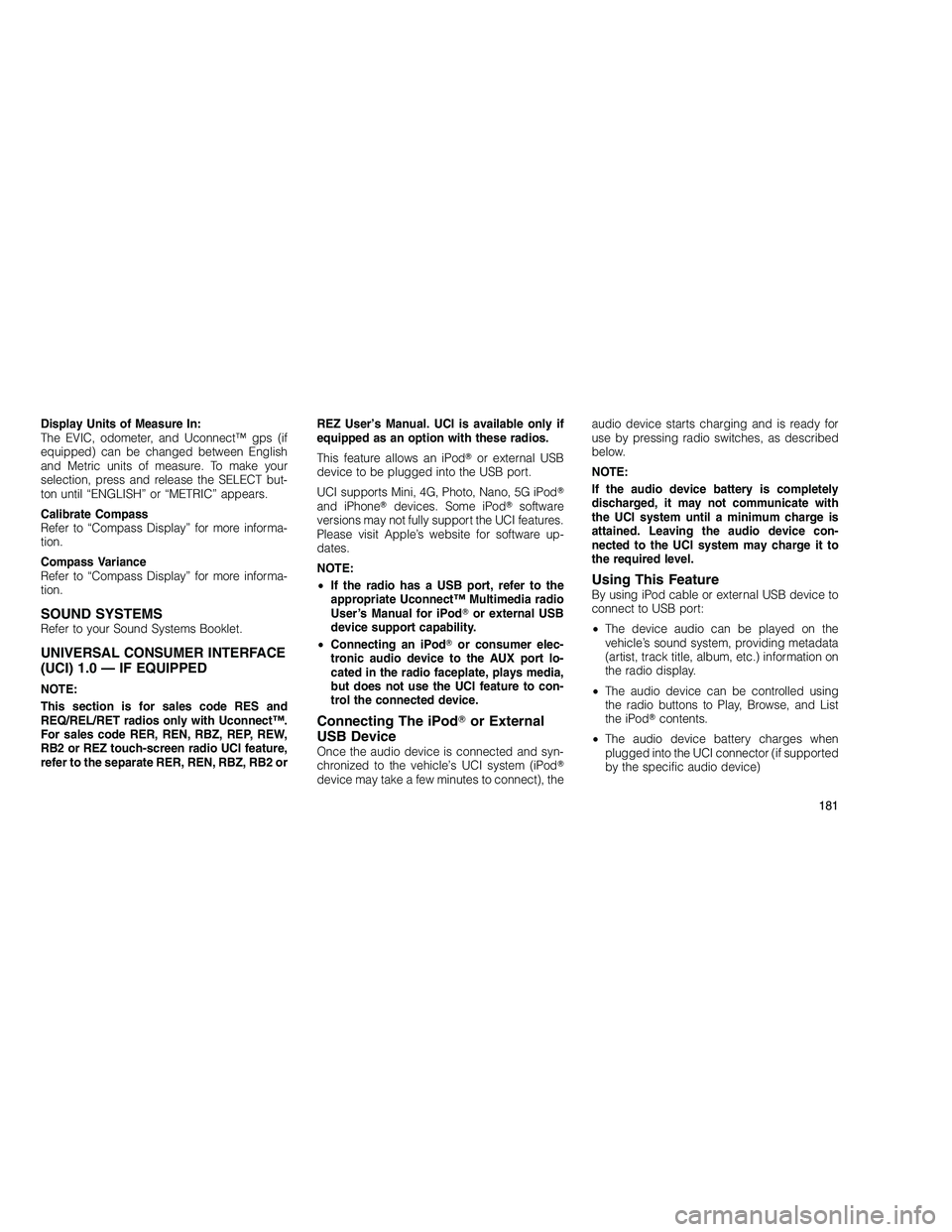

Display Units of Measure In:
The EVIC, odometer, and Uconnect™ gps (if
equipped) can be changed between English
and Metric units of measure. To make your
selection, press and release the SELECT but-
ton until “ENGLISH” or “METRIC” appears.
Calibrate Compass
Refer to “Compass Display” for more informa-
tion.
Compass Variance
Refer to “Compass Display” for more informa-
tion.
SOUND SYSTEMSRefer to your Sound Systems Booklet.
UNIVERSAL CONSUMER INTERFACE
(UCI) 1.0 — IF EQUIPPED
NOTE:
This section is for sales code RES and
REQ/REL/RET radios only with Uconnect™.
For sales code RER, REN, RBZ, REP, REW,
RB2 or REZ touch-screen radio UCI feature,
refer to the separate RER, REN, RBZ, RB2 orREZ User’s Manual. UCI is available only if
equipped as an option with these radios.
This feature allows an iPod
or external USB
device to be plugged into the USB port.
UCI supports Mini, 4G, Photo, Nano, 5G iPod
and iPhone devices. Some iPod software
versions may not fully support the UCI features.
Please visit Apple’s website for software up-
dates.
NOTE:
• If the radio has a USB port, refer to the
appropriate Uconnect™ Multimedia radio
User’s Manual for iPod or external USB
device support capability.
• Connecting an iPod or consumer elec-
tronic audio device to the AUX port lo-
cated in the radio faceplate, plays media,
but does not use the UCI feature to con-
trol the connected device.
Connecting The iPod or External
USB Device
Once the audio device is connected and syn-
chronized to the vehicle’s UCI system (iPod
device may take a few minutes to connect), the audio device starts charging and is ready for
use by pressing radio switches, as described
below.
NOTE:
If the audio device battery is completely
discharged, it may not communicate with
the UCI system until a minimum charge is
attained. Leaving the audio device con-
nected to the UCI system may charge it to
the required level.
Using This FeatureBy using iPod cable or external USB device to
connect to USB port:
•
The device audio can be played on the
vehicle’s sound system, providing metadata
(artist, track title, album, etc.) information on
the radio display.
• The audio device can be controlled using
the radio buttons to Play, Browse, and List
the iPod contents.
• The audio device battery charges when
plugged into the UCI connector (if supported
by the specific audio device)
181

Controlling The iPodor External
USB Device Using Radio Buttons
To get into the UCI (iPod or external USB
device) mode and access a connected audio
device, either press the “AUX” button on the
radio faceplate or press VR button and say
 USB or Switch to USB . Once in the UCI
mode, audio tracks (if available from audio
device) start playing over the vehicle’s audio
system.
Play ModeWhen switched to UCI mode, the iPod or
external USB device automatically starts Play
mode. In Play mode, the following buttons on
the radio faceplate may be used to control the
iPod or external USB device and display data:
• Use the TUNE control knob to select the next
or previous track.
• Turning it clockwise (forward) by one
click, while playing a track, skips to the
next track or press VR button and say
 Next Track . •
Turning it counterclockwise (backward)
by one click, will jump to the previous
track in the list or press VR button and say
 Previous Track
• Jump backward in the current track by
pressing and holding the << RWbutton.
Holding the << RWbutton long enough
will jump to the beginning of the current
track.
• Jump forward in the current track by press-
ing and holding the FF>> button.
• A single press backward << RWor forward
FF >> will jump backward or forward re-
spectively, for five seconds.
• Use the << SEEKandSEEK >> buttons to
jump to the previous or next track. Pressing
the SEEK >> button during play mode will
jump to the next track in the list, or can press
VR button and say Next or Previous Track .
• While a track is playing, press the INFO
button to see the associated metadata (art-
ist, track title, album, etc.) for that track.
Pressing the INFObutton again jumps to the
next screen of data for that track. Once all screens have been viewed, the last
INFO
button press will go back to the play mode
screen on the radio.
• Pressing the REPEATbutton will change the
audio device mode to repeat the current
playing track or press the VR button and say
 Repeat ON or Repeat Off .
• Press the SCANbutton to use UCI device
scan mode, which will play the first 10 sec-
onds of each track in the current list and then
forward to the next song. To stop SCAN
mode and start playing the desired track,
when it is playing the track, press the SCAN
button again. During Scan mode, pressing
the << SEEKandSEEK >> buttons will
select the previous and next tracks.
• RND button (available on sales code RES
radio only): Pressing this button toggles be-
tween Shuffle ON and Shuffle OFF modes for
the iPod or external USB device, or press
VR button and say Shuffle ON or
Shuffle
Off .Ifthe RNDicon is showing on the radio
display, then the shuffle mode is ON.
182

List Or Browse ModeDuring Play mode, pressing any of the buttons
described below, will bring up List mode. List
mode enables scrolling through the list of
menus and tracks on the audio device.
•TUNE control knob: The TUNEcontrol knob
functions in a similar manner as the scroll
wheel on the or external USB device.
• Turning it clockwise (forward) and coun-
terclockwise (backward) scrolls through
the lists, displaying the track detail on the
radio display. Once the track to be played
is highlighted on the radio display, press
the TUNE control knob to select and start
playing the track. Turning the TUNEcon-
trol knob fast will scroll through the list
faster. During fast scroll, a slight delay in
updating the information on the radio dis-
play may be noticeable.
• During all List modes, the iPod displays
all lists in “wrap-around” mode. So if the
track is at the bottom of the list, just turn
the wheel backwards (counter-clockwise)
to get to the track faster. •
In List mode, the radio PRESETbuttons
are used as shortcuts to the following lists
on the iPod or external USB device.
• Preset 1 – Playlists
• Preset2–Ar tists
• Preset 3 – Albums
• Preset 4 – Genres
• Preset 5 – Audiobooks
• Preset 6 – Podcasts
• Pressing a PRESET button will display the
current list on the top line and the first item
in that list on the second line.
• To Exit List mode without selecting a
track, press the same PRESETbutton
again to go back to Play mode.
• LIST button: The LISTbutton will display the
top level menu of the iPod or external USB
device. Turn the TUNEcontrol knob to list the
top-menu item to be selected and press the
TUNE control knob. This will display the next
sub-menu list item on the audio device, then
follow the same steps to go to the desired track in that list. Not all iPod
or external USB
device sub-menu levels are available on this
system.
• MUSIC TYPE button: TheMUSIC TYPE but-
ton is another shortcut button to the genre
listing on your audio device.
CAUTION!
• Leaving the iPod or external USB device
(or any supported device) anywhere in the
vehicle in extreme heat or cold can alter the
operation or damage the device. Follow the
device manufacturer’s guidelines.
• Placing items on the iPod or external USB
device, or connections to the iPod or
external USB device in the vehicle, can
cause damage to the device and/or to the
connectors.
WARNING!
Do not plug in or remove the iPod or external
USB device while driving. Failure to follow this
warning could result in an accident.
183

Bluetooth Streaming Audio (BTSA)Music can be streamed from your cellular
phone to the Uconnect™ phone system.
Controlling BTSA using Radio Buttons
To get into the BTSA mode, press either “AUX”
button on the radio or press VR button and say
“Bluetooth Streaming Audio”.
Play Mode
When switched to BTSA mode, some audio
devices can start playing music over the vehi-
cle’s audio system, but some devices require
the music to be initiated on the device first, then
it will get streamed to Uconnect™ phone sys-
tem. Seven devices can be paired to
Uconnect™ phone system, but just one can be
selected and played.
Selecting different Audio Device
1. Press PHONE button to begin.
2. After theReady prompt and the following
beep, say Setup , then Select Audio De-
vices .
3. Say name of the audio device or ask
Uconnect™ phone system to list audio de-
vices. Next Track
Use the SEEK UP button, or press the VR
button on the radio and say “Next Track” to
jump to the next track music on your cellular
phone.
Previous Track
Use the SEEK DOWN button, or press the VR
button on the radio and say “Previous Track” to
jump to the previous track music on your cel-
lular phone.
Browse
Browsing is not available on a BTSA device.
Only the current song that is playing will display
info.
STEERING WHEEL AUDIO
CONTROLS
The remote sound system controls are located
on the rear surface of the steering wheel.
Reach behind the wheel to access the
switches.
The right-hand control is a rocker-type switch
with a pushbutton in the center and controls the
volume and mode of the sound system. Press-
ing the top of the rocker switch will increase the
volume, and pressing the bottom of the rocker
switch will decrease the volume.
Pressing the center button will make the radio
switch between the various modes available
(AM/FM/SAT/CD/HDD/AUX/VES, etc.).
The left-hand control is a rocker-type switch
with a pushbutton in the center. The function of
Remote Sound System Controls
(Back View Of Steering Wheel)
184

the left-hand control is different depending on
which mode you are in.
The following describes the left-hand control
operation in each mode.
Radio OperationPressing the top of the switch will “Seek” up for
the next listenable station and pressing the
bottom of the switch will “Seek” down for the
next listenable station.
The button located in the center of the left-hand
control will tune to the next preset station that
you have programmed in the radio preset
pushbutton.
CD PlayerPressing the top of the switch once will go to
the next track on the CD. Pressing the bottom of
the switch once will go to the beginning of the
current track, or to the beginning of the previ-
ous track if it is within one second after the
current track begins to play.
If you press the switch up or down twice, it
plays the second track; three times, it will play
the third, etc.The center button on the left side rocker switch
has no function for a single-disc CD player.
However, when a multiple-disc CD player is
equipped on the vehicle, the center button will
select the next available CD in the player.
CD/DVD DISC MAINTENANCETo keep a CD/DVD in good condition, take the
following precautions:
1. Handle the disc by its edge; avoid touching
the surface.
2. If the disc is stained, clean the surface with
a soft cloth, wiping from center to edge.
3. Do not apply paper or tape to the disc; avoid
scratching the disc.
4. Do not use solvents such as benzene, thin-
ner, cleaners, or anti-static sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures
may become too high.
NOTE:
If you experience difficulty in playing a par-
ticular disc, it may be damaged (i.e.,
scratched, reflective coating removed, a
hair, moisture or dew on the disc) oversized,
or have protection encoding. Try a known
good disc before considering disc player
service.
RADIO OPERATION AND MOBILE
PHONES
Under certain conditions, the mobile phone
being on in your vehicle can cause erratic or
noisy performance from your radio. This condi-
tion may be lessened or eliminated by relocat-
ing the mobile phone antenna. This condition is
not harmful to the radio. If your radio perfor-
mance does not satisfactorily “clear” by the
repositioning of the antenna, it is recom-
mended that the radio volume be turned down
or off during mobile phone operation.
CLIMATE CONTROLSThe Air Conditioning and Heating System is
designed to make you comfortable in all types
of weather.
185

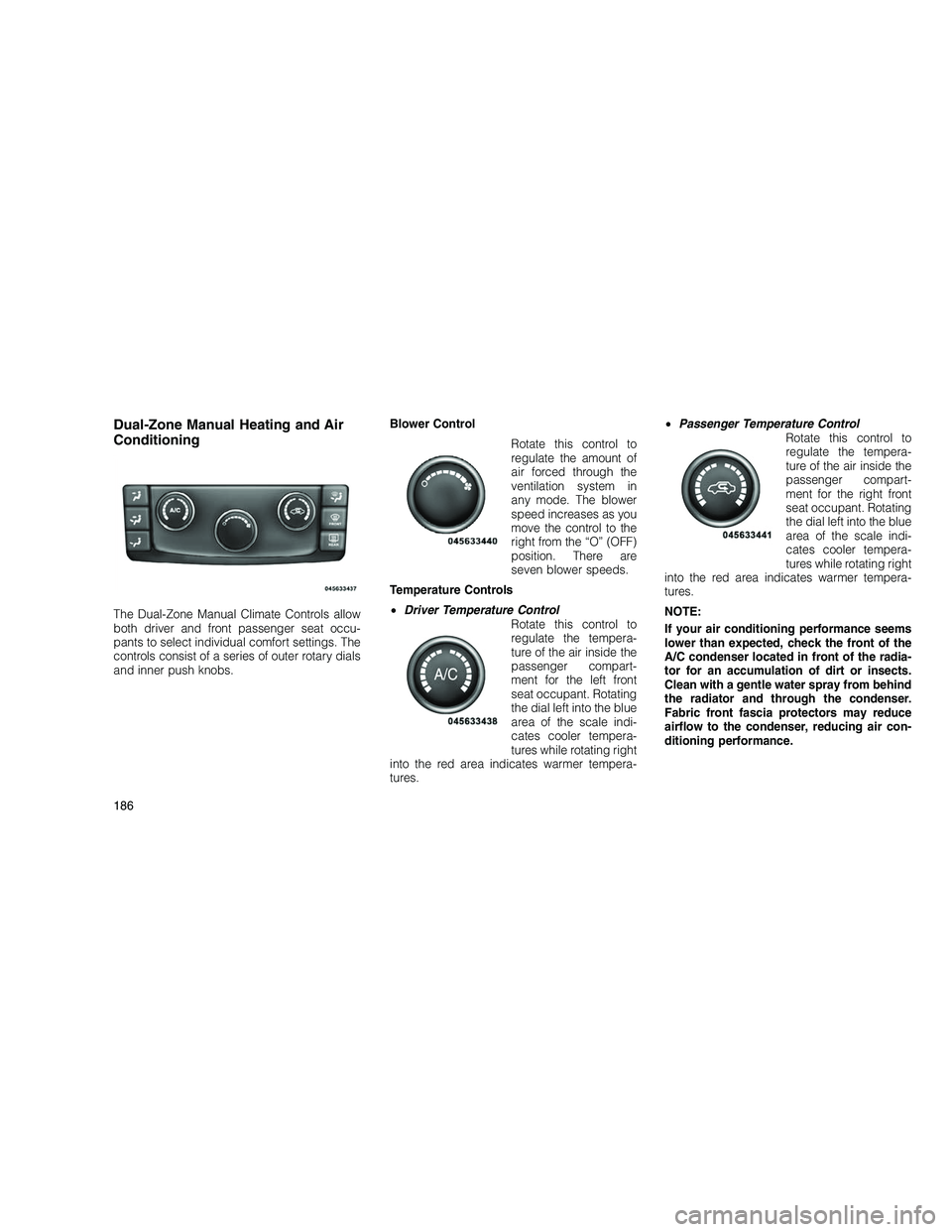

Dual-Zone Manual Heating and Air
Conditioning
The Dual-Zone Manual Climate Controls allow
both driver and front passenger seat occu-
pants to select individual comfort settings. The
controls consist of a series of outer rotary dials
and inner push knobs.Blower Control
Rotate this control to
regulate the amount of
air forced through the
ventilation system in
any mode. The blower
speed increases as you
move the control to the
right from the “O” (OFF)
position. There are
seven blower speeds.
Temperature Controls
• Driver Temperature Control
Rotate this control to
regulate the tempera-
ture of the air inside the
passenger compart-
ment for the left front
seat occupant. Rotating
the dial left into the blue
area of the scale indi-
cates cooler tempera-
tures while rotating right
into the red area indicates warmer tempera-
tures. •
Passenger Temperature Control
Rotate this control to
regulate the tempera-
ture of the air inside the
passenger compart-
ment for the right front
seat occupant. Rotating
the dial left into the blue
area of the scale indi-
cates cooler tempera-
tures while rotating right
into the red area indicates warmer tempera-
tures.
NOTE:
If your air conditioning performance seems
lower than expected, check the front of the
A/C condenser located in front of the radia-
tor for an accumulation of dirt or insects.
Clean with a gentle water spray from behind
the radiator and through the condenser.
Fabric front fascia protectors may reduce
airflow to the condenser, reducing air con-
ditioning performance.
186

Mode Control (Air Direction)
Push the mode control buttons to choose from
several patterns of air distribution.
PanelAir is directed through the outlets in the
instrument panel. These outlets can be
adjusted to direct airflow.
NOTE:
The center instrument panel outlets can be
aimed so that they are directed toward the
rear seat passengers for maximum airflow
to the rear.
Bi-Level Air is directed through the panel and
floor outlets.
NOTE:
For all settings except full cold or full hot,
there is a difference in temperature between
the upper and lower outlets. The warmer air
flows to the floor outlets. This feature gives
improved comfort during sunny but cool
conditions. Floor
Air is directed through the floor outlets
with a small amount flowing through the
defrost and side window demist outlets.
Mix Air is directed through the floor, defrost,
and side window demist outlets. This
setting works best in cold or snowy
conditions that require extra heat to the
windshield. This setting is good for maintaining
comfort while reducing moisture on the wind-
shield.
Defrost Air is directed through the windshield
and side window demist outlets. Use
this mode with maximum blower and
temperature settings for best windshield and
side window defrosting.
NOTE:
• In Floor, Mix and Defrost modes a small
amount of air will flow through the out-
board panel outlets for occupant comfort.
• The air conditioning compressor oper-
ates in Mix, Defrost, or a blend of these
modes, even if the Air Conditioning (A/C) button is not pressed. This dehumidifies
the air to help dry the windshield. To
improve fuel economy, use these modes
only when necessary.
Recirculation Control Pressing the Recirculation Control
button will put the system in recir-
culation mode. This can be used
when outside conditions such as
smoke, odors, dust, or high humid-
ity are present. Activating recircu-
lation will cause the LED in the control button to
illuminate.
NOTE:
• Continuous use of the recirculation mode
may make the inside air stuffy and win-
dow fogging may occur. Extended use of
this mode is not recommended.
• The use of the recirculation mode in cold
or damp weather could cause windows to
fog on the inside, because of moisture
buildup inside the vehicle. Select the Out-
side Air position for maximum defogging.
• The A/C will engage automatically to pre-
vent fogging when the recirculation but-
187

ton is pressed and the mode control is set
to panel or panel / floor.
• The A/C can be deselected manually with-
out disturbing the mode control selection.
• When the ignition switch is turned to the
LOCK position or the ignition switch
START/STOP button is cycled to OFF, the
recirculation feature will be cancelled.
Air Conditioning Control Press this button to en-
gage the Air Condition-
ing. A light will illumi-
nate when the Air
Conditioning System is
engaged. Rotating the
dial left into the blue
area of the scale indi-
cates cooler tempera-
tures while rotating right
into the red area indicates warmer tempera-
tures.
NOTE:
The air conditioning compressor will not
engage until the engine has been running
for about 10 seconds. •
MAX A/C
For maximum cooling use the A/C and recircu-
lation buttons at the same time.
• ECONOMY MODE
If economy mode is desired, press the A/C
button to turn OFF the indicator light and the
A/C compressor. Then, move the temperature
control to the desired temperature.
Dual-Zone Automatic Temperature
Control (ATC) — If Equipped
• The Automatic Temperature Control (ATC)
allows both driver and front passenger seat
occupants to select individual comfort set-
tings.
• When occupants in the vehicle select an
Auto mode operation, Auto blower operation
is set by using a push button on the control
unit and a comfort temperature setting by
using the temperature up and down buttons.
• The system provides set-and-forget opera-
tion for optimum comfort and convenience.
• The system can be controlled manually, if
desired. The ATC system automatically maintains the
interior comfort level desired by the driver and
passenger.
1. A/C Button
Press and release to change the current Air
Conditioning (A/C) setting, the indicator illumi-
nates when A/C is ON. Performing this function
will cause the ATC to switch into manual mode.
2. Recirculation Control Button
Press and release to change the current set-
ting, the indicator illuminates when ON.
Automatic Temperature Control (ATC) Panel
188
