2010 JEEP GRAND CHEROKEE Owner handbook (in English)

Changing the Volume
1. Start a dialogue by pressing the Voice
Command
button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to
adjust the volume to a comfortable level while
the Voice Command system is speaking.
Please note the volume setting for Voice Com-
mand is different than the audio system.
Main Menu
Start a dialogue by pressing the Voice
Command
button. You may say “Main
Menu” to switch to the main menu.
In this mode, you can say the following com-
mands:
• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “System Setup” (to switch to system setup) Radio AM (or Radio Long Wave or Radio
Medium Wave — If Equipped)
To switch to the AM band, say “AM” or “Radio
AM”. In this mode, you may say the following
commands:
•
“Frequency” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous
station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)
Radio FM
To switch to the FM band, say “FM” or “Radio
FM”. In this mode, you may say the following
commands:
• “Frequency” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous
station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu) Disc
To switch to the disc mode, say “Disc”. In this
mode, you may say the following commands:
•
“Track” (#) (to change the track)
• “Next Track” (to play the next track)
• “Previous Track” (to play the previous track)
• “Main Menu” (to switch to the main menu)
Memo
To switch to the voice recorder mode, say
“Memo”. In this mode, you may say the follow-
ing commands:
• “New Memo” (to record a new memo) —
During the recording, you may press the
Voice Command
button to stop re-
cording. You proceed by saying one of the
following commands:
“Save” (to save the memo)
“Continue” (to continue recording)
“Delete” (to delete the recording)
• “Play Memos” (to play previously recorded
memos) — During the playback you may
press the Voice Command
button to
93

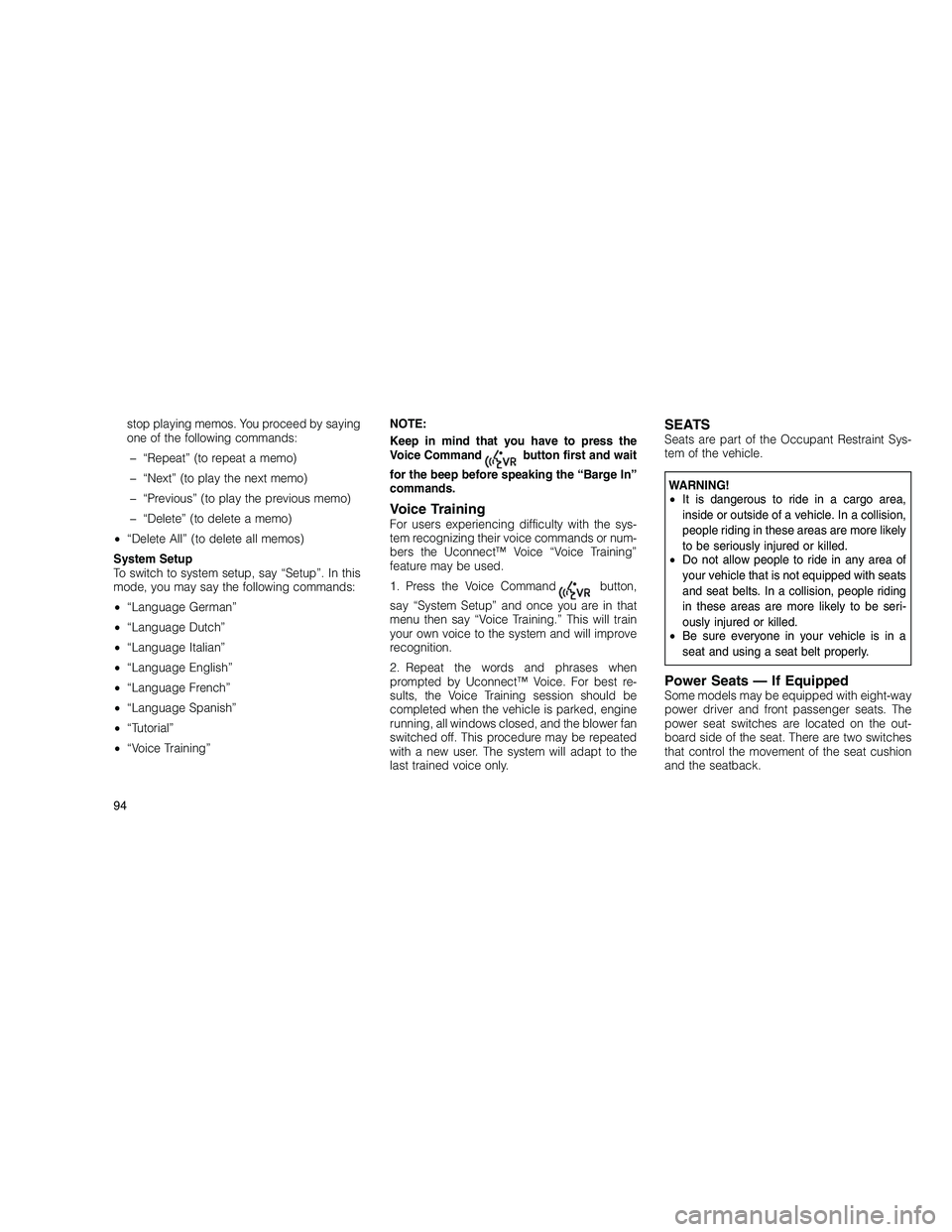

stop playing memos. You proceed by saying
one of the following commands: “Repeat” (to repeat a memo)
“Next” (to play the next memo)
“Previous” (to play the previous memo)
“Delete” (to delete a memo)
• “Delete All” (to delete all memos)
System Setup
To switch to system setup, say “Setup”. In this
mode, you may say the following commands:
• “Language German”
• “Language Dutch”
• “Language Italian”
• “Language English”
• “Language French”
• “Language Spanish”
• “Tutorial”
• “Voice Training” NOTE:
Keep in mind that you have to press the
Voice Command
button first and wait
for the beep before speaking the “Barge In”
commands.
Voice TrainingFor users experiencing difficulty with the sys-
tem recognizing their voice commands or num-
bers the Uconnect™ Voice “Voice Training”
feature may be used.
1. Press the Voice Command
button,
say “System Setup” and once you are in that
menu then say “Voice Training.” This will train
your own voice to the system and will improve
recognition.
2. Repeat the words and phrases when
prompted by Uconnect™ Voice. For best re-
sults, the Voice Training session should be
completed when the vehicle is parked, engine
running, all windows closed, and the blower fan
switched off. This procedure may be repeated
with a new user. The system will adapt to the
last trained voice only.
SEATSSeats are part of the Occupant Restraint Sys-
tem of the vehicle.
WARNING!
• It is dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely
to be seriously injured or killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts. In a collision, people riding
in these areas are more likely to be seri-
ously injured or killed.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
Power Seats — If EquippedSome models may be equipped with eight-way
power driver and front passenger seats. The
power seat switches are located on the out-
board side of the seat. There are two switches
that control the movement of the seat cushion
and the seatback.
94

Adjusting the seat forward or rearward
The seat can be adjusted both forward and
rearward. Push the seat switch forward or rear-
ward, the seat will move in the direction of the
switch. Release the switch when you have
reached the desired position.Adjusting the seat up or down
The height of the seats can be adjusted up or
down. Pull upward or push downward on the
rear of the seat switch, the seat will move in the
direction of the switch. Release the switch
when you have reached the desired position.
Tilting the seat up or down
The angle of the seat cushion can be adjusted
up or down. Pull upward or push downward on
the front of the seat switch, the front of the seat
cushion will move in the direction of the switch.
Release the switch when you have reached the
desired position.
Reclining the Seatback
The angle of the seatback can be adjusted
forward or backward. Push the seatback switch
forward or rearward, the seat will move in the
direction of the switch. Release the switch
when you have reached the desired position.
WARNING!
•
Adjusting a seat while driving may be dan-
gerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
• Seats should be adjusted before fastening
the seatbelts and while the vehicle is
parked. Serious injury or death could result
from a poorly adjusted seatbelt.
• Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you could
slide under the seat belt, which could result
in serious injury or death.
CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause
damage to the seat controls. Seat travel may
become limited if movement is stopped by an
obstruction in the seat’s path.
Power Seat Switches
1 — Seatback Switch
2 — Seat Switch
95

Passenger’s Power SeatSome models are equipped with a six-way
power passenger seat. The power seat switch
is located on the outboard side of the seat. The
switch is used to control the movement of the
seat and seat cushion.
Adjusting the seat forward or rearward
The seat can be adjusted both forward and
rearward. Push the seat switch forward or rear-
ward, the seat will move in the direction of the
switch. Release the switch when you have
reached the desired position.
Adjusting the seat up or down
The height of the seats can be adjusted up or
down. Pull upward or push downward on the
seat switch, the seat will move in the direction
of the switch. Release the switch when you
have reached the desired position.
Tilting the seat up or down
The angle of the seat cushion can be adjusted
up or down. Pull upward or push downward on
the front of the seat switch, the front of the seat
cushion will move in the direction of the switch.
Release the switch when you have reached the
desired position.WARNING!
•Adjusting a seat while driving may be dan-
gerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
• Seats should be adjusted before fastening
the seatbelts and while the vehicle is
parked. Serious injury or death could result
from a poorly adjusted seatbelt.
• Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you could
slide under the seat belt, which could result
in serious injury or death.
CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause
damage to the seat controls. Seat travel may
become limited if movement is stopped by an
obstruction in the seat’s path.
Power Lumbar — If EquippedVehicles equipped with power driver or pas-
senger seats are also equipped with power
lumbar. The power lumbar switch is located on
the outboard side of the power seat. Push the
switch forward to increase the lumbar support.
Push the switch rearward to decrease the lum-
bar support. Pushing upward or downward on
the switch will raise and lower the position of
the support.
Power Lumbar Switch
96

Front Passenger Seat Fold-Flat
Feature — If Equipped
To fold the seatback to the flat load-floor posi-
tion, lift the recline lever and push the seatback
forward. To return to the seating position, raise
the seatback and lock it into place.
Heated Seats — If EquippedOn some models, the front and rear seats may
be equipped with heaters in both the seat
cushions and seatbacks.
WARNING!
•Persons who are unable to feel pain to the
skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medi-
cation, alcohol use, exhaustion or other
physical condition must exercise care when
using the seat heater. It may cause burns
even at low temperatures, especially if
used for long periods of time.
• Do not place anything on the seat that
insulates against heat, such as a blanket or
cushion. This may cause the seat heater to
overheat. Sitting in a seat that has been
overheated could cause serious burns due
to the increased surface temperature of the
seat.
CAUTION!
Repeated overheating of the seat could dam-
age the heating element and/or degrade the
material of the seat. Vehicles Equipped with Remote Start
On models that are equipped with remote start,
the driver’s heated seat can be programmed to
come on during a remote start. Refer to “Re-
mote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information.
Front Heated Seats
There are two heated seat switches that allow
the driver and passenger to operate the seats
independently. The controls for each heater are
located near the bottom center of the instru-
ment panel (below the climate controls).
You can choose from HIGH, LOW or OFF heat
settings. Amber indicator lights in each switch
indicate the level of heat in use. Two indicator
lights will illuminate for HIGH, one for LOW and
none for OFF.
Press the switch once to select
HIGH-level heating. Press the
switch a second time to select
LOW-level heating. Press the
switch a third time to shut the heat-
ing elements OFF.
Fold-Flat Passenger Seat
97

NOTE:
Once a heat setting is selected, heat will be
felt within two to five minutes.
When the HIGH-level setting is selected, the
heater will provide a boosted heat level during
the first four minutes of operation. Then, the
heat output will drop to the normal HIGH-level.
If the HIGH-level setting is selected, the system
will automatically switch to LOW-level after ap-
proximately 30 minutes of continuous opera-
tion. At that time, the number of illuminated
LEDs changes from two to one, indicating the
change. The LOW-level setting will turn OFF
automatically after approximately 30 minutes.
Rear Heated Seats
On some models, the two outboard seats are
equipped with heated seats. There are two
heated seat switches that allow the rear pas-
sengers to operate the seats independently.
The heated seat switches for each heater are
located on the rear of the center console.You can choose from HIGH, LOW or OFF heat
settings. Amber indicator lights in each switch
indicate the level of heat in use. Two indicator
lights will illuminate for HIGH, one for LOW and
none for OFF.
Press the switch once to select
HIGH-level heating. Press the
switch a second time to select
LOW-level heating. Press the
switch a third time to shut the heat-
ing elements OFF. NOTE:
Once a heat setting is selected, heat will be
felt within two to five minutes.
When the HIGH-level setting is selected, the
heater will provide a boosted heat level during
the first four minutes of operation. Then, the
heat output will drop to the normal HIGH-level.
If the HIGH-level setting is selected, the system
will automatically switch to LOW-level after ap-
proximately 30 minutes of continuous opera-
tion. At that time, the number of illuminated
LEDs changes from two to one, indicating the
change. The LOW-level setting will turn OFF
automatically after approximately 30 minutes.
Rear Heated Seat Switches
98

Ventilated Seats — If EquippedOn some models, both the driver and passen-
ger seats are ventilated. Located in the seat
cushion and seatback are small fans that draw
the air from the passenger compartment and
blow air through fine perforations in the seat
cover to help keep the driver and front passen-
ger cooler in higher ambient temperatures.
There are two ventilated seat switches that
allow the driver and passenger to operate the
seats independently. The ventilated seat
switches are located on the switch bank in the
center stack of the instrument panel, just below
the climate controls.The ventilated seat
switches are used to
control the speed of the
fans located in the seat.
Press the switch once
to choose HIGH, press
it a second time to
choose LOW. Pressing
the switch a third time
will turn the ventilated
seat OFF. When HIGH speed is selected both lights on the switch will be illuminated. When
LOW speed is selected one light will be illumi-
nated.
NOTE:
The engine must be running for the venti-
lated seats to operate.
Vehicles Equipped with Remote Start
On models that are equipped with remote start,
the driver’s ventilated seat can be programmed
to come on during a remote start. Refer to
“Remote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information.
Head RestraintsHead restraints are designed to reduce the risk
of injury by restricting head movement in the
event of a rear-impact. Head restraints should
be adjusted so that the top of the head restraint
is located above the top of your ear.
WARNING!
The head restraints for all occupants must be
properly adjusted prior to operating the ve-
hicle or occupying a seat. Head restraints
should never be adjusted while the vehicle is
in motion. Driving a vehicle with the head
restraints improperly adjusted or removed
could cause serious injury or death in the
event of a collision.
Active Head Restraints — Front Seats
Active Head Restraints are passive, deployable
components, and vehicles with this equipment
cannot be readily identified by any markings,
only through visual inspection of the head re-
straint. The head restraint will be split in two
halves, with the front half being soft foam and
trim, the back half being decorative plastic.
When AHRs deploy during a rear impact, the
front half of the head restraint extends forward
to minimize the gap between the back of the
occupant’s head and the AHR. This system is
designed to help prevent or reduce the extent
of injuries to the driver and front passenger in
certain types of rear impacts. Refer to “Occu-
99

pant Restraints” in “Things To Know Before
Starting Your Vehicle” for further information.
To raise the head restraint, pull upward on the
head restraint. To lower the head restraint,
press the push button, located at the base of
the head restraint, and push downward on the
head restraint.
For comfort the Active Head Restraints can be
tilted forward and rearward. To tilt the head
restraint closer to the back of your head, pull
forward on the bottom of the head restraint.
Push rearward on the bottom of the head
restraint to move the head restraint away from
your head.NOTE:
•
The head restraints should only be re-
moved by qualified technicians, for ser-
vice purposes only. If either of the head
restraints require removal, see your au-
thorized dealer.
• In the event of deployment of an Active
Head Restraint, refer to “Occupant
Restraints/Resetting Active Head Re-
straints (AHR)” in “Things to Know Be-
fore Starting Your Vehicle” for further in-
formation.
WARNING!
• Do not place items over the top of the
Active Head Restraint, such as coats, seat
covers or portable DVD players. These
items may interfere with the operation of
the Active Head Restraint in the event of a
collision and could result in serious injury or
death.
(Continued)
Push Button
Active Head Restraint (Normal Position)
Active Head Restraint (Tilted)
100
