2010 JEEP GRAND CHEROKEE Owner handbook (in English)

WARNING!(Continued)
•Active Head Restraints may be deployed if
they are struck by an object such as a hand,
foot or loose cargo. To avoid accidental
deployment of the Active Head Restraint
ensure that all cargo is secured, as loose
cargo could contact the Active Head Re-
straint during sudden stops. Failure to fol-
low this warning could cause personal injury
if the Active Head Restraint is deployed.
Head Restraints — Rear Seats
The head restraints on the outboard seats are
not adjustable. They automatically fold forward
when the rear seat is folded to a load floor
position but do not return to their normal posi-
tion when the rear seat is raised. After returning
either seat to its upright position, raise the head
restraint until it locks in place. The outboard
headrests are not removable.
The center head restraint has limited adjust-
ment. Lift upward on the head restraint to raise
it, or push downward on the head restraint to
lower it.WARNING!
Sitting in a seat with the head restraint in its
lowered position could result in serious injury
or death in a collision. Always make sure the
outboard head restraints are in their upright
positions when the seat is to be occupied.
NOTE:
For proper routing of a Child Seat Tether
refer to “Occupant Restraints” in “Things to
Know Before Starting Your Vehicle” for fur-
ther information.
60/40 Split Rear Seat
To Lower Rear Seat
Either side of the rear seat can be lowered to
allow for extended cargo space and still main-
tain some rear seating room.
NOTE:
Be sure that the front seats are fully upright
and positioned forward. This will allow the
rear seatback to fold down easily.
1. Pull upward on the release lever to release
the seat.
Rear Head Restraint
Rear Seat Release
101

NOTE:
•Do not fold the 60% rear seat down with
the left outboard or rear center seat belt
buckled.
• Do not fold the 40% rear seat down with
the right outboard seat belt buckled.
2. Fold the rear seat completely forward.
To Raise Rear Seat
Raise the rear seatback and lock it into place. If
interference from the cargo area prevents the
seatback from fully locking, you will have diffi-
culty returning the seat to its proper position.WARNING!
• Be certain that the seatback is securely
locked into position. If the seatback is not
securely locked into position the seat will
not provide the proper stability for child
seats and/or passengers. An improperly
latched seat could cause serious injury.
• The cargo area in the rear of the vehicle
(with the rear seatbacks in the locked-up or
folded down position) should not be used
as a play area by children when the vehicle
is in motion. They could be seriously in-
jured in a collision. Children should be
seated and using the proper restraint sys-
tem.
Reclining Rear SeatTo recline the seatback, lift the lever located on
the outboard side of the seat, lean back and
release the lever at the desired position. To
return the seatback, lift the lever, lean forward
and release the lever.
WARNING!
Do not ride with the seatback reclined so that
the shoulder belt is no longer resting against
your chest. In a collision you could slide under
the seat belt, which could result in serious
injury or death.
DRIVER MEMORY SEAT —
IF EQUIPPED
Once programmed, the memory buttons 1 and
2 on the driver’s door panel can be used to
recall the driver’s seat, driver’s outside mirror,
adjustable steering wheel position (if
Rear Seat Folded
Rear Seat Release
102

equipped), and the radio station preset set-
tings. Your Remote Keyless Entry (RKE) trans-
mitters can also be programmed to recall the
same positions when the UNLOCK button is
pressed.
Your vehicle is equipped with two RKE trans-
mitters. One or both RKE transmitters can be
linked to either memory position. The memory
system can accommodate up to four RKE
transmitters, each one linked to either of the
two memory positions.Setting Memory Positions and
Linking Remote Keyless Entry
Transmitter to Memory
NOTE:
Each time the S (SET) button and a num-
bered button 1 or 2 are pressed, you erase
the memory settings for that button and
store a new one.
1. Insert the ignition key, and turn the ignition
switch to the ON position.
2. Press the driver door MEMORY button num-
ber 1 if you are setting the memory for driver 1,
or button number 2 if you are setting the
memory for driver 2. The system will recall any
stored settings. Wait for the system to complete
the memory recall before continuing to Step 3.
3. Adjust the driver’s seat, recliner, and driver’s
sideview mirror to the desired positions.
4. Adjust the power steering column tilt and
telescoping position (if equipped) to the de-
sired positions.5. Turn on the radio and set the radio station
presets (up to 12 AM and 12 FM stations can
be set).
6. Turn the ignition switch to the LOCK position
and remove the key.
7. Press and release the S (SET) button lo-
cated on the driver’s door.
8. Within five seconds, press and release
MEMORY button 1 or 2 on the driver’s door. The
next step must be performed within five sec-
onds if you desire to also use a RKE transmitter
to recall memory positions.
9. Press and release the LOCK button on one
of the RKE transmitters.
10. Insert the ignition key, and turn the ignition
switch to the ON position.
11. Select
Remote Linked to Memory in the
Electronic Vehicle Information Center (EVIC)
and enter Ye s . Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Program-
mable Features” in “Understanding Your Instru-
ment Panel” for further information.
Driver Memory Buttons
103

12. Repeat the above steps to set the next
memory position, using the other numbered
memory button, or to link another RKE transmit-
ter to memory.
Memory Position Recall
NOTE:
The vehicle must be in PARK to recall
memory positions. If a recall is attempted
when the vehicle is not in PARK, a message
will be displayed in the Electronic Vehicle
Information Center (EVIC).
To recall the memory settings for driver one,
press MEMORY button number 1 on the driv-
er’s door, or the UNLOCK button on the RKE
transmitter linked to memory position 1.
To recall the memory setting for driver two,
press MEMORY button number 2 on the driv-
er’s door, or the UNLOCK button on the RKE
transmitter linked to memory position 2.
A recall can be cancelled by pressing any of
the MEMORY buttons on the drivers door dur-
ing a recall (S, 1, or 2). When a recall is
cancelled, the driver’s seat, driver’s mirror andthe pedals stop moving. A delay of one second
will occur before another recall can be se-
lected.
To Disable a RKE Transmitter
Linked to Memory
1. Turn the ignition switch to the LOCK posi-
tion, and remove the key.
2. Press and release MEMORY button number
1. The system will recall any memory settings
stored in position 1. Wait for the system to
complete the memory recall before continuing
to Step 3.
3. Press and release the memory S (SET) but-
ton located on the driver’s door.
4. Within five seconds, press and release
MEMORY button 1 on the driver’s door.
5. Within five seconds, press and release the
UNLOCK button on the RKE transmitter.
To disable another RKE transmitter linked to
either memory position, repeat steps 1 through
5 for each RKE transmitter.
NOTE:
Once programmed, all RKE transmitters
linked to memory can be easily enabled or
disabled at one time. Refer to “Electronic
Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding
Your Instrument Panel” for further informa-
tion.
Easy Entry/Exit SeatThis feature provides automatic driver’s seat
positioning which will enhance driver mobility
out of and into the vehicle.
There are two possible Easy Entry/Exit adjust-
ments available:
•
The seat cushion will move rearward ap-
proximately 2.5 in (60 mm), if the starting
position of the seat is greater than or equal to
2.67 in (68 mm) forward of the rear seat stop
when the key is removed from the ignition
switch. The seat will then move forward
approximately 2.5 in (60 mm) when the key is
placed into the ignition and turned out of the
LOCK position.
104

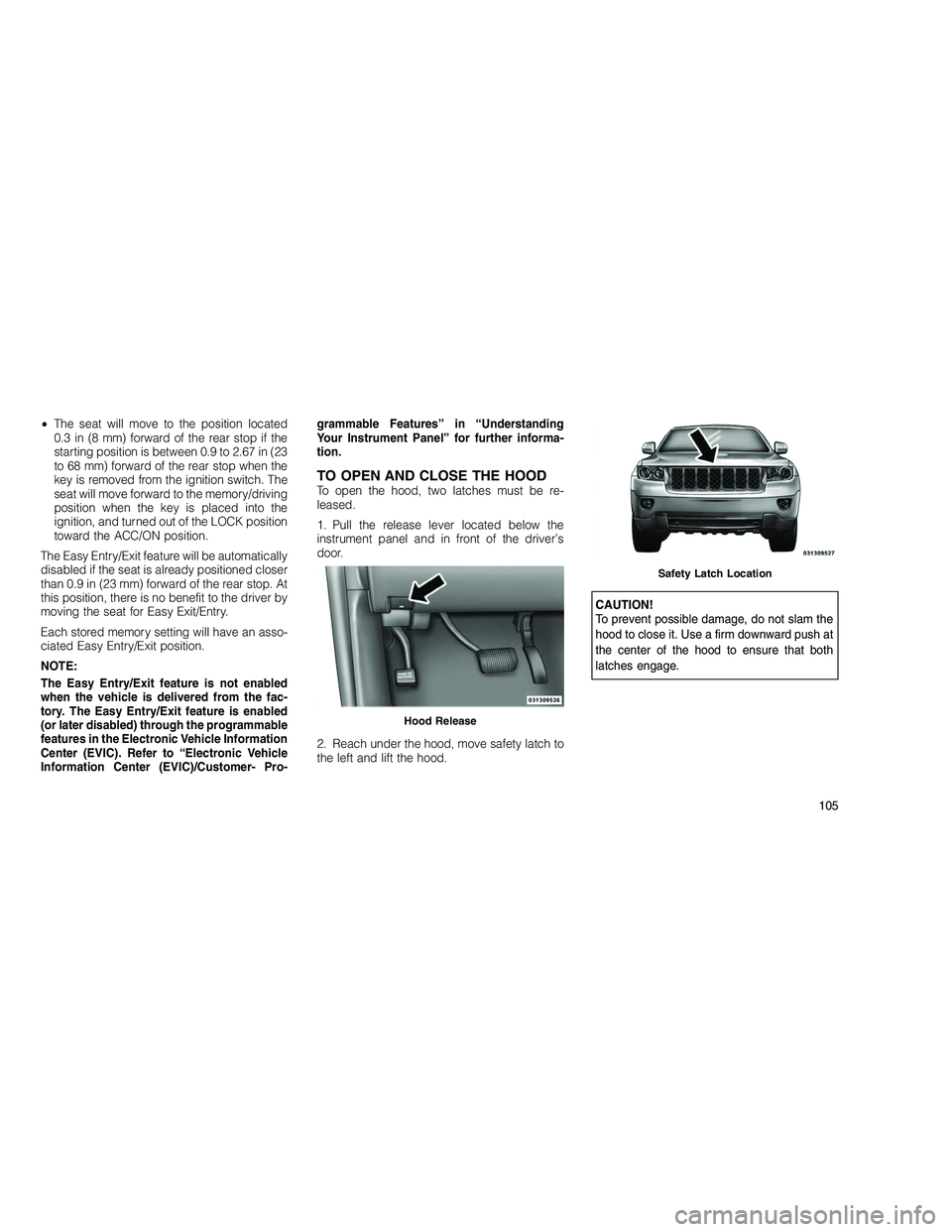

•The seat will move to the position located
0.3 in (8 mm) forward of the rear stop if the
starting position is between 0.9 to 2.67 in (23
to 68 mm) forward of the rear stop when the
key is removed from the ignition switch. The
seat will move forward to the memory/driving
position when the key is placed into the
ignition, and turned out of the LOCK position
toward the ACC/ON position.
The Easy Entry/Exit feature will be automatically
disabled if the seat is already positioned closer
than 0.9 in (23 mm) forward of the rear stop. At
this position, there is no benefit to the driver by
moving the seat for Easy Exit/Entry.
Each stored memory setting will have an asso-
ciated Easy Entry/Exit position.
NOTE:
The Easy Entry/Exit feature is not enabled
when the vehicle is delivered from the fac-
tory. The Easy Entry/Exit feature is enabled
(or later disabled) through the programmable
features in the Electronic Vehicle Information
Center (EVIC). Refer to “Electronic Vehicle
Information Center (EVIC)/Customer- Pro- grammable Features” in “Understanding
Your Instrument Panel” for further informa-
tion.
TO OPEN AND CLOSE THE HOODTo open the hood, two latches must be re-
leased.
1. Pull the release lever located below the
instrument panel and in front of the driver’s
door.
2. Reach under the hood, move safety latch to
the left and lift the hood.
CAUTION!
To prevent possible damage, do not slam the
hood to close it. Use a firm downward push at
the center of the hood to ensure that both
latches engage.
Hood Release
Safety Latch Location
105

WARNING!
Be sure the hood is fully latched before driving
your vehicle. If the hood is not fully latched, it
could open when the vehicle is in motion and
block your vision. Failure to follow this warn-
ing could result in serious injury or death.
LIGHTS
Headlight Switch
The headlight switch is located on the left side
of the instrument panel, next to the steering
wheel. The headlight switch controls the opera-
tion of the headlights, parking lights, instrument
panel lights, cargo lights and fog lights (if
equipped).To turn on the headlights, rotate
the headlight switch clockwise.
When the headlight switch is on
the parking lights, taillights, li-
cense plate light and instrument
panel lights are also turned on. To
turn off the headlights, rotate the headlight
switch back to the O (Off) position.
NOTE:
• Your vehicle is equipped with plastic
headlight and fog light (if equipped)
lenses that are lighter and less suscep-
tible to stone breakage than glass lights. Plastic is not as scratch resistant as glass
and therefore different lens cleaning pro-
cedures must be followed.
• To minimize the possibility of scratching
the lenses and reducing light output,
avoid wiping with a dry cloth. To remove
road dirt, wash with a mild soap solution
followed by rinsing.
CAUTION!
Do not use abrasive cleaning components,
solvents, steel wool or other abrasive materi-
als to clean the lenses.
Automatic Headlights — If EquippedThis system automatically turns the headlights
on or off according to ambient light levels. To
turn the system on, rotate the headlight switch
to the A (AUTO) position.
When the system is on, the Headlight Delay
feature is also on. This means the headlights
will stay on for up to 90 seconds after you turn
the ignition switch to the OFF position. To turn
the automatic headlights off, turn the headlight
switch out of the AUTO position.
Headlight Switch
106

NOTE:
The engine must be running before the
headlights will turn on in the Automatic
Mode.
Headlights On Automatically With
Wipers
If your vehicle is equipped with Automatic
Headlights, it also has this customer-
programmable feature. When your headlights
are in the automatic mode and the engine is
running, they will automatically turn on when
the wiper system is on. Refer to “Electronic
Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding
Your Instrument Panel” for further information.
If your vehicle is equipped with a “Rain Sensi-
tive Wiper System” and it is activated, the
headlights will automatically turn on after the
wipers complete five wipe cycles within ap-
proximately one minute, and they will turn off
approximately four minutes after the wipers
completely stop. Refer to “Windshield Wipers
and Washers” in this section for further informa-
tion.NOTE:
When your headlights come on during the
daytime, the instrument panel lights will
automatically dim to the lower nighttime
intensity. Refer to “Lights” in this section for
further information.SmartBeam™ — If EquippedThe SmartBeam™ system provides increased
forward lighting at night by automating high
beam control through the use of a digital cam-
era mounted on the inside rearview mirror. This
camera detects vehicle specific light and auto-
matically switches from high beams to low
beams until the approaching vehicle is out of
view.
NOTE:
If the windshield or SmartBeam™ mirror is
replaced, the SmartBeam™ mirror must be
re-aimed to ensure proper performance. See
your local authorized dealer.
To Activate
1. Enable the Automatic High Beams. Refer to
“Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Under-
standing Your Instrument Panel” for further in-
formation.
2. Turn the headlight switch to the AUTO head-
light position.
3. Push the multifunction lever away from you
(toward front of vehicle) to engage the high
beam mode.
NOTE:
This system will not activate until the ve-
hicle is at or above 20 mph (32 km/h).
To Deactivate
1. Pull the multifunction lever toward you (or
rearward in car) to manually deactivate the
system (normal operation of low beams).
2. Push back on the multifunction lever once
again to reactivate the system.
107

NOTE:
Broken, muddy, or obstructed headlights
and taillights of vehicles in the field of view
will cause headlights to remain on longer
(closer to the vehicle). Also, dirt, film, and
other obstructions (sticker, toll box, etc.) on
the windshield or camera lens will cause the
system to function improperly.
Daytime Running Lights —
If Equipped
The Daytime Running Lights (low intensity)
come on whenever the engine is running, and
the transmission is not in the PARK position.
The lights will remain on until the ignition is
switched to the OFF or ACC position or the
parking brake is engaged. The headlight
switch must be used for normal nighttime driv-
ing.
Disabling the Daytime Running Lights
To disable the Daytime Running Lights open
the hood and located the Power Distribution
Center (PDC), located on the right side of the
engine compartment.Open the PDC by pulling outward on the lock-
ing tabs (one on each side) and pulling upward
on the cover.Remove the left and right Daytime Running
Lamp relays and reinstall the PDC cover.
Automatic Headlight Leveling — HID
Headlights Only
This feature prevents the headlights from inter-
fering with the vision of oncoming drivers.
Headlight leveling automatically adjusts the
height of the headlight beam in reaction to
changes in vehicle pitch.
PDC Location
Locking Tab
Daytime Running Light Relays
108
