2010 JEEP GRAND CHEROKEE Owner handbook (in English)

NOTE:
You can insert the double-sided emergency
key into the lock cylinders with either side
up.
Removing Key Fob From IgnitionPlace the shift lever in PARK. Turn the Key Fob
to the OFF position and then remove the Key
Fob.
With the Keyless Enter-N-Go feature, the EVIC
will display the ignition switch position “OFF/
ACC/RUN”. Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.NOTE:
•
If you try to remove the Key Fob before
you place the shift lever in PARK, it may
become trapped temporarily in the igni-
tion switch. If this occurs, rotate the key
to the right slightly, then remove the Key
Fob as described. If a malfunction occurs,
the system may trap the key in the igni-
tion switch to warn you that this safety
feature is inoperable. The engine can be
started and stopped, but the Key Fob
cannot be removed until you obtain ser-
vice.
• The power window switches, radio, power
sunroof (if equipped), and power outlets
will remain active for up to 10 minutes
after the ignition switch is turned to the
LOCK position. Opening either front door
will cancel this feature. The time for this
feature is programmable. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Program-
mable Features)” in “Understanding Your
Instrument Panel” for further information.
WARNING!
• Never leave children alone in a vehicle.
Leaving unattended children in a vehicle is
dangerous for a number of reasons. A child
or others could be seriously or fatally in-
jured. Do not leave the Key Fob in the
ignition or Keyless Enter-N-Go in the ACC
or ON/RUN mode. A child could operate
power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury or
death.
CAUTION!
An unlocked car is an invitation to thieves.
Always remove Key Fob from the ignition and
lock all doors when leaving the vehicle unat-
tended.
Emergency Key Removal
13

Key-In-Ignition ReminderOpening the driver’s door when the Key Fob is
in the ignition and the ignition switch position is
OFF or ACC, sounds a signal to remind you to
remove the Key Fob.
NOTE:
The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the OFF or
ACC ignition position.
With the Keyless Enter-N-Go feature, opening
the driver’s door when the vehicle’s ignition
switch is placed in ACC or ON/RUN (engine
stopped) will cause the reminder chime to
sound. Refer to “Starting Procedures” in “Start-
ing And Operating” for further information.
SENTRY KEYThe Sentry Key Immobilizer system prevents
unauthorized vehicle operation by disabling
the engine. The system does not need to be
armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or
unlocked. The system uses the factory-mated Key Fob
with Remote Keyless Entry (RKE) transmitter
and Wireless Ignition Node (WIN) to prevent
unauthorized vehicle operation. Therefore, only
Key Fobs that are programmed to the vehicle
can be used to start and operate the vehicle.
The system will shut the engine off in two
seconds if an invalid Key Fob is used to start
the engine.
After turning the ignition switch to the ON/RUN
position, the Vehicle Security Light will turn on
for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates
that there is a problem with the electronics. In
addition, if the light begins to flash after the
bulb check, it indicates that someone used an
invalid Key Fob to start the engine. Either of
these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during
normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there
is a fault in the electronics. Should this occur,
have the vehicle serviced as soon as possible
by an authorized dealer.
CAUTION!
The Sentry Key
Immobilizer system is not
compatible with some after-market remote
starting systems. Use of these systems may
result in vehicle starting problems and loss of
security protection.
All of the Key Fobs provided with your new
vehicle have been programmed to the vehicle
electronics.
Replacement Keys
NOTE:
Only Key Fobs that are programmed to the
vehicle electronics can be used to start and
operate the vehicle. Once a Key Fob is
programmed to a vehicle, it cannot be pro-
grammed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the
vehicle and lock all doors when leaving the
vehicle unattended.
(Continued)
14

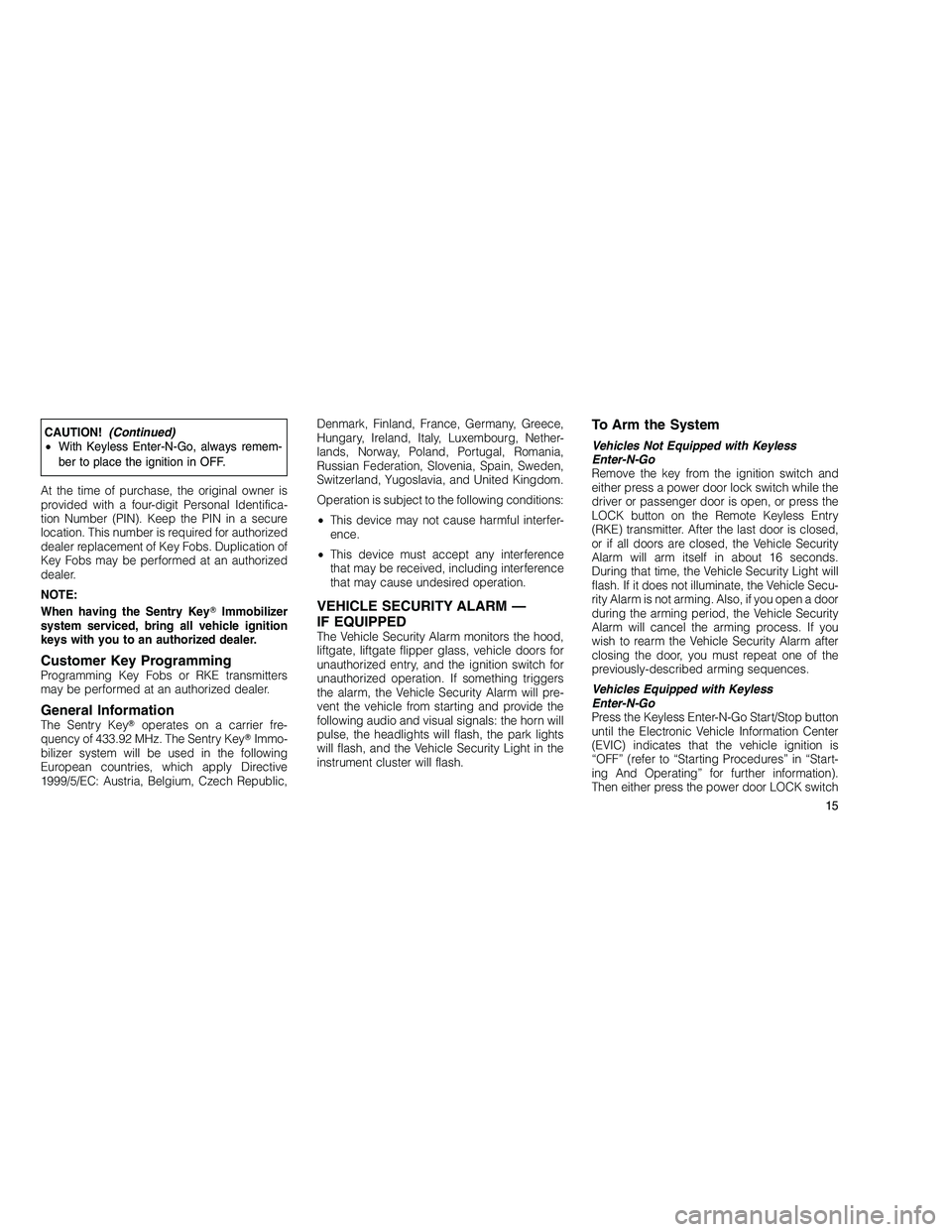

CAUTION!(Continued)
• With Keyless Enter-N-Go, always remem-
ber to place the ignition in OFF.
At the time of purchase, the original owner is
provided with a four-digit Personal Identifica-
tion Number (PIN). Keep the PIN in a secure
location. This number is required for authorized
dealer replacement of Key Fobs. Duplication of
Key Fobs may be performed at an authorized
dealer.
NOTE:
When having the Sentry Key Immobilizer
system serviced, bring all vehicle ignition
keys with you to an authorized dealer.
Customer Key ProgrammingProgramming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
General InformationThe Sentry Key operates on a carrier fre-
quency of 433.92 MHz. The Sentry Key Immo-
bilizer system will be used in the following
European countries, which apply Directive
1999/5/EC: Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Luxembourg, Nether-
lands, Norway, Poland, Portugal, Romania,
Russian Federation, Slovenia, Spain, Sweden,
Switzerland, Yugoslavia, and United Kingdom.
Operation is subject to the following conditions:
•
This device may not cause harmful interfer-
ence.
• This device must accept any interference
that may be received, including interference
that may cause undesired operation.
VEHICLE SECURITY ALARM —
IF EQUIPPED
The Vehicle Security Alarm monitors the hood,
liftgate, liftgate flipper glass, vehicle doors for
unauthorized entry, and the ignition switch for
unauthorized operation. If something triggers
the alarm, the Vehicle Security Alarm will pre-
vent the vehicle from starting and provide the
following audio and visual signals: the horn will
pulse, the headlights will flash, the park lights
will flash, and the Vehicle Security Light in the
instrument cluster will flash.
To Arm the System
Vehicles Not Equipped with Keyless
Enter-N-Go
Remove the key from the ignition switch and
either press a power door lock switch while the
driver or passenger door is open, or press the
LOCK button on the Remote Keyless Entry
(RKE) transmitter. After the last door is closed,
or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds.
During that time, the Vehicle Security Light will
flash. If it does not illuminate, the Vehicle Secu-
rity Alarm is not arming. Also, if you open a door
during the arming period, the Vehicle Security
Alarm will cancel the arming process. If you
wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the
previously-described arming sequences.
Vehicles Equipped with Keyless
Enter-N-Go
Press the Keyless Enter-N-Go Start/Stop button
until the Electronic Vehicle Information Center
(EVIC) indicates that the vehicle ignition is
“OFF” (refer to “Starting Procedures” in “Start-
ing And Operating” for further information).
Then either press the power door LOCK switch
15

while the driver or passenger door is open,
press the lock button on the front driver or
passenger door handle with a valid key fob in
range, or press the Remote Keyless Entry
(RKE) transmitter LOCK button (refer to “Pas-
sive Entry System” in “Things To Know Before
Starting Your Vehicle” for further information).
To Disarm the System
Vehicles Not Equipped with Keyless
Enter-N-Go
Either press the UNLOCK button on the RKE
transmitter, or insert a valid ignition key into the
ignition switch, and turn the key to the ON/RUN
position.
NOTE:
•The driver’s door key cylinder cannot arm
or disarm the Vehicle Security Alarm.
• When the Vehicle Security Alarm is
armed, the interior power door lock
switches will not unlock the doors. Vehicles Equipped with Keyless
Enter-N-Go
Either press the UNLOCK button on the RKE
transmitter, pull on the front driver or passenger
door handle (refer to “Passive Entry System” in
“Things To Know Before Starting Your Vehicle”
for further information) with a valid key fob in
range, or press the Keyless Enter-N-Go Start/
Stop button (requires at least one valid Key Fob
in the vehicle), or insert a valid Key Fob into the
ignition switch (if the Start/Stop button is re-
moved) and rotate it to the ON/RUN position.
The Vehicle Security Alarm is designed to pro-
tect your vehicle; however, you can create
conditions where the Vehicle Security Alarm will
give you a false alarm. If one of the previously-
described arming sequences has occurred,
the Vehicle Security Alarm will arm, regardless
of whether you are in the vehicle or not. If you
remain in the vehicle and open a door, the
alarm will sound. If this occurs, disarm the
Vehicle Security Alarm.
If the Vehicle Security Alarm is armed, and the
battery becomes disconnected, the Vehicle Security Alarm will remain armed when the
battery is reconnected. The exterior lights will
flash, the horn will sound, and the ignition will
not start the vehicle. If this occurs, disarm the
Vehicle Security Alarm.
ILLUMINATED ENTRYThe interior lights come on when you open any
door or use the Remote Keyless Entry (RKE)
transmitter to unlock any door. They will remain
on for approximately 30 seconds after all doors
are closed then fade to off.
The lights also will fade to off if you turn on the
ignition after you close all the doors. Refer to
“Electronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
NOTE:
None of the courtesy lights will operate if the
dimmer control is in the “defeat” position
(extreme downward position), unless the
overhead map/reading lights are turned on
manually.
16

REMOTE KEYLESS ENTRY (RKE)This system allows you to lock or unlock the
doors or liftgate from distances up to approxi-
mately 33 ft (10 m) using a hand-held Key Fob
with RKE transmitter. The RKE transmitter does
not need to be pointed at the vehicle to activate
the system.
NOTE:
Inserting the Key Fob with RKE transmitter
into the ignition switch disables all buttons
on that RKE transmitter; however, the but-
tons on the remaining RKE transmitters will
continue to work. Driving at speeds 5 mph
(8 km/h) and above disables all RKE trans-
mitter buttons for all RKE transmitters.To Unlock the DoorsPress and release the UNLOCK button on the
RKE transmitter once to unlock the driver’s
door or twice to unlock all doors. The turn
signal lights will flash to acknowledge the un-
lock signal. The illuminated entry system will
also turn on.
Refer to “Passive Entry System” under “Things
To Know Before Starting Your Vehicle” for fur-
ther information.
Remote Key Unlock, Driver Door/All Doors
First Press
This feature lets you program the system to
unlock either the driver’s door or all doors, on
the first press of the UNLOCK button on the
RKE transmitter. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to
flash when the doors are locked or unlocked
with the RKE transmitter. This feature can be
turned on or off. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument
Panel” for further information.
Turn Headlights On with Remote Key
Unlock
This feature activates the headlights for up to
90 seconds when the doors are unlocked with
the RKE transmitter. The time for this feature is
programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC).
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Program-
mable Features)” in “Understanding Your In-
strument Panel” for further information.
Key Fob with RKE Transmitter
17

To Lock the DoorsPress and release the LOCK button on the RKE
transmitter to lock all doors. The turn signal
lights will flash to acknowledge the signal.
Refer to “Passive Entry System” under “Things
To Know Before Starting Your Vehicle” for fur-
ther information.
To Release the Liftgate Flipper
Glass
Press the FLIPPER GLASS/LIFTGATE RE-
LEASE button two times (the second press
within 5 seconds of the first press) to open
liftgate flipper glass.
WARNING!
Driving with the flipper glass open can allow
poisonous exhaust gases into your vehicle.
You and your passengers could be injured by
these fumes. Keep the flipper glass closed
when you are operating the vehicle.
Remote Open Window Feature —
If Equipped
This feature allows you to remotely lower both
front door windows at the same time. To use this
feature, press and release the UNLOCK button
on the RKE transmitter and then immediately
press and hold the UNLOCK button until the
windows lower to the level desired or until they
lower completely.
Programming Additional
Transmitters
Programming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
Transmitter Battery ReplacementThe recommended replacement battery is one
CR2032 battery.
NOTE:
•Perchlorate Material — special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate
• Do not touch the battery terminals that
are on the back housing or the printed
circuit board. 1. Remove the emergency key by sliding the
mechanical latch at the top of the RKE trans-
mitter sideways with your thumb and then pull
the key out with your other hand.
2. Insert the tip of the emergency key or a #2
flat blade screwdriver into the slot and gently
pry the two halves of the RKE transmitter apart.
Make sure not to damage the seal during
removal.Emergency Key Removal
18

3. Remove and replace the battery. When re-
placing the battery, match the + sign on the
battery to the + sign on the inside of the battery
clip, located on the back cover. Avoid touching
the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a
battery, clean it with rubbing alcohol.
4. To assemble the RKE transmitter case, snap
the two halves together.
General InformationThe RKE transmitter and receivers operate on a
carrier frequency of 433.92 MHz as required by
EEC regulations. These devices must be certi-
fied to conform to specific regulations in each
individual country. Two sets of regulations are
involved: ETS (European Telecommunication
Standard) 300–220, which most countries use,
and German BZT federal regulation 225Z125,which is based on ETC 300–220 but has addi-
tional unique requirements. Other defined re-
quirements are noted in ANNEX VI of COMMIS-
SION DIRECTIVE 95/56/EC. Operation is
subject to the following two conditions:
•
This device may not cause harmful interfer-
ence.
• This device must accept any interference
received, including interference that may
cause undesired operation.
If your RKE transmitter fails to operate from a
normal distance, check for these two condi-
tions:
1. Weak battery in RKE transmitter. The ex-
pected life of the battery is a minimum of three
years.
2. Closeness to a radio transmitter such as a
radio station tower, airport transmitter, and
some mobile or CB radios.Inserting Emergency Key Into Slot
Separating RKE Transmitter
19

DOOR LOCKSThe power door locks can be manually locked
or unlocked from inside the vehicle by using the
door lock knob. If the lock knob is down when
the door is closed, the door will lock. Therefore,
make sure the key is not inside the vehicle
before closing the door.WARNING!
•For personal security and safety in the
event of an accident, lock the vehicle doors
when you drive, as well as when you park
and leave the vehicle.
• When leaving the vehicle, always remove
the key from the ignition and lock your
vehicle. Do not leave unattended children
in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of ve-
hicle equipment may cause severe per-
sonal injuries and death.
Power Door LocksThe power door lock switch is located on each
front door panel. Press the switch to lock or
unlock the doors. If the lock knob is down when the door is
closed, the door will lock. Therefore, make sure
the Key Fob is not inside the vehicle before
closing the door.
If you press the door lock switch while the Key
Fob is in the ignition switch and the driver’s
door is open, the doors will not lock.
If a rear door is locked, it cannot be opened
from inside the vehicle without first unlocking
the door. The door may be unlocked manually
by raising the lock knob.
Manual Door Lock Knob
Power Door Lock Switch
20
