2010 INFINITI QX56 service

BODY REPAIRBRM-19
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

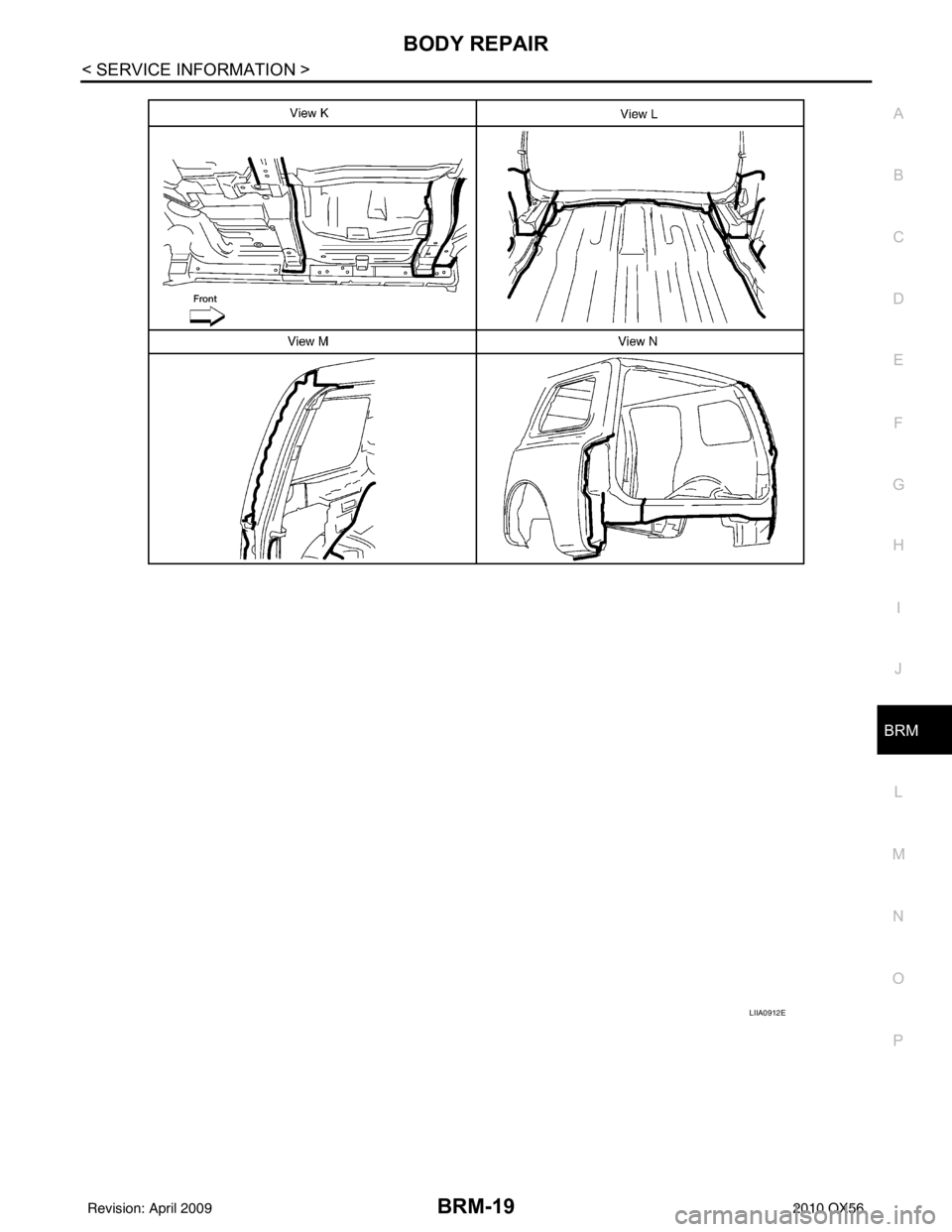

LIIA0912E
Revision: April 20092010 QX56

BRM-20
< SERVICE INFORMATION >
BODY REPAIR
Body Construction
INFOID:0000000005147336
BODY CONSTRUCTION
Body AlignmentINFOID:0000000005147337
BODY CENTER MARKS
LIIA1113E
Revision: April 20092010 QX56

BODY REPAIRBRM-21
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
A mark has been placed on each part of the body to indi cate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (me mbers, pillars, etc.), more accurate and effective
repair will be possible by using these marks t ogether with body alignment specifications.
PANEL PARTS MATCHING MARKS
LIIA1440E
Revision: April 20092010 QX56

BRM-22
< SERVICE INFORMATION >
BODY REPAIR
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle st ructure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
DESCRIPTION
• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself
to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side
is symmetrically the same value.
• The coordinates of the measurement points are the di stances measured from the standard line of "X", "Y"
and "Z".
WIIA0284E
Revision: April 20092010 QX56

BODY REPAIRBRM-23
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
Engine Compartment
LIIA1506E
Revision: April 20092010 QX56

BRM-24
< SERVICE INFORMATION >
BODY REPAIR
MEASUREMENT
WIIA0551E
Revision: April 20092010 QX56

BODY REPAIRBRM-25
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
MEASUREMENT POINTS
Underbody
WIIA0279E
Revision: April 20092010 QX56

BRM-26
< SERVICE INFORMATION >
BODY REPAIR
MEASUREMENT
LIIA1101E
Revision: April 20092010 QX56
