2010 INFINITI QX56 service

BODY REPAIRBRM-51
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

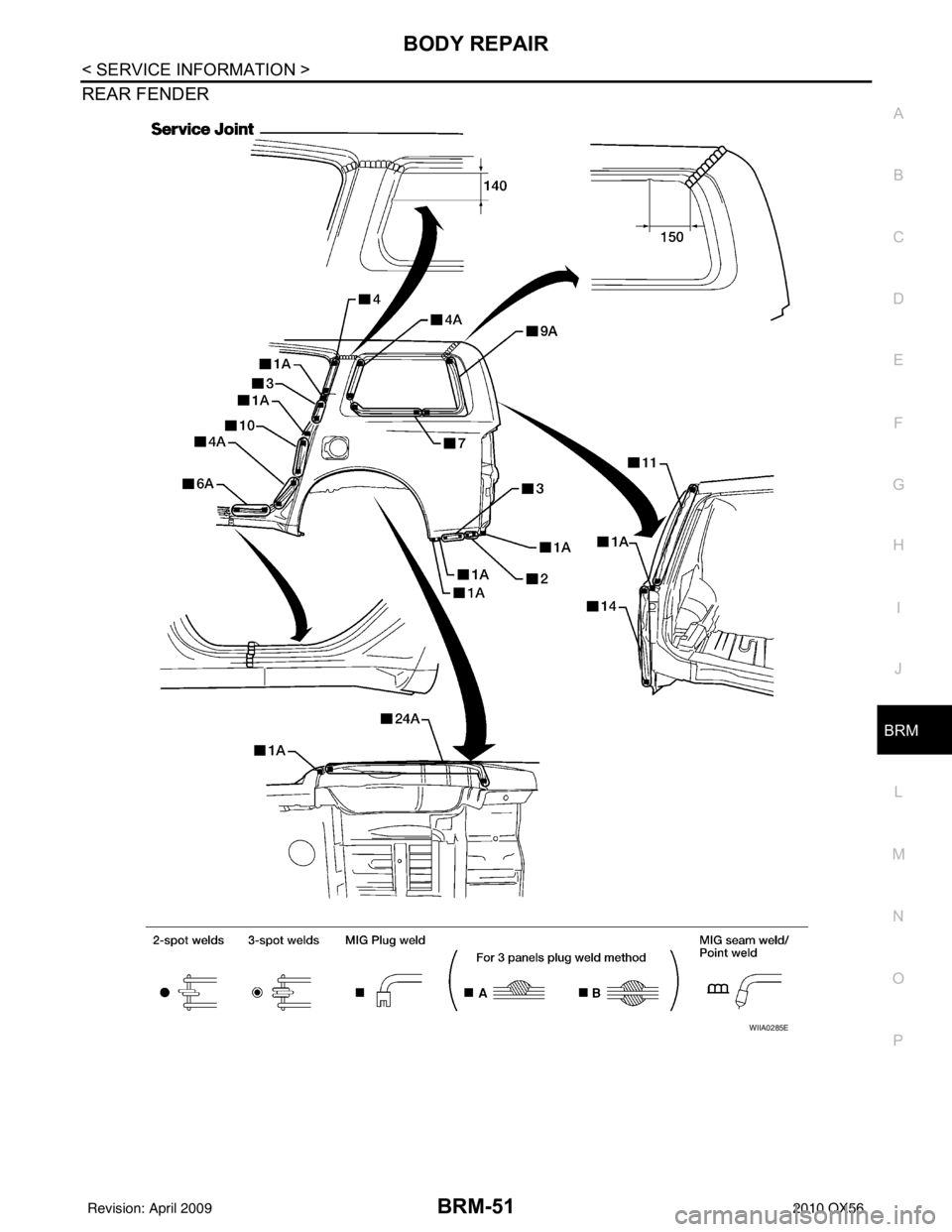

REAR FENDER
WIIA0285E
Revision: April 20092010 QX56

BRM-52
< SERVICE INFORMATION >
BODY REPAIR
WIIA0283E
Revision: April 20092010 QX56

BODY REPAIRBRM-53
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
REAR SIDE MEMBER
REAR FLOOR REAR
WIIA0281E
Revision: April 20092010 QX56

BRM-54
< SERVICE INFORMATION >
BODY REPAIR
•
CRUSH HORN
WIIA0282E
Revision: April 20092010 QX56

BODY REPAIRBRM-55
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P

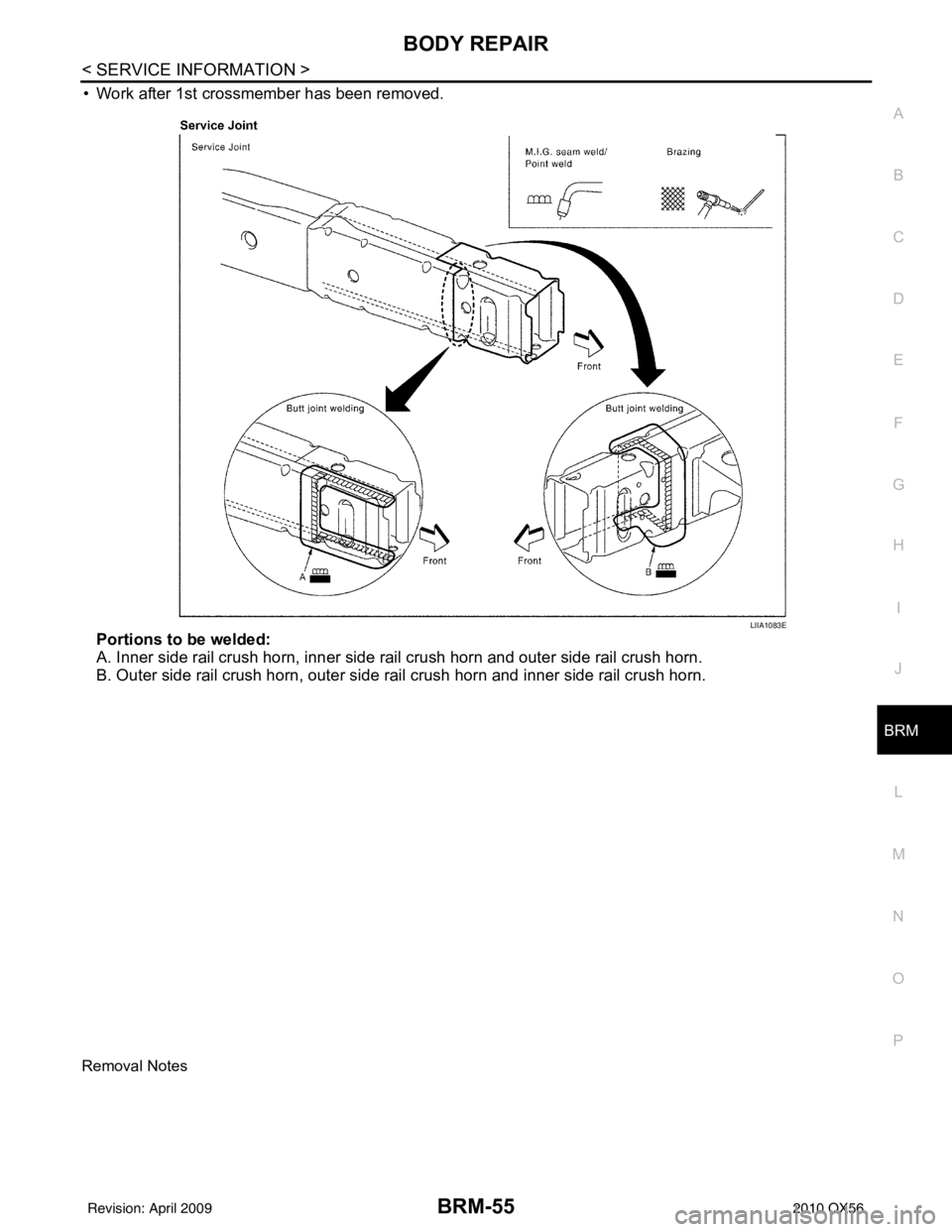

• Work after 1st crossmember has been removed.
Portions to be welded:
A. Inner side rail crush horn, inner side rail crush horn and outer side rail crush horn.
B. Outer side rail crush horn, outer side rail crush horn and inner side rail crush horn.
Removal Notes
LIIA1083E
Revision: April 20092010 QX56

BRM-56
< SERVICE INFORMATION >
BODY REPAIR
• Scribe a straight line on the outer side rail crush horn and inner side rail crush horn along the hole center as
shown in the figure.
• Cut off outer side rail crush horn and inner side rail crush horn along scribed line A. Do not cut on the hole.
• Cut inner side rail crush horn at 45 mm backw ard cut position of cut line A. (along line B)
LIIA1084E
LIIA1085E
Revision: April 20092010 QX56

BODY REPAIRBRM-57
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
• After removing outer panel, dress area on the i nner panel surface with a sander or equivalent.
Installation Notes
• Scribe a straight line on the inner side rail crush horn along the hole center as shown in the figure. Cut off
inner side rail crush horn along scribed line.
• Scribe a straight line on the outer side rail crush horn along the hole center as shown in the figure. Cut off
outer side rail crush horn along scribed line.
LIIA1086E
LIIA1087E
LIIA1088E
Revision: April 20092010 QX56

BRM-58
< SERVICE INFORMATION >
BODY REPAIR
• Weld part to be butt-welded and seam-welded corner to corner as shown in the figure.
LIIA1089E
Revision: April 20092010 QX56
