2010 INFINITI QX56 diagram

PG
PG-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION PG
A
O P
N
CONTENTS
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
PRECAUTION .......
........................................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
2
Precaution for Power Generation Variable Voltage
Control System ..........................................................
3
PREPARATION ............................................4
PREPARATION .............................................. .....4
Special Service Tool ........................................... ......4
Commercial Service Tool ..........................................4
BASIC INSPECTION ....................................5
BATTERY ....................................................... .....5
How to Handle Battery ........................................ ......5
Work Flow ........................................................... ......7
INSPECTION AND ADJUSTMENT .....................8
ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL ............................... ......
8
ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement ................................................. ......
8
COMPONENT DIAGNOSIS ..........................9
POWER SUPPLY ROUTING CIRCUIT .......... .....9
Wiring Diagram — Battery Power Supply — ....... ......9
Wiring Diagram — Accessory Power Supply — .....18
Wiring Diagram — Ignition Power Supply — ..........22
Fuse ........................................................................30
Fusible Link .............................................................30
GROUND ...........................................................31
Ground Distribution .............................................. ....31
HARNESS .........................................................41
Harness Layout ................................................... ....41
ELECTRICAL UNITS LOCATION ....................61
Electrical Units Location ..........................................61
HARNESS CONNECTOR .................................64
Description ...............................................................64
STANDARDIZED RELAY .................................67
Description ...............................................................67
FUSE BLOCK - JUNCTION BOX (J/B) ............69
Terminal Arrangement .............................................69
FUSE, FUSIBLE LINK AND RELAY BOX ........70
Terminal Arrangement .............................................70
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
72
IPDM E/R Terminal Arrangement - Type A .............72
IPDM E/R Terminal Arrangement - Type B .............73
ON-VEHICLE REPAIR .................................74
BATTERY ..........................................................74
Removal and Installation ..................................... ....74
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .......................................... ...
75
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
75
Battery ................................................................. ....75
Revision: April 20092010 QX56

PG
POWER SUPPLY ROUTING CIRCUITPG-9
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
COMPONENT DIAGNOSIS
POWER SUPPLY ROUTING CIRCUIT

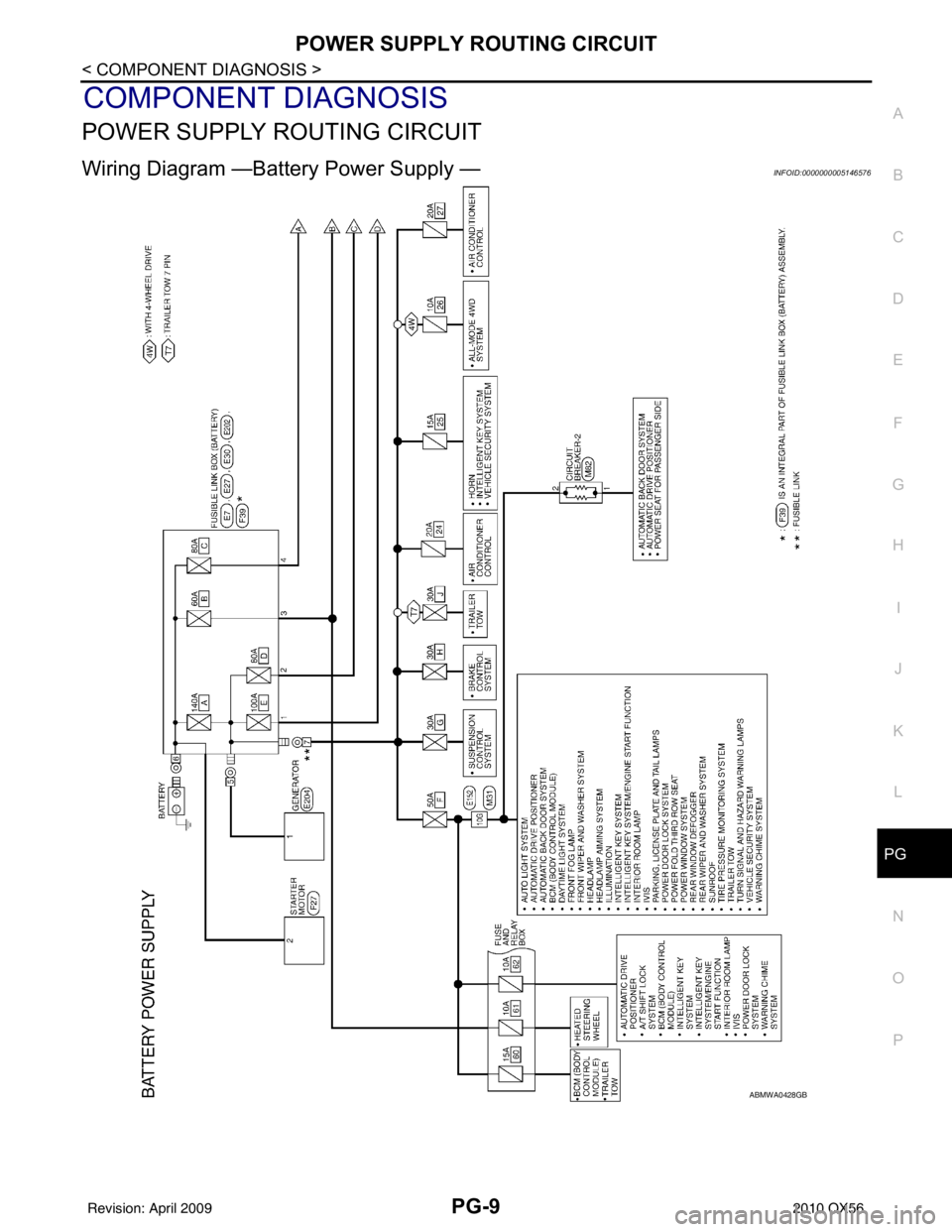

Wiring Diagram —Battery Power Supply —INFOID:0000000005146576
ABMWA0428GB
Revision: April 20092010 QX56

PG-18
< COMPONENT DIAGNOSIS >
POWER SUPPLY ROUTING CIRCUIT

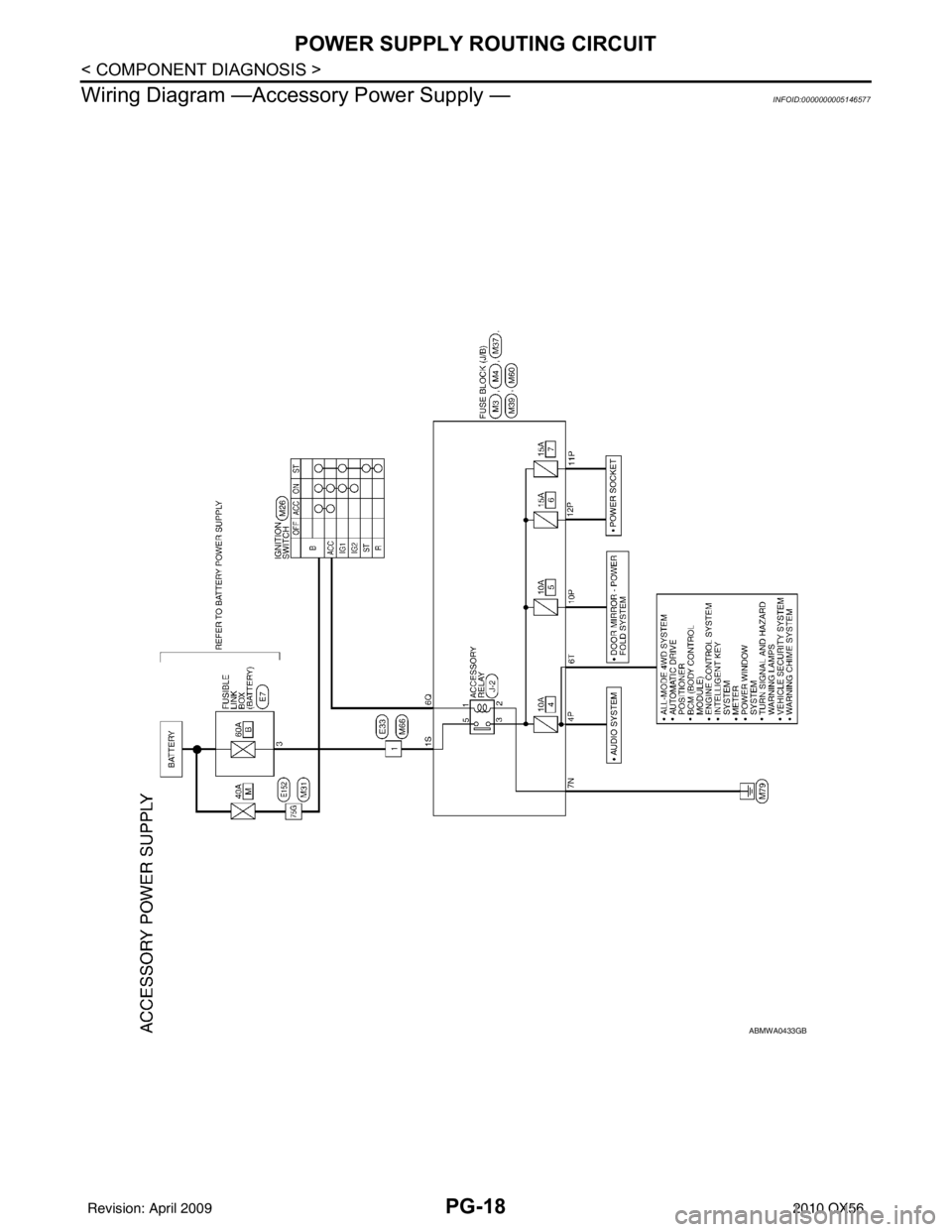

Wiring Diagram —Accessory Power Supply —
INFOID:0000000005146577
ABMWA0433GB
Revision: April 20092010 QX56

PG-22
< COMPONENT DIAGNOSIS >
POWER SUPPLY ROUTING CIRCUIT

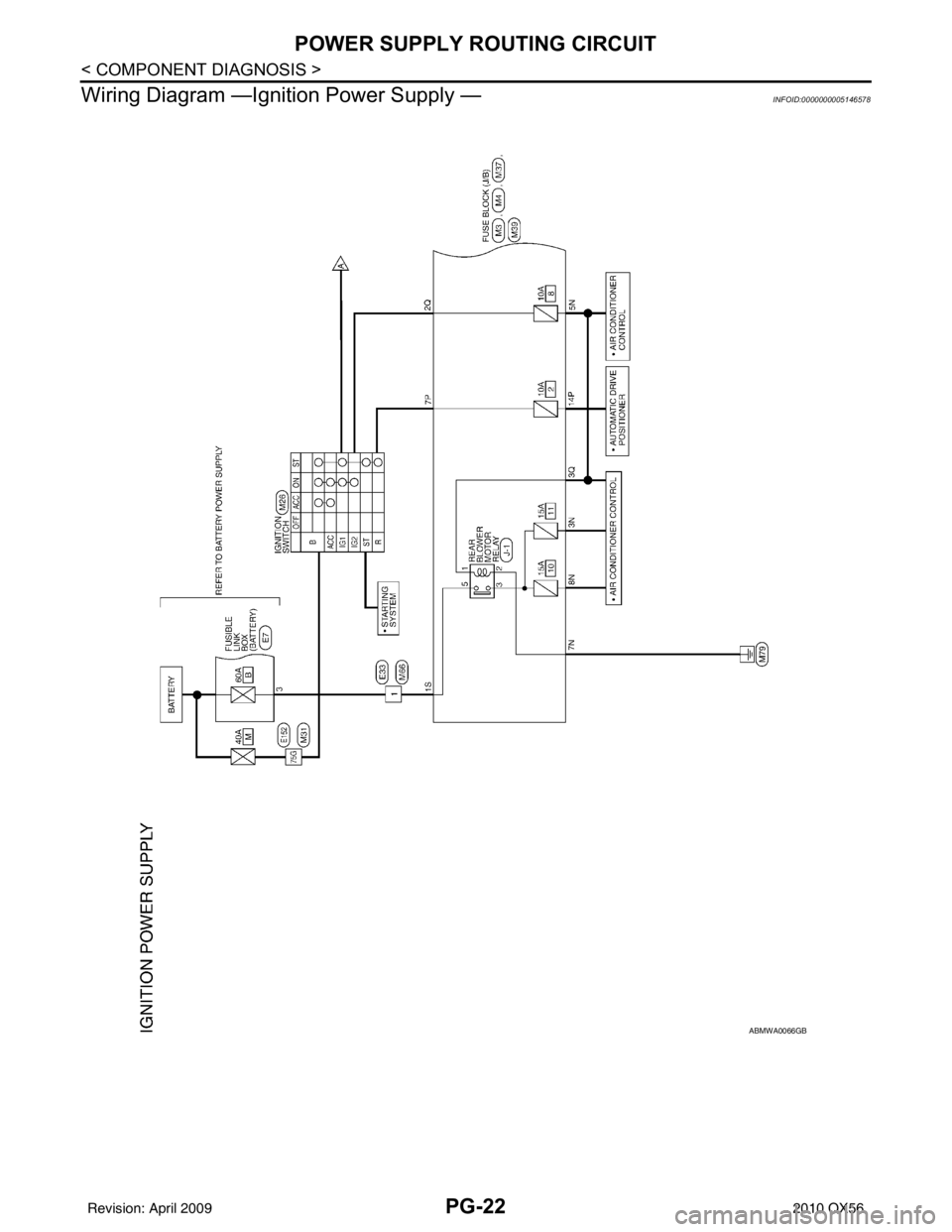

Wiring Diagram —Igniti on Power Supply —
INFOID:0000000005146578
ABMWA0066GB
Revision: April 20092010 QX56

PG
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-73
< COMPONENT DIAGNOSIS >
C
D E
F
G H
I
J
K L
B A
O P
N

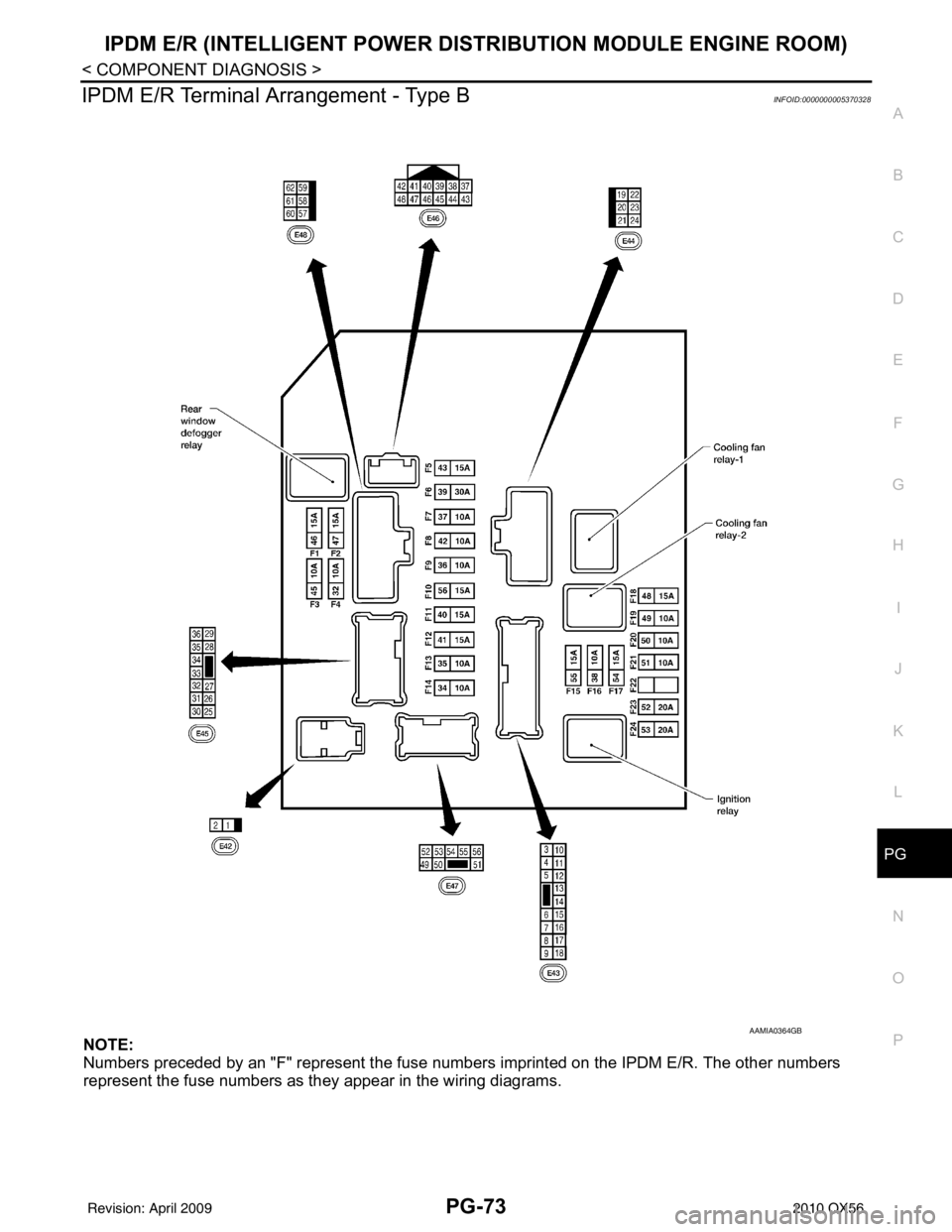

IPDM E/R Terminal Ar
rangement - Type BINFOID:0000000005370328
NOTE:
Numbers preceded by an "F" represent the fuse number s imprinted on the IPDM E/R. The other numbers
represent the fuse numbers as they appear in the wiring diagrams.
AAMIA0364GB
Revision: April 20092010 QX56

PWC-1
BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
C
DE
F
G H
I
J
L
M
SECTION PWC
A
B
PWC
N
O P
CONTENTS
POWER WINDOW CONTROL SYSTEM
BASIC INSPECTION ....... .............................4
DIAGNOSIS AND REPAIR WORKFLOW ..... .....4
Work Flow ........................................................... ......4
FUNCTION DIAGNOSIS ...............................5
POWER WINDOW SYST EM ...............................5
System Diagram ................................................. ......5
System Description ...................................................5
Component Parts Location ......................................8
Component Description .............................................8
DIAGNOSIS SYSTEM (BCM) ............................10
COMMON ITEM ..................................................... ....10
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
10
RETAINED PWR .......................................................10
RETAINED PWR : CONSULT-III Function (BCM -
RETAINED PWR) ...................................................
11
COMPONENT DIAGNOSIS .........................12
POWER SUPPLY AND GROUND CIRCUIT .. ....12
POWER WINDOW MAIN SWITCH ........................ ....12
POWER WINDOW MAIN SWITCH : Description ....12
POWER WINDOW MAIN SWITCH : Component
Function Check .......................................................
12
POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................
12
FRONT POWER WINDOW SWITCH .................... ....13
FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................
13
FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ...............................................
13
FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................
14
REAR POWER WINDOW SWITCH ....................... ....15
REAR POWER WINDOW SWITCH : Description ....15
REAR POWER WINDOW SWITCH : Component
Function Check ........................................................
15
REAR POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................
15
REAR POWER WINDOW SWITCH : Component
Inspection ................................................................
16
POWER WINDOW MOTOR ..............................17
DRIVER SIDE ......................................................... ....17
DRIVER SIDE : Description .....................................17
DRIVER SIDE : Component Function Check ..........17
DRIVER SIDE : Diagnosis Procedure .....................17
DRIVER SIDE : Component Inspection ...................18
PASSENGER SIDE ....................................................18
PASSENGER SIDE : Descript ion ............................18
PASSENGER SIDE : Component Function Check
....
18
PASSENGER SIDE : Diagnosis Procedure ............18
PASSENGER SIDE : Component Inspection ..........19
REAR LH ................................................................ ....20
REAR LH : Description ............................................20
REAR LH : Component Function Check .................20
REAR LH : Diagnosis Procedure .............................20
REAR LH : Component Inspection ..........................21
REAR RH ............................................................... ....21
REAR RH : Description ...........................................21
REAR RH : Component Function Check .................21
REAR RH : Diagnosis Procedure ............................21
REAR RH : Component Inspection .........................22
ENCODER .........................................................23
DRIVER SIDE ......................................................... ....23
DRIVER SIDE : Description .....................................23
DRIVER SIDE : Component Function Check ..........23
DRIVER SIDE : Diagnosis Procedure .....................23
PASSENGER SIDE ....................................................25
Revision: April 20092010 QX56

PWC-2
PASSENGER SIDE : Description ...........................25
PASSENGER SIDE : Compo nent Function Check
...
25
PASSENGER SIDE : Diagnosis Procedure ........ ...25
REAR LH ................................................................ ...28
REAR LH : Description ...........................................28
REAR LH : Component Function Check ................28
REAR LH : Diagnosis Procedure ............................28
REAR RH ............................................................... ...30
REAR RH : Description ..........................................31
REAR RH : Component Function Check ................31
REAR RH : Diagnosis Procedure ...........................31
DOOR SWITCH .................................................34
Description ..............................................................34
Component Function Check ...................................34
Diagnosis Procedure ..............................................34
Component Inspection ............................................35
DOOR KEY CYLINDER SWITCH ......................36
Description ........................................................... ...36
Component Function Check ...................................36
Diagnosis Procedure ..............................................36
Component Inspection ............................................37
POWER WINDOW SERIAL LINK .....................39
POWER WINDOW MAIN SWITCH ........................ ...39
POWER WINDOW MAIN SWITCH : Description ...39
POWER WINDOW MAIN SWITCH : Component
Function Check .......................................................
39
POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ...............................................................
39
FRONT POWER WINDOW SWITCH ..................... ...40
FRONT POWER WINDOW SWITCH : Descrip-
tion ..........................................................................
40
FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ...............................................
40
FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ...............................................................
41
REAR POWER WINDOW SWITCH ....................... ...42
REAR POWER WINDOW SWITCH : Power Win-
dow Serial Link Check Rear LH or RH ...................
42
POWER WINDOW LOCK SWITCH ...................43
Description ........................................................... ...43
Component Function Check ...................................43
REAR POWER VENT WINDOW SWITCH
CIRCUIT CHECK ...............................................
44
Description ........................................................... ...44
Diagnosis Procedure ..............................................44
REAR POWER VENT WINDOW MOTOR LH
CIRCUIT CHECK ...............................................
45
Description ........................................................... ...45
Diagnosis Procedure ..............................................45
REAR POWER VENT WINDOW MOTOR RH
CIRCUIT CHECK ...............................................
46
Description ........................................................... ...46
Diagnosis Procedure ...............................................46
REAR POWER VENT WINDOW RELAY
(OPEN) CHECK .................................................
47
Description ........................................................... ...47
Diagnosis Procedure ...............................................47
REAR POWER VENT WINDOW RELAY
(CLOSE) CHECK ...............................................
49
Description ........................................................... ...49
Diagnosis Procedure ...............................................49
ECU DIAGNOSIS .......................................51
POWER WINDOW MAIN SWITCH ................ ...51
Reference Value .................................................. ...51
Wiring Diagram .......................................................53
Fail Safe .................................................................64
FRONT POWER WINDOW SWITCH ................66
Reference Value .................................................. ...66
Wiring Diagram .......................................................68
Fail Safe .................................................................79
BCM (BODY CONTROL MODULE) ..................81
Reference Value .................................................. ...81
Terminal Layout ......................................................84
Physical Values .......................................................84
Wiring Diagram .......................................................90
Fail Safe .................................................................94
DTC Inspection Priority Chart ...............................95
DTC Index ..............................................................95
SYMPTOM DIAGNOSIS ............................97
NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH ................ ...
97
Diagnosis Procedure ............................................ ...97
DRIVER SIDE POWER WINDOW ALONE
DOES NOT OPERATE ......................................
98
Diagnosis Procedure ............................................ ...98
FRONT PASSENGER SIDE POWER WIN-
DOW ALONE DOES NOT OPERATE ...............
99
Diagnosis Procedure ............................................ ...99
REAR LH SIDE POWER WINDOW ALONE
DOES NOT OPERATE .....................................
100
Diagnosis Procedure ............................................ .100
REAR RH SIDE POWER WINDOW ALONE
DOES NOT OPERATE .....................................
101
Diagnosis Procedure ............................................ .101
ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE) ...........................
102
Diagnosis Procedure ............................................ .102
Revision: April 20092010 QX56

POWER WINDOW SYSTEMPWC-5
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
FUNCTION DIAGNOSIS
POWER WINDOW SYSTEM
System DiagramINFOID:0000000005147165
POWER WINDOW ANTI-PINCH SYSTEM
System DescriptionINFOID:0000000005147166
POWER WINDOW MAIN SWITCH
INPUT/OUTPUT SIGNAL CHART
POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH
INPUT/OUTPUT SIGNAL CHART
ALKIA1301GB
Item Input signal to main power window and
door lock/unlock switch Main power window and door
lock/unlock switch function Actuator
Key cylinder switch LOCK/UNLOCK signal (more than 1.5
seconds over)
Power window controlFront power window motor
Encoder
Encoder pulse signal
Main power window
and door lock/unlock
switch Front power window motor LH UP/
DOWN signal
Power window and
door lock/unlock
switch RH Front power window motor RH UP/
DOWN signal
BCM RAP signal
Rear power window
control unit Rear power window motor UP/DOWN
signal
Rear power window motor
Revision: April 20092010 QX56
