FRONT WIPER AND WASHER SYSTEMWW-31
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

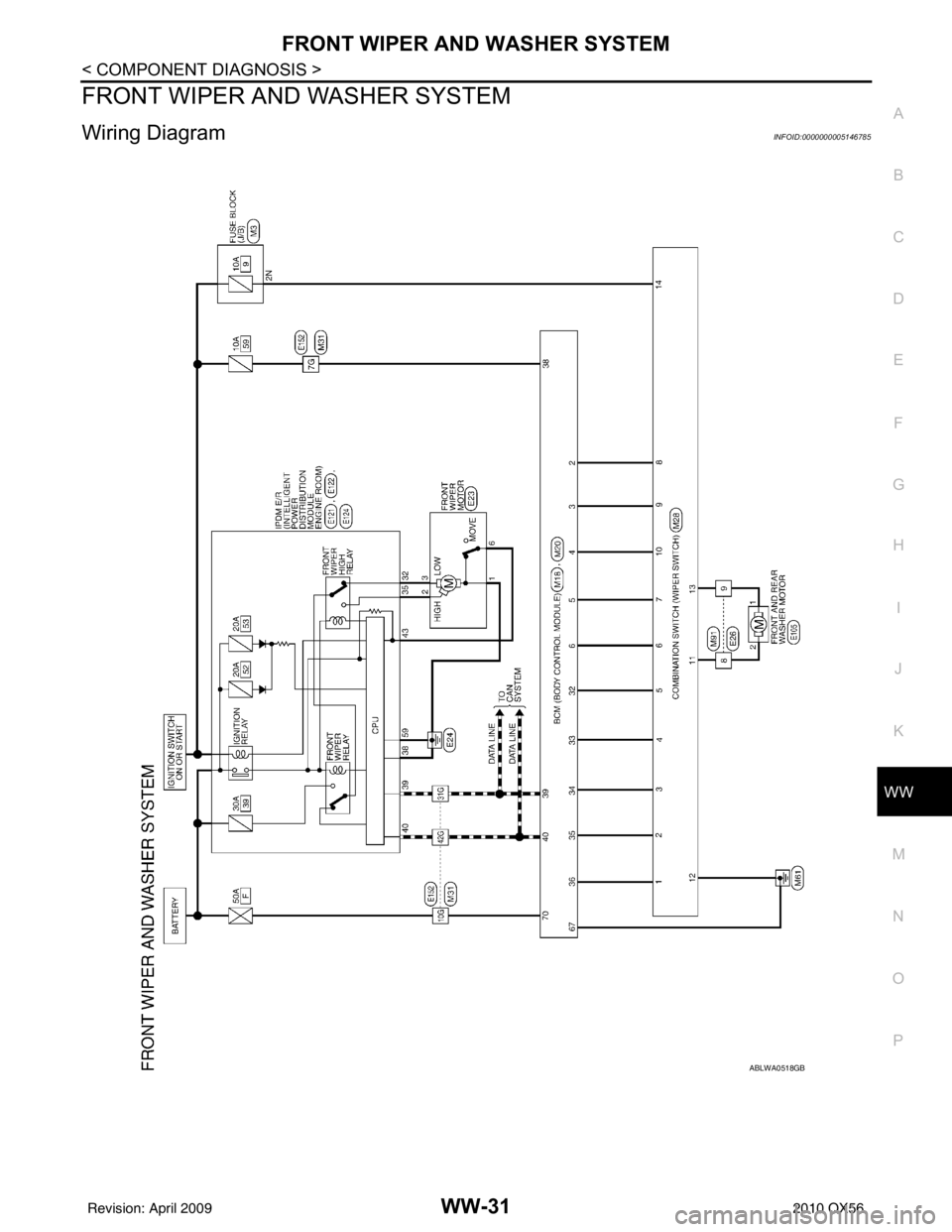

FRONT WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000005146785
ABLWA0518GB
Revision: April 20092010 QX56

REAR WIPER AND WASHER SYSTEMWW-35
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

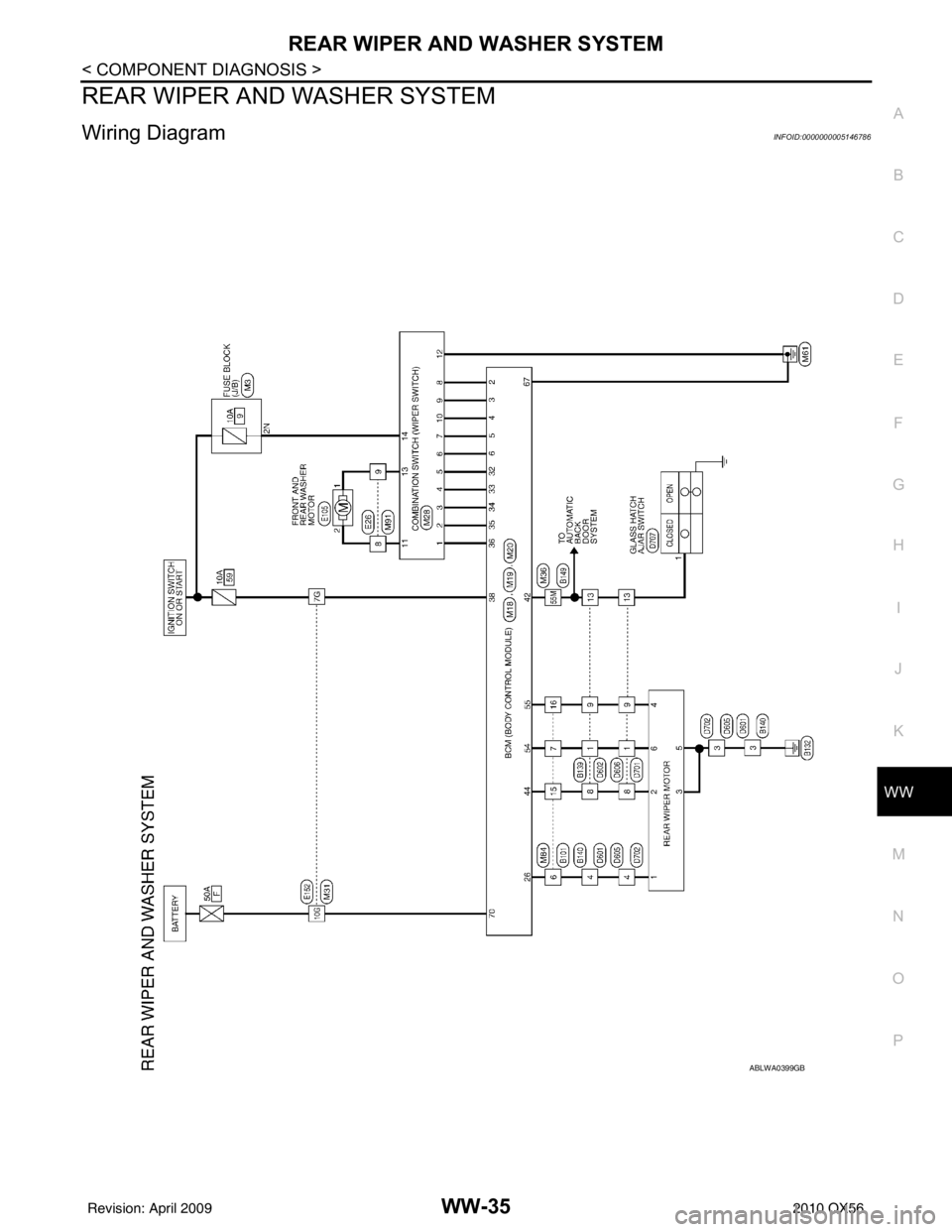

REAR WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000005146786
ABLWA0399GB
Revision: April 20092010 QX56

WW-50
< ECU DIAGNOSIS >

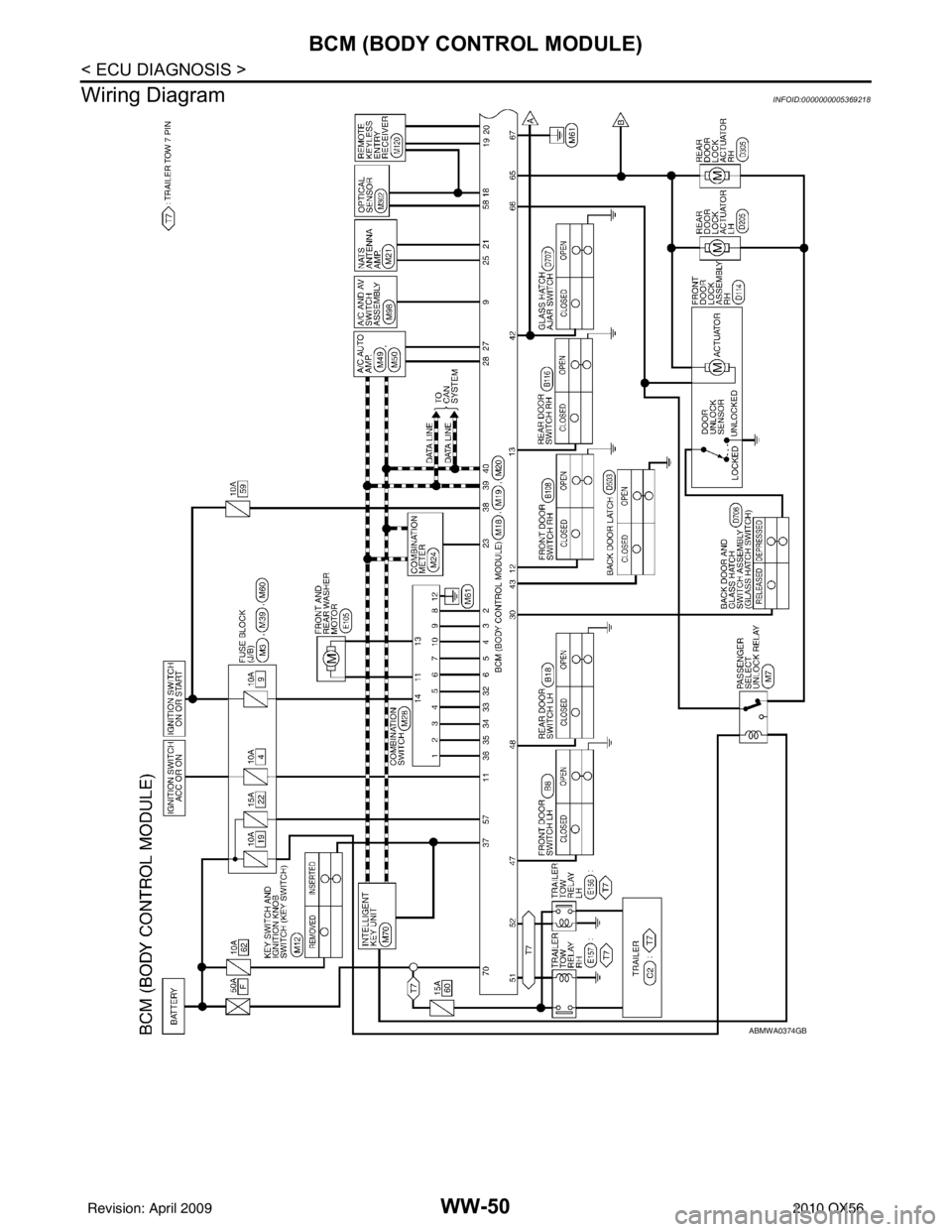

BCM (BODY CONTROL MODULE)
Wiring Diagram
INFOID:0000000005369218
ABMWA0374GB
Revision: April 20092010 QX56

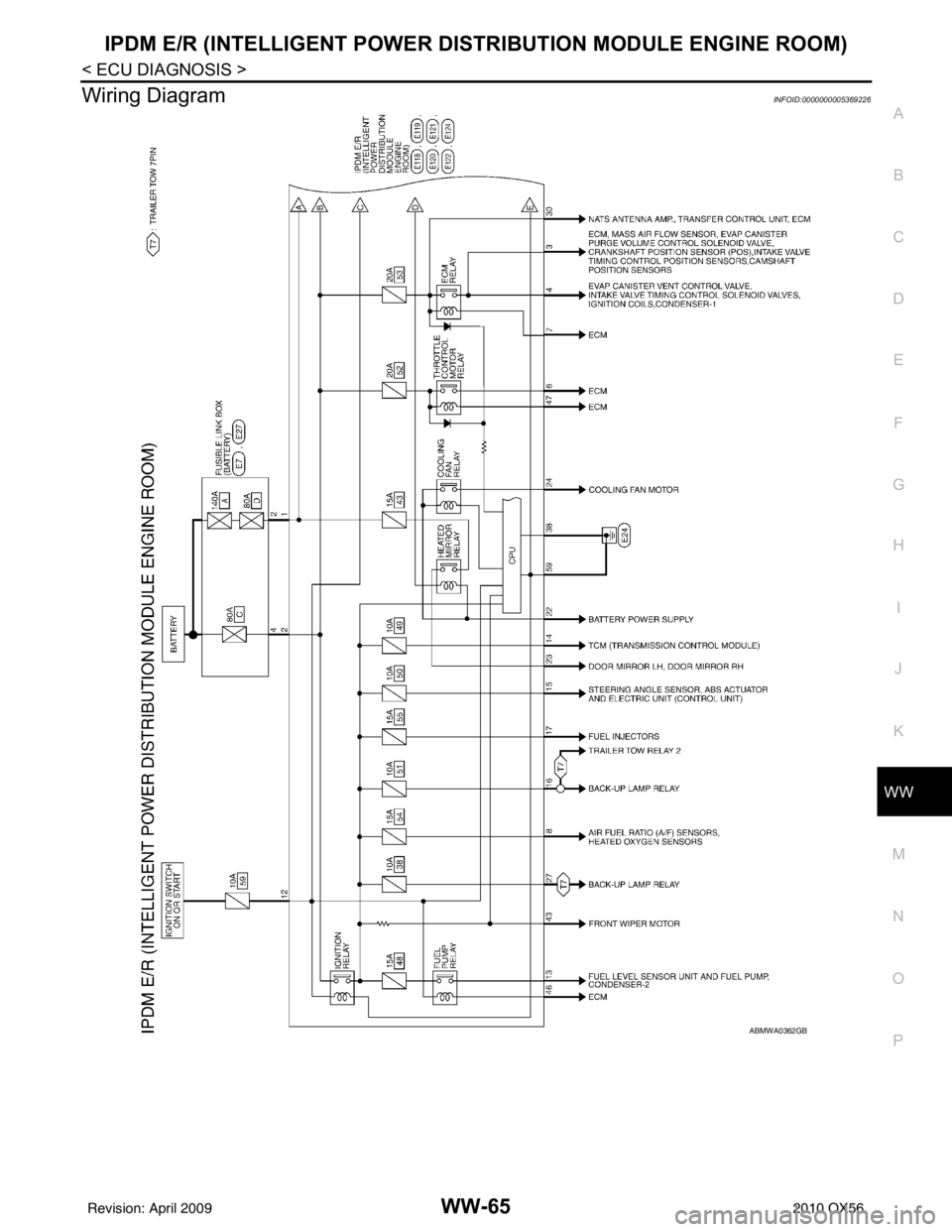

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WW-65
< ECU DIAGNOSIS >
C
D E
F
G H
I
J
K
M A
B
WW
N
O P
Wiring DiagramINFOID:0000000005369226
ABMWA0362GB
Revision: April 20092010 QX56

FRONT WIPER DOES NOT OPERATEWW-75
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
FRONT WIPER DO ES NOT OPERATE
DescriptionINFOID:0000000005146798
The front wiper does not operate under any operation conditions.
Diagnosis ProcedureINFOID:0000000005146799
Regarding Wiring Diagram information, refer to WW-31, "Wiring Diagram".
1. CHECK WIPER RELAY OPERATION
IPDM E/R AUTO ACTIVE TEST
1. Start IPDM E/R auto active test. Refer to PCS-8, "
System Description".
2. Check that the front wiper operates at the LO/HI operation.
CONSULT-III ACTIVE TEST
1. Select "FRONT WIPER" of IPDM E/R active test item.
2. While operating the test item, check front wiper operation.
Is front wiper operation normal?
YES >> GO TO 5
NO >> GO TO 2
2. CHECK FRONT WIPER MOTOR FUSE
1. Turn the ignition switch OFF.
2. Check that the following fuse is not blown.
Is the fuse blown?
YES >> Replace the fuse after repairing the applicable circuit.
NO >> GO TO 3
3. CHECK FRONT WIPER MOTOR GROUND OPEN CIRCUIT
1. Disconnect front wiper motor.
2. Check continuity between front wiper motor harness connector and ground.
Does continuity exist?
YES >> GO TO 4
NO >> Repair or replace harness.
4. CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST LO : Front wiper LO operation
HI : Front wiper HI operation
OFF : Stop the front wiper.
Unit Location Fuse No. Capacity
Front wiper motor IPDM E/R39 30 A
Front wiper motor
GroundContinuity
Connector Terminal
E23 1 Yes
WKIA2828E
Revision: April 20092010 QX56
