TCM

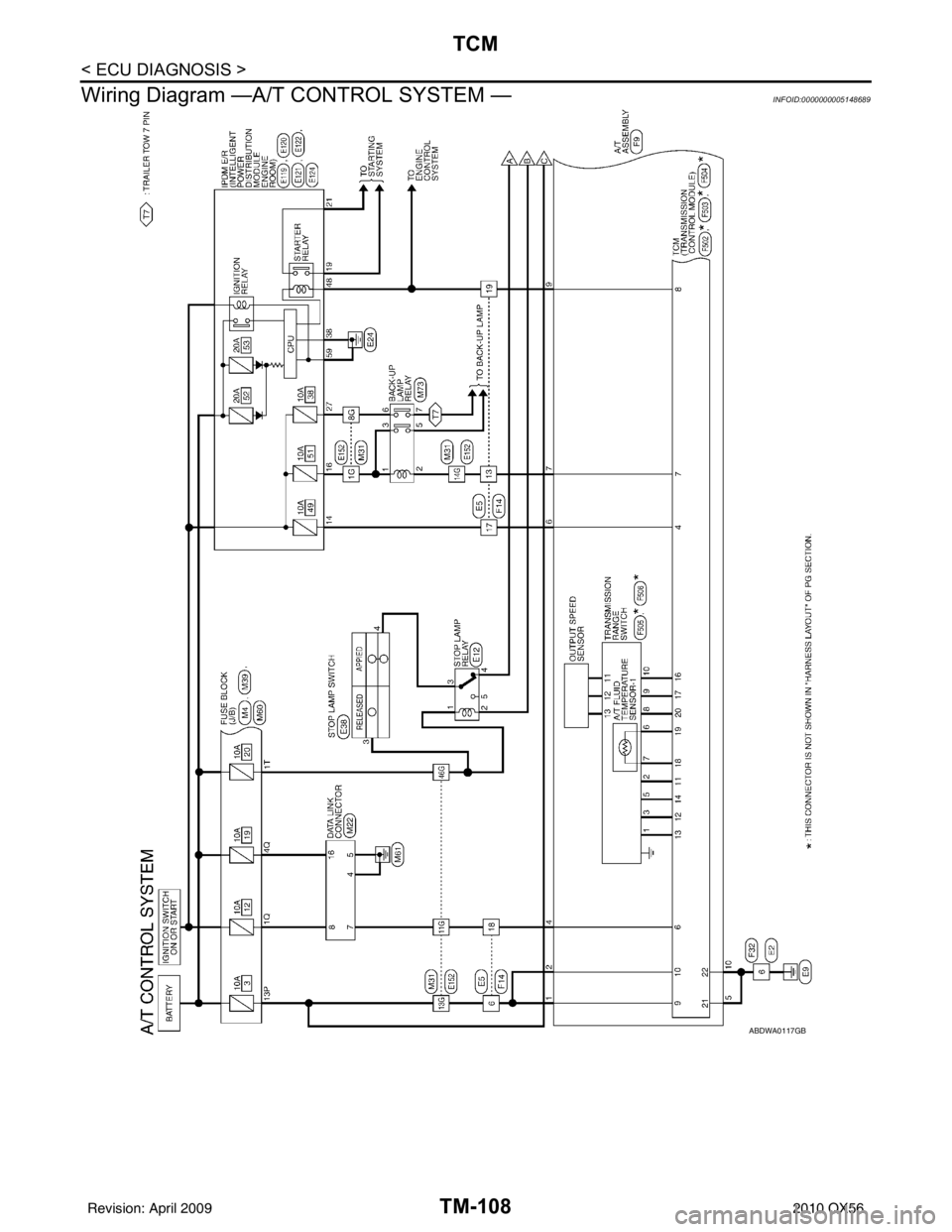

Wiring Diagram —A/T CONTROL SYSTEM —
INFOID:0000000005148689
ABDWA0117GB
Revision: April 20092010 QX56

VTL-18
< ON-VEHICLE REPAIR >
HEATER & COOLING UNIT ASSEMBLY
1. Move the two front seats to the rear most position on the seat track.
2. Disconnect the battery negative terminal and battery positive terminal.
3. Discharge the refrigerant from the A/C system. Refer to HA-20, "
HFC-134a (R-134a) Service Procedure".
4. Drain the coolant from the engine cooling system. Refer to CO-11, "
Changing Engine Coolant".
5. Disconnect the front heater hoses from the front heater core.
6. Disconnect the high/low pressure pipes from the front expansion valve.
7. Remove the instrument panel and console panel. Refer to IP-12, "
Removal and Installation".
8. Disconnect the instrument panel wire harness at the RH and LH in-line connector brackets, and the fuse block (J/B) electrical connectors. Refer to PG-9, "
Wiring Diagram — Battery Power Supply —".
9. Disconnect the steering member from each side of the vehicle body.
10. Remove the front heater and cooling unit assembly with it attached to the steering member, from the vehi-
cle.
CAUTION:
Use care not to damage the seats and interior tr im panels when removing the front heater and
cooling unit assembly with it at tached to the steering member.
11. Remove the front heater and cooling unit assembly from the steering member.
Installation
Installation is in the reverse order of removal.
CAUTION:
• Replace the O-ring of the low-pressure pipe and high-pressure pipe with a new one, and apply com-
pressor oil to it when installing it.
• After charging the refrigerant, check for leaks.
NOTE:
• Fill the engine cooling system with the specified coolant mixture. Refer to CO-11, "
Changing Engine Cool-
ant".
• Recharge the A/C system. Refer to HA-20, "
HFC-134a (R-134a) Service Procedure".
REAR HEATER AND COOLING UNIT ASSEMBLY
Removal
1. Discharge the refrigerant from the A/C system. Refer to HA-20, "HFC-134a (R-134a) Service Procedure".
2. Drain the coolant from the engine cooling system. Refer to CO-11, "
Changing Engine Coolant".
3. Remove the luggage side finisher lower and upper RH. Refer to INT-19, "
Removal and Installation".
4. Disconnect the rear heater core hoses from the rear heater core.
5. Disconnect the rear A/C pipes from the rear expansion valve.
6. Disconnect the following electrical connectors: • Rear blower motor
• Rear variable blower control
• Rear air mix door motor
• Rear mode door motor
7. Disconnect the ducts and drain tube from the rear heater and cooling unit assembly.
8. Remove the rear heater and cooling unit assembly.
Installation
Installation is in the reverse order of removal.
CAUTION:
• Replace the O-ring of the low-pressure pipe and high-pressure pipe with a new one, and apply com-
pressor oil to it when installing it.
• After charging the refrigerant, check for leaks.
NOTE:
• Fill the engine cooling system with the specified coolant mixture. Refer to CO-11, "
Changing Engine Cool-
ant".
• Recharge the A/C system. Refer to HA-20, "
HFC-134a (R-134a) Service Procedure".
Revision: April 20092010 QX56

WCS
WCS-1
DRIVER INFORMATION & MULTIMEDIA
C
DE
F
G H
I
J
K L
M B
SECTION WCS
A
O P
CONTENTS
WARNING CHIME SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................4
WARNING CHIME SYSTEM .......................... .....4
WARNING CHIME SYSTEM .......................................4
WARNING CHIME SYSTEM : System Diagram . ......4
WARNING CHIME SYSTEM : System Description
......
4
WARNING CHIME SYSTEM : Component Parts
Location ............................................................... ......
5
WARNING CHIME SYSTEM : Component De-
scription .....................................................................
5
LIGHT REMINDER WARNING CHIME ................. ......6
LIGHT REMINDER WARNING CHIME : System
Diagram .....................................................................
6
LIGHT REMINDER WARNING CHIME : System
Description ................................................................
6
LIGHT REMINDER WARNING CHIME : Compo-
nent Parts Location ...................................................
7
LIGHT REMINDER WARNING CHIME : Compo-
nent Description ........................................................
7
SEAT BELT WARNING CHIME ............................ ......7
SEAT BELT WARNING CHIME : System Diagram
......
8
SEAT BELT WARNING CHIME : System Descrip-
tion ...................................................................... ......
8
SEAT BELT WARNING CHIME : Component
Parts Location ...........................................................
9
SEAT BELT WARNING CHIME : Component De-
scription .....................................................................
9
KEY WARNING CHIME ......................................... ....10
KEY WARNING CHIME : System Diagram ............10
KEY WARNING CHIME : System Description ........10
KEY WARNING CHIME : Component Parts Loca-
tion ....................................................................... ....
11
KEY WARNING CHIME : Component Description ....11
DIAGNOSIS SYSTEM (METER) .......................12
CONSULT-III Function (METER/M&A) ....................12
DIAGNOSIS SYSTEM (BCM) ...........................14
BUZZER ................................................................. ....14
BUZZER : CONSULT-III Function (BCM - BUZZ-
ER) ..........................................................................
14
COMPONENT DIAGNOSIS .........................15
POWER SUPPLY AND GROUND CIRCUIT ....15
COMBINATION METER ........................................ ....15
COMBINATION METER : Diagnosis Procedure .....15
BCM (BODY CONTROL MODULE) ...................... ....16
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ............................................................ ....
16
METER BUZZER CIRCUIT ...............................18
Description ...............................................................18
Component Function Check ....................................18
Diagnosis Procedure ..............................................18
SEAT BELT BUCKLE SWITCH SIGNAL CIR-
CUIT ..................................................................
19
Description ...............................................................19
Component Function Check ..................................19
Diagnosis Procedure ..............................................19
Component Inspection .............................................20
KEY SWITCH SIGNAL CIRCUIT ......................21
Description ...............................................................21
Component Function Check ..................................21
Diagnosis Procedure ..............................................21
Component Inspection .............................................22
WARNING CHIME SYSTEM .............................23
Revision: April 20092010 QX56

WCS-2
Wiring Diagram .......................................................23
ECU DIAGNOSIS ..................................... ...28
COMBINATION METER ................................. ...28
Reference Value .................................................. ...28
Wiring Diagram .......................................................30
Fail Safe .................................................................47
DTC Index ..............................................................48
BCM (BODY CONTROL MODULE) ..................50
Reference Value .................................................. ...50
Terminal Layout ......................................................53
Physical Values ......................................................53
Wiring Diagram .......................................................59
Fail Safe .................................................................63
DTC Inspection Priority Chart ..............................64
DTC Index ........................................................... ...64
SYMPTOM DIAGNOSIS .............................66
THE LIGHT REMINDER WARNING DOES
NOT SOUND ................................................... ...
66
Description ........................................................... ...66
Diagnosis Procedure ...............................................66
THE SEAT BELT WARNING CONTINUES
SOUNDING, OR DOES NOT SOUND ...............
67
Description ........................................................... ...67
Diagnosis Procedure ...............................................67
THE KEY WARNING DOES NOT SOUND .......68
Description ........................................................... ...68
Diagnosis Procedure ...............................................68
PRECAUTION ............................................69
PRECAUTIONS .............................................. ...69
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
69
Necessary for Steering Wheel Rotation After Bat-
tery Disconnect .................................................... ...
69
Revision: April 20092010 QX56

WCS-4
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM
FUNCTION DIAGNOSIS
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM : System DiagramINFOID:0000000005146134
WARNING CHIME SYSTEM : System DescriptionINFOID:0000000005146135
COMBINATION METER
• The buzzer for warning chime system is installed in the combination meter.
• The buzzer sounds when the combination meter receives a buzzer output signal from each unit.
BCM
BCM receives signals from various units and transmits a buzzer output signal to the combination meter with
CAN communication line if it judges that the warning buzzer should be activated.
BCM warning function list
AWNIA0210GB
Warning functions Signal name
Light reminder warning chime • Lighting switch position signal
• Door switch signal
Seat belt warning chime Seat belt buckle switch signal
Key warning chime • Key switch signal
• Door switch signal
Revision: April 20092010 QX56

WCS-6
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM
LIGHT REMINDER WARNING CHIME
LIGHT REMINDER WARNING CHIME : System DiagramINFOID:0000000005146138
LIGHT REMINDER WARNING CHIME : System DescriptionINFOID:0000000005146139
DESCRIPTION
With ignition switch in OFF or ACC position, driver door open, and lighting switch in 1ST or 2ND position, the
light warning chime will sound.
• BCM detects ignition switch in OFF or ACC position, front door switch LH ON, and lighting switch in 1ST or2ND position. And then transmits buzzer output signal (light reminder warning chime) to combination meter
with CAN communication line.
• When combination meter receives buzzer output signal ( light reminder warning chime), it sounds the buzzer.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled• Lighting switch is at 1st or 2nd position
• Ignition switch is at OFF or ACC
• Front door switch LH is ON
WARNING CANCEL CONDITIONS
Warning is canceled if any of the following conditions is fulfilled.
• Lighting switch OFF
• Ignition switch ON
• Front door switch LH is OFF
Seat belt buckle pre-tensioner as-
sembly LH (seat belt buckle
switch)Transmits a seat belt buckle switch signal to the combination meter.
Combination switch
(Lighting switch) Transmits the lighting switch position signal to BCM.
Front door switch LH Transmits the door switch signal to BCM.
Unit
Description
WKIA5465E
Revision: April 20092010 QX56

WCS-8
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM
SEAT BELT WARNING CHIME : System Diagram
INFOID:0000000005146142
SEAT BELT WARNING CHIME : System DescriptionINFOID:0000000005146143
DESCRIPTION
With ignition switch turned ON and driver seat belt unfastened, seat belt warning chime will sound for approxi-
mately 6 seconds.
• BCM receives seat belt buckle switch signal from combination meter with CAN communication line.
• BCM detects ignition switch turned ON and seat belt buckle switch LH ON. And then transmits buzzer output signal (seat belt warning chime) to combination meter with CAN communication line.
• When combination meter receives buzzer output signal (seat belt warning chime), it sounds the buzzer.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled• Ignition switch OFF→ON
• Seat belt buckle switch LH is ON (driver seat belt not fastened)
WARNING CANCEL CONDITIONS
Cancels the warning if any of the following conditions is fulfilled.
• Ignition switch OFF
• Seat belt buckle switch LH is OFF (driver seat belt fastened)
AWNIA0156GB
Revision: April 20092010 QX56

WCS-10
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM
KEY WARNING CHIME
KEY WARNING CHIME : System DiagramINFOID:0000000005146146
KEY WARNING CHIME : System DescriptionINFOID:0000000005146147
WHEN MECHANICAL KEY IS USED
With the key inserted into the key switch, and the ignition switch in the LOCK or ACC position, when driver's
door is opened, the warning chime will sound.
• BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter with CAN communication line.
• When combination meter receives key warning signal, it sounds the warning chime.
WHEN INTELLIGENT KEY IS CARRIED WITH THE DRIVER
Refer to DLK-6, "Work Flow".
WKIA5464E
Revision: April 20092010 QX56
