COURTESY LIGHTS
(where provided) fig. 42
Lights Bby the side of the courtesy
mir-
ror will light up when cover Aon the sun
visor on driver’s or passenger’s side is
raised with the key at MAR. The lights al-
lows to use the courtesy mirror also
in
poor conditions of light.
IMPORTANT The lights may only be op-
erated for 15 minutes when the key is
turned to stop STOP. They will be au-
tomatically switched off after this to pro-
tect the battery charge.
fig. 41F0R0044mfig. 42
B
B
A
F0R0216m
BOOT LIGHT (where provided)
fig. 41
For versions fitted with boot light, it will
turn on automatically when opening the
tailgate and it will turn off at closing.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 56LINEA Owner HAND BOOK RHD.pdf 568/21/09 2:16:06 PM8/21/09 2:16:06 PM

57
CONTROLS
HAZARD LIGHTS fig. 43
They turn on by pressing switch A, r e -
gardless of the position of the ignition key.
When the device is on, the switch is flash-
ing and warning lights e on the pan-
el come blink.
Press the switch again to turn the lights
off.
The use of hazard lights is governed by the
Highway Code of the country you are in.
Keep to the rules.FRONT FOG LIGHTS
(where provided) fig. 44
To turn front fog lights on, press button
, to activate these lights it is necessary
to have the side/taillights switched on.
The warning light on the instrument
cluster will come on at the same time.
Press the button again to turn the lights off.
The use of fog lights is governed by the
Highway Code of the country you are in.
Keep to the rules.
REAR FOG LIGHTS fig. 45
Press button to turn these lights on
providing the dipped beam headlights or
the front fog lights (where provided) are
switched on.
The warning light on the instrument
panel will light up.
Either press the button again or switch the
dipped beam headlights and/or fog lights
(where provided) off.
The use of fog lights is governed by the
Highway Code of the country you are in.
Keep to the rules.
fig. 43F0R0047m
fig. 44F0R0048mfig. 45F0R0049m
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 57LINEA Owner HAND BOOK RHD.pdf 578/21/09 2:16:07 PM8/21/09 2:16:07 PM

58
DOOR LOCK fig. 47
To open: pull lever A.
To close: close the door and press lever
A. Also the rear doors will be locked in
this way (centralised door locking system).
Warning light will light up with the cor-
responding message on the multifunctional
display (see chapter “ Warning lights and
Messages”).
fig. 46F0R0035m
HEATED REAR WINDOW
(where provided) fig. 46
Press button Ato switch the device on.
The device will be switched off automati-
cally after approximately 20 minutes. PARKING LIGHTS
These lights can only be turned on with ig-
nition key at STOPor removed, by mov-
ing the left stalk knurled ring first to Oand
then to position or .
The warning light
on the instrument
panel will come on at the same time.
fig. 47F0R0023m
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 58LINEA Owner HAND BOOK RHD.pdf 588/21/09 2:16:07 PM8/21/09 2:16:07 PM

59
Door unlocking in the event
of a crash
If the fuel cut-off switch trips following an
accident, the doors will be automatically
unlocked to let you leave the car and the
ceiling lights will be switched on at the
same time. The doors can always be
opened from the inside of the car by
means of the specific levers.
Proceed as follows if no fuel leakage is
found and and the car is in condition to be
driven to rearm the fuel cut-off switch.FUEL CUT-OFF SWITCH
The car is fitted with a safety switch that
in the event of a crash comes into opera-
tion by cutting off fuel and turning off the
engine as a consequence.
This device therefore prevents fuel
leaks
due to fuel piping breaking.
IMPORTANT After the accident,
re-
member to remove the electronic key
from the ignition device to prevent drain-
ing the battery.The message “FPS on” will appear on the
digital display when the switch trips. The
mess ag e “F ue l cu t of f swi tch , see ha nd-
book” will appear on the multifunctional
display.
If, after a crash, you smell fu-
el or see leaks from the fuel
system, do not reset the switch to
avoid fire risk.
WARNING
If the centralised door lock-
ing system was operated
from inside the car and the fuel cut-
off switch did not manage to auto-
matically release the doors, it will not
be possible to access the passenger
compartment from the outside after
an accident. The possibility of open-
ing the doors from the outside de-
pends on the conditions of the doors
themselves after the accident: if may
not be possible to open a damaged
door. In this case, try to open the oth-
er doors of the car.
WARNING
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 59LINEA Owner HAND BOOK RHD.pdf 598/21/09 2:16:07 PM8/21/09 2:16:07 PM

60
fig. 50F0R0077m
fig. 49F0R0104m
fig. 51F0R0078m
INTERIOR FITTINGS
ODDMENT DRAWER fig. 49-50
To open the drawer operate handle A-
fig. 49.
Inside the drawer there is a space A-fig.
50to keep documents.
ODDMENT COMPARTMENTS
Oddment compartment A-fig. 51, is lo-
cate d on the dashb oard, on the left of
the steering wheel. Re-arming the fuel cut-off switch
Before resetting the fuel cut-
off switch carefully inspect
the car for fuel leaks.
WARNING
To reset the fuel cut-off switch, press but-
ton A-fig. 48.
fig. 48F0R0208m
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 60LINEA Owner HAND BOOK RHD.pdf 608/21/09 2:16:07 PM8/21/09 2:16:07 PM

61
DOOR POCKETS fig. 54
Paper/map pockets are located in door
panels.FRONT ARMREST WITH
ODDMENT COMPARTMENT
(where provided)
Certain versions are fitted with armrest
A-fig. 55between the front seats.
To use it, push it down as sho wn in
fig. 56.
Press button A-fig. 56to raise the up-
per part of the arm rest and access com-
partment B. Operate lever Cto move the
armrest down with respect to the posi-
tion of normal use.

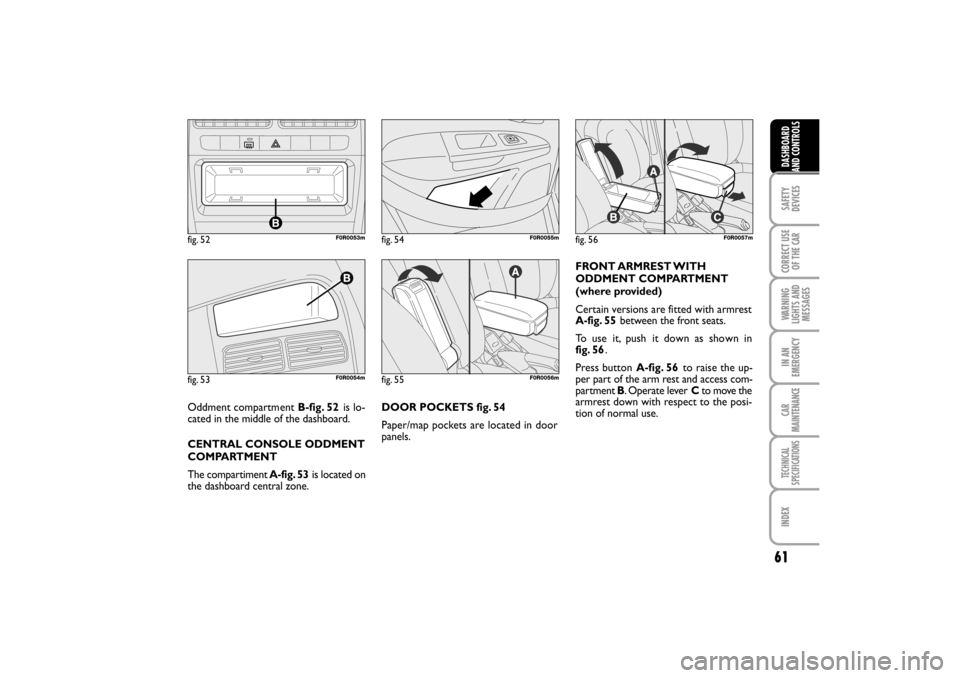

fig. 52F0R0053m
