2010 FIAT LINEA RHD Owners Manual

Bulb Ref. figure Type Power
Main beam headlights
Dipped beam headlights
Front sidelights
Front fog lights (where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Side/taillights (Parking lights)
Brake lights
Third brake light (additional brake light)
Reversing light
Rear fog lights
Number plate light
Front ceiling light with spot lights
Rear ceiling light with movable lens
Boot light H1U55W
H755W
W5W
H1U55W
PY21W
WY5W
PY21W
R5W
P21W
W5W
P21W
P21W
W5W
10W x 2
10W
W5W D
D
A
–
B
A
B
B
B
B
–
–
A
C
C
A55W
55W
5W
55W
21W
5W
21W
5W
21W
5W
21W
21W
5W
10W
10W
5W
120
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 120LINEA Owner HAND BOOK RHD.pdf 1208/21/09 2:16:19 PM8/21/09 2:16:19 PM

IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT LIGHT CLUSTERS
fig. 8
The front light clusters contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs.
The
bulbs are arranged inside the light unit
as follows:
Amain beam
Bside lights (Parking lights)
Cdipped beam (two lights)
Ddirection indicators. SIDELIGHTS (Parking lights) fig. 9
To change the bulb, proceed as follows:
remove the clipped-on cover;
press tabs Band remove the bulb
holder;
remove the bulb Cand replace it;
refit the bulb holder and refit the cap
and check that it is locked properly.
fig. 8
CBD
A
F0R0220mfig. 9F0R0221m
121
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 121LINEA Owner HAND BOOK RHD.pdf 1218/21/09 2:16:19 PM8/21/09 2:16:19 PM

DIPPED BEAM HEADLIGHTS
fig. 10
To change the bulb, proceed as follows:
remove the clipped-on cover;
disconnect the central electric connec-
tor and release the bulb holder catch;
remove the bulb Band replace it;
fit the new bulb, making the outlines of
the metallic part coincide with the
grooves on the reflector;
refit the bulb holder catch and reconnect
the electrical connector;
refit the protection and check that it
is correctly locked.MAIN BEAM HEADLIGHTS
fig. 11
To change the bulb, proceed as follows:
remove the clipped-on cover;
disconnect the central electric connec-
tor and release the bulb holder catch;
remove the bulb Band replace it;
refit the new bulb;
refit the bulb holder catch and reconnect
the electrical connector;
refit the protection and check that it
is correctly locked.DIRECTION INDICATORS
Front fig. 11/a
To change the bulb, proceed as follows:
steer the right/left wheel outwards as
shown in the figure;
turn the catch as shown by the arrow,
then use the lid;
remove the bulb holder cover by turn-
ing it anticlockwise;
fig. 10F0R0222mfig. 11/aF0R0224mfig. 11F0R0223m
122
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 122LINEA Owner HAND BOOK RHD.pdf 1228/21/09 2:16:19 PM8/21/09 2:16:19 PM

extract the bulb Dby pressing it slight-
ly and turning it anticlockwise (bayonet
locking) then replace it;
refit the cover/bulb holder Cby turning
it clockwise and locking it properly;
close the lid and turn the fastening de-
vice.
Side fig. 12
To change the bulb, proceed as follows:
work on the lens Ato compress the in-
ternal catch B, then pull the unit out-
wards;
turn the bulb holder Canticlockwise,
extract the clipped-on bulb Dand re-
place it;
refit the bulb holder Cin the lens and
turn it clockwise;
refit the unit making sure that the in-
ternal catch Bclips into position.FRONT FOG LIGHTS
(where provided)
Contact Fiat Dealership to have front
fog lights A-fig. 13replaced.REAR LIGHT CLUSTERS
fig. 14-15
Rear light cluster contain taillights, brake
light, direction indicators and rear fog light
bulbs.
The bulbs are arranged inside the
light unit as follows:
Abrake lights (two lights)
Btaillights
Crear fog lights
Ddirection indicators
Ereversing light.
fig. 12F0R0226mfig. 14
D
ABC
E
F0R0227mfig. 13F0R0114m
123
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 123LINEA Owner HAND BOOK RHD.pdf 1238/21/09 2:16:19 PM8/21/09 2:16:19 PM

fig. 15/aF0R0228m
fig. 16F0R0230m
To change the bulb proceed as follows:

open the tailgate and loosen the two fastening screws
disconnect the central electric connector and pull the lens unit out-
wards;
release the clips Fand extract the bulb holders;
remove the bulb to replace A, B, Cor D pushing it slightly and
turning it anticlockwise (bayonet-type bulb) and replace it;

refit the bulb holder and refasten the clips F;
to replace the rear fog light, release the clips H-fig. 16, remove
the protection and replace the bayonet bulb.
reconnect the electrical connector, reposition the cluster correct-
ly on the body and then tighten the fastening screws G.
fig. 15/bF0R0229m
124
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 124LINEA Owner HAND BOOK RHD.pdf 1248/21/09 2:16:20 PM8/21/09 2:16:20 PM

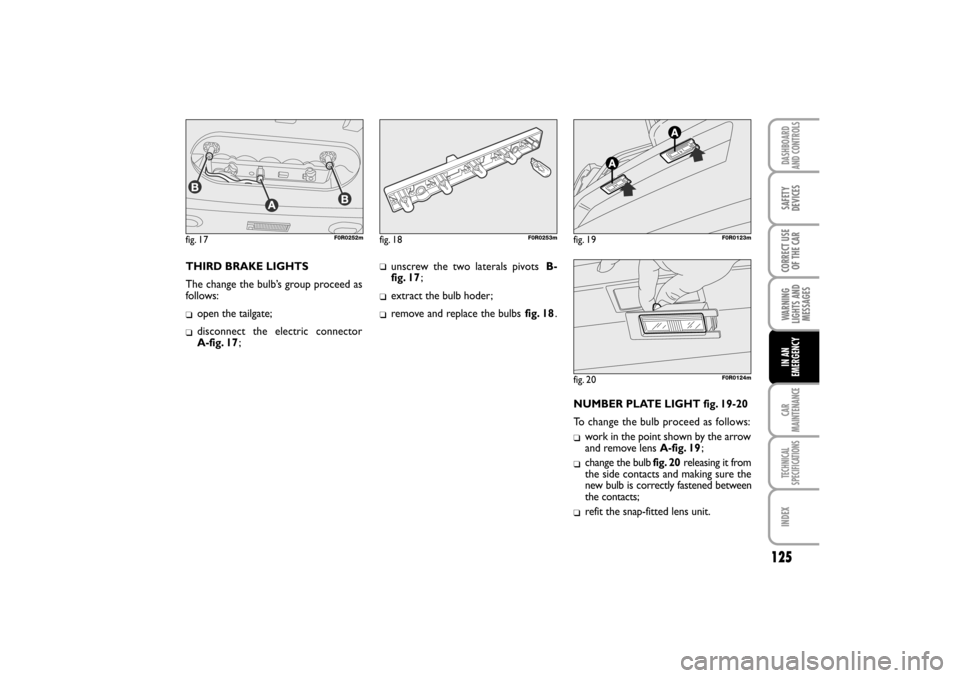

THIRD BRAKE LIGHTS
The change the bulb’s group proceed as
follows:
open the tailgate;

disconnect the electric connector
A-fig. 17;unscrew the two laterals pivots B-
fig. 17;
extract the bulb hoder;
remove and replace the bulbs fig. 18.
NUMBER PLATE LIGHT fig. 19-20
To change the bulb proceed as follows:

work in the point shown by the arrow
and remove lens A-fig. 19;
change the bulb fig. 20releasing it from
the side contacts and making sure the
new bulb is correctly fastened between
the contacts;
refit the snap-fitted lens unit.
fig. 17F0R0252mfig. 18F0R0253mfig. 19F0R0123m
fig. 20F0R0124m
125
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 125LINEA Owner HAND BOOK RHD.pdf 1258/21/09 2:16:20 PM8/21/09 2:16:20 PM

IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:


work in the points shown by the ar-
rows and remove light A-fig. 21;
open the protection lid B-fig. 22;
replace bulbs Creleasing them from the
side contacts; make sure that new bulbs
are correctly clamped between contacts;
re-close the lid B-fig. 22and secure light
A-fig. 21into its housing locking it
properly.
REAR CEILING LIGHT
(where provided)
To replace the bulbs proceed as follows:

work in the points shown by the ar-
rows and remove light D-fig. 23;
open the protection lid E-fig. 24;change the bulb F-fig. 24releasing it
from the side contacts and making sure
the new bulb is correctly fastened be-
tween the contacts;re-close the protection lid E-fig. 24
and secure light D-fig. 23into its hous-
ing locking it properly.
fig. 21F0R0115m
fig. 22F0R0117m
fig. 23F0R0116m
fig. 24F0R0118m
126
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 126LINEA Owner HAND BOOK RHD.pdf 1268/21/09 2:16:20 PM8/21/09 2:16:20 PM

COURTESY LIGHT fig. 25
To change the bulb proceed as follows:

open the mirror cover A;
extract lens Blevering in the points
shown by the arrow;
delicately lift the bulb holder Cfrom its
seat, extract the clipped-on bulb and re-
place it;
correctly reposition the bulb holder C
in its seat;
refit the light Binserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place.BOOT LIGHT fig. 26
To change the bulb, proceed as follows:
open the tailgate;
remove the light Alevering in the point
shown by the arrow;
open the protection Band replace the
snap-fitted bulb;
re-close the protective cover Bon the
lens;
refit the light Ainserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place.
fig. 25F0R0233mfig. 26F0R0234m
127
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
(where provided)
