DESK/BOOKREST fig. 107
(for versions/markets where provided)
There is a desk A in the middle of the dashboard above
the sound system compartment; on some versions this
desk can be used as a bookrest by raising the back
section and resting it on the dashboard as illustrated in
the figure.
On versions with passenger side air bags, the desk is
fixed.
Do not use the desk in a vertical position
with the vehicle in motion.
WARNING
SHELF ABOVE THE CAB fig. 108
(for versions/markets where provided)
This is located above the driver’s cab and is designed to
store light objects.
Maximum permitted load:
– localised .........................................................................10 kg
– distributed over the entire surface of the shelf ....20 kg
F0N0058mfig. 107F0N0190mfig. 108
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 96
Page 98 of 286
97
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CAB GLOVE COMPARTMENT fig. 109
(for versions/markets where provided)
The storage compartment is fitted above the sun visors
and is designed for the quick storage of light objects
(e.g. documents, road maps etc.).FLAP ON BENCH fig. 110
(for versions/markets where provided)
To use, the pull tab A and lower the flap.
The flap is equipped with two cup holders and a support
surface with a paper holder clip.
F0N0191mfig. 109F0N0149mfig. 110
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 97
Page 99 of 286

98
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0217mfig. 111F0N0214mfig. 112
The rear view display is adjusted in mirror mode. When
not in use, it must be closed in the upper oddments
compartment console area.
ACTIVATION
The system is activated with the ignition on and reverse
engaged or by means of a dedicated button. If the
vehicle is in motion, e.g. during a reversing manoeuvre,
the system will operate up to a speed of 15 km/h and go
off when a speed of approximately 18 km/h is exceeded.
When reverse is deactivated, the image will appear on
the display for a further 5 seconds. TV CAMERA SYSTEM AND REAR VISIBILITY
DISPLAY
(for versions/markets where provided)
The parking TV camera system fig. 111 allows the driver
a view of the scene behind the vehicle by means of
a display A-fig. 112 in the passenger compartment.
The system consists of a TV camera installed in a plastic
casing on the rear roof crossmember, which also
includes a third brake light and a display in a plastic
casing housed in the upper glove compartment console
area.
The display has buttons (On/Off, brightness, backlight);
to use them, operate the release button and move to
the open position.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 98
Page 100 of 286

99
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
GENERAL WARNINGS
Area of visibility
The area of visibility may vary according to the vehicle
position (full load condition included), according to the
vehicle specification and according to weather
conditions (high brightness, rain, snow and fog). Visibility
may be reduced during poor lighting or full load
conditions.

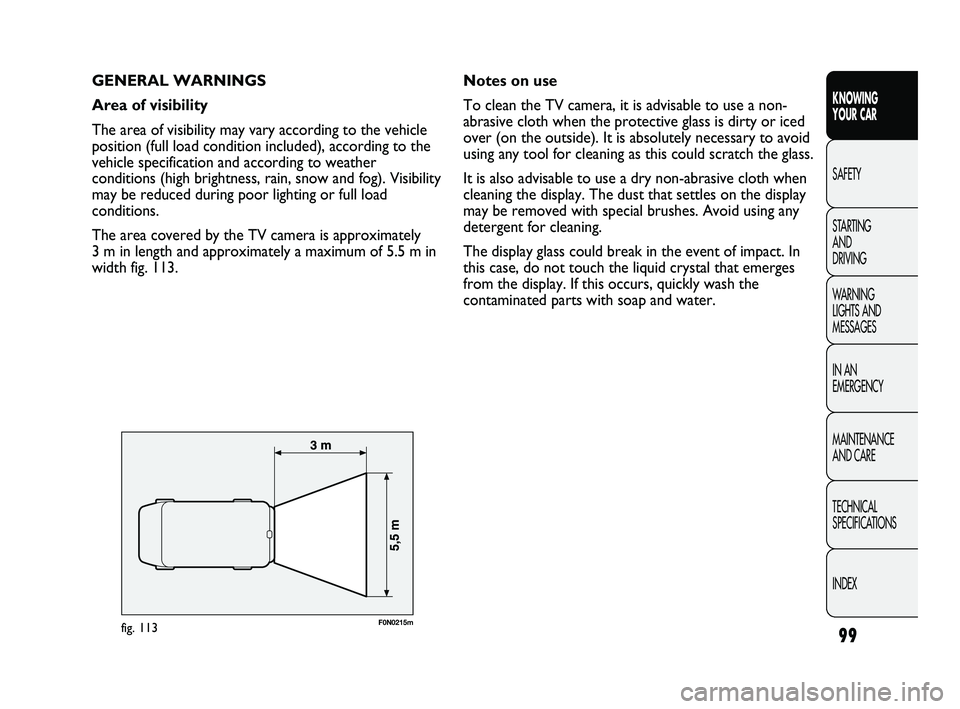

The area covered by the TV camera is approximately
3 m in length and approximately a maximum of 5.5 m in
width fig. 113.
F0N0215mfig. 113
Notes on use
To clean the TV camera, it is advisable to use a non-
abrasive cloth when the protective glass is dirty or iced
over (on the outside). It is absolutely necessary to avoid
using any tool for cleaning as this could scratch the glass.
It is also advisable to use a dry non-abrasive cloth when
cleaning the display. The dust that settles on the display
may be removed with special brushes. Avoid using any
detergent for cleaning.
The display glass could break in the event of impact. In
this case, do not touch the liquid crystal that emerges
from the display. If this occurs, quickly wash the
contaminated parts with soap and water.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 99
Page 101 of 286

100
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0216mfig. 114
MESSAGES ON THE SCREEN
Messages are shown on the display under the following
conditions:
❒An alert message is displayed during the 5 seconds
following reverse engagement.
❒When a speed of approximately 18 km/h is exceeded
and only the activation button is ON, the image
disappears and a message reporting that the system
has gone into stand-by mode is displayed for
approximately 5 seconds.
❒When a speed of approximately 18 km/h is exceeded
and reverse gear is engaged, the image disappears
and an alert message is displayed that remains until
the speed drops to approximately 15 km/h. In this
case, the image is displayed again.
The system makes it possible to change the language in
which the text messages are displayed. For this
selection, with the system deactivated, press the
ON/OFF button and any other button simultaneously
and then select the language by scrolling through the
menu using the ON/OFF button. When the desired
language is reached, wait for about 3 seconds so that it
is programmed. USER INTERFACE
The display user interface consists of fig. 114:
❒Brightness adjustment: 2 buttons;
❒Backlight adjustment: 2 buttons;
❒ON/OFF button: this allows images from the TV
camera to be seen even with reverse gear not
engaged.
The system makes it possible to return to the initial
configuration, keeping the ON/OFF button pressed for
approximately 3 seconds with the system deactivated.
In this case, the ON/OFF button flashes twice to
confirm the operation.
037-128 DUCATO LUM EN 7ed 6/21/10 2:10 PM Page 100
Page 102 of 286

101
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
TACHOGRAPH
For tachograph operation and use, consult the owner
handbook supplied by the device manufacturer.
The tachograph must be installed on the vehicle when
the vehicle weight (with or without trailer) exceeds
3.5 tons.
IMPORTANT Anyone making changes to the
monitoring device or signal transmission system that
affects recording by the monitoring instrument,
particularly if this is done for purposes of fraud, may be
in breach of criminal or administrative state regulations.
IMPORTANT If a tachograph is fitted, if the vehicle is
parked for more than 5 days, it is advisable to
disconnect the negative battery terminal to maintain its
charge.
IMPORTANT NOTES
Do not use abrasive detergents or solvents to clean the
device. To clean the outside of the device, use a damp
cloth or special products for the care of synthetic
materials.The tachograph is installed and sealed by authorised
personnel: do not try and access the device or the
supply and recording leads in any way. It is the
responsibility of the owner of the vehicle on which the
tachograph is installed to check the device regularly.
The check must be carried out at least every two years
and a test must be carried out to ensure that it is
working properly. Ensure that the data label is renewed
after every check that that the label contains the
specified data.
